Daikin ATXF35F ARXF35F Air Conditioner 12000Btu 3.5KW WiFi Siesta Pro Era V3.0 A++/A+ Inverter R32 White

Daikin ATXF35F ARXF35F Air Conditioner 12000Btu 3.5KW WiFi Siesta Pro Era V3.0 A++/A+ Inverter R32 White

Daikin model Siesta Pro Era V3.0 2025 - ATXF-F ARXF-F
Made in Europe

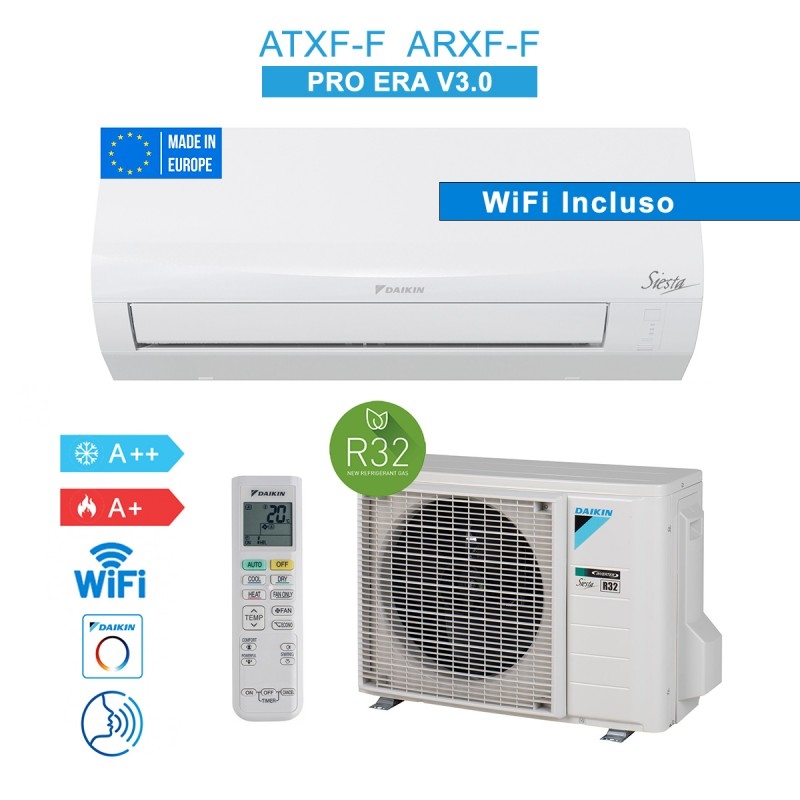

12,000 BTU Air Conditioning Kit, consisting of the internal unit ATXF35F, the external motor ARXF35F, and the remote control

Wall unit with excellent value for money
Wi-Fi Board Included

____

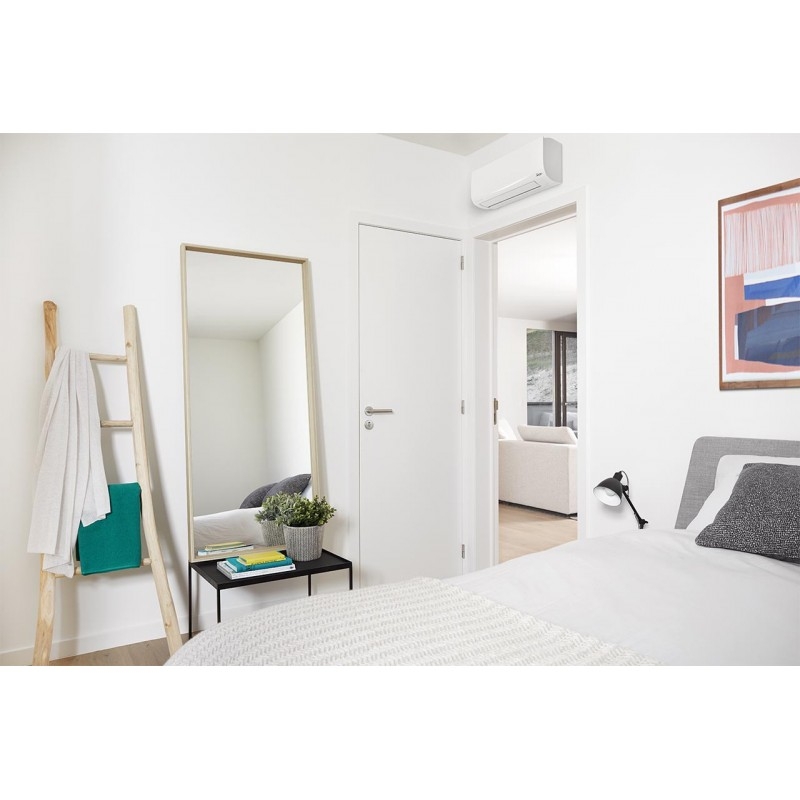

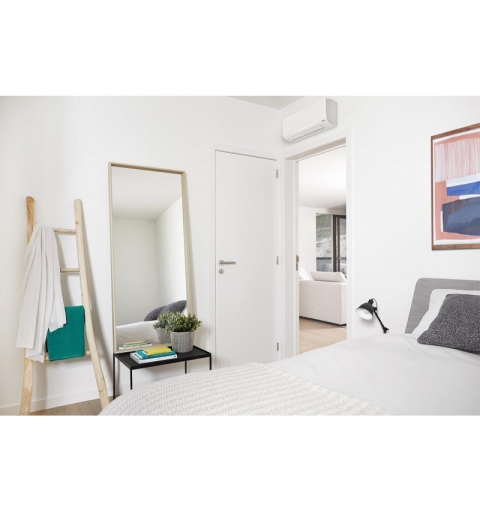

The flat and elegant front panel easily blends with any type of décor and is easier to clean. The Wi-Fi allows control of the internal unit from anywhere via app, local network, or Internet. Seasonal efficiency values up to A++ class in cooling. The choice of an R-32 product reduces environmental impact by 68% compared to R-410A systems and results in a direct reduction in energy consumption thanks to high energy efficiency.

Product Features

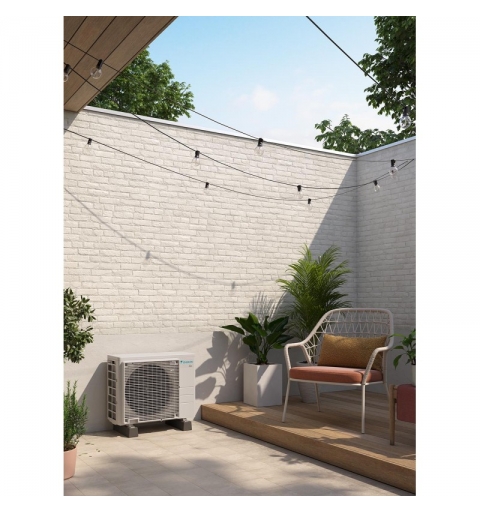

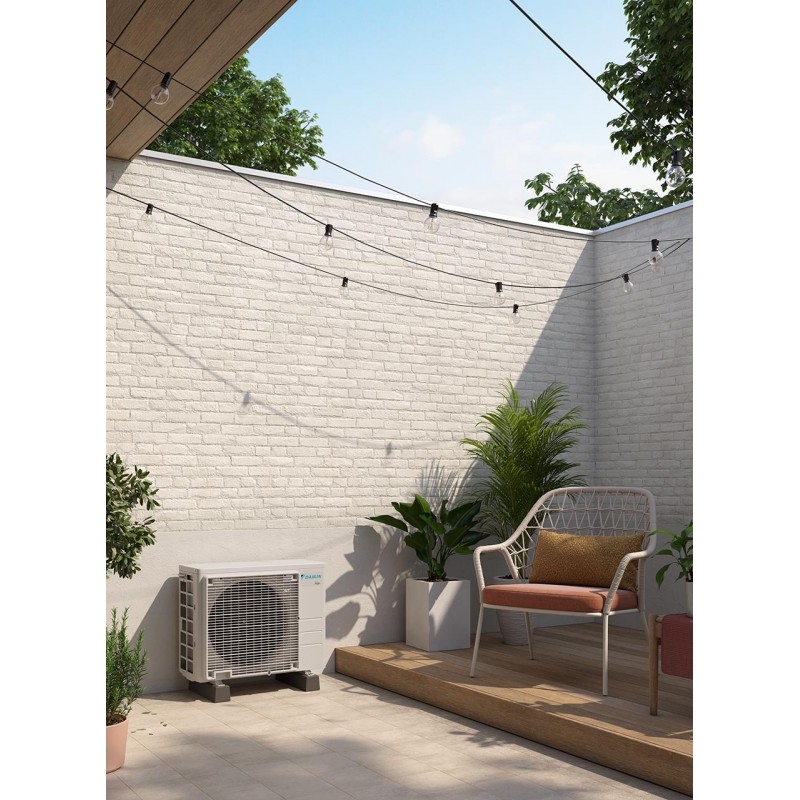

• Daikin outdoor units are well-built and durable, easily installed on a roof, terrace, or simply against an external wall
• Daikin outdoor units are equipped with a heat exchanger with anti-corrosion treatment (blue fin) ensuring great resistance to the harshest weather conditions
• The choice of an R-32 product reduces environmental impact by 68% compared to R-410A systems and results in a direct reduction in energy consumption thanks to high energy efficiency
• Onecta: control your internal units from anywhere via app, local network, or Internet and monitor energy consumption
• Silent operation down to only 20 dBA

Technical Features

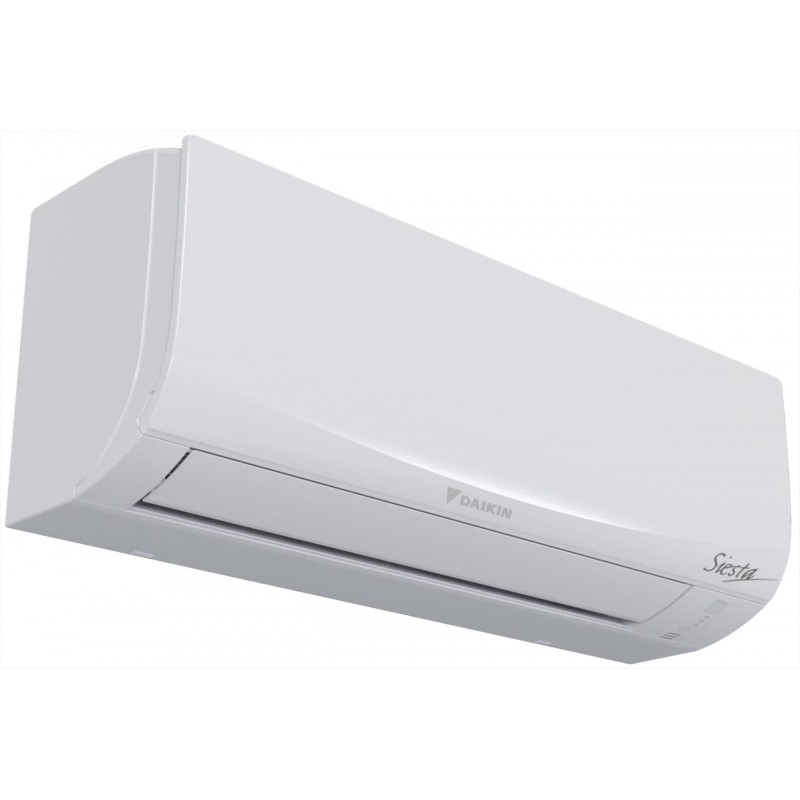

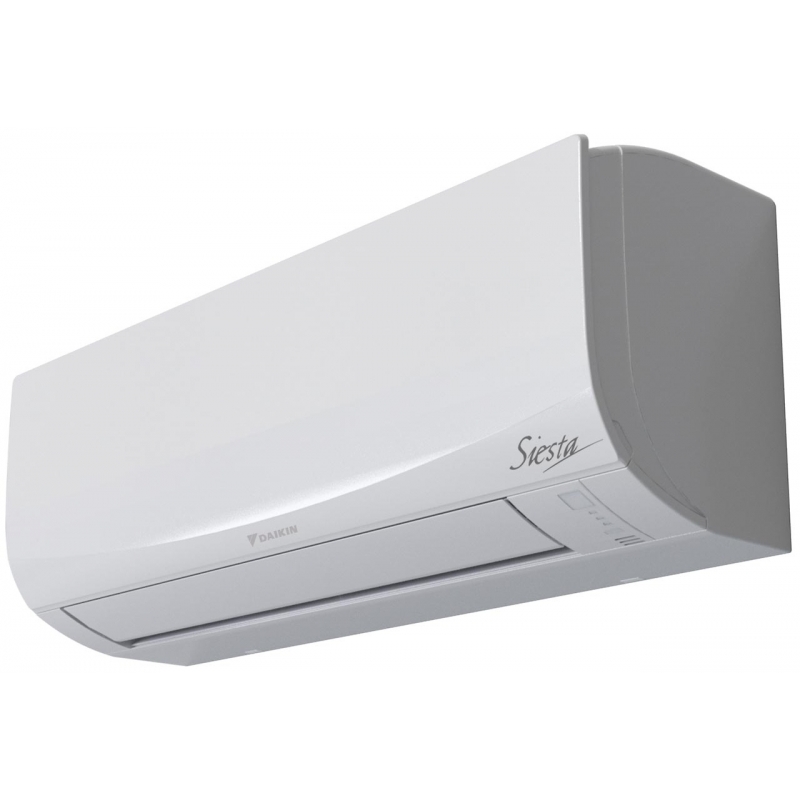

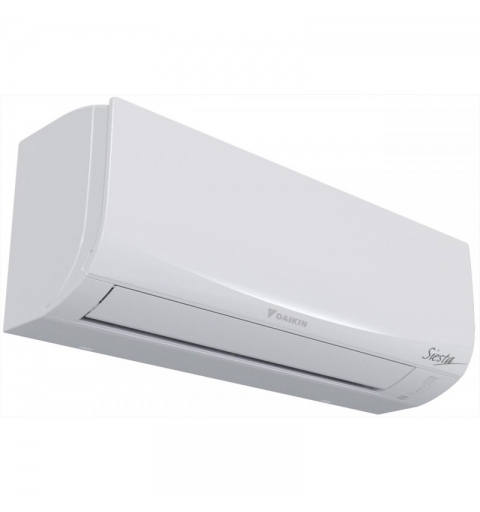

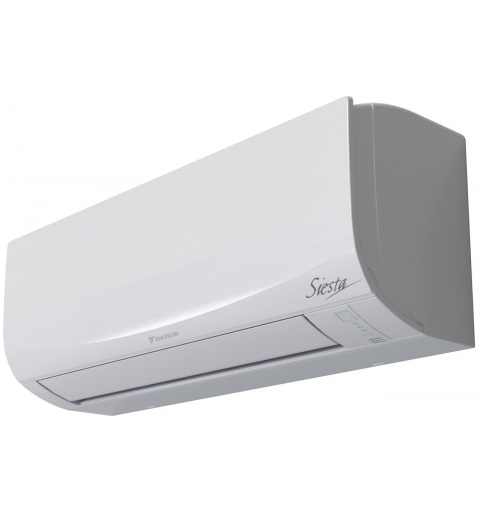

• Internal unit catalog code: ATXF35F

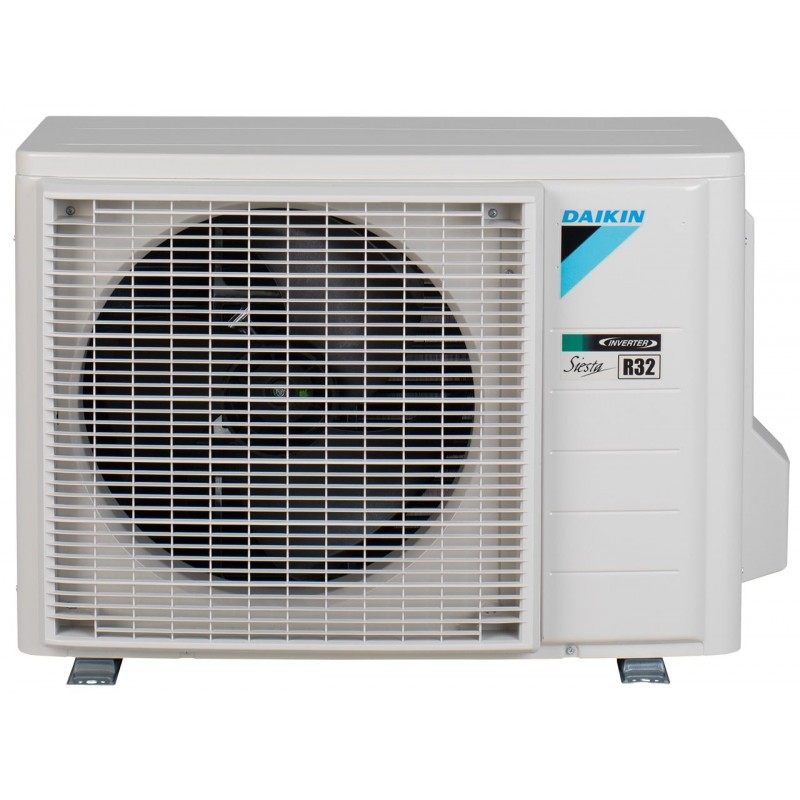

• External unit catalog code: ARXF35F
• Power: 12000 BTU
• Integrated Wi-Fi

Technical Specifications

Cooling Capacity

• Min. 1.3 kW
• Nom. 3.3 kW
• Max. 3.8 kW

Heating Capacity

• Min. 1.3 kW
• Nom. 3.5 kW
• Max. 4.4 kW

Nominal Efficiency

• COP: 3.72
• EER: 3.27

Energy Class

• Cooling: A++
• Heating: A+

Annual Energy Consumption

• Cooling: 191 kWh

Technical Specifications Indoor Unit

Power Consumption

• Cooling (Nominal): 1.01 kW
• Heating (Nominal): 0.94 kW

Casing

• Colour: White

Dimensions

• Height: 286 mm
• Width: 770 mm
• Depth: 225 mm

Weight

• Unit: 8.5 kg

Fan

• Airflow Cooling:
  • High: 11.5 m³/min
  • Medium: 8 m³/min
  • Low: 6.4 m³/min
  • Silent mode: 4.4 m³/min

Sound Power

• Cooling: 54.0 dBA

Sound Pressure Level

• Cooling:
  • High: 43.0 dBA
  • Medium: 34.0 dBA
  • Low: 27.0 dBA
  • Silent mode: 20.0 dBA
• Heating:
  • High: 40.0 dBA
  • Medium: 35.0 dBA
  • Low: 29.0 dBA
  • Silent mode: 21.0 dBA

Piping Connections

• Liquid: 6 mm
• Gas: 9.5 mm

Filter

• Type: Removable / Washable

Control Systems

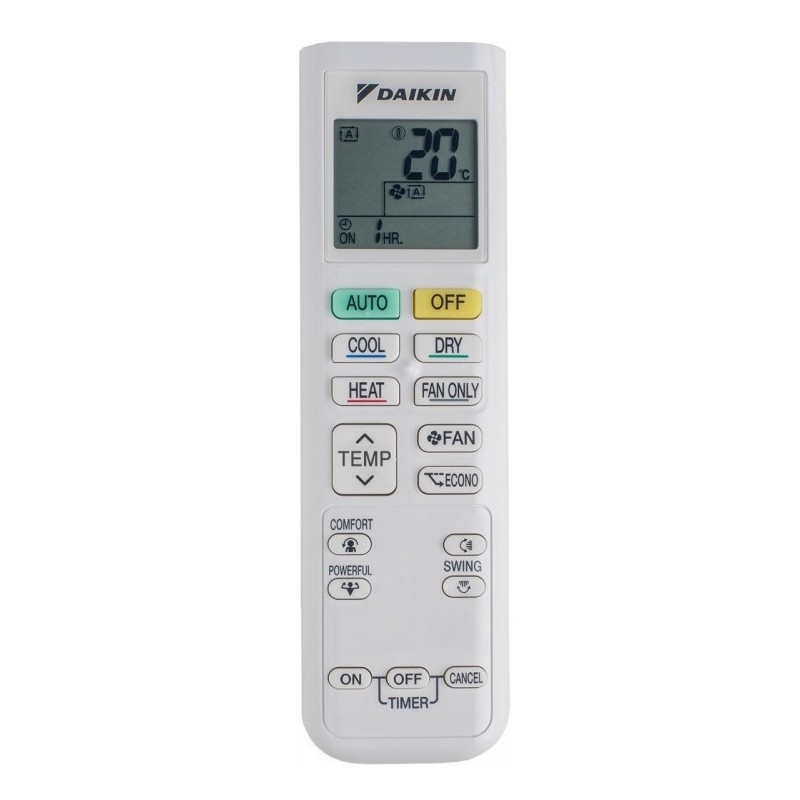

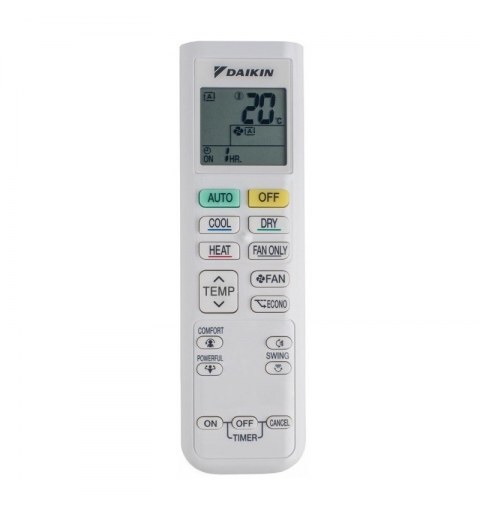

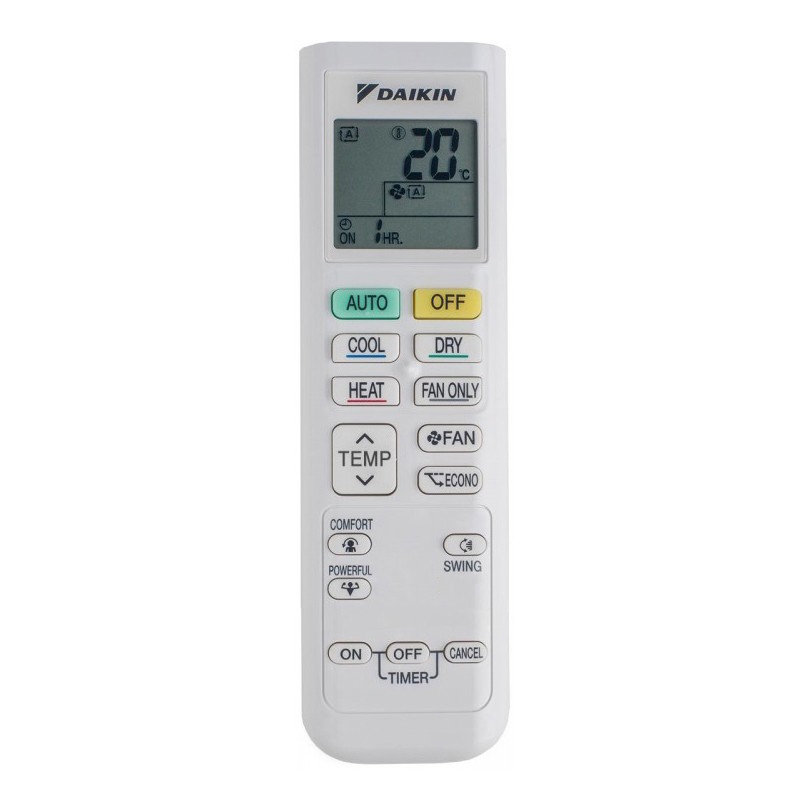

• Infrared Remote Control: ARC480A93

Standard Accessories

• Installation Manual: 1
• User Manual: 1
• General Safety Instructions: 1
• Infrared Remote Control: 1
• AAA Dry Batteries: 2
• Remote Control Holder: 1
• Mounting Plate: 1
• Internal Unit Mounting Screws: 2

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-440 V

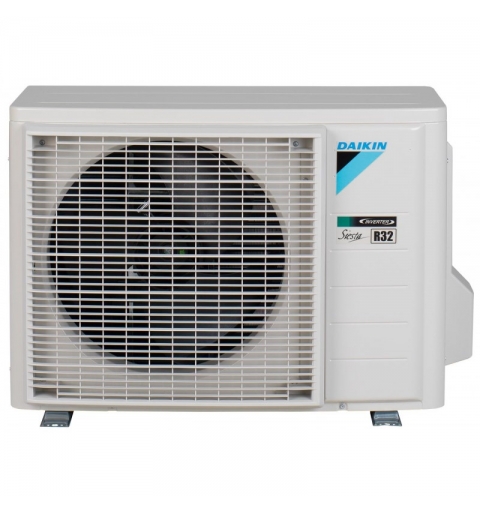

Technical Specifications Outdoor Unit

Dimensions

• Height: 556 mm
• Width: 740 mm
• Depth: 343 mm

Weight

• Unit: 24 kg

Operating Range

• Cooling:
  • Min. Outdoor Temperature: -10°C
  • Max. Outdoor Temperature: 48°C
• Heating:
  • Min. Outdoor Temperature: -15°C
  • Max. Outdoor Temperature: 24°C

Sound Pressure Level

• Cooling: High: 48 dBA
• Heating: High: 62 dBA

Refrigerant

• Type: R-32
• Charge: 0.42 kg
• GWP: 675.0

Piping Connections

• Max Length (Indoor to Outdoor): 20 m
• Additional Refrigerant Charge: 0.02 kg/m (for piping lengths over 10 m)
• Maximum Elevation Difference (Indoor - Outdoor): 12.0 m

Standard Accessories

• Installation Manual: 1
• Drain Cap: 1
• Refrigerant Charge Label: 1
• Multilingual Labels for Fluorinated Greenhouse Gases: 1
• General Safety Instructions: 1

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V (16A Maximum Fuse Rating)
