Daikin model Siesta Pro Era V3.0 2025 - ATXF-F ARXF-A9
Made in Europe

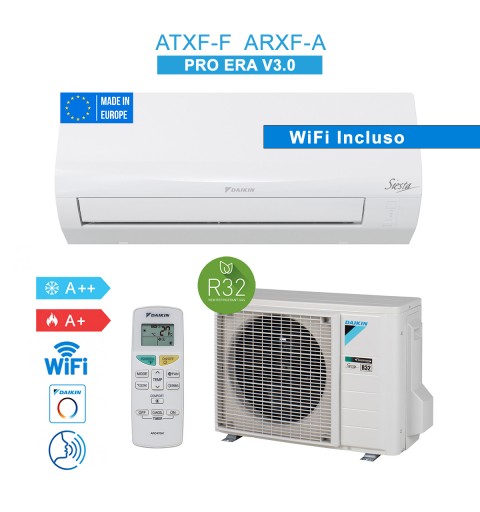

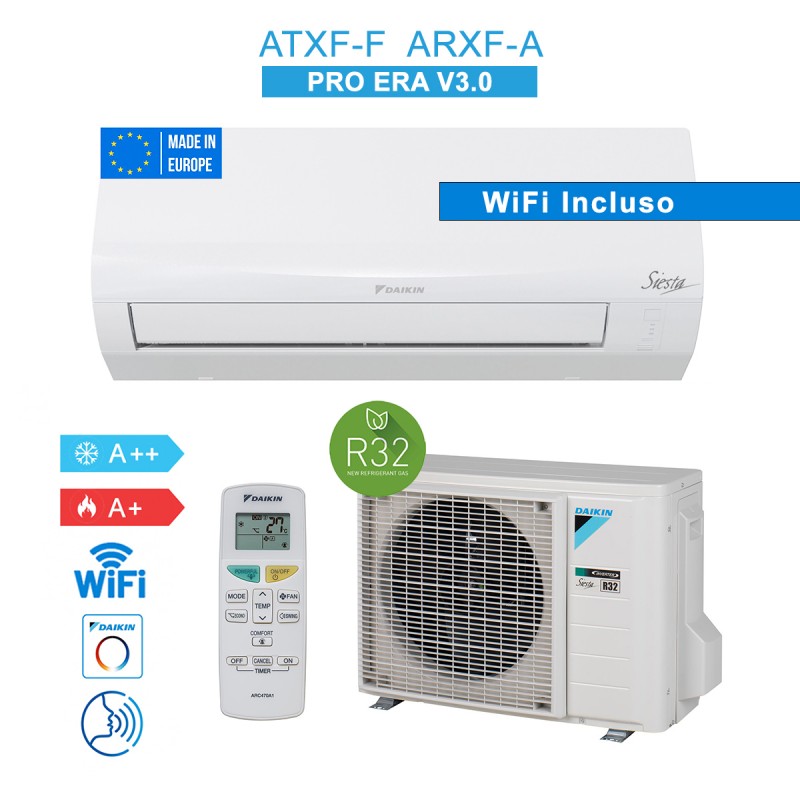

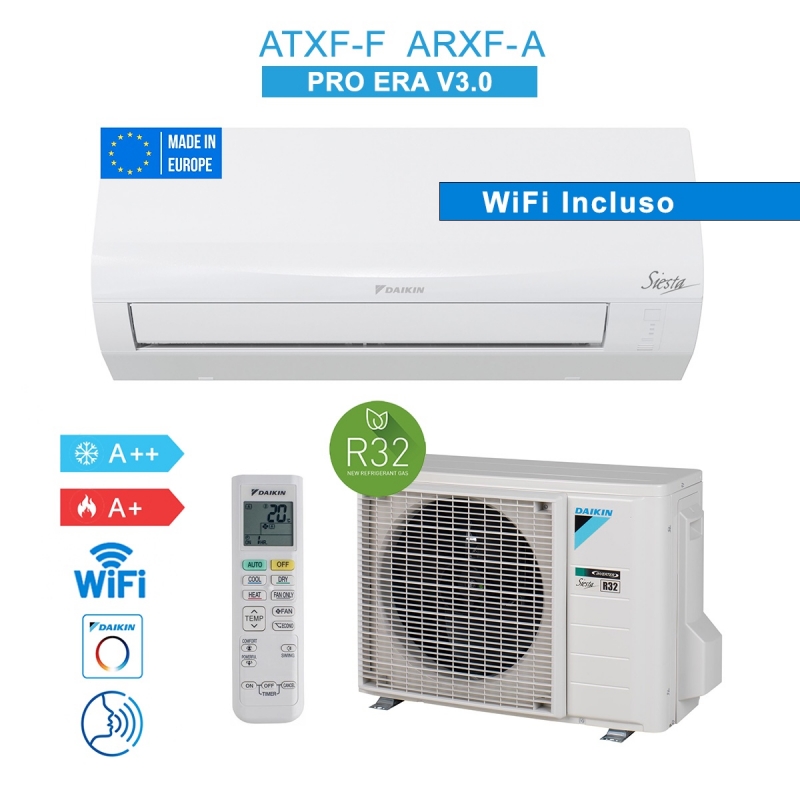

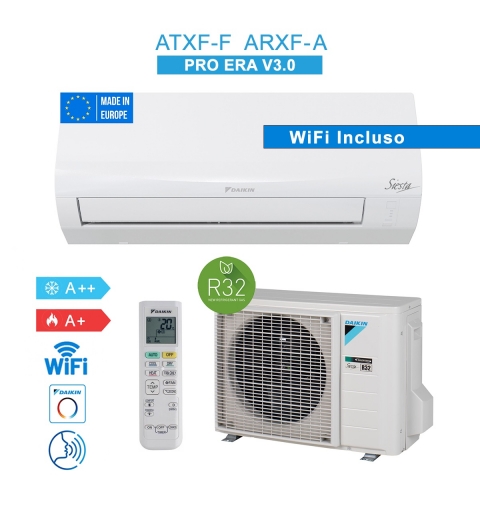

Air Conditioner Kit 21000 btu, consisting of the internal unit ATXF60F, the external motor ARXF60A9, and the remote control

Wall-mounted unit with excellent value for money
Wi-Fi card included in the package

____

The flat and elegant front panel easily blends with any type of decor and is easier to clean. The Wi-Fi feature allows control of the internal unit from anywhere via app, local network, or the Internet. Seasonal efficiency values up to class A++ for cooling. Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and directly reduces energy consumption due to high energy efficiency.

Product Features

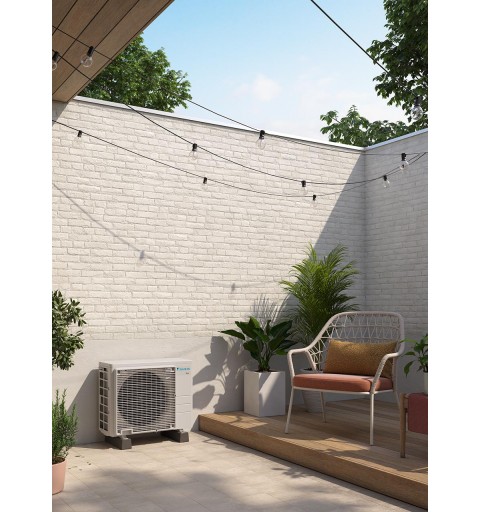

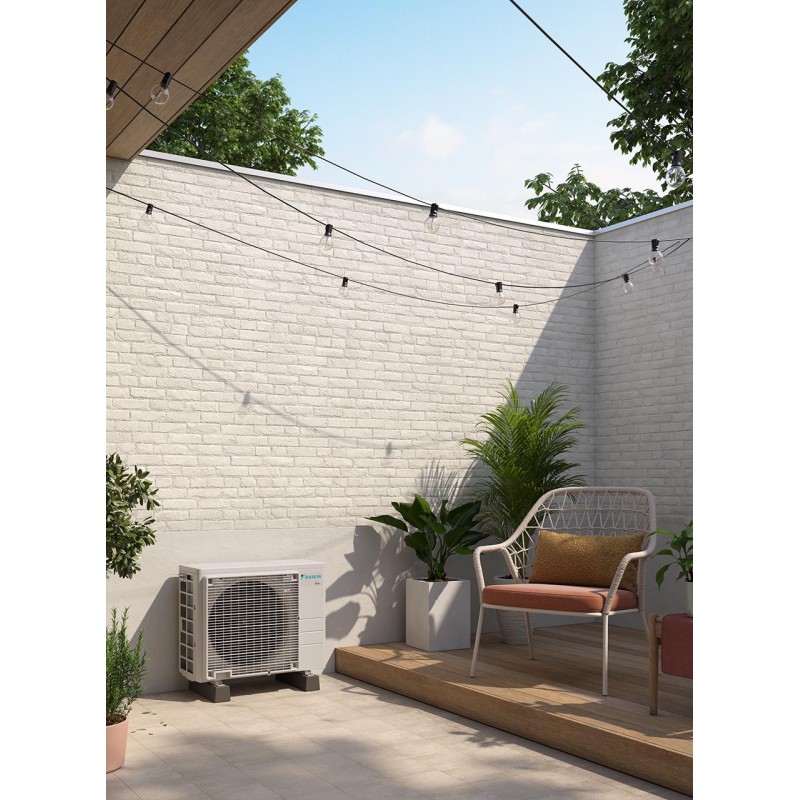

• Daikin external units are well-designed and sturdy, easily installed on a roof or terrace, or simply against an external wall
• Daikin external units are equipped with a heat exchanger with anti-corrosion treatment (blue fin) that ensures great resistance to harsh weather conditions
• Choosing an R-32 product reduces the environmental impact by 68% compared to R-410A systems and directly reduces energy consumption thanks to high energy efficiency
• Onecta: control your internal units from anywhere via app, local network, or the Internet, and monitor energy consumption
• Silent operation down to just 20 dBA

Technical Specifications

• Internal unit catalog code: ATXF60F
• External unit catalog code: ARXF60A9
• Power: 21000 Btu
• Wi-Fi included

Technical Specifications

Cooling Capacity

• Min: 7 kW
• Nominal: 6 kW
• Max: 1.7 kW

Heating Capacity

• Min: 8 kW
• Nominal: 6.4 kW
• Max: 1.7 kW

Nominal Efficiency

• COP: 3.9
• EER: 3.25

Energy Class

• Cooling: A++
• Heating: A+

Annual Energy Consumption

• Cooling: 343 kWh

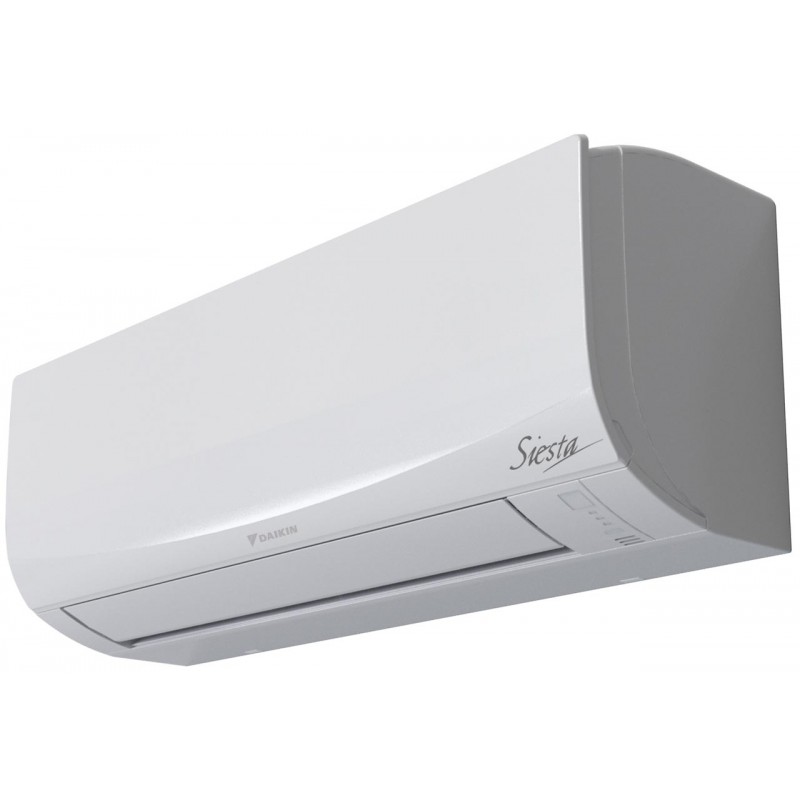

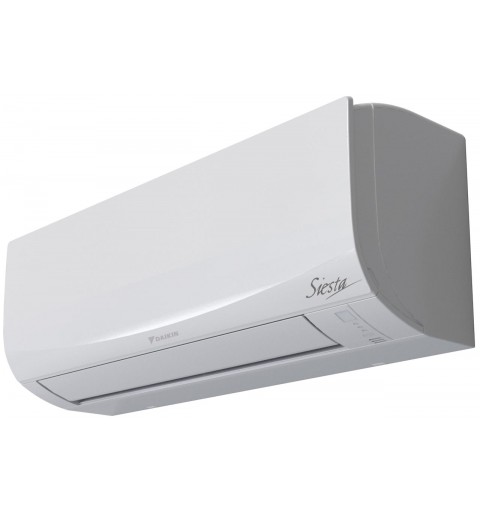

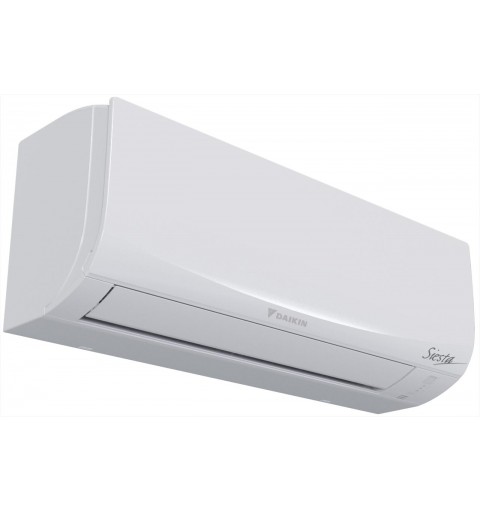

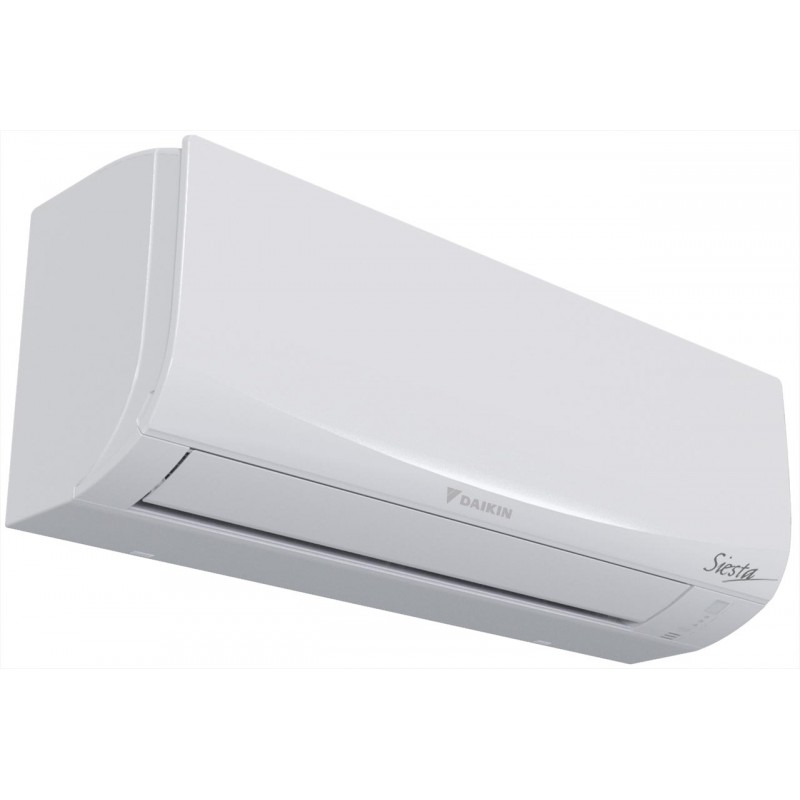

Technical Specifications of the Indoor Unit

Power Consumption

• Cooling (Nominal): 1.85 kW
• Heating (Nominal): 1.64 kW

Casing

• Colour: White

Dimensions

• Height: 295 mm
• Width: 990 mm
• Depth: 263 mm

Weight

• Unit: 13.5 kg

Fan

• Airflow (Cooling):
  • High: 17.3 m³/min
  • Medium: 14.8 m³/min
  • Low: 12.2 m³/min
  • Silent Operation: 10.7 m³/min

Sound Power

• Cooling: 60.0 dBA

Sound Pressure Level

• Cooling:
  • High: 45.0 dBA
  • Medium: 41.0 dBA
  • Low: 36.0 dBA
  • Silent Operation: 33.0 dBA
• Heating:
  • High: 44.0 dBA
  • Medium: 40.0 dBA
  • Low: 35.0 dBA
  • Silent Operation: 32.0 dBA

Piping Connections

• Liquid: 6.35 mm
• Gas: 12.7 mm

Filter

• Type: Removable / Washable

Control Systems

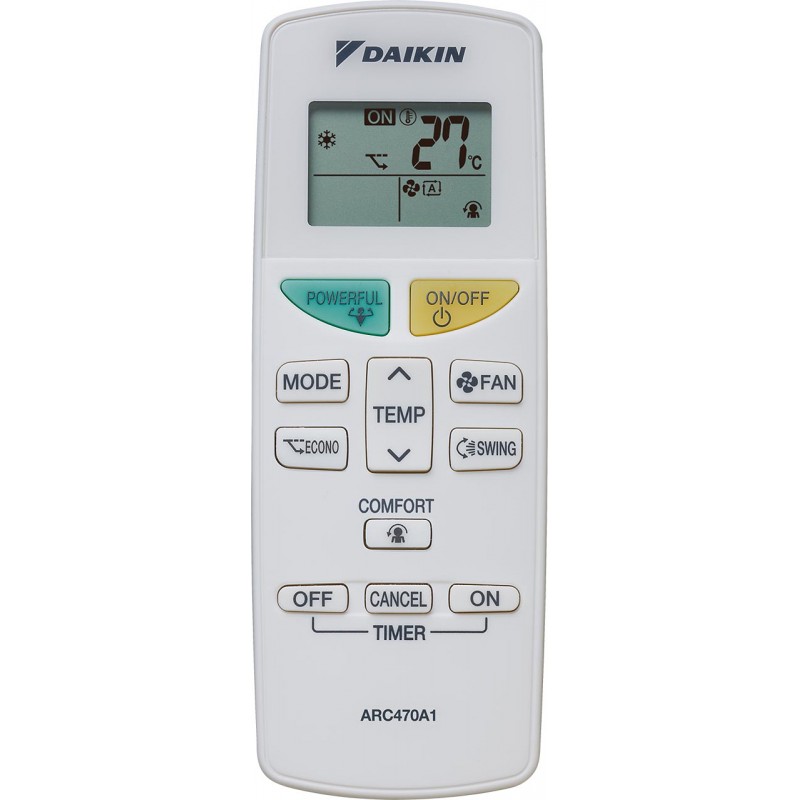

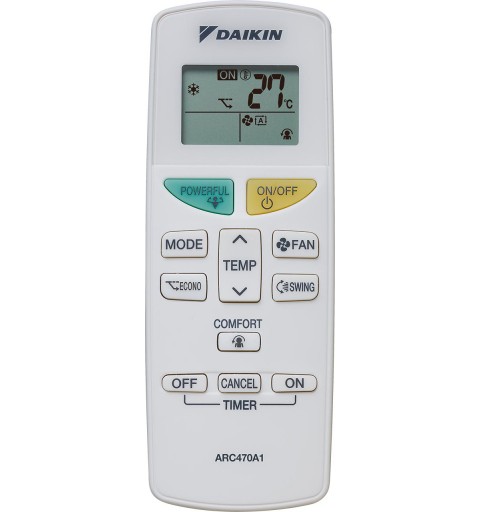

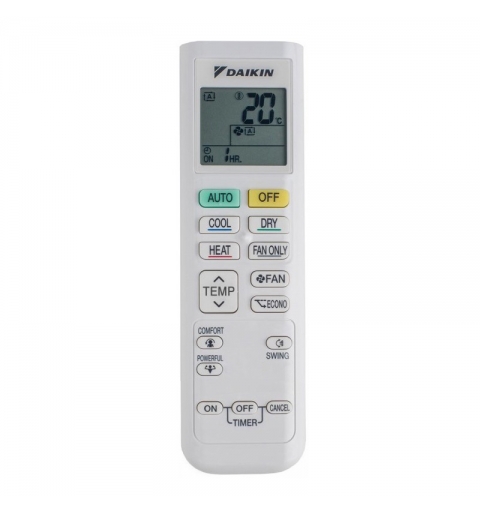

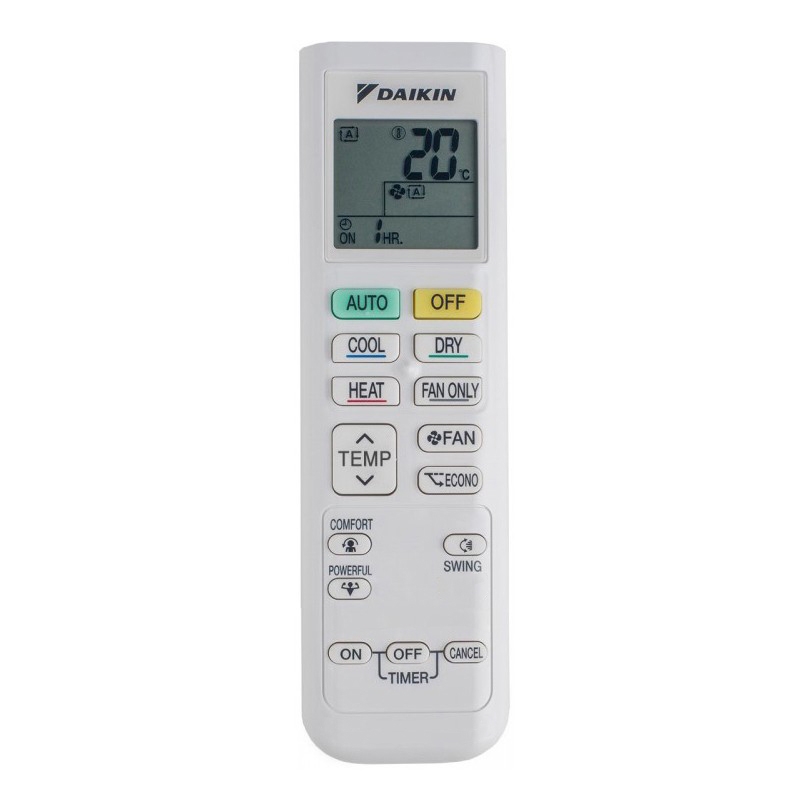

• Infrared Remote Control: ARC470A1

Standard Accessories

• Installation Manual: 1
• User Manual: 1
• General Safety Measures: 1
• Infrared Remote Control: 1
• AAA Dry Batteries: 2
• Remote Control Holder: 1
• Mounting Plate: 1
• Internal Unit Fixing Screws: 2

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-440 V

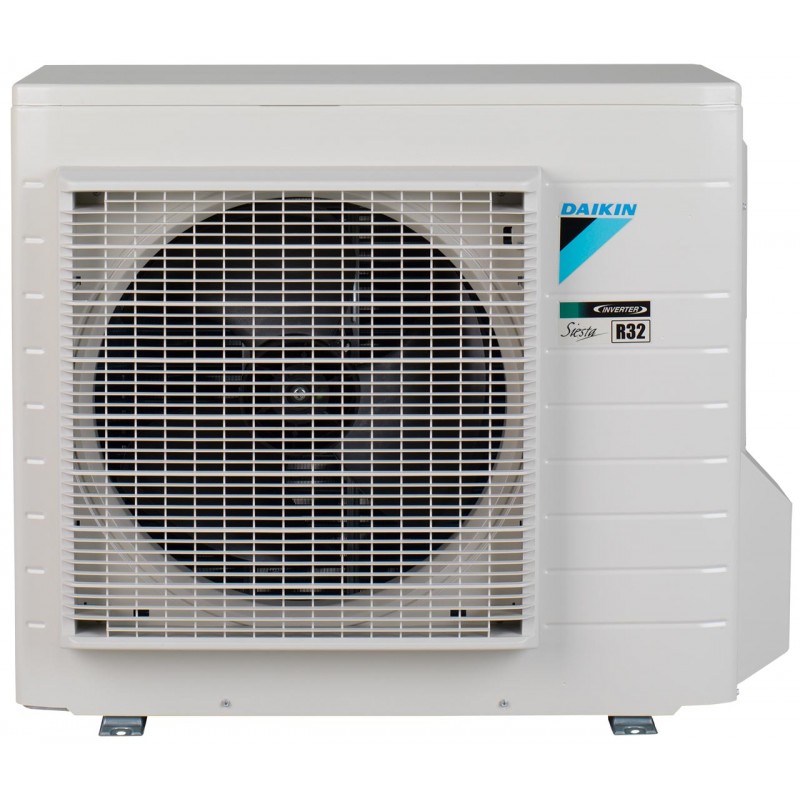

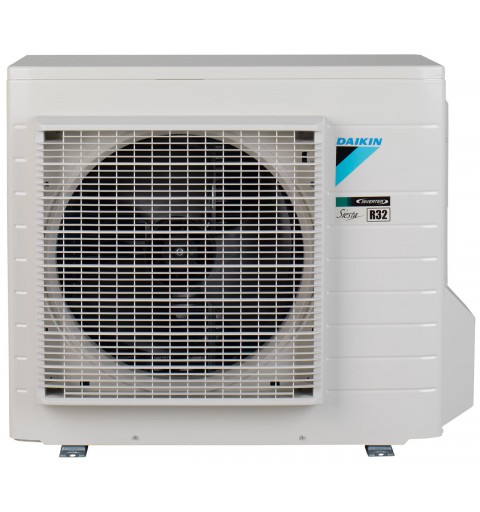

Technical Specifications of the Outdoor Unit

Dimensions

• Height: 734 mm
• Width: 870 mm
• Depth: 373 mm

Weight

• Unit: 50 kg

Operating Range

• Cooling (External Temperature):
  • Min: -10°C
  • Max: 46°C
• Heating (External Temperature):
  • Min: -15°C
  • Max: 24°C

Sound Pressure Level

• Cooling:
  • High: 49 dBA
• Heating:
  • High: 63 dBA

Refrigerant

• Type: R-32
• Charge: 1.15 kg
• GWP: 675.0

Piping Connections

• Maximum Length (UE - UI): 30 m
• Additional Refrigerant Charge: 0.02 kg/m (for pipe lengths over 10 m)
• Elevation (Indoor - Outdoor): Max. 20.0 m

Standard Accessories

• Installation Manual: 1
• Drain Plug: 1
• Refrigerant Charge Label: 1
• Multilingual Labels for Fluorinated Greenhouse Gases: 1
• General Safety Measures: 1

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V (20A Max Fuse Rating)
