DAIKIN ATXM35A ARXM35A Air Conditioner 12000Btu 3.5KW WiFi Siesta Perfera 2025 A+++/A+++ Inverter R32

DAIKIN ATXM35A ARXM35A Air Conditioner 12000Btu 3.5KW WiFi Siesta Perfera 2025 A+++/A+++ Inverter R32 - New 2025

Daikin model Siesta Perfera 2025 - ATXM-A ARXM-A

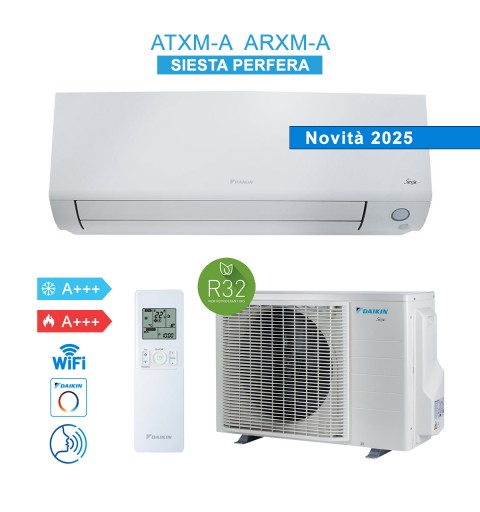

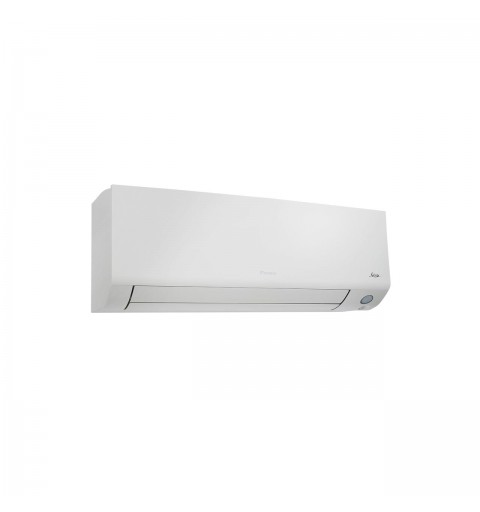

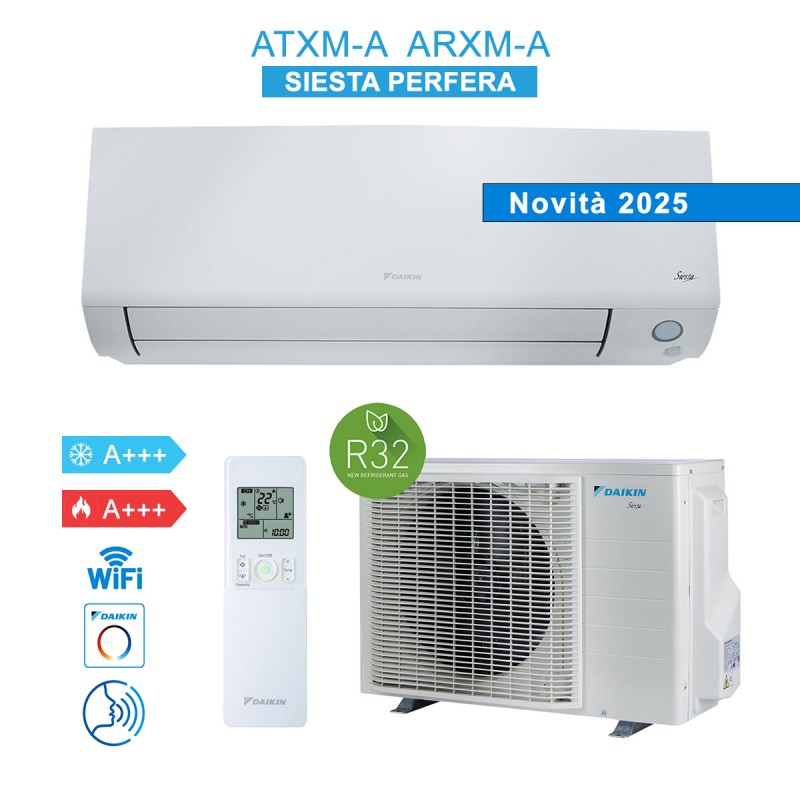

12,000 Btu Air Conditioner Kit, consisting of the internal unit ATXM35A, the external motor ARXM35A, and the remote control

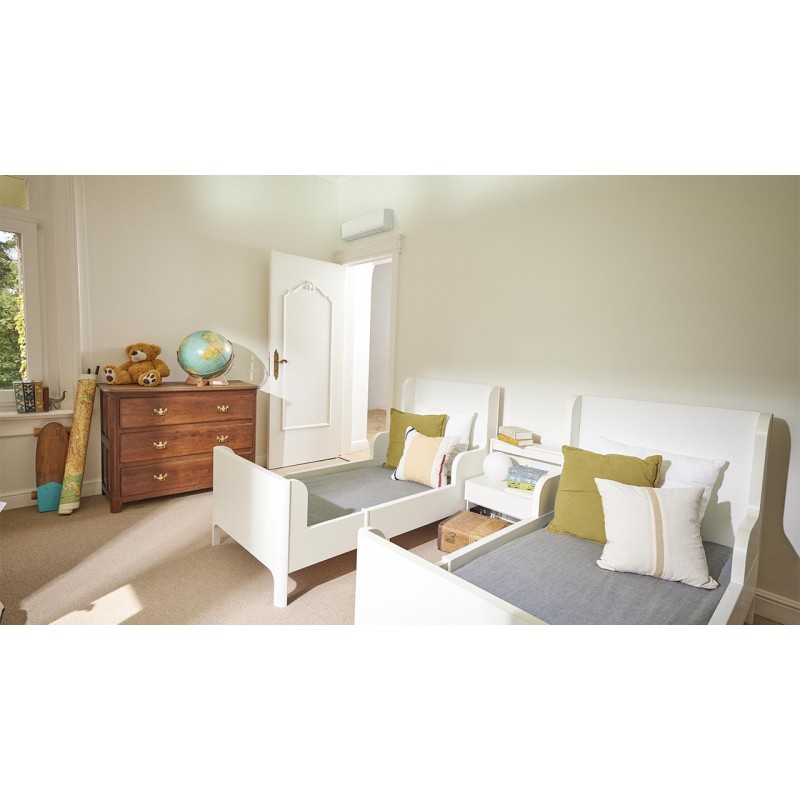

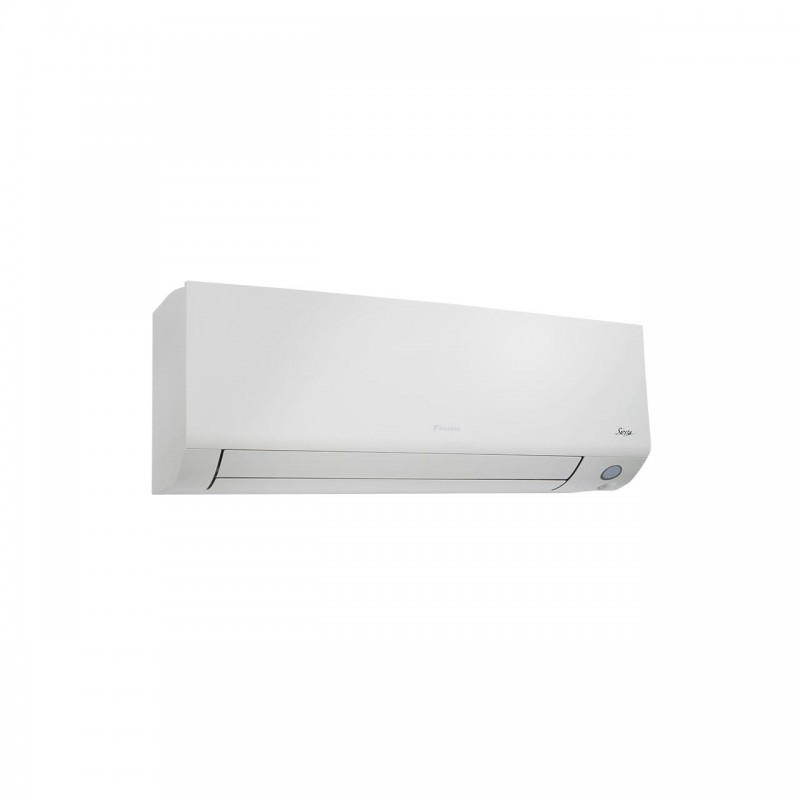

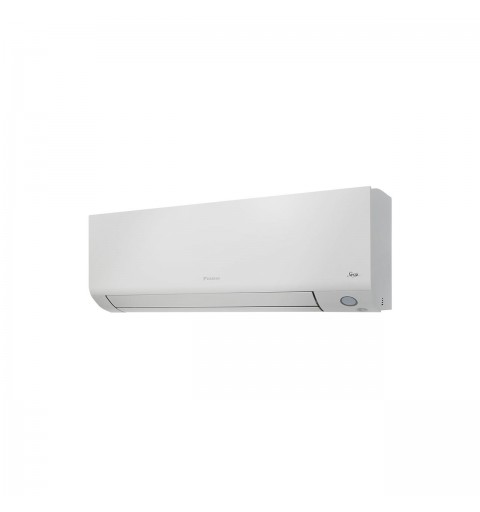

Elegant split units for wall installation, ensuring the highest quality of indoor air

Wi-Fi Card Included

____

Product Features

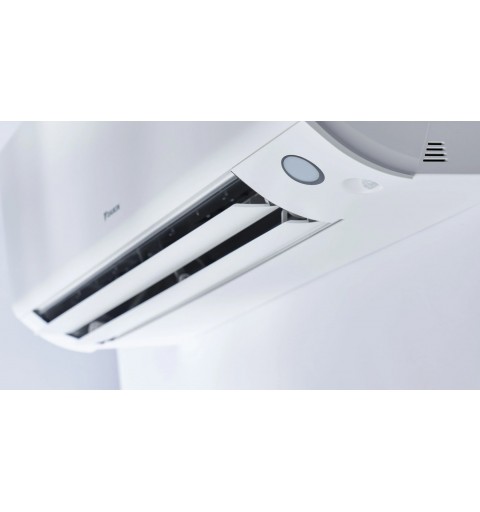

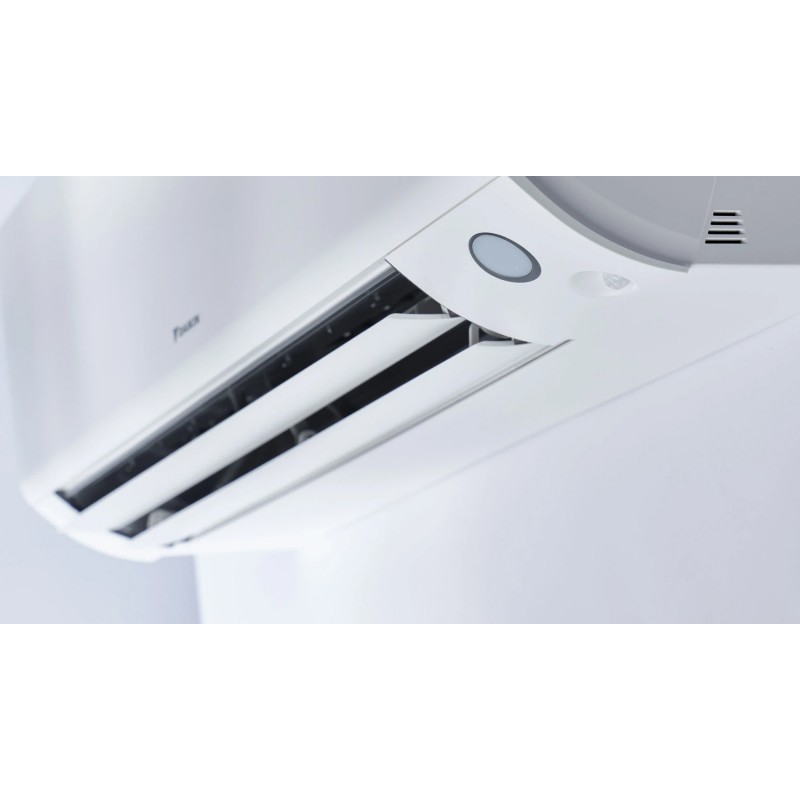

• Comfort+: perfect comfort with a uniform temperature throughout the room. The dual deflectors direct the air towards the ceiling in cooling mode and along the wall in heating mode.
• The choice of an R-32 product reduces environmental impact by 68% compared to R-410A systems and directly reduces energy consumption due to high energy efficiency.
• Seasonal efficiency values up to A+++ in cooling and heating thanks to the latest technologies and integrated intelligence.
• The outdoor units feature a Swing compressor, known for its low noise levels and high energy efficiency.
• Two-area motion sensor: this feature allows the airflow to be directed to an area different from the current location of the person; if no person is detected, the unit automatically switches to energy-saving mode.
• The auxiliary heating quickly warms your home when the air conditioner is turned on. The set temperature is reached 14% faster than a normal air conditioner (only monosplit).
• Outdoor units for monosplit applications.
• Purifies the air from viruses, bacteria, and fine dust thanks to the efficient dust filter.
• Heat exchanger fins of the outdoor unit with anti-corrosion treatment.

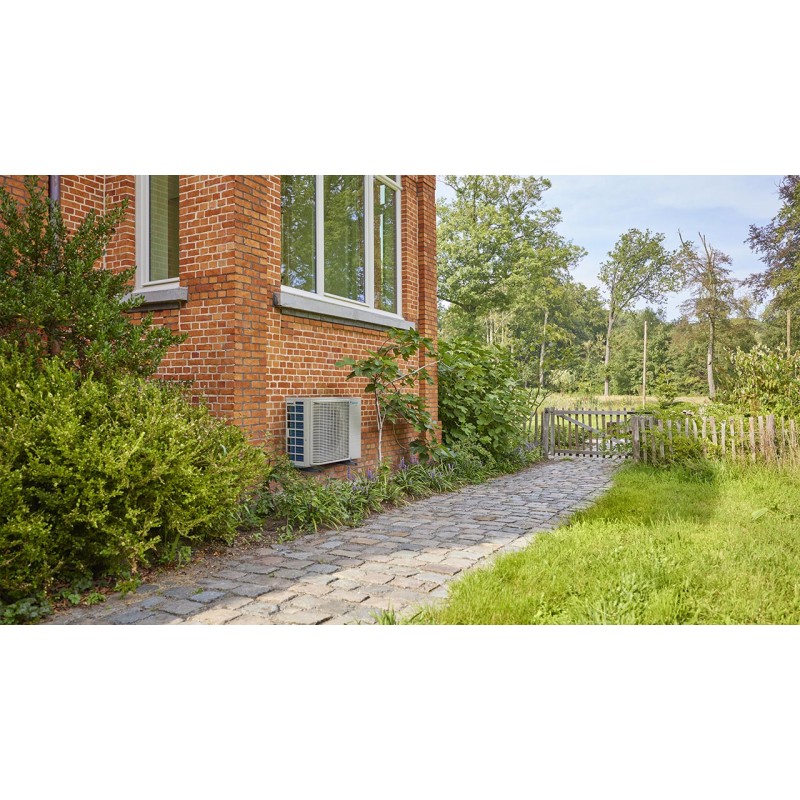

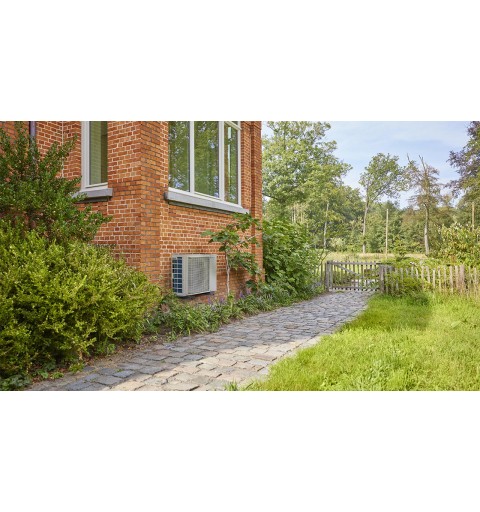

• Daikin outdoor units are well-crafted and robust, easily installed on a roof, terrace, or simply against an external wall.
• Thanks to the use of electrons that trigger chemical reactions with suspended particles in the air, the Flash Streamer decomposes allergens like pollen and mold and removes unpleasant odors, ensuring better and cleaner air.
• Silver filter for allergen removal and air purification: captures allergens such as pollen, ensuring a constant supply of clean air.
• Voice control via Amazon Alexa or Google Assistant to control main functions like setpoint, operating mode, fan speed, etc.
• Daikin Residential Controller: ability to control the indoor unit from anywhere via app, local network, or the internet.
• Silent operation: sound pressure level as low as 19 dBA.
• The three-dimensional airflow uses automatic vertical and horizontal oscillating movement to ensure circulation of hot or cold air even in the corners of large rooms.

Technical Features

• Catalog code for indoor unit: ATXM35A
• Catalog code for outdoor unit: ARXM35A
• Power: 12000 Btu
• Energy class: A+++/A+++
• Integrated Wi-Fi

Technical Specifications

Cooling Capacity
Min. kW 0.9
Nom. kW 3.5
Max. kW 4.4

Heating Capacity
Min. kW 0.8
Nom. kW 4.0
Max. kW 5.5

Nominal Efficiency
COP 4.45
EER 4.50

Energy Class
Cooling A+++
Heating A+++

Annual Energy Consumption
kWh 389

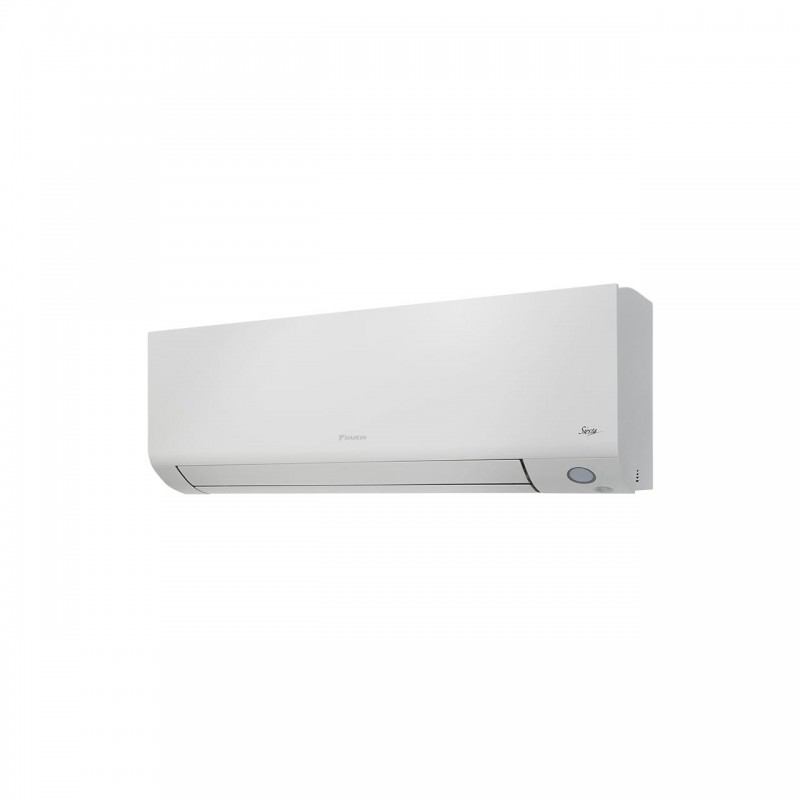

Technical Specifications - Indoor Unit

Absorbed Power
Cooling Nom. kW 0.029
Heating Nom. kW 0.019

Casing Color White

Dimensions
Height mm 298
Width mm 804
Depth mm 252

Weight
kg 11.5

Fan Airflow
Cooling High m³/min 13.2
Medium m³/min 9.4
Low m³/min 7.1
Silent Operation m³/min 4.6

Sound Power
Cooling dBA 58.0
Heating dBA 54.0

Sound Pressure Level
Cooling High dBA 45.0
Medium dBA 37.0
Low dBA 29.0
Silent Operation dBA 19.0

Heating High dBA 39.0
Medium dBA 35.0
Low dBA 28.0
Silent Operation dBA 20.0

Piping Connections
Liquid DE mm 6.4
Gas DE mm 9.5
Drain mm 16

Control Systems

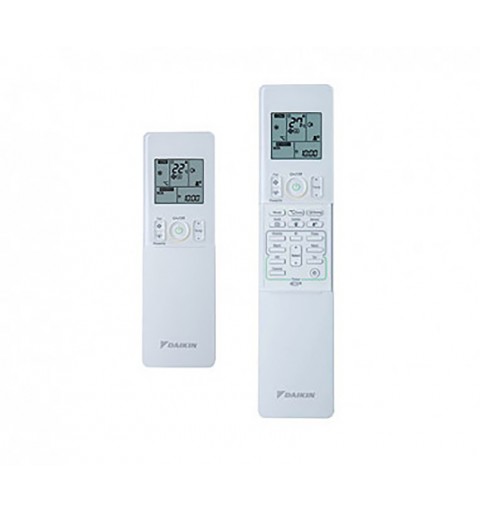

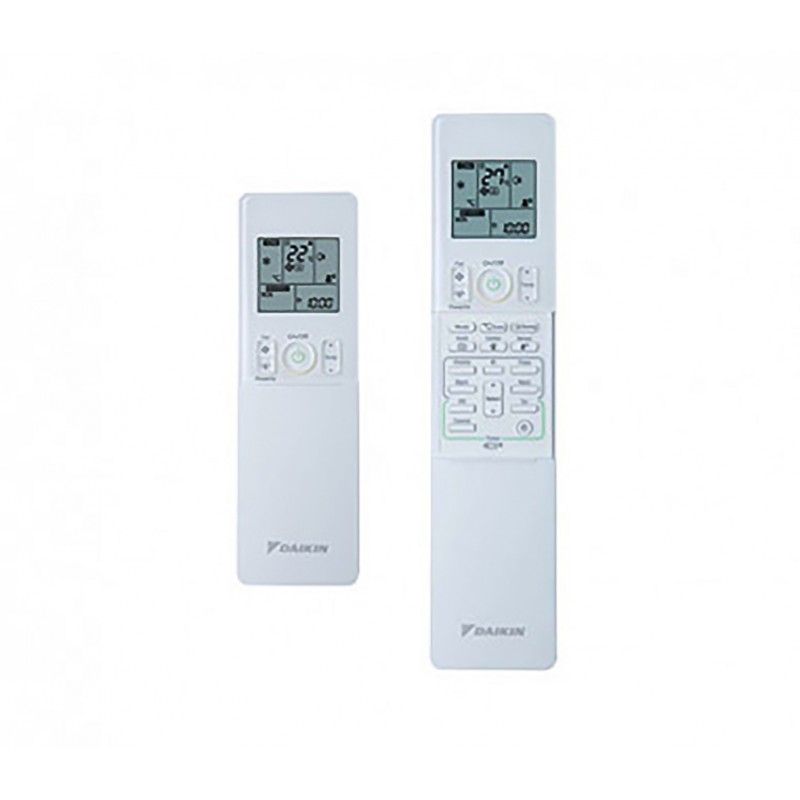

Infrared Remote Control ARC466A86
Wired Remote Control BRC073A1

Standard Accessories
Installation Manual 1
User Manual 1
Filters Silver particle filter, deodorizing filter with titanium apatite
Infrared Remote Control 1
AAA Dry Batteries 2
Remote Control Holder 1
Mounting Plate 1
Indoor Unit Fixing Screws 2

Power Supply
Phase 1~
Frequency Hz 50
Voltage V 220-240

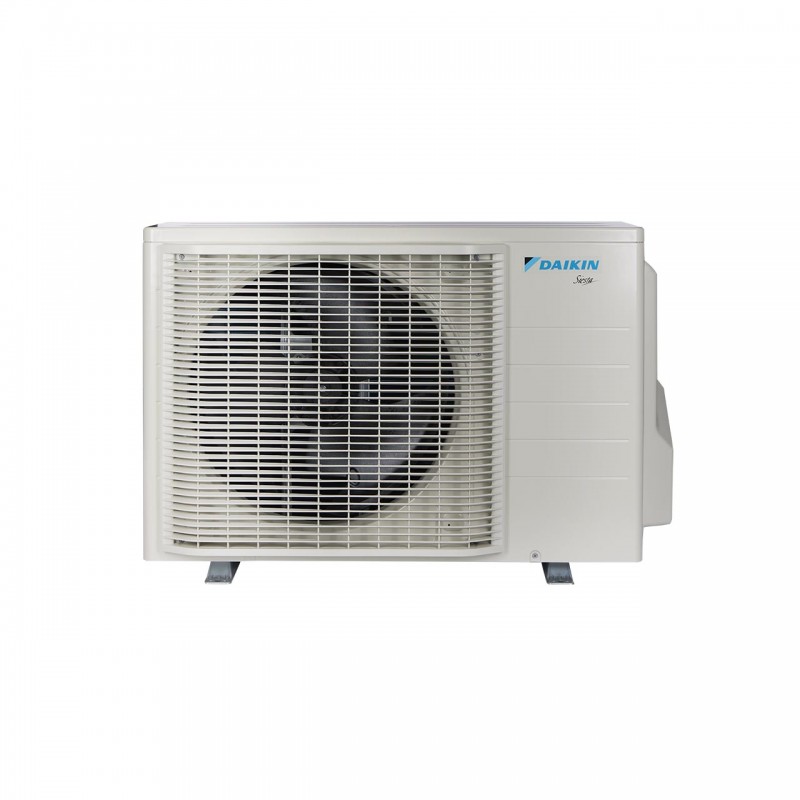

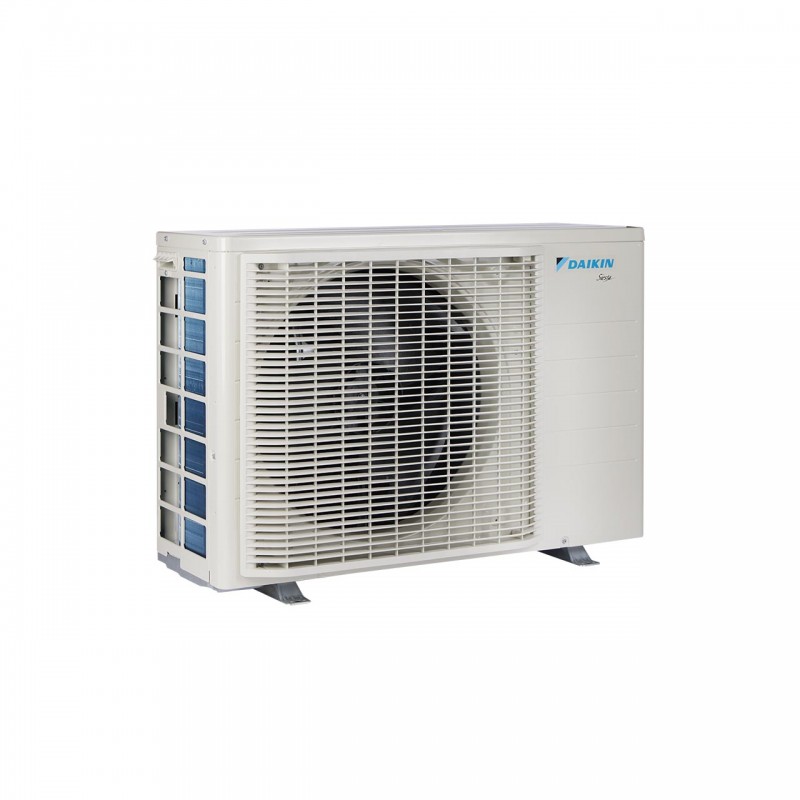

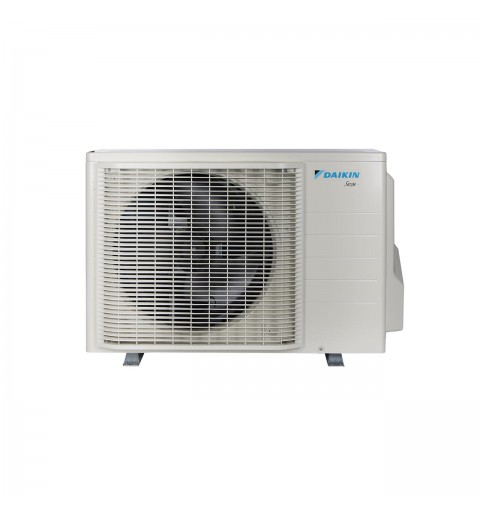

Technical Specifications - Outdoor Unit

Dimensions
Height mm 610
Width mm 923
Depth mm 367

Weight
kg 36

Compressor Type
Hermetic Swing Compressor

Operating Range
Cooling Outdoor Temp Min. °CBS -10
Max. °CBS 50

**Heating Outdoor Temp Min. °CBU -21
Max. °CBU 18

Sound Pressure Level
Cooling High dBA 47
Heating High dBA 49

Refrigerant
Type R-32
Charge kg 0.95
GWP 675.0

Piping Connections
Length UE - UI Max. m 20
Additional Refrigerant Charge kg/m 0.02 (for piping length exceeding 10m)
Height Difference Indoor - Outdoor Max. m 15.0

Standard Accessories
Installation Manual 1
Drain Plug 1
Refrigerant Charge Label 1
Multilingual Labels on Fluorinated Greenhouse Gases 1
General Safety Measures 1

Power Supply
Phase 1~
Frequency Hz 50
Voltage V 220-240
