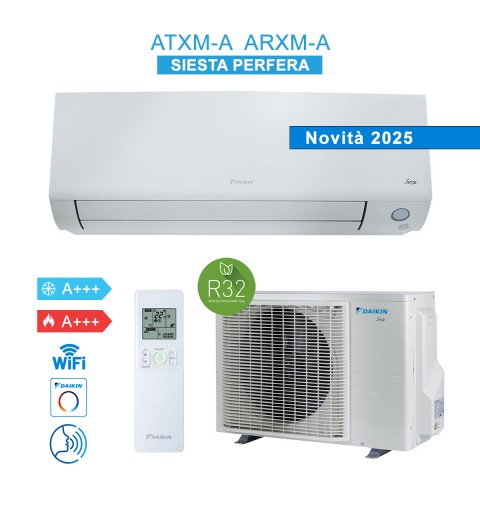

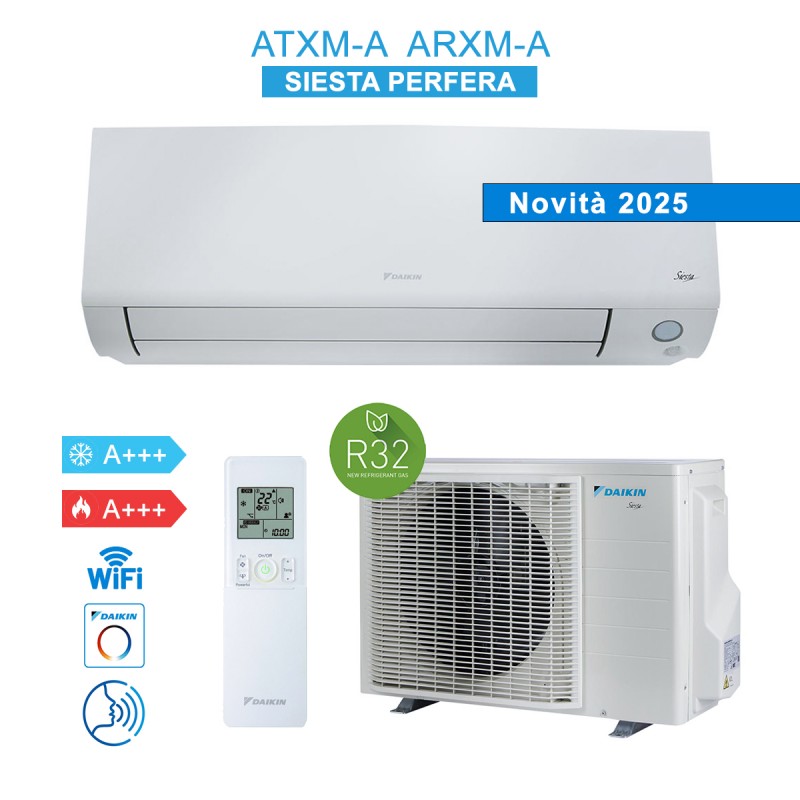

Technical Specifications DAIKIN ATXM25A ARXM25A
Cooling Capacity
Min. kW 0.9
Nom. kW 2.5
Max. kW 3.8
Heating Capacity
Min. kW 0.8
Nom. kW 2.8
Max. kW 5.0
Nominal Efficiency
COP 5.00
EER 5.10
Energy Class
Cooling A+++
Heating A+++
Annual Energy Consumption kWh 245

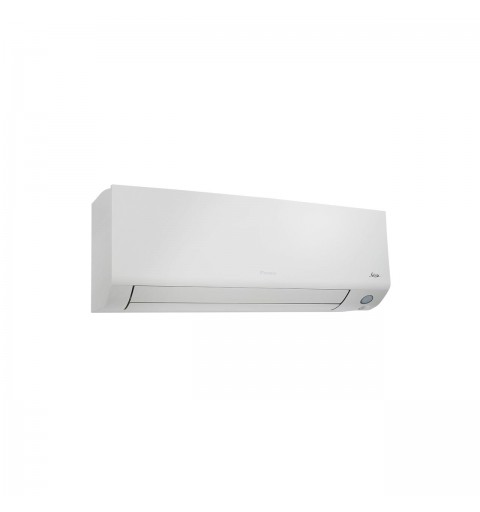

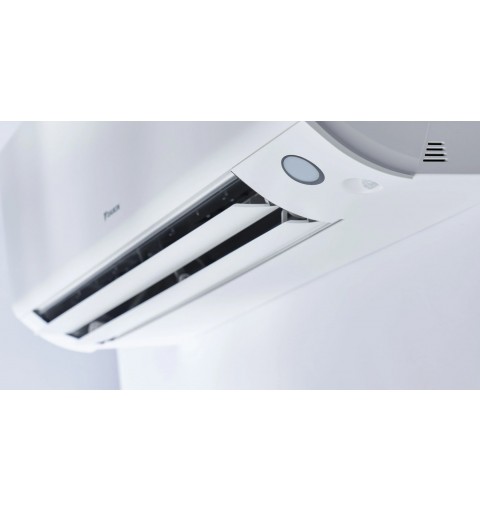

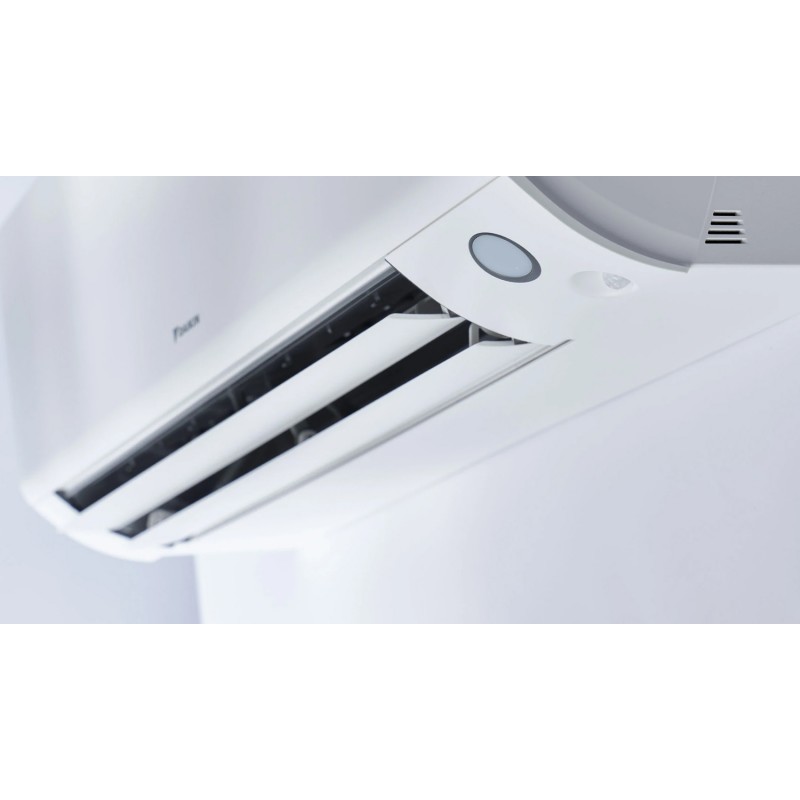

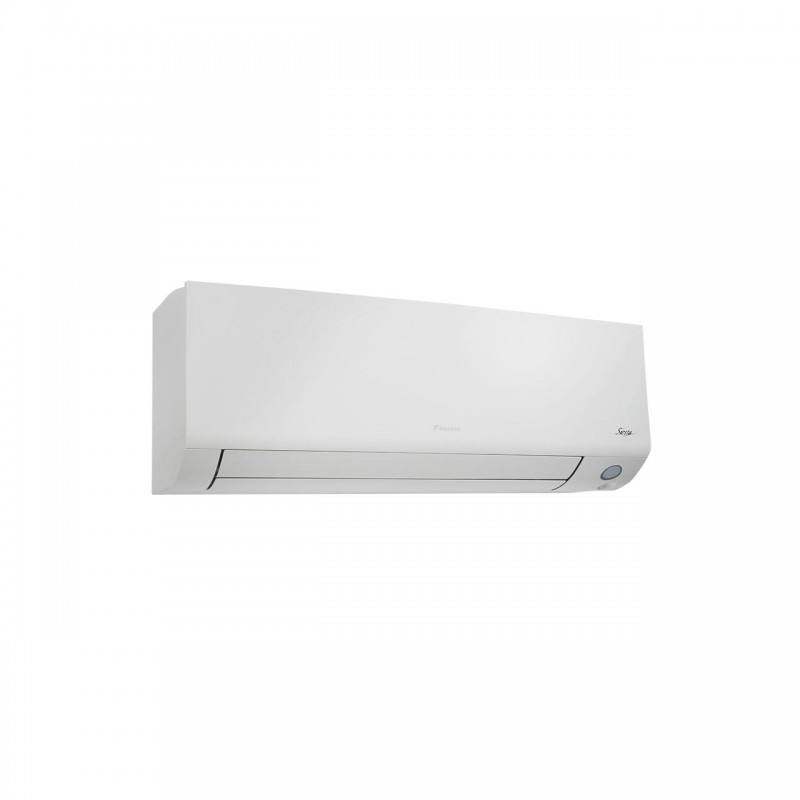

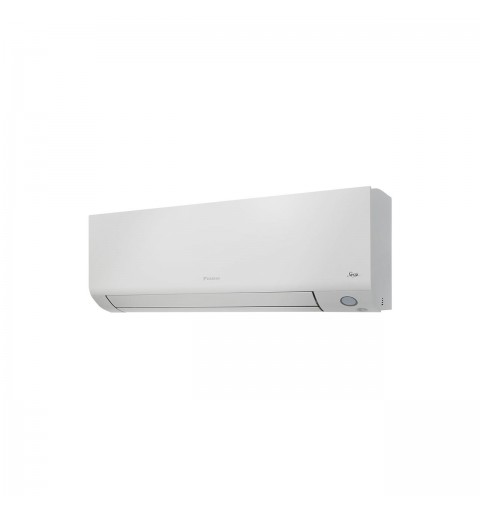

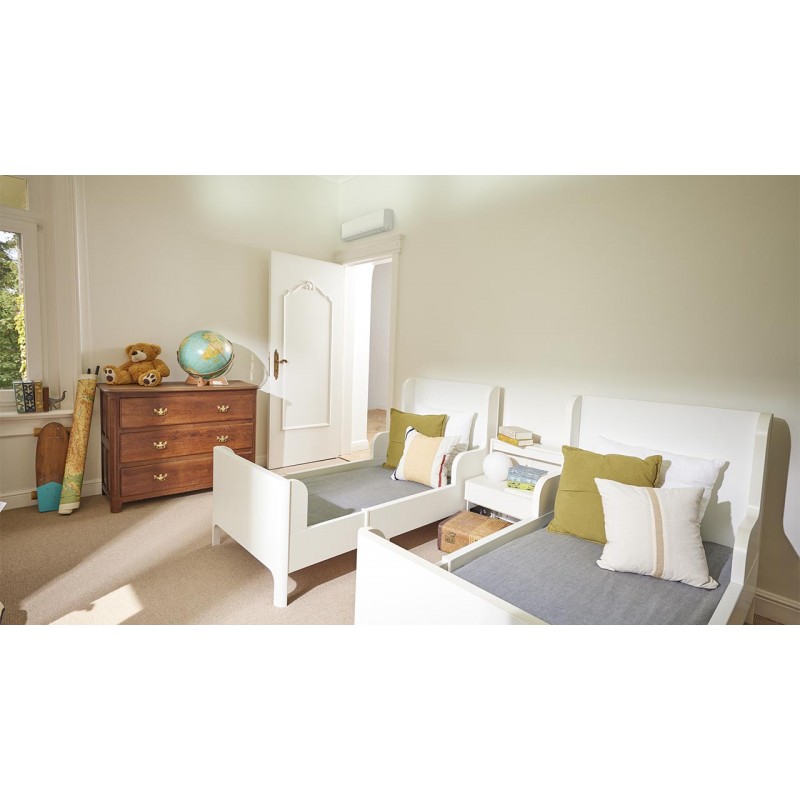

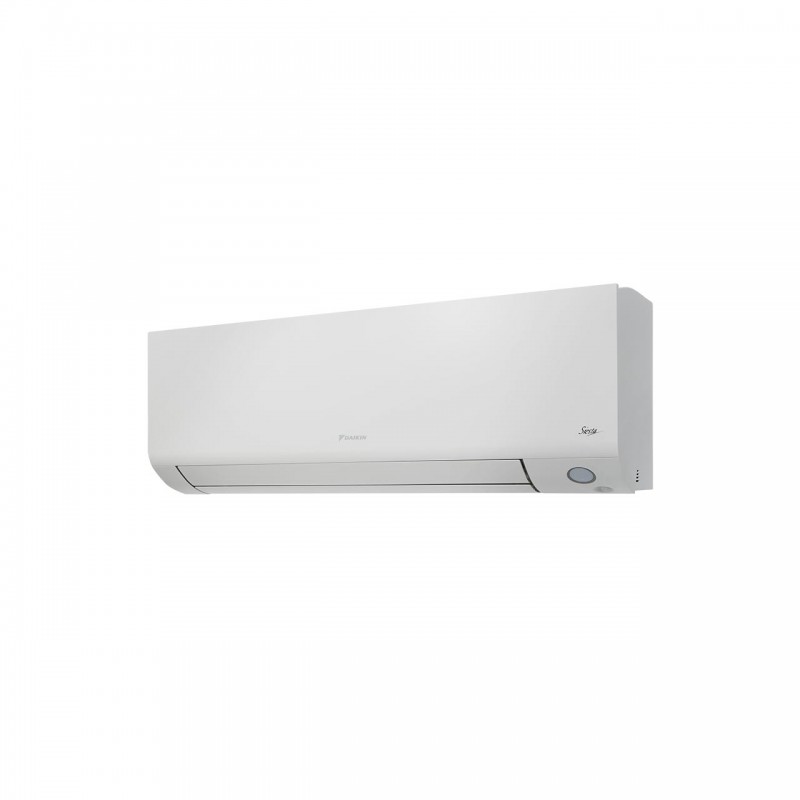

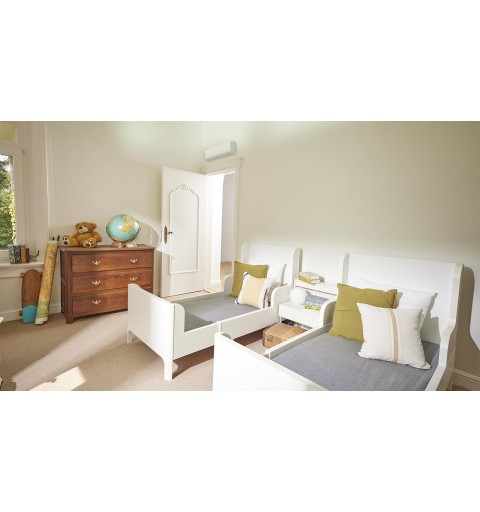

Technical Specifications - Indoor Unit
Absorbed Power
Cooling Nom. kW 0.019
Heating Nom. kW 0.018
Casing Colour White
Unit Dimensions
Height (mm) 298
Width (mm) 804
Depth (mm) 252
Unit Weight kg 11.5
Fan Airflow
Cooling
High m³/min 11.9
Medium m³/min 8.9
Low m³/min 6.3
Silent Operation m³/min 4.9
Sound Power
Cooling dBA 55.0
Heating dBA 54.0
Sound Pressure Level
Cooling
High dBA 41.0
Medium dBA 33.0
Low dBA 25.0
Silent Operation dBA 19.0
Heating
High dBA 39.0
Medium dBA 34.0
Low dBA 27.0
Silent Operation dBA 20.0
Piping Connections
Liquid OD (mm) 6.4
Gas OD (mm) 9.5
Drain 16
Control Systems

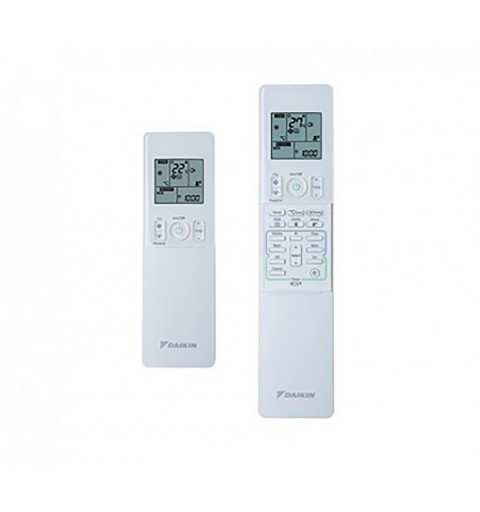

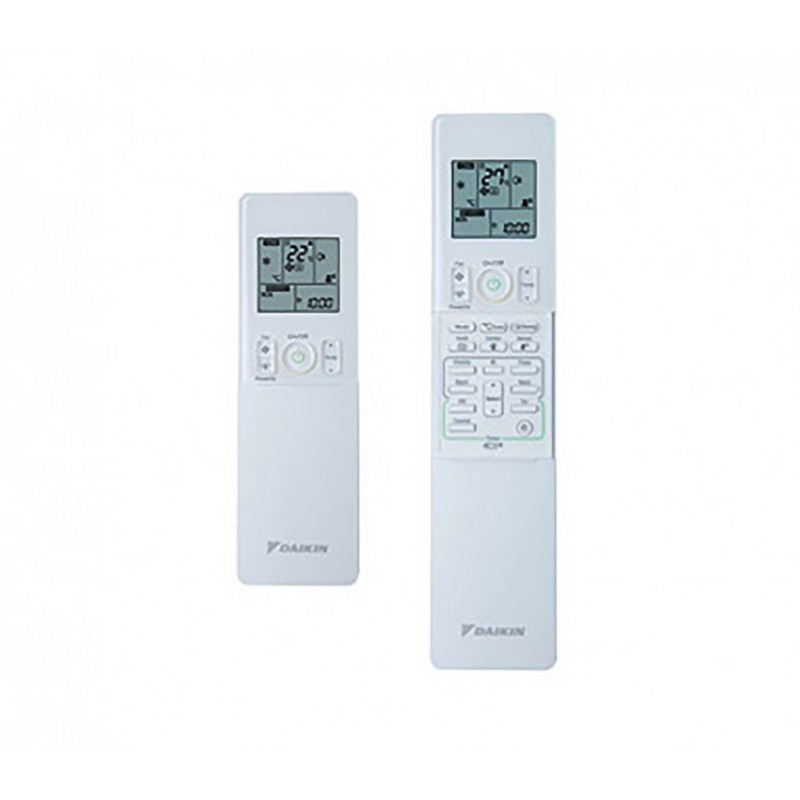

Infrared Remote Control ARC466A86
Wired Remote Control BRC073A1
Standard Accessories
Installation Manual 1
User Manual 1
Filters Silver particle filter, Titanium apatite deodorizing filter
Infrared Remote Control 1
AAA Dry Batteries 2
Remote Control Bracket 1
Mounting Plate 1
Indoor Unit Mounting Screws 2
Power Supply
Phase 1~
Frequency Hz 50
Voltage V 220-240

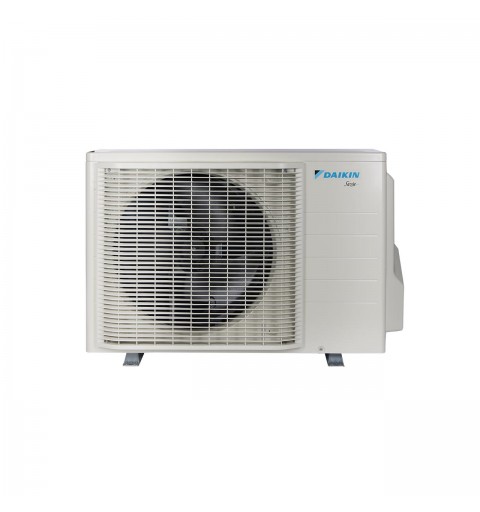

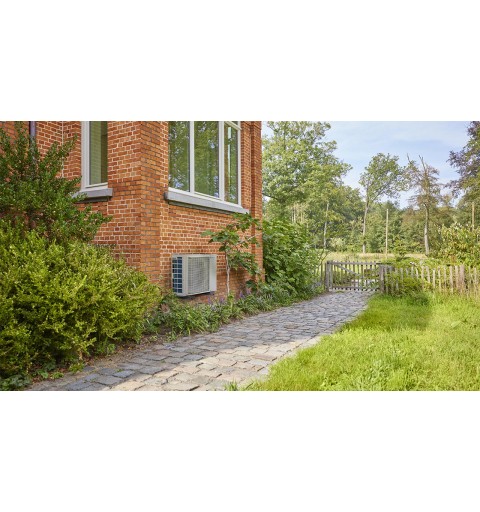

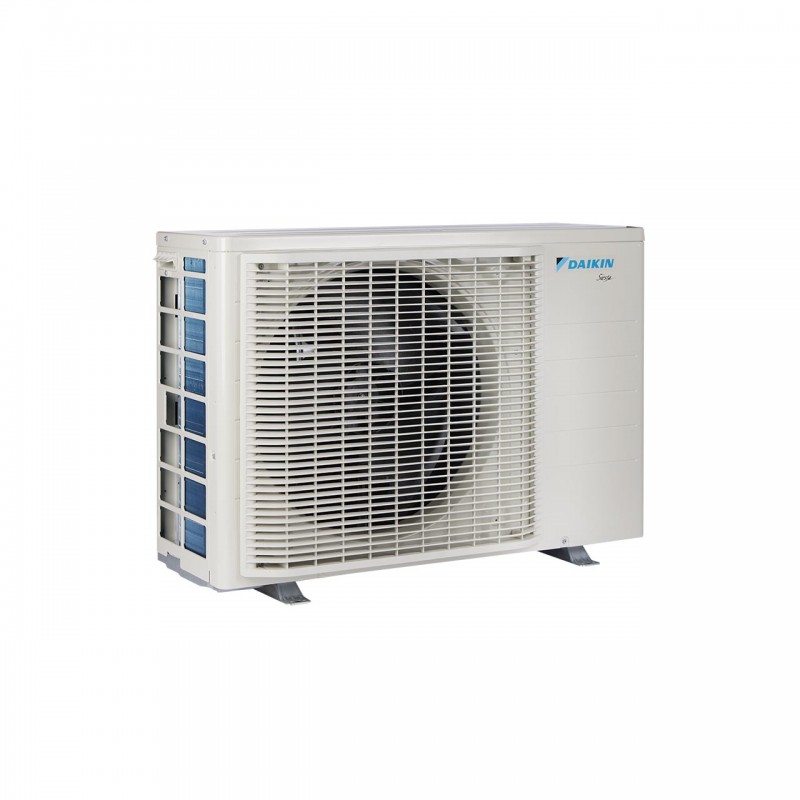

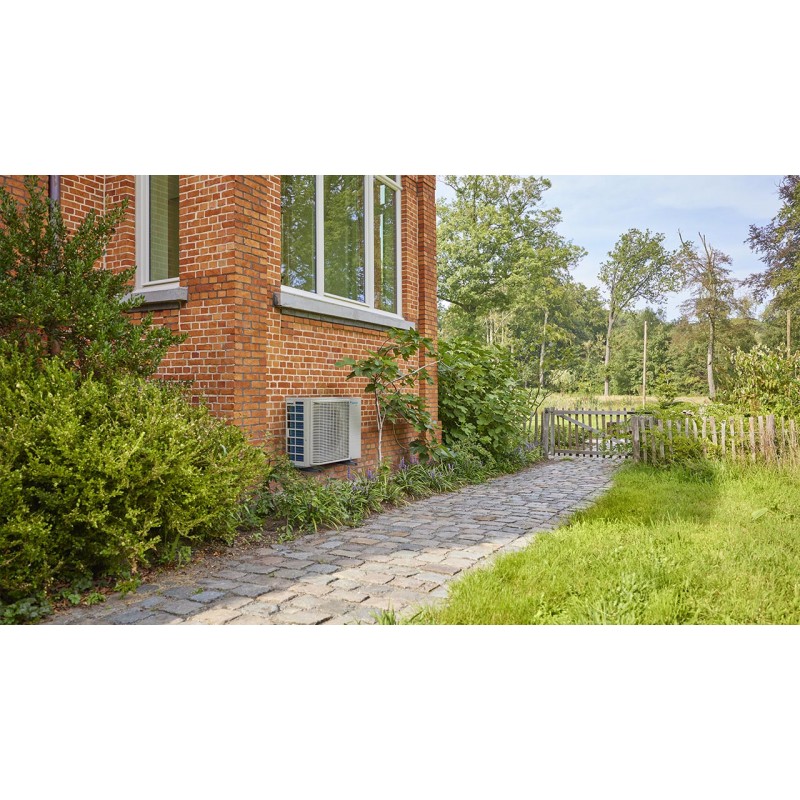

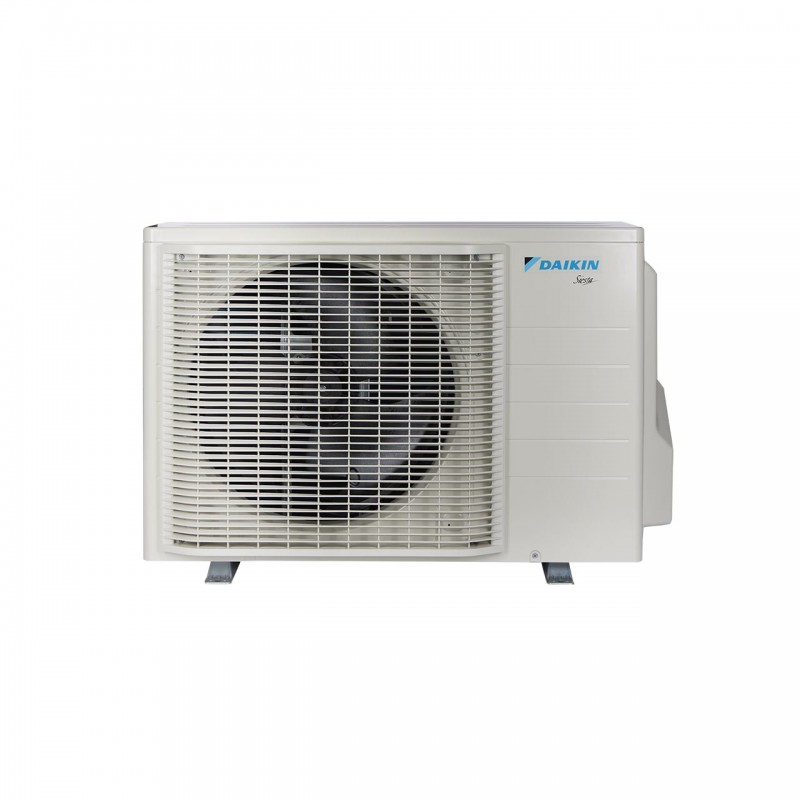

Technical Specifications - Outdoor Unit
Unit Dimensions
Height (mm) 610
Width (mm) 923
Depth (mm) 367
Unit Weight kg 36
Compressor Type Hermetic Swing Compressor
Operating Range
Cooling
Min. Outdoor Temp. °CBS -10
Max. Outdoor Temp. °CBS 50
Heating
Min. Outdoor Temp. °CBU -21
Max. Outdoor Temp. °CBU 18
Sound Pressure Level
Cooling
High dBA 46
Heating
High dBA 47
Refrigerant Type R-32
Charge kg 0.95
GWP 675.0
Piping Connections
Max. Length Outdoor - Indoor (m) 20
Additional Refrigerant Charge kg/m 0.02 (for piping lengths greater than 10m)
Height Difference Indoor - Outdoor (m) 15.0
Standard Accessories
Installation Manual 1
Drain Cap 1
Refrigerant Charge Label 1
Multilingual Fluorinated Greenhouse Gas Labels 1
General Safety Measures 1
Power Supply
Phase 1~
Frequency Hz 50
Voltage V 220-240
