Panasonic BZ Series Air Conditioner Kit 9000BTU 2.5kW A++/A+ CU-BZ25ZKE + CS-BZ25ZKE Inverter Wifi Ready R32

Panasonic BZ Series Air Conditioner Kit 9000BTU 2.5kW A++/A+ CU-BZ25ZKE + CS-BZ25ZKE Inverter R32

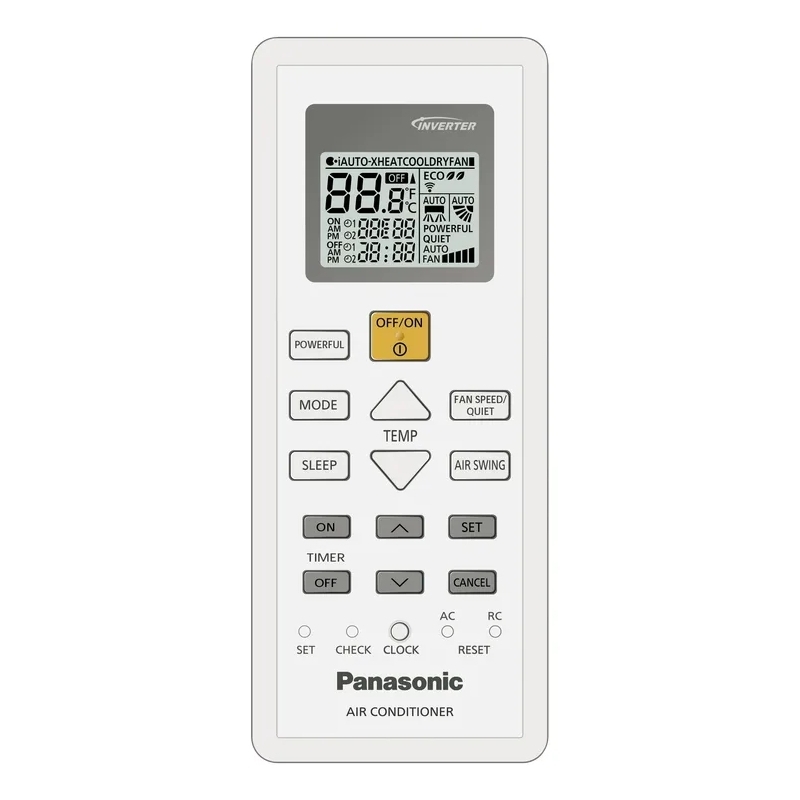

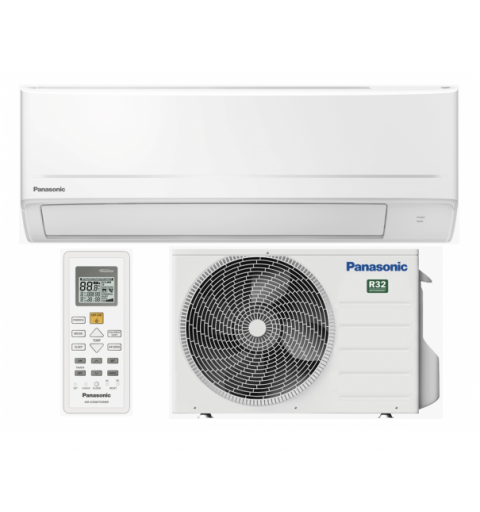

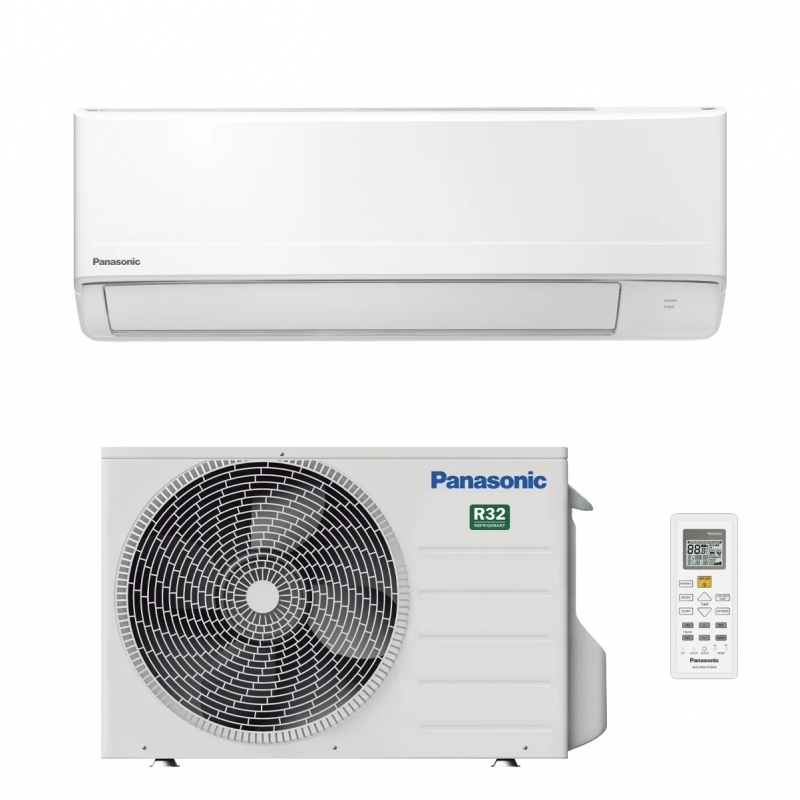

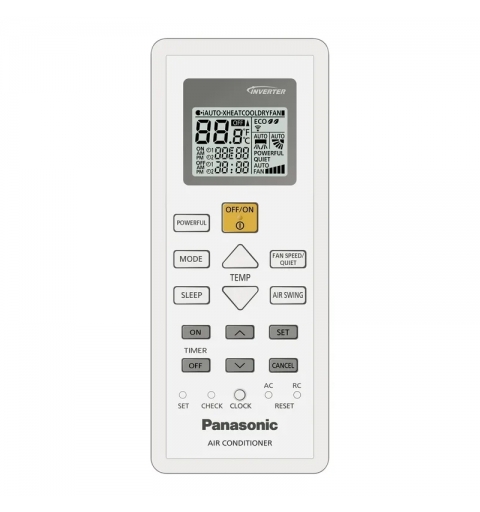

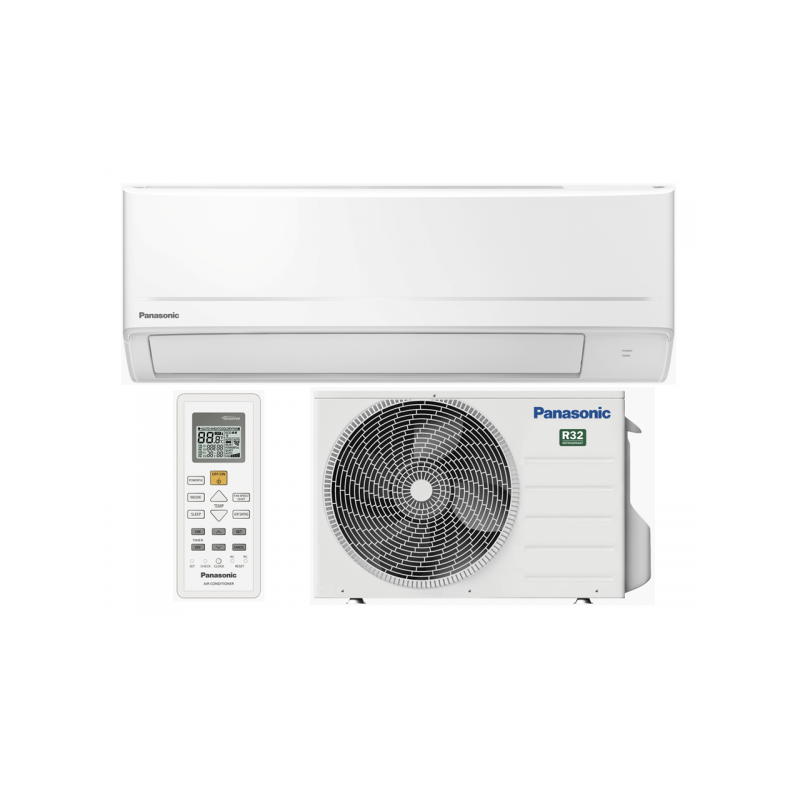

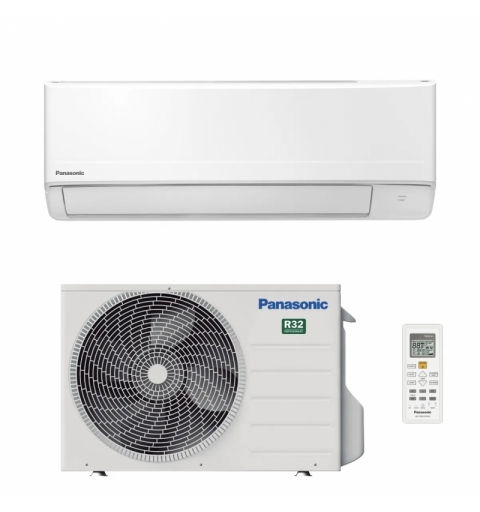

Panasonic BZ Series kit consisting of indoor and outdoor units: CU-BZ25ZKE + CS-BZ25ZKE and remote control included.

• Mono split heat pump air conditioner kit

• Inverter technology

• Energy class: Cooling A++, Heating A+

• Optional Wi-Fi



Technical Specifications

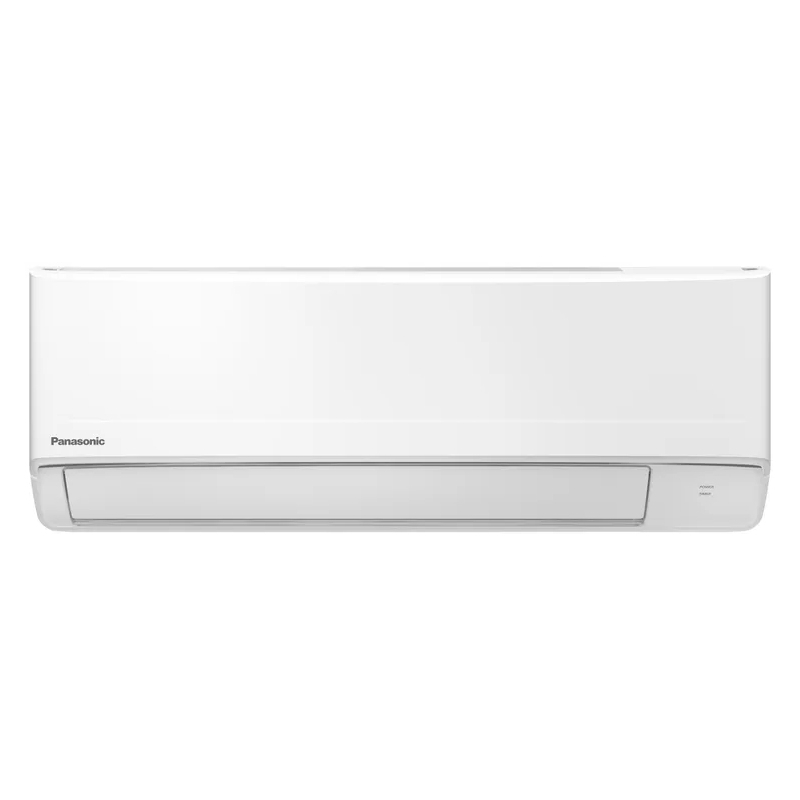

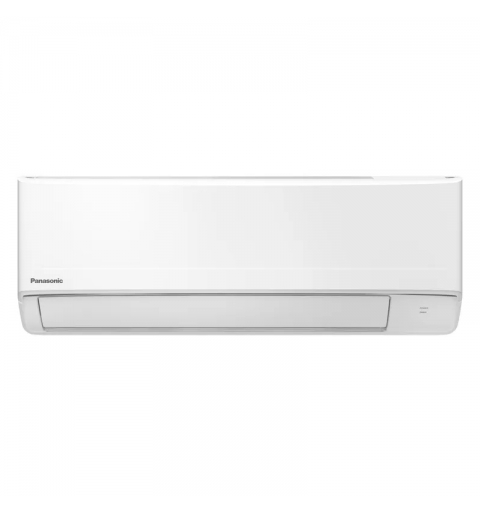

• Indoor unit model code: CS-BZ25ZKE

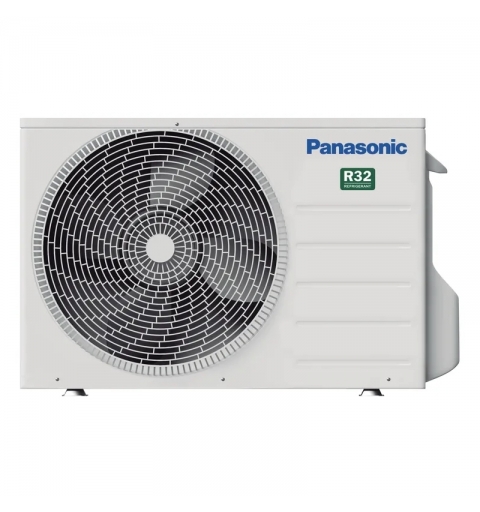

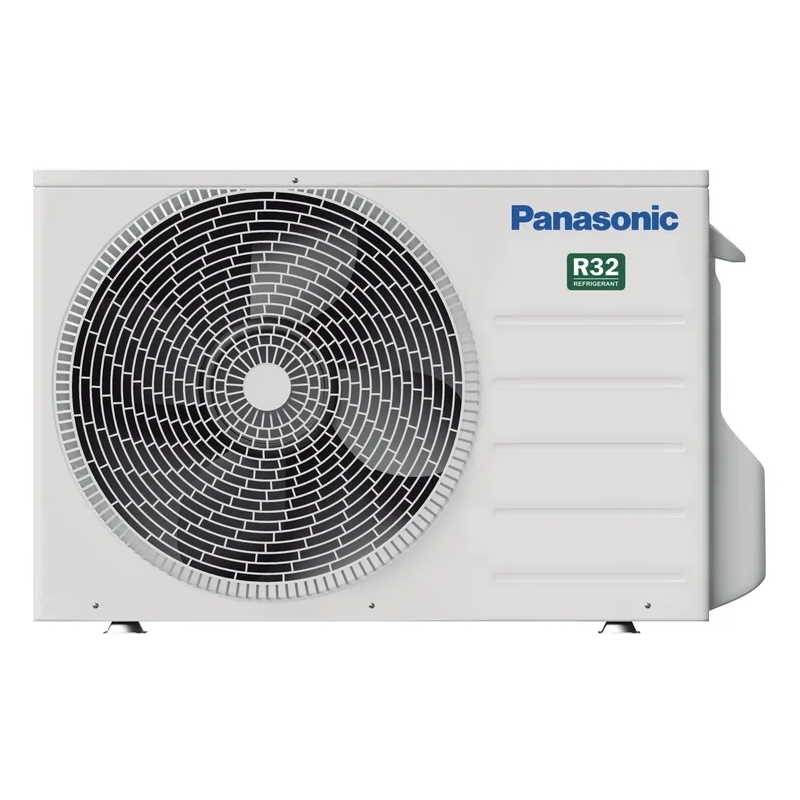

• Outdoor unit model code: CU-BZ25ZKE

• Power: 9000 BTU

• Optional Wi-Fi module (Code CZ-TACG1)

• Optional Wired Remote Control (Code CZ-RD517C)




Energy Efficiency

• SEER: 6.3

• SCOP: 4.2

• Cooling Energy Efficiency Class: A++

• Heating Energy Efficiency Class: A+

• Cooling Energy Consumption: 1.02 kW

• Heating Energy Consumption: 1.00 kWh/a

Performance

• Cooling Capacity: 3.30 kW

• Heating Capacity: 3.70 kW

• Indoor Unit Sound Pressure Level: 38/30/20 dB(A)

Electrical Data

• Power Supply (V, Hz, Ø): 220~240 / 50 / 1

• Refrigerant gas: R32

Operating Temperature Range

• Cooling: -10°C ~ 43°C

• Heating: -15°C ~ 24°C

Installation Data

• Liquid pipe diameter: 6.35 mm (1/4")

• Gas pipe diameter: 9.52 mm (3/8")

Dimensions and Weight

• Indoor Unit Dimensions (H x W x D): 290 x 779 x 209 mm / 8 kg

• Outdoor Unit Dimensions (H x W x D): 542 x 780 x 289 mm / 24 kg




Key Features

• Compact design: only 779 mm wide

• PM2.5 filter for a cleaner indoor environment

• Ultra-quiet operation: cooling sound pressure level as low as 20 dB(A)

• Aerowings for greater comfort and better airflow control

• High energy savings: A++ / A+

• Optional Wi-Fi with CZ-TACG1 module for remote control via the Panasonic Comfort Cloud App

• Voice control compatible

• These units can be installed using existing piping for R410A and R22 refrigerants.




New Ultra-Compact Design
The new BZ indoor units are only 779 mm wide, allowing for more flexible installation options, even in tight spaces above doors.

PM2.5 Filter
PM2.5 is a common air pollutant made up of dust, dirt, cigarette smoke, and liquid droplets. The integrated filter captures PM2.5 particles, including harmful pollutants, household dust, and pollen.

Better Airflow Control with Aerowings
The Aerowings feature, equipped with two independent flaps, ensures improved airflow direction control towards the ceiling. Without Aerowings, the airflow remains directed in one fixed position, which may cause discomfort due to continuous exposure to cold air.

Optional Wi-Fi and Voice Assistant Compatibility
With the optional CZ-TACG1 module and the Panasonic Comfort Cloud App, you can manage up to 200 units via smartphone, access energy consumption statistics, set schedules, and define different user permissions. Compatible with Google Assistant and Amazon Alexa.
