Panasonic BZ Series Air Conditioner Kit 12000Btu 3.5kW A++/A+ CU-BZ35ZKE + CS-BZ35ZKE Inverter Wifi Ready R32

Panasonic BZ Series Air Conditioner Kit 12000Btu 3.5kW A++/A+ CU-BZ35ZKE + CS-BZ35ZKE Inverter R32

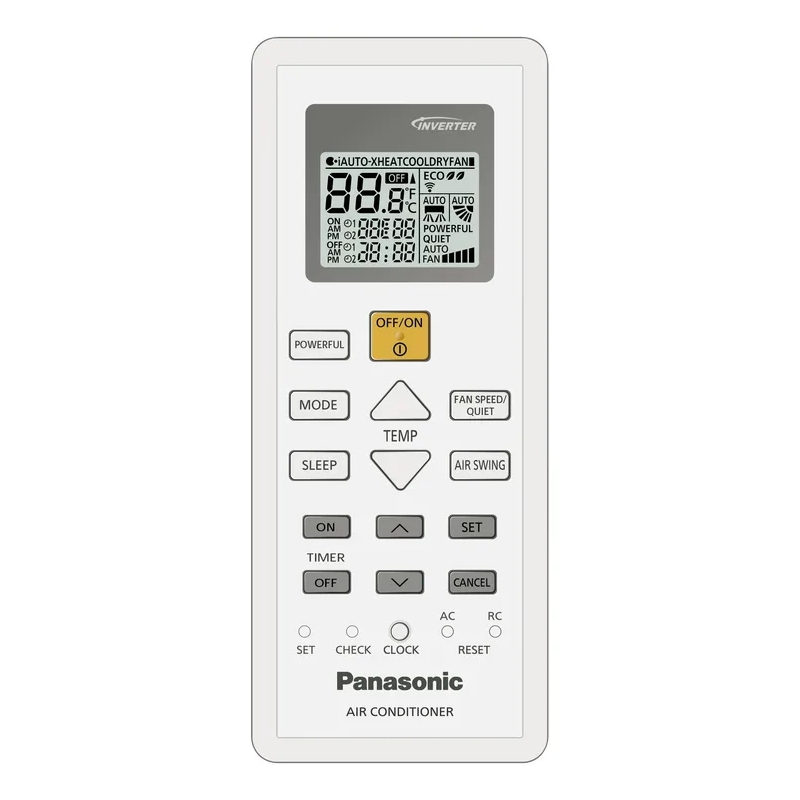

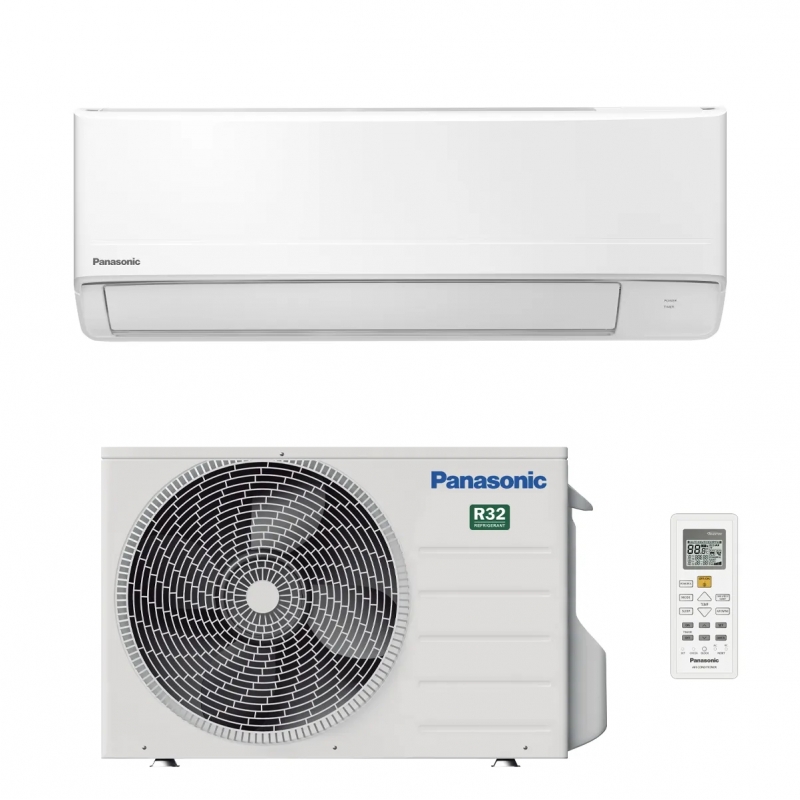

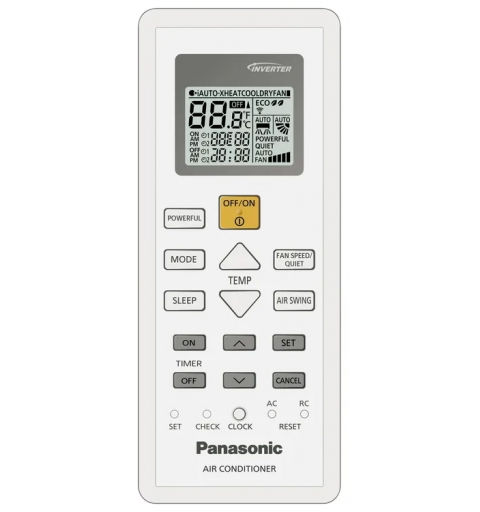

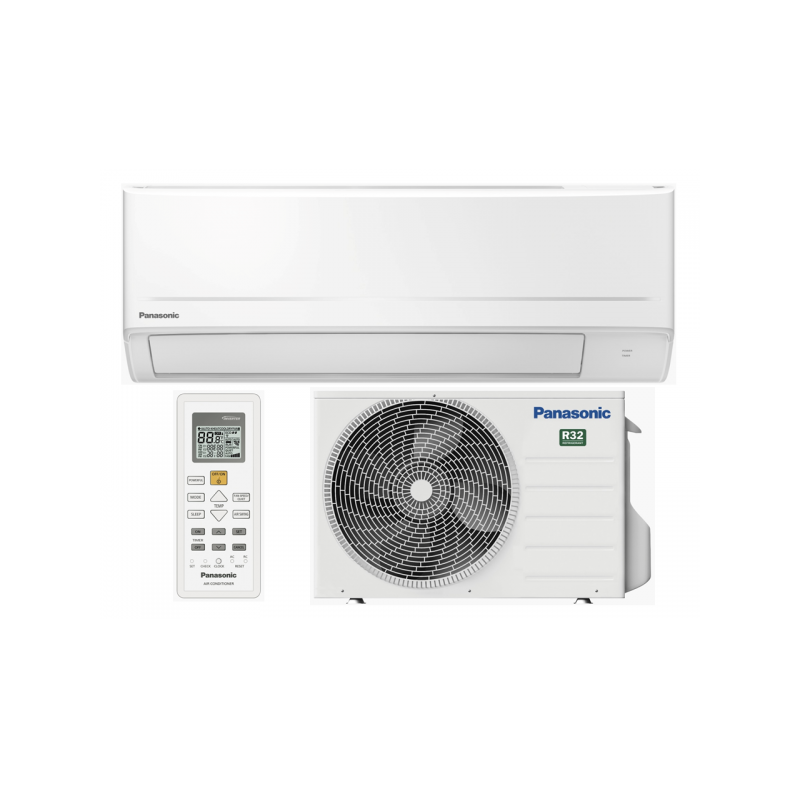

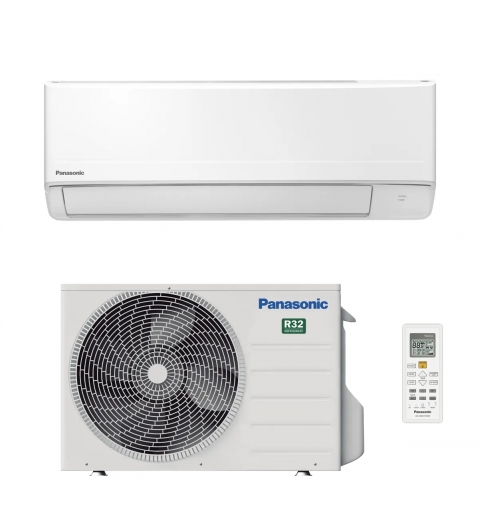

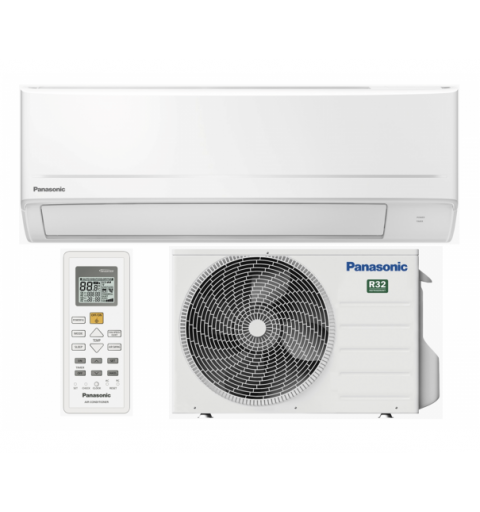

Panasonic BZ Series kit consisting of indoor and outdoor units: CU-BZ35ZKE + CS-BZ35ZKE and remote control included

• Mono-split air conditioner heat pump kit

• Inverter technology

• Energy efficiency class: A++ cooling / A+ heating

• Optional Wi-Fi



Technical Specifications

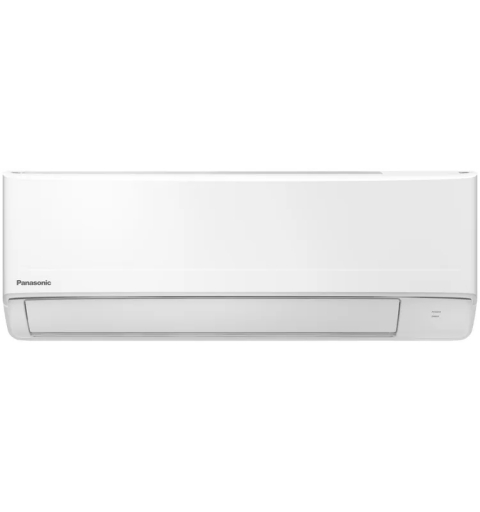

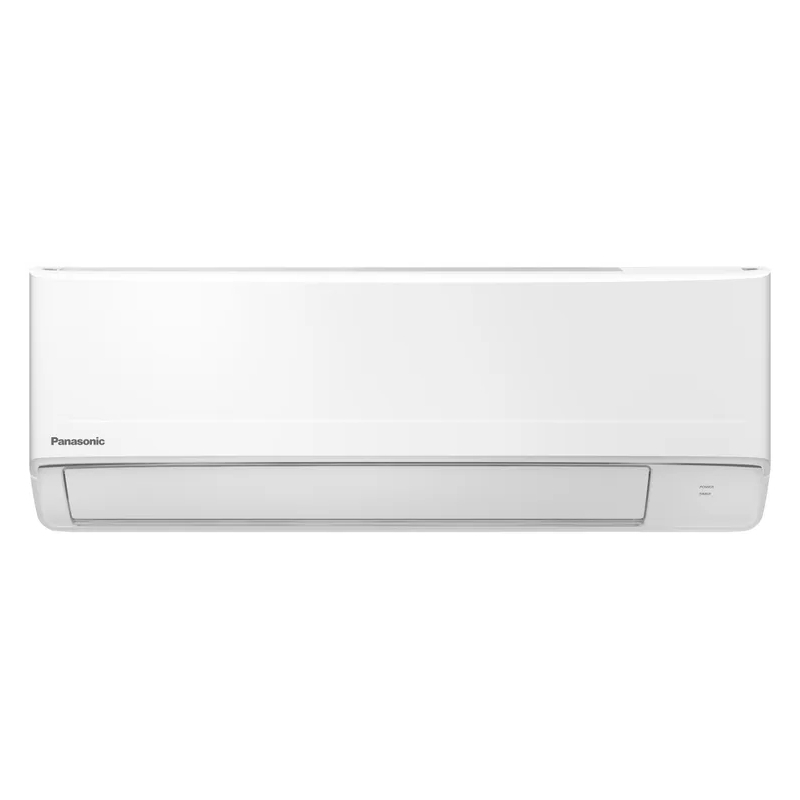

Indoor unit model code: CS-BZ35ZKE

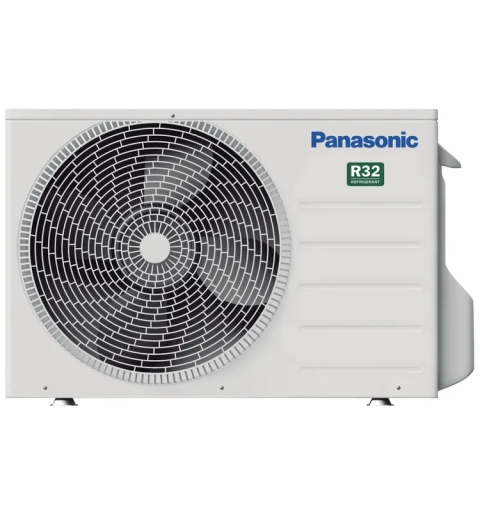

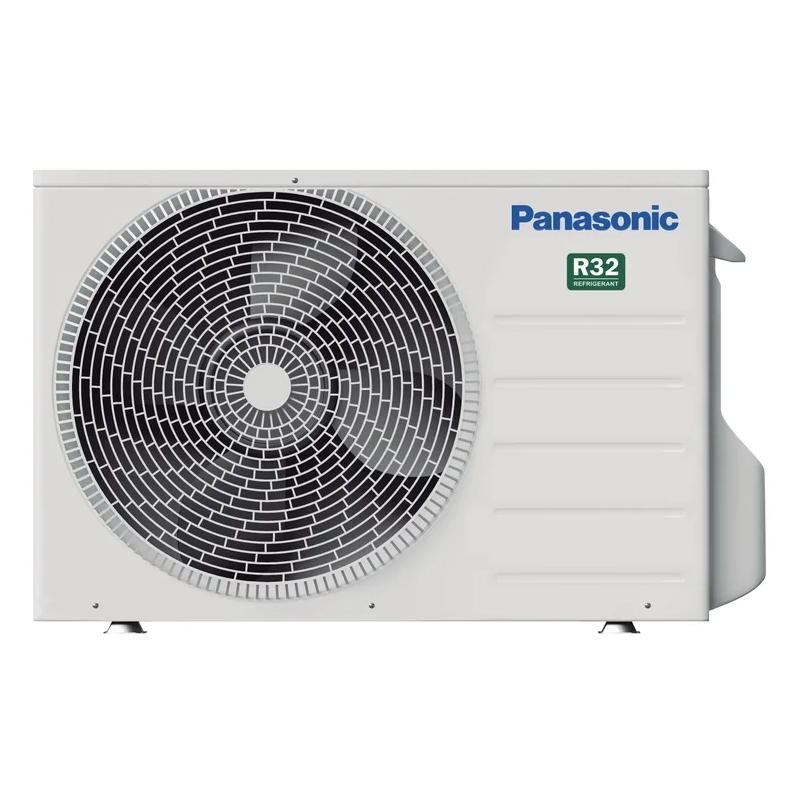

Outdoor unit model code: CU-BZ35ZKE
Cooling capacity: 12000 BTU
Optional Wi-Fi Module: CZ-TACG1
Optional Wired Remote Control: CZ-RD517C

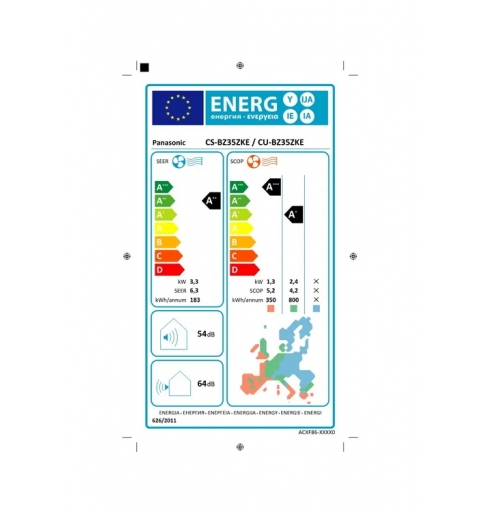

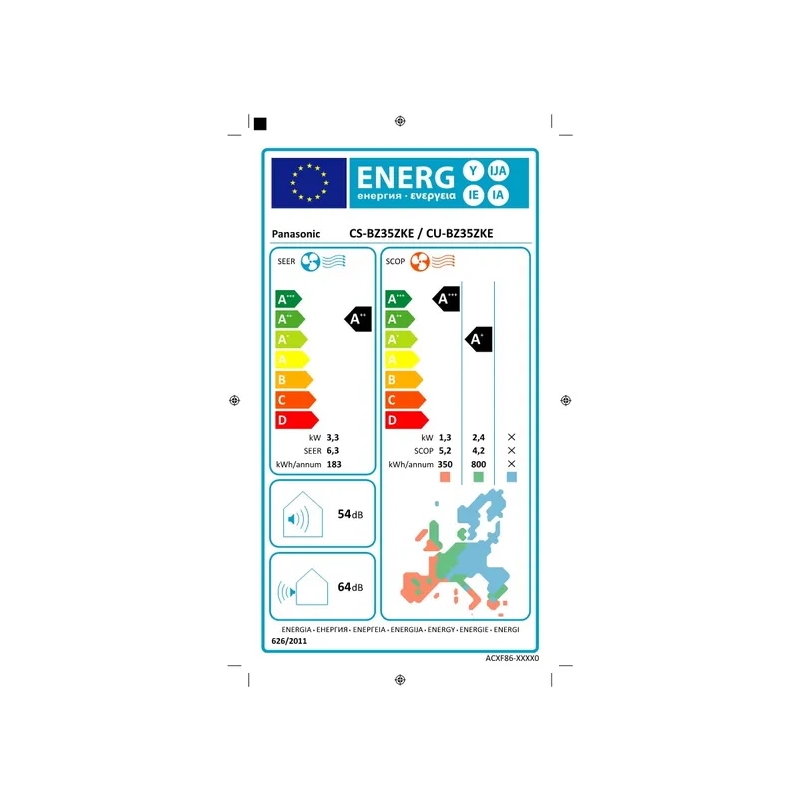

Energy Efficiency

• SEER: 6.3

• SCOP: 4.2

• Cooling Energy Efficiency Class: A++

• Heating Energy Efficiency Class: A+

• Cooling Power Consumption: 1.02 kW

• Heating Power Consumption: 1.00 kWh/a

Performance

• Cooling Capacity: 3.30 kW

• Heating Capacity: 3.70 kW

• Indoor Unit Sound Pressure Level: 38/30/20 dB(A)

Electrical Data

• Power Supply (V,Hz, Ø): 220~240 / 50 / 1

• Refrigerant Gas: R32

Operating Range

• Cooling: -10°C ~ 43°C

• Heating: -15°C ~ 24°C

Installation Data

• Liquid Pipe Diameter: 6.35 mm (1/4")

• Gas Pipe Diameter: 9.52 mm (3/8")

Dimensions and Weight

• Indoor Unit Dimensions (HxWxD): 290 x 779 x 209 mm / 8 kg

• Outdoor Unit Dimensions (HxWxD): 542 x 780 x 289 mm / 24 kg



Technical Features

• Compact design: only 779 mm wide

• PM2.5 Filter for a cleaner environment

• Low noise in cooling mode: 20 dB(A)

• Enhanced comfort with Aerowings

• High energy savings: A++ / A+

• Optional Wi-Fi with CZ-TACG1 for remote control via Panasonic Comfort Cloud App

• Compatible with voice control systems

• Units can be installed using existing R410A and R22 refrigerant piping




New Ultra-Compact Design

The new BZ indoor units are only 779 mm wide, making them ideal for installation in tight spaces, including above doors.

PM2.5 Filter

PM2.5 particles are air pollutants made up of dust, dirt, cigarette smoke, and droplets. The filter captures PM2.5 particles, including harmful pollutants, household dust, and pollen.

Greater Airflow Control with Aerowings

The Aerowings feature, equipped with two independent flaps, ensures better airflow direction control upwards. Without Aerowings, the airflow remains constant and directly aimed, which can lead to discomfort from prolonged exposure to cold air.

Optional Wi-Fi and Voice Control Compatibility

With the optional CZ-TACG1 device and Panasonic Comfort Cloud App, you can control up to 200 units via smartphone, access energy statistics, set schedules, and manage user access. Compatible with Google Assistant and Amazon Alexa.
