Daikin ATXD35A ARXD35A Air Conditioner Air Conditioner 3.5 KW 12000BTU Siesta Essence A+++ R32 Inverter Wifi White - New 2023
Daikin ATXD35A ARXD35A Air Conditioner 3.5 KW 12000BTU Siesta Essence A+++ R32 Inverter Wifi White - 2023 New Release

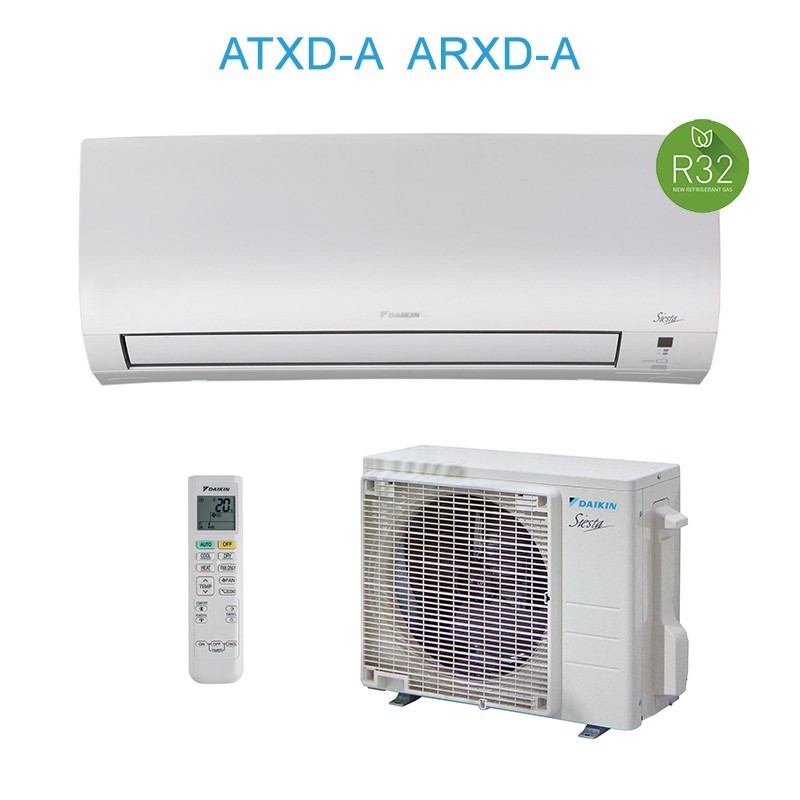

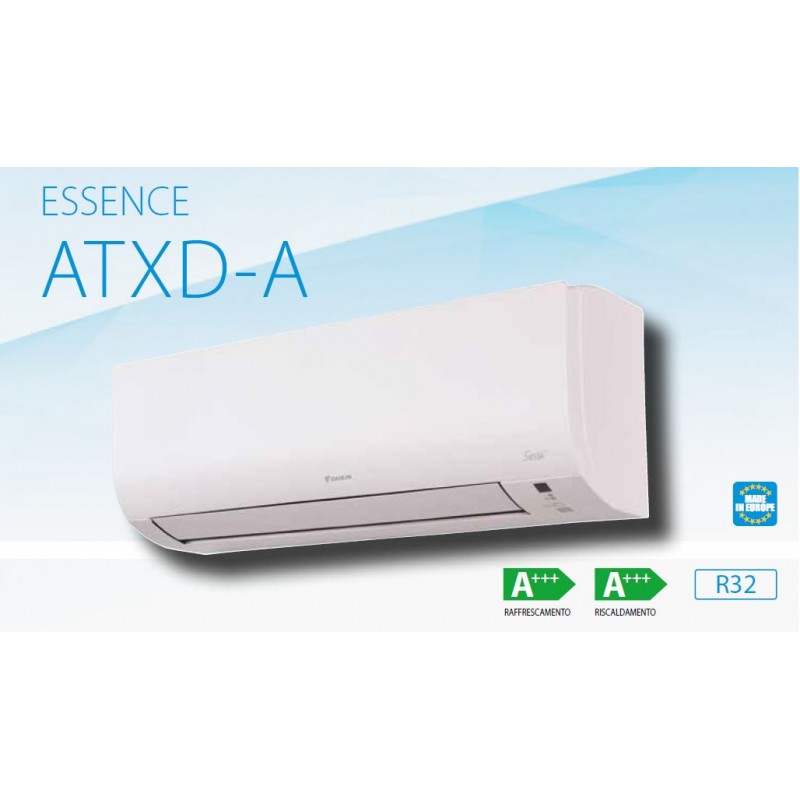

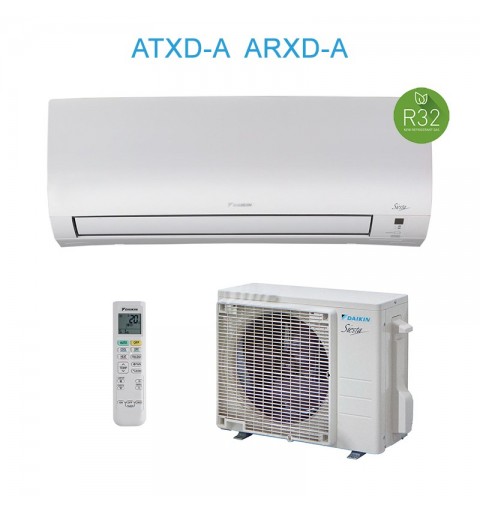

Daikin Siesta Essence 2023 model - ATXD-A ARXD-A (Made in Europe)
Siesta Essence 12000 BTU air conditioner kit, consisting of the indoor split ATXD35A, the outdoor unit ARXD35N, and the remote control.
Wall-mounted unit with an excellent price-quality ratio.
____

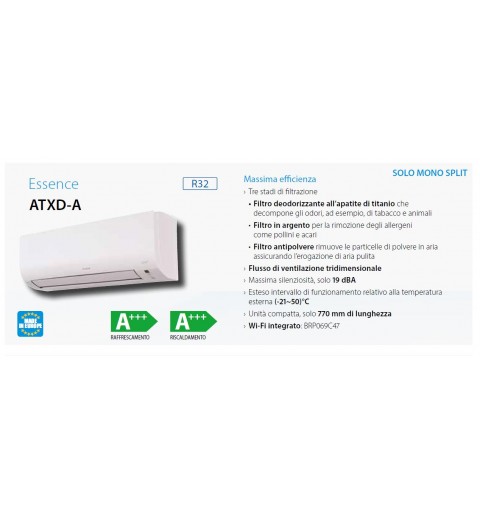

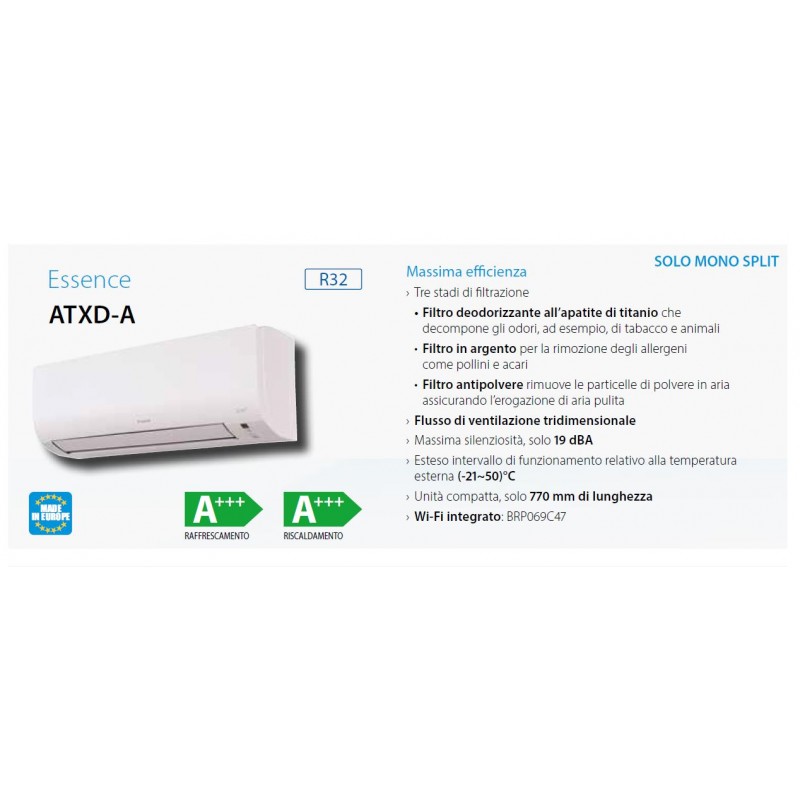

Product Features

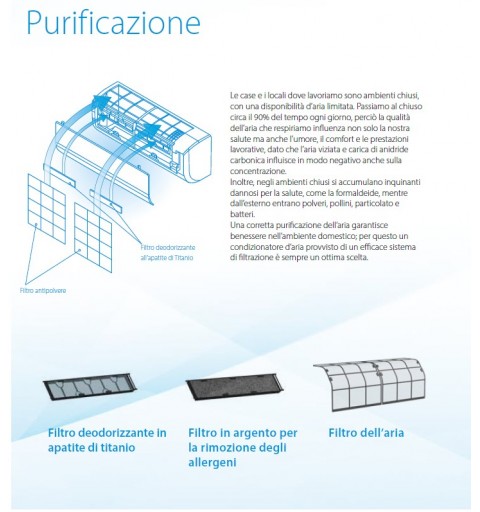

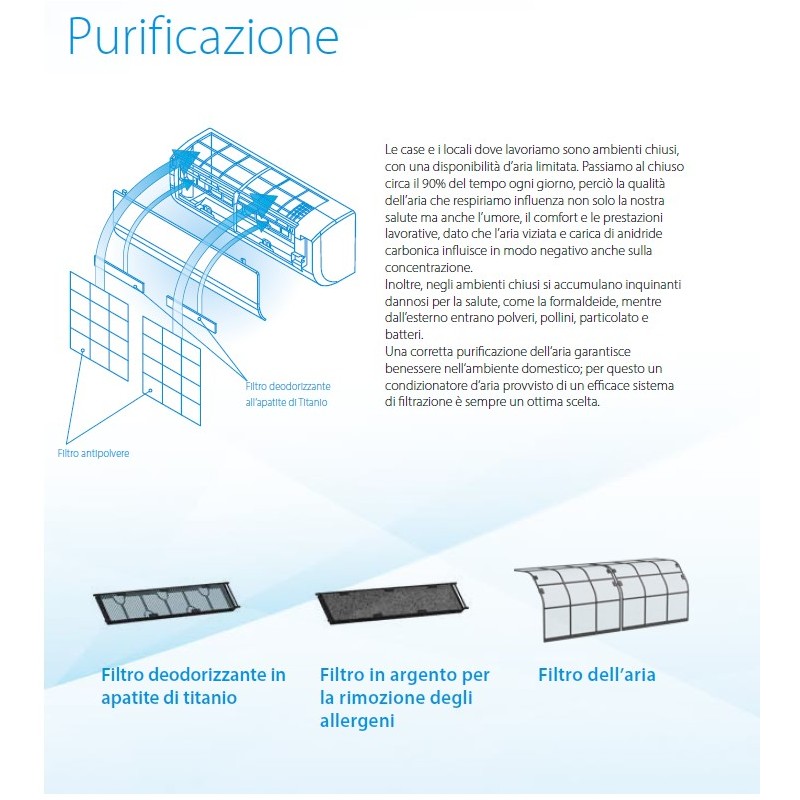

- Three-stage filtration
1 - Deodorizing filter with titanium apatite that decomposes odors, such as tobacco and animals
2 - Silver filter for removing allergens such as pollen and dust mites
3 - Dust filter removes dust particles in the air ensuring the delivery of clean air - Three-dimensional ventilation flow
- Maximum quietness, only 19 dBA
- Compact unit, only 770 mm long
- Extended operating range relative to outdoor temperature (-21~50)°C
- Integrated Wi-Fi: BRP069C47
Technical Specifications
- Indoor unit catalog code: ATXD35A
- Outdoor unit catalog code: ARXD35A
- Power: 12000 Btu
- Color: White
Energy-saving function in standby
Energy consumption reduces by approximately 80% in standby mode. If no presence is detected for more than 20 minutes, the system automatically switches to energy-saving mode.
Night mode
Saves energy by preventing excessive temperature rise or fall during the night.
Econo mode
This function reduces power consumption, making it available for other applications that require high power. This function also helps save energy.
Fan-only mode
The air conditioner can be used in fan-only mode, without cooling or heating.
24-hour timer
The timer can be set to start cooling or heating at any time within 24 hours.

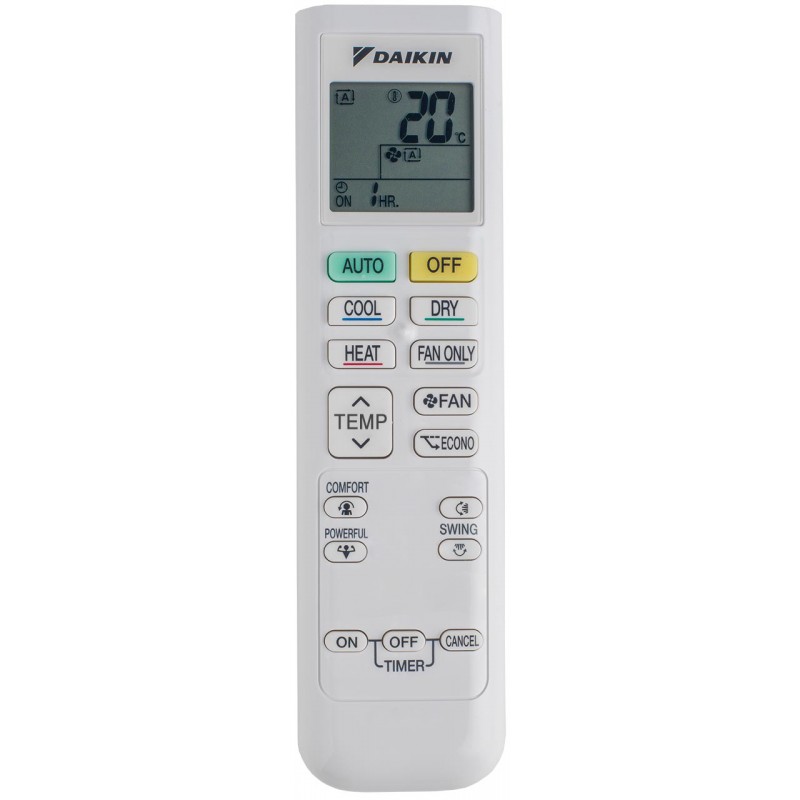

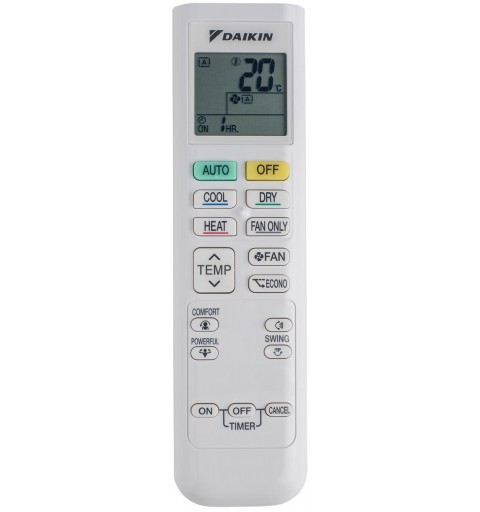

Infrared remote control
Infrared remote control with LCD display to start, stop, and adjust the air conditioner remotely.

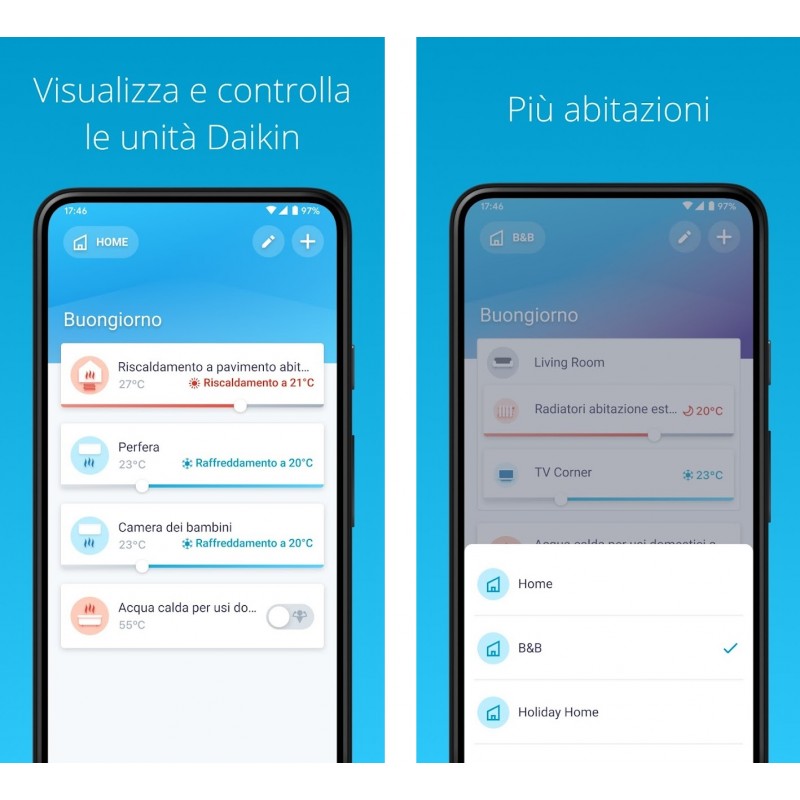

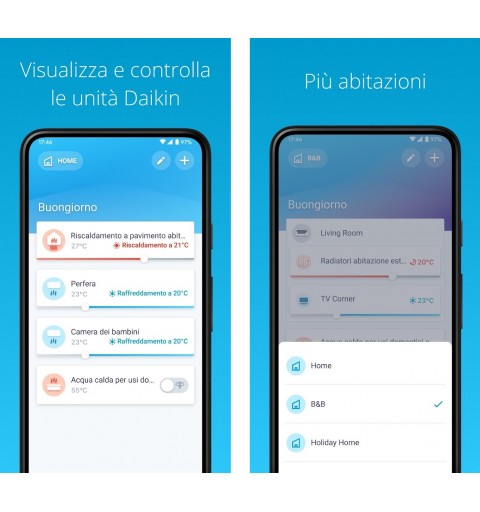

Onecta app
Control your indoor unit anywhere via the app thanks to integrated Wi-Fi.
Comfort mode
The new deflector adjusts the air outlet angle horizontally for cooling and vertically downward for heating. This prevents cold or hot air from concentrating low or high, generating non-uniform temperature in the environment.
Maximum power mode
If the room temperature is too high or low, it can be quickly cooled or heated by selecting "Powerful Mode". Once "Powerful Mode" is turned off, the unit returns to the preset mode.
Automatic cooling-heating switching
Automatically selects cooling or heating mode to reach the set temperature (heat pump only).
Silent indoor unit function
Reduces the operating noise level of the indoor unit by 3 dB(A). This function is useful when studying or sleeping.
Automatic vertical oscillation
Automatic vertical oscillation of the supply air deflector can be selected to optimize airflow and temperature distribution.
Automatic fan speed adjustment
Automatically selects fan speed to reach or maintain the set temperature.
Three-dimensional airflow
This function uses both vertical and horizontal oscillatory motion to ensure the circulation of hot/cold air even in corners of large rooms.
Step fan speed
Allows selection of different fan speed options.
Silver filter for allergen removal and air purification
Captures allergens such as pollen ensuring a constant delivery of clean air.
Titanium apatite deodorizing filter
Breaks down odors, such as tobacco and animals.
Dust filter
Removes suspended dust particles in the air ensuring a constant delivery of clean air.
Dehumidification program
Manages humidity reduction in the air avoiding excessive cooling.
Automatic restart function
After a power interruption, the unit automatically restarts with the original settings.
Self-diagnosis
Simplifies maintenance by indicating system malfunctions or operating abnormalities.
____
Technical Specifications ATXD35A / ARXD35A
Cooling Capacity | Min. | kW | 1.4 | |
Nominal | kW | 3.3 | ||
Max. | kW | 3.9 | ||
Heating Capacity | Min. | kW | 1.4 | |
Nominal | kW | 3.3 | ||
Max. | kW | 3.5 | ||
Nominal Efficiency | COP | 4 | ||
EER | 4.23 | |||
Energy Class | Cooling | A+++ | ||
Heating | A+++ | |||
Annual Energy Consumption | kWh | 136 |
Technical Specifications Internal Unit ATXD35A
Casing | Color | White | |||||
Dimensions | Unit | Height | mm | 286 | |||
Width | mm | 770 | |||||
Depth | mm | 225 | |||||
Weight | Unit | kg | 9.0 | ||||
Fan | Air Flow Rate | Cooling | High | m³/min | 11 | ||
Medium | m³/min | 8.5 | |||||
Low | m³/min | 6.8 | |||||
Quiet Operation | m³/min | 5.4 | |||||
Heating | High | m³/min | 11.5 | ||||
Medium | m³/min | 9.4 | |||||
Low | m³/min | 7.7 | |||||
Quiet Operation | m³/min | 6.3 | |||||
Sound Power | Cooling | dBA | 58.0 | ||||
Heating | dBA | 58.0 | |||||
Sound Pressure Level | Cooling | High | dBA | 43.0 | |||
Medium | dBA | 34.0 | |||||
Low | dBA | 27.0 | |||||
Quiet Operation | dBA | 20.0 | |||||
Heating | High | dBA | 40.0 | ||||
Medium | dBA | 35.0 | |||||
Low | dBA | 29.0 | |||||
Quiet Operation | dBA | 21.0 | |||||
Piping connections | Liquid | OD | mm | 6.35 | |||
Gas | OD | mm | 9.50 | ||||
Control Systems | Infrared Remote Control | ARC480A78 | |||||
Air Filtration | 3-Stage Filtration | Titanium Apatite Deodorizing Filter - Silver Filter - Dust Filter | |||||
Control systems | Wired Remote Control | BRP069C47 | |||||
Standard Accessories | Installation Manual | 1 | |||||
User Manual | 1 | ||||||
General Safety Measures | 1 | ||||||
Infrared Remote Control | 1 | ||||||
AAA Dry Batteries | 2 | ||||||
Remote Control Bracket | 1 | ||||||
Mounting Plate | 1 | ||||||
Indoor Unit Fixing Screws | 2 | ||||||
Power Supply | Phase | 1~ | |||||
Frequency | Hz | 50 | |||||
| V |
|

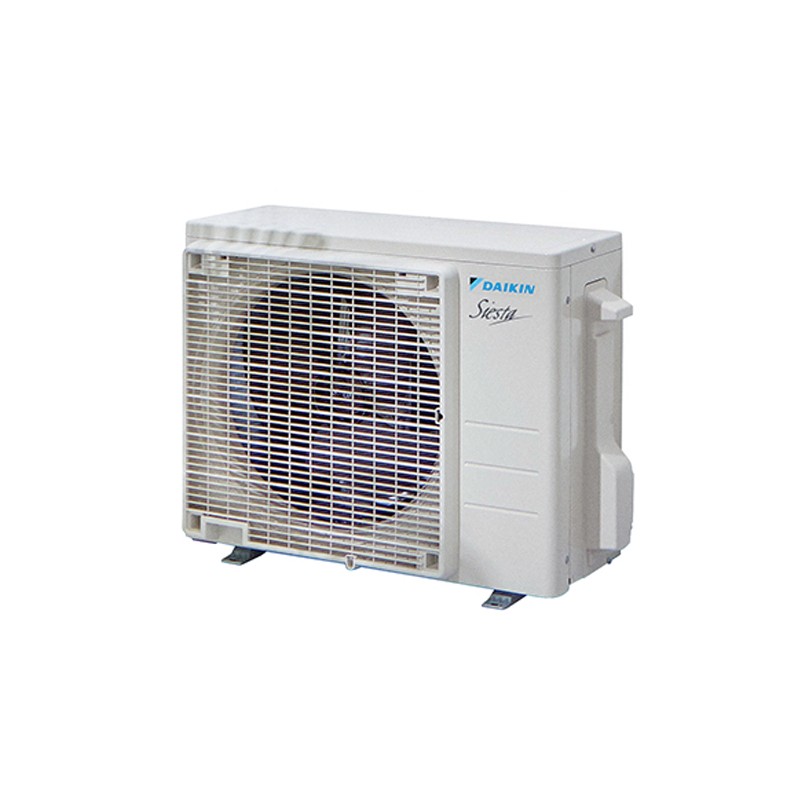

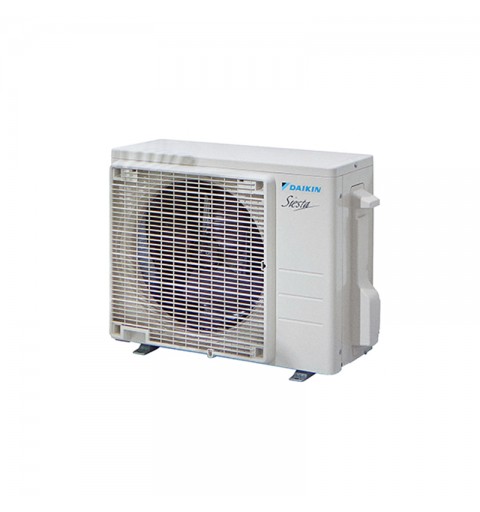

Outdoor Unit Technical Specifications ARXD35A
Dimensions | Unit | Height | mm | 285 | |
Width | mm | 765 | |||
Depth | mm | 550 | |||
Weight | Unit | kg | 32.0 | ||
Compressor | Compressor Type | Hermetic Swing Type Compressor | |||
Operating Range | Cooling | External Temp. | Min. | °CBS | -10 |
Max. | °CBS | 50 | |||
Heating | External Temp. | Min. | °CBU | -21 | |
Max. | °CBU | 18 | |||
Sound Pressure Level | Cooling | High | dBA | 49.0 | |
Heating | High | dBA | 49.0 | ||
Refrigerant | Type | R-32 | |||
Charge | kg | 0.76 | |||
Charge | TCO2Eq | 0.52 | |||
GWP | 675.0 | ||||
Piping connections | Pipe Length | Max. | m | 20.0 | |
Vertical Lift | Int. - Ext. | Max. | m | 15.0 | |
Pipe Connections (ø) | Liquid-Gas | mm | 6.35 - 9.5 | ||
Additional Refrigerant Charge | Kg/m | 0.02 (for pipe length over 10 m) | |||
Standard Accessories | Labels | Fluorinated greenhouse gases - Refrigerant charge | |||
Manuals and Drain Plug | Safety Measures - Installation Manual - Drain Plug | ||||
Power Supply | Phase | 1~ | |||
Frequency | Hz | 50 | |||
Voltage | V | 220-240 |
