Daikin ATXF25D ARXF25D Air Conditioner 2,5kw 9000BTU Siesta Pro Evo A++/A+ Inverter Wifi Ready 2022 New Release
Daikin ATXF25D ARXF25D Air Conditioner 9000BTU Siesta Pro Evo A++/A+ Inverter Wifi Ready 2022 New Release (Made in Europe)
Daikin ATXF25D ARXF25D Air Conditioner 9000BTU Siesta Pro Evo 2022 New Release A++/A+ Inverter Wifi Ready
Daikin Siesta Pro Evo 2022 new model - ATXF-D ARXF-D (Made in Europe)

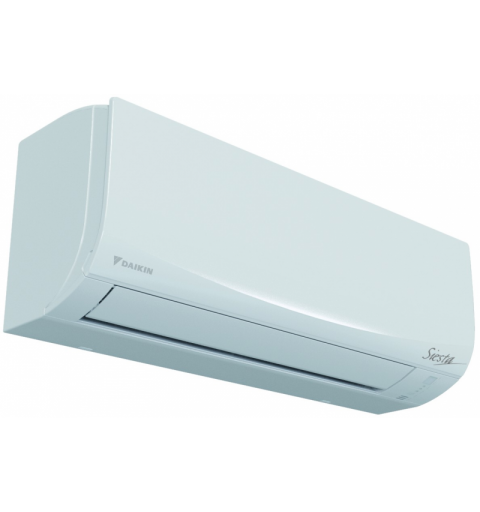

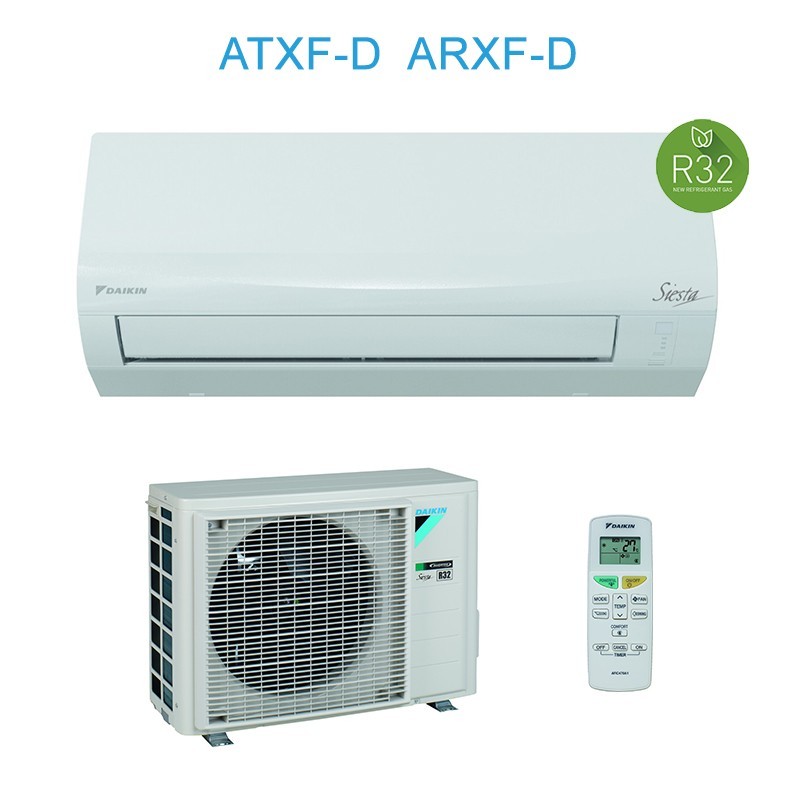

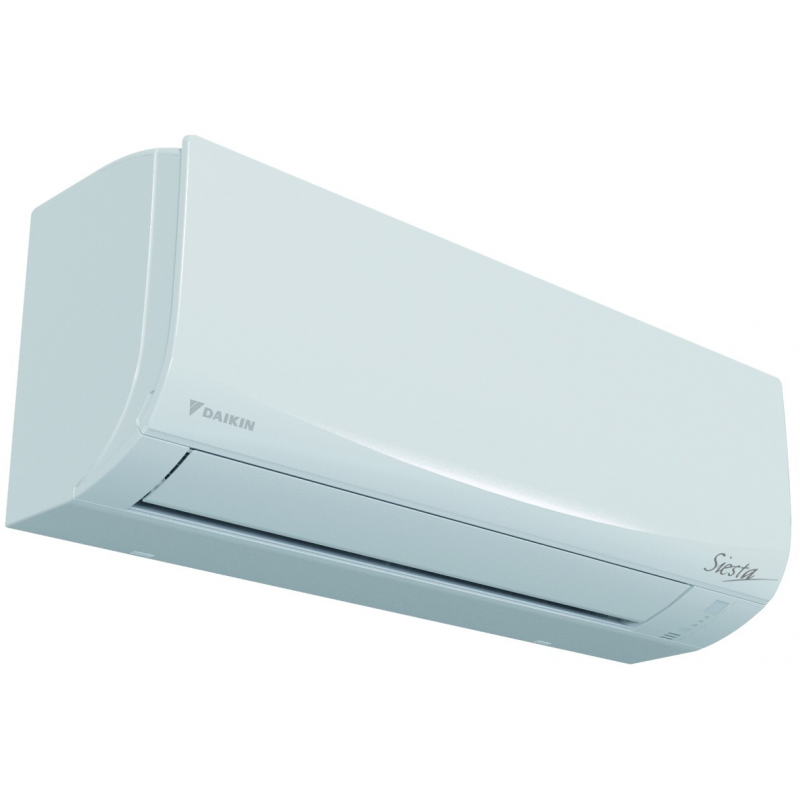

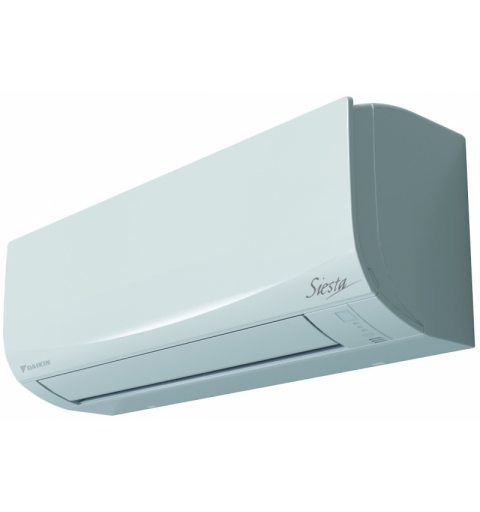

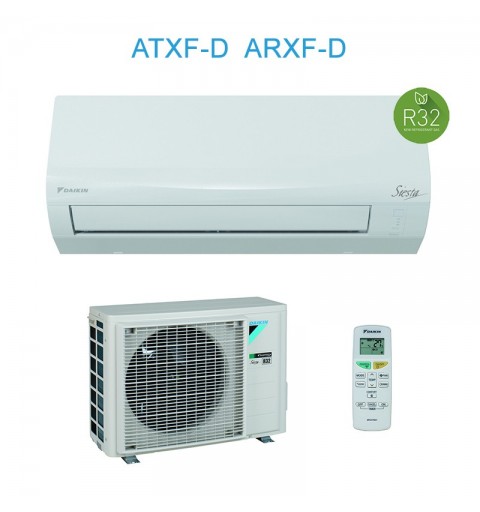

9000 btu Siesta Pro Evo air conditioner kit, consisting of the internal split ATXF25D, the external motor ARXF25D, and the remote control
Wall-mounted unit with excellent value for money
Optional Wi-Fi card: BRP069B45 Daikin Wi-Fi module accessory
____
Product Features
- Daikin outdoor units are well-crafted and sturdy, easily installable on a roof or terrace, or simply against an external wall
- Daikin outdoor units come equipped with a heat exchanger with anti-corrosion treatment (blue fin) ensuring great resistance to harsh weather conditions
- Outdoor units for single-split applications
- Choosing an R-32 product reduces environmental impact by 68% compared to R-410A systems and directly lowers energy consumption due to high energy efficiency
- Onecta (optional): control your indoor units from anywhere via the app, local network, or Internet and monitor energy consumption
- Quiet operation up to just 20 dBA
Technical Specifications
- Internal unit catalog code: ATXF25D
- External unit catalog code: ARXF25D
- Power: 9000 Btu
- Optional Wi-Fi (Code BRP069B45)
Technical Specifications ATXF25D5V1B / ARXF25D5V1B
Cooling Capacity | Min. | kW | 1.3 | |
Nom. | kW | 2.50 | ||
Max. | kW | 2.8 | ||
Heating Capacity | Min. | kW | 1.30 | |
Nom. | kW | 2.80 | ||
Max. | kW | 3.70 | ||
Rated Efficiency | COP | 3.73 | ||
EER | 3.24 | |||
Energy class | Cooling | A++ | ||
Heating | A+ |

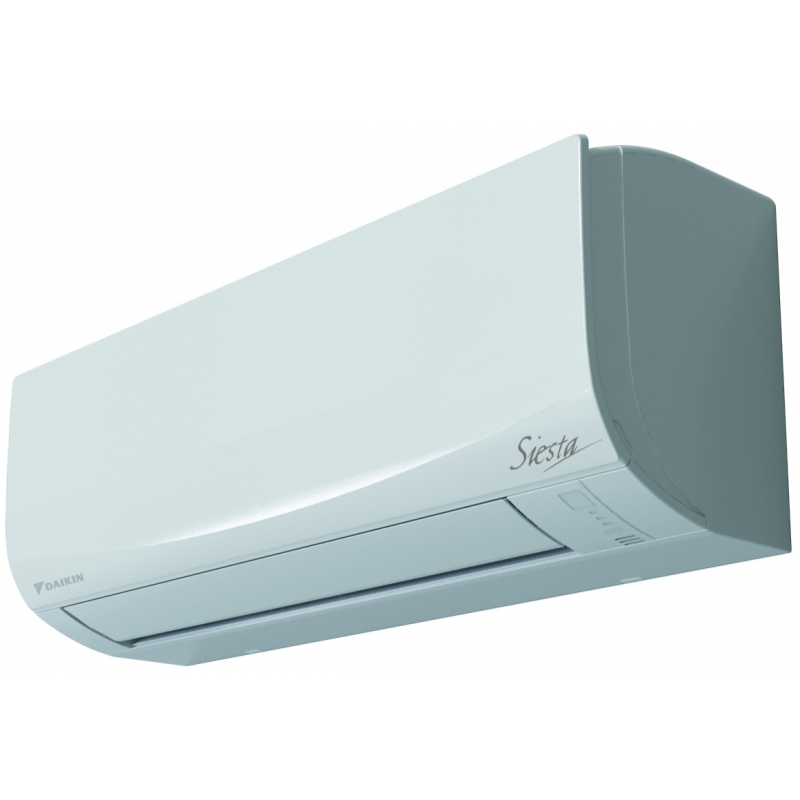

Technical Specifications Indoor Unit ATXF25D5V1B
Power absorbed | Cooling | Nom. | kW | 0.023 | |||
Heating | Nom. | kW | 0.023 | ||||
Casing | Colour | Bianco | |||||
Dimensions | Units | Height | mm | 286 | |||
Width | mm | 770 | |||||
Depth | mm | 225 | |||||
Weight | Units | kg | 8.00 | ||||
Fan | Airflow | Cooling | Height | m³/min | 10.0 | ||
Medium | m³/min | 8 | |||||
Low | m³/min | 6.2 | |||||
Quiet operation | m³/min | 4.3 | |||||
Heating | High | m³/min | 10.4 | ||||
Medium | m³/min | 8.4 | |||||
Low | m³/min | 6.4 | |||||
Quiet operation | m³/min | 5.3 | |||||
Sound power | Cooling | dBA | 54.0 | ||||
Heating | dBA | 55.0 | |||||
Sound pressure level | Cooling | High | dBA | 40.0 | |||
Medium | dBA | 33.0 | |||||
Low | dBA | 26.0 | |||||
Quiet operation | dBA | 20.0 | |||||
Heating | High | dBA | 40.0 | ||||
Medium | dBA | 34.0 | |||||
Low | dBA | 28.0 | |||||
Quiet operation | dBA | 21.0 | |||||
Piping connections | Liquid | DE | mm | 6 | |||
Gas | DE | mm | 9.50 | ||||
Discharge | 18 | ||||||

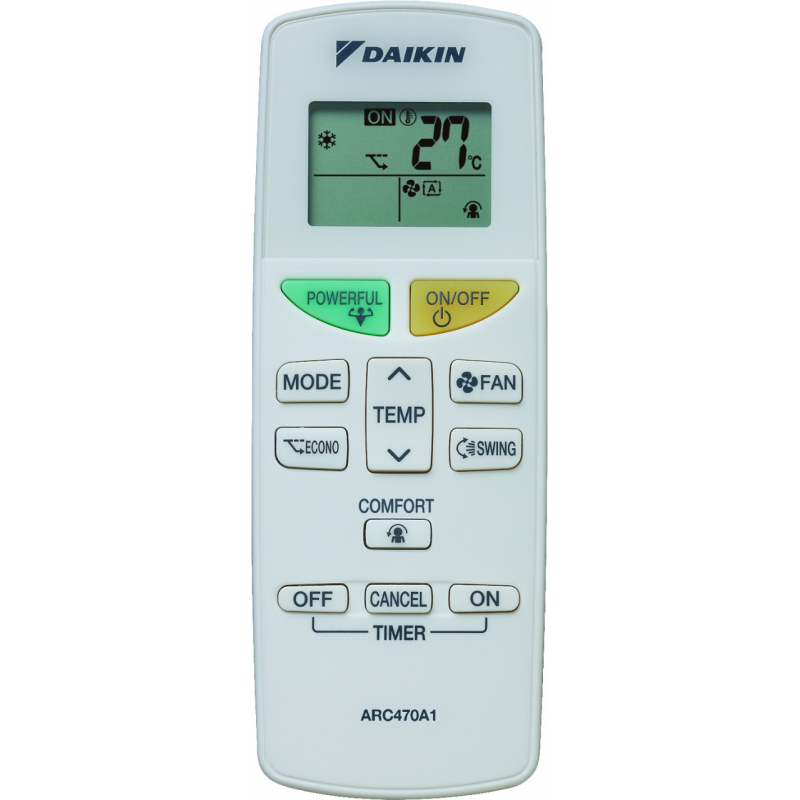

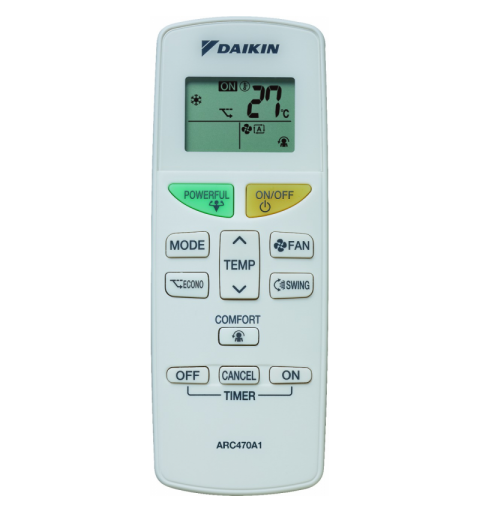

Control systems | Infrared remote control | ARC470A1 | |||||
Wired remote control | BRC073A1 | ||||||
Standard accessories | Installation manual | 1 | |||||
User manual | 1 | ||||||
Batteries | 1 | ||||||
Infrared remote control | 1 | ||||||
AAA dry batteries | 2 | ||||||
Remote control holder | 1 | ||||||
Mounting plate | 1 | ||||||
Indoor unit fixing screws | 2 | ||||||
Power supply | Phase | 1~ | |||||
| Hz | 50 | |||||
| V |
|

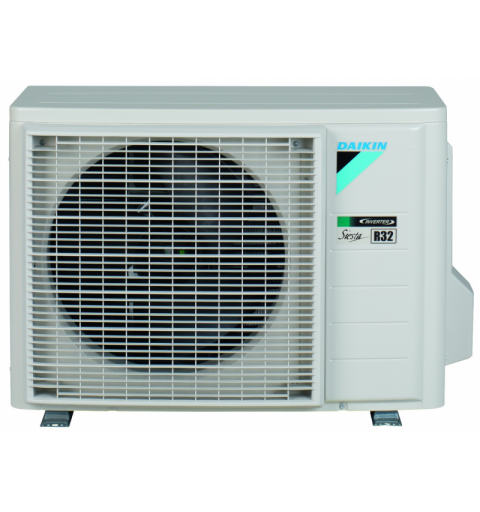

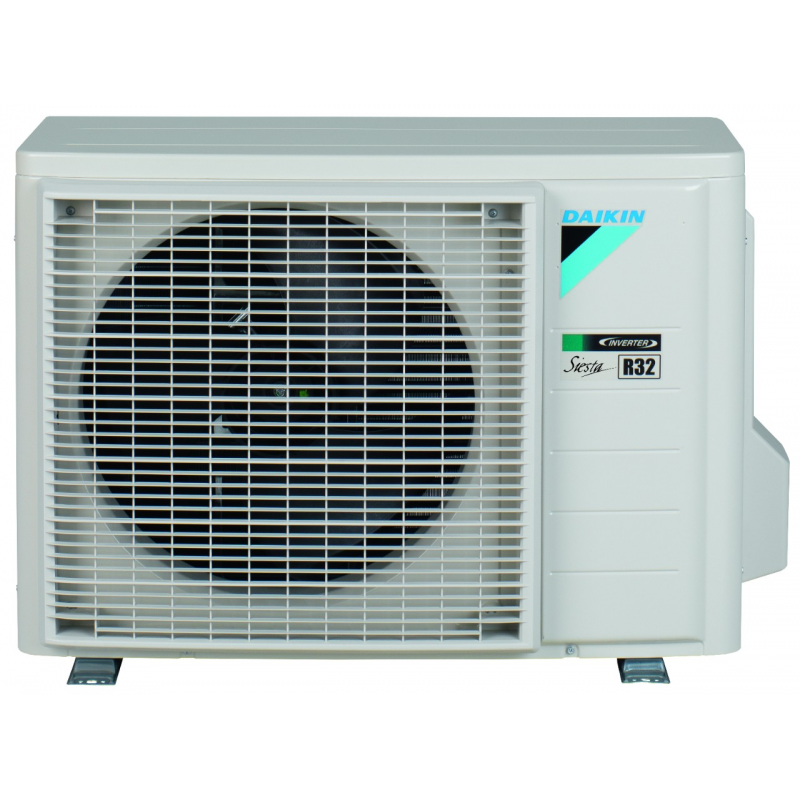

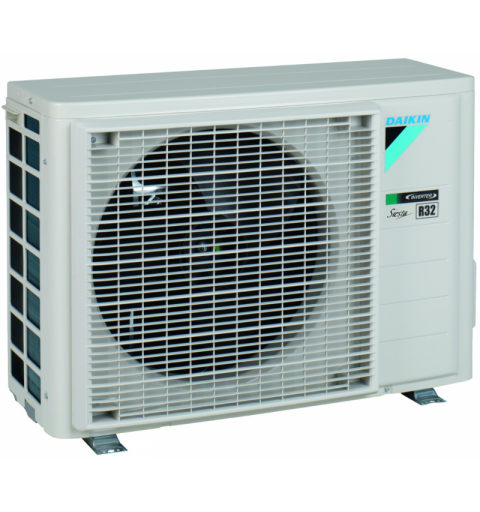

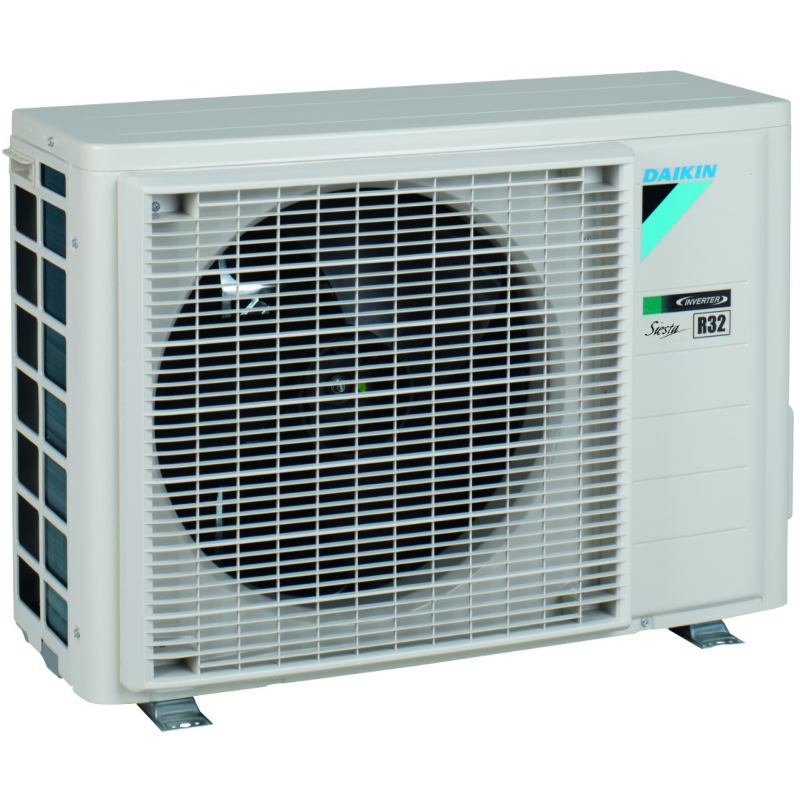

Technical Specifications Outdoor Unit ARXF25D5V1B
Dimensions | Units | Height | mm | 550 | |
Width | mm | 658 | |||
Depth | mm | 275 | |||
Weight | Units | kg | 24.0 | ||
Compressor | Compressor-=-Type | Compressore ermetico tipo Swing | |||
Operation range | Cooling | E. Temp. | Min. | °CBS | -10 |
Max. | °CBS | 48 | |||
Heating | E. Temp. | Min. | °CBU | -15 | |
Max. | °CBU | 18 | |||
Sound pressure level | Cooling | High | dBA | 46.0 | |
Heating | High | dBA | 47.0 | ||
Refrigerant | Type | R-32 | |||
Carica | kg | 0.450 | |||
Carica | TCO2Eq | 0.300 | |||
GWP | 675.0 | ||||
Piping connections | Additional refrigerant charge | kg/m | 0,02 (per lunghezza delle tubazioni superiore ai 10m) | ||
Height difference | int. - est. | Max. | m | 12.0 | |
Standard accessories | nstallation manual | 1 | |||
Drain plug | 1 | ||||
Refrigerant charge label | 1 | ||||
Multilingual labels on fluorinated greenhouse gases | 1 | ||||
General safety measures | 1 | ||||
Power supply | Phase | 1~ | |||
Frequency | Hz | 50 | |||
Voltage | V | 220-240 |
Advantages
Standby Mode with Energy Saving
Energy consumption reduces by approximately 80% in standby mode.
Online Controller
Possibility to control the indoor unit from any location via smartphone, laptop, PC, tablet, or touchscreen.
Inverter
Inverter-driven compressors adjust the compressor speed according to actual demand, allowing for fewer stops and starts, reducing energy consumption (up to 30%), while maintaining more stable temperatures.
Econo Mode
Reduces power consumption, making it available for other applications requiring high power, also saving energy.
Ventilation Only
The unit can be used solely in ventilation mode, without cooling or heating.
Comfort Mode
Ensures optimal operation without generating annoying drafts, preventing cold or warm air from being blown directly onto people.
Powerful Mode
Allows for rapid cooling or heating of the environment; once "Powerful" mode is deactivated, the unit returns to the preset mode.
Automatic Mode Switching
Automatically selects cooling or heating mode to maintain the set temperature.
Internal Unit Silent Function
The "Silent" button on the remote control reduces the emitted noise level of the indoor unit by 3dB(A) during operation.
Automatic Vertical Oscillation
Possibility to select automatic vertical movement of the air outlet flaps to ensure uniform airflow and temperature distribution throughout the room.
Automatic Fan Speed Adjustment
Automatically selects the fan speed to reach or maintain the set temperature.
Step Fan Speed (5 steps)
Allows for selecting different fan speed values (2 steps).
Dehumidification Program
Manages humidity reduction in the air, preventing excessive cooling.
Air Filter
Eliminates dust particles dispersed in the air, improving air quality.
24-Hour Timer
Can be set to start the unit at any time within a 24-hour period.
Infrared Remote Control
Allows remote control of air conditioner functions.
Automatic Restart Function
After a power interruption, the unit automatically restarts with the original settings.
Self-Diagnosis
Simplifies maintenance by indicating system malfunctions or operation anomalies.
