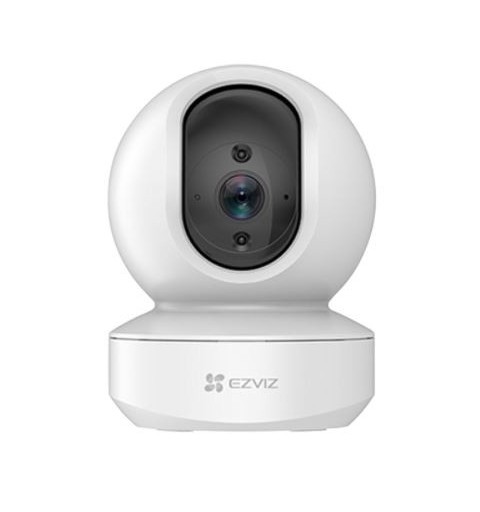

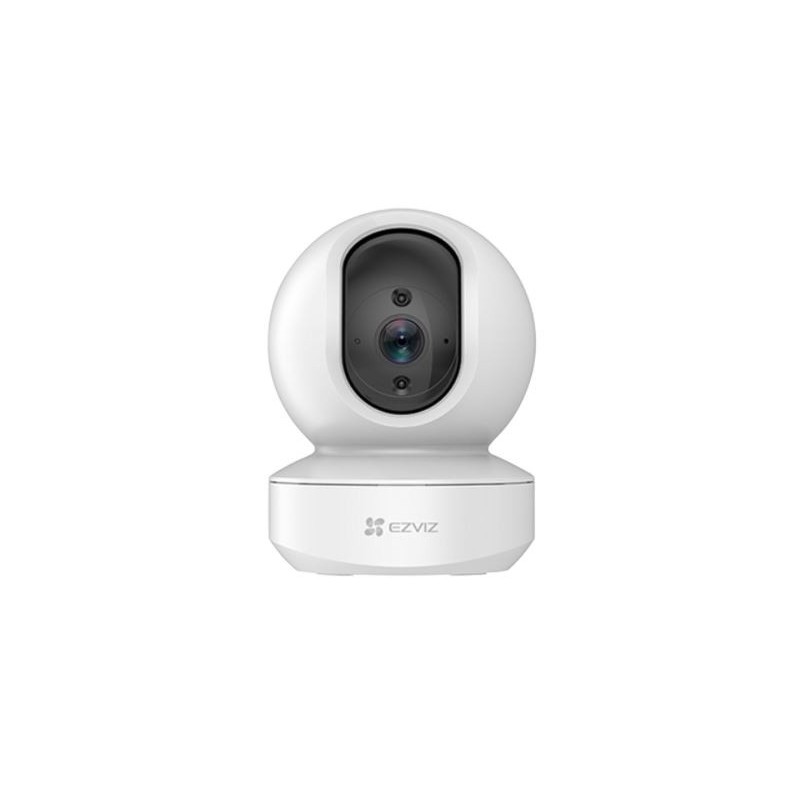

EZVIZ TY1 4MP IP security camera Indoor Dome 2560 x 1440 pixels Ceiling/wall

Smart Wi-Fi Pan & Tilt Camera.
Watch over your entire space easily with the TY1 Camera’s 360-degree field-of-view and its smart tracking feature. It’s got you covered – all day & all night.

Records every corner in 2K resolution.
This powerful camera records images in 2K resolution, rendering crisp details even in 4x digital zoom, so you see everything clearly in live video and playback.

Zero blind spots.
Keep tabs on every corner with just one TY1. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.

Smart tracking.
When it detects a moving object, the TY1 is smart enough to automatically track its motion while alerting you with an image in real-time.

Communication, anytime.
Talk to your loved ones and deter unwelcome strangers – all by using the TY1’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.

See further in the dark.
Enjoy round-the-clock protection with the TY1 camera. Using powerful Infrared LED lights, it lets you see up to 10 meters (33 feet) in dim light.

We protect your data and privacy.
Protecting your data and privacy is our highest priority. Data transmission between the camera and the EZVIZ Cloud is encrypted from end to end. Only you have the keys to decrypt your data. To get an extra layer of privacy protection, you can always enable the camera’s sleep mode on the EZVIZ App.

Save money on video storage and bandwidth.
The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space of the previous H.264 video compression standard.

EZVIZ TY1 4MP. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Form factor: Dome, Mounting type: Ceiling/wall, Product colour: Black, White. Viewing angle, horizontal: 85°, Viewing angle, vertical: 55°, Viewing angle, diagonal: 124°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 4 mm

Performance
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Wide Dynamic Range (WDR)	Y
Day/night mode	Y
Infrared (IR) cut-off filter	Y
Certification	FCC / UL / CE / WEEE / REACH / ROHS
Design
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black, White
Camera
Viewing angle, horizontal	85°
Viewing angle, vertical	55°
Viewing angle, diagonal	124°
Image sensor
Sensor type	CMOS
Number of sensors	4
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Y
Lens system
Number of lenses	1
Maximum aperture number	2.2
Fixed focal length	4 mm
Night vision
Night vision	Y
Night vision distance	10 m
LED type	IR
Video
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video formats supported	H.264,H.265
Frame rate	20 fps
Noise reduction	Y
Noise reduction technology	3D noise reduction
Digital Wide Dynamic Range (DWDR)	Y
Network
Ethernet LAN	Y
Wi-Fi	Y
Bluetooth	N
Ethernet interface type	Fast Ethernet
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	72 Mbit/s
Storage
Built-in HDD	N
Card reader integrated	Y
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Power
Power source type	DC
Power consumption (max)	5 W
DC output voltage	5
DC output current	2 A
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Weight & dimensions
Width	88 mm
Depth	88 mm
Height	119 mm
Weight	259 g
Package width	103 mm
Package depth	103 mm
Package height	186 mm
Packaging content
Number of cameras	1
Screws included	Y
