Daikin 2AMXM40M + ATXM35A + ATXM25A Air Conditioner Siesta Perfera 2025 Dual Split 12000 + 9000 Btu A+++ WiFi R32

Daikin 2AMXM40M + ATXM35A + ATXM25A Air Conditioner Siesta Perfera 2025 Dual Split 12000 + 9000 Btu A+++/A+++ WiFi Inverter R32 White

Daikin Multi-Split Model Siesta Perfera 2025 - ATXM-A 2AMXM-M

Kit Includes:

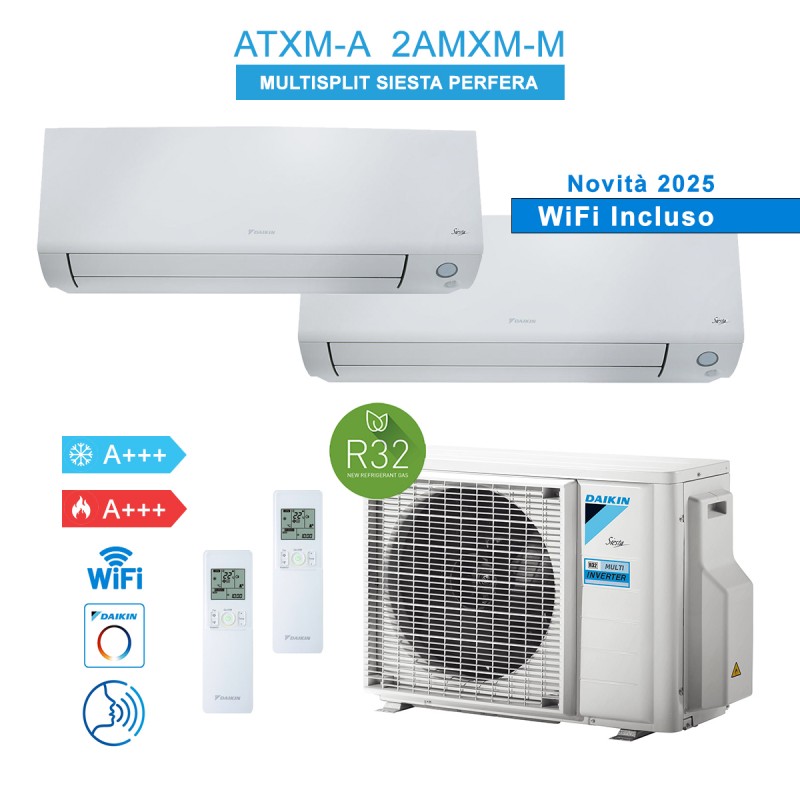

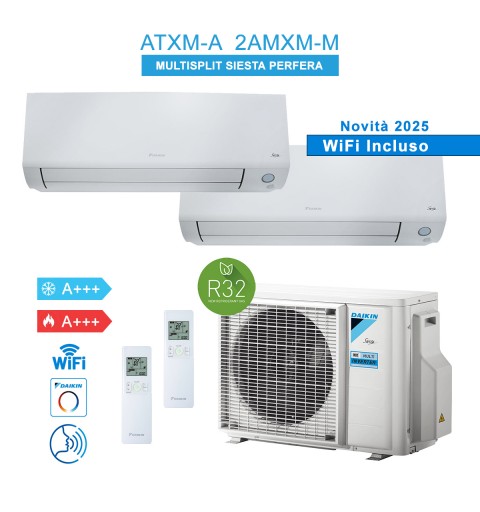

This air conditioner kit consists of indoor units ATXM35A (12000 BTU) + ATXM25A (9000 BTU), the 2AMXM40M outdoor unit, and two remote controls.

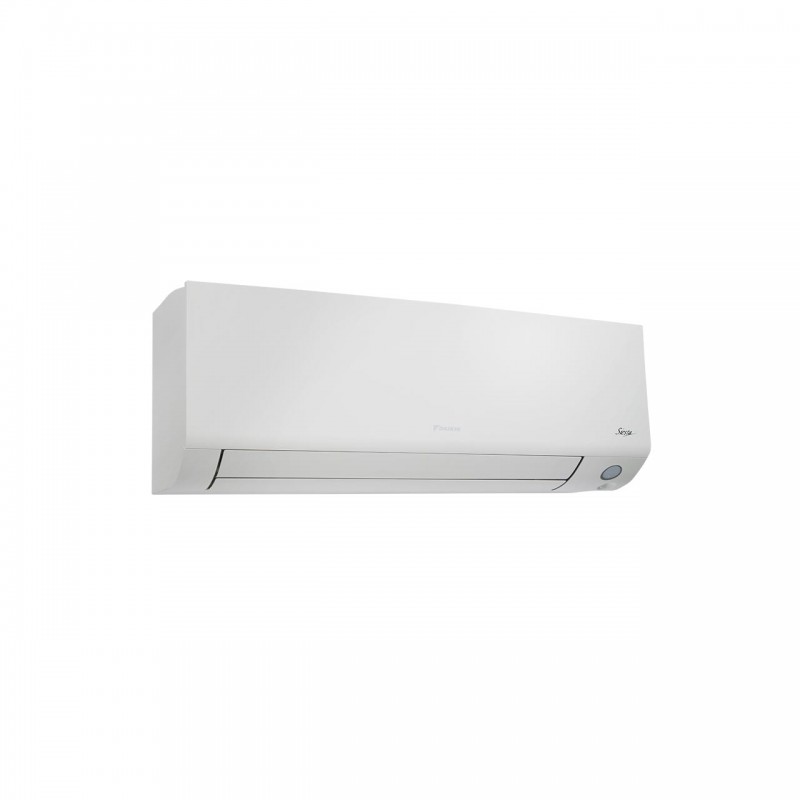

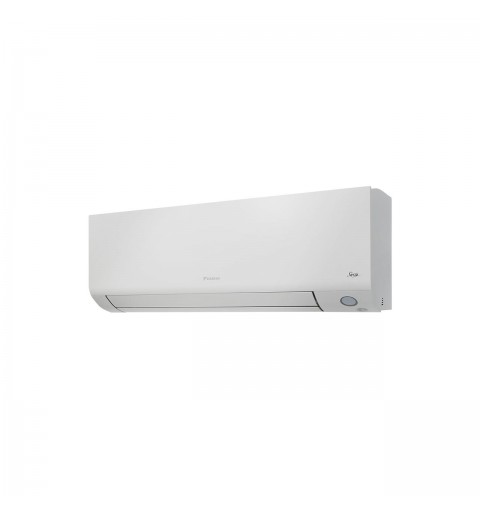

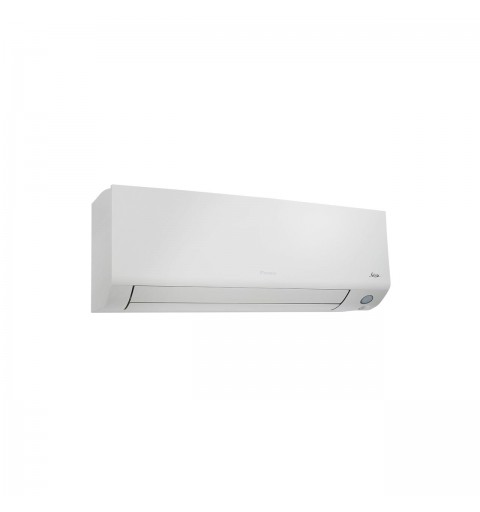

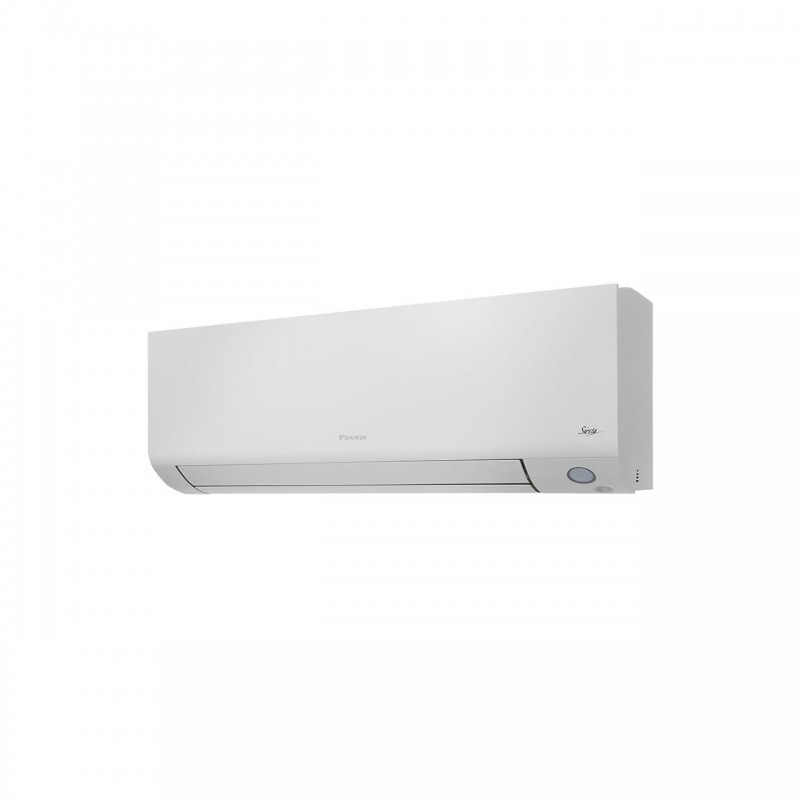

Elegant wall-mounted indoor units ensuring high indoor air quality.

• Energy Efficiency Class: A+++/A+++
• Integrated Wi-Fi Module



Product Features

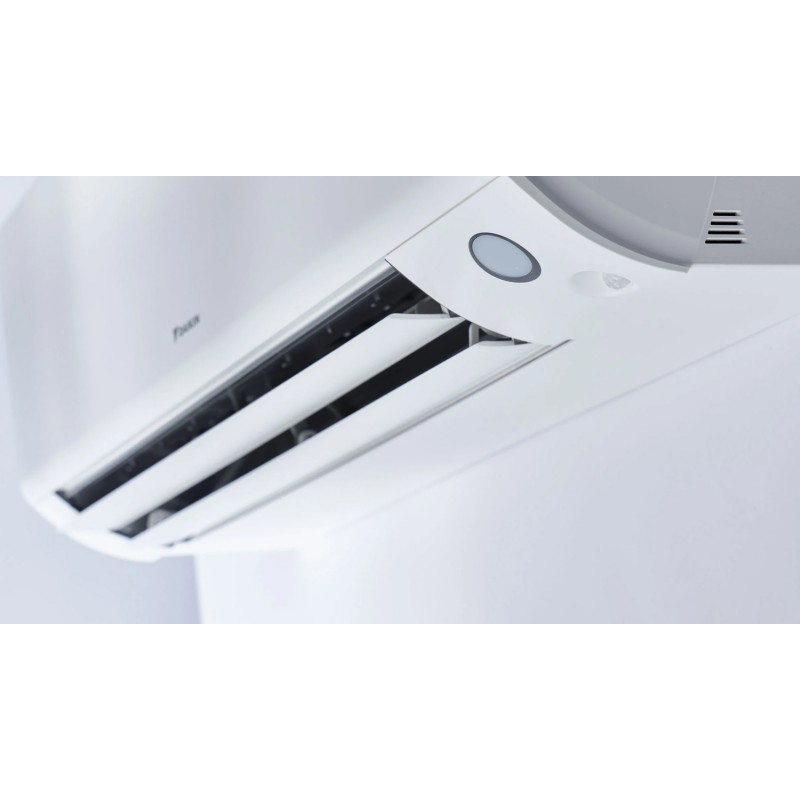

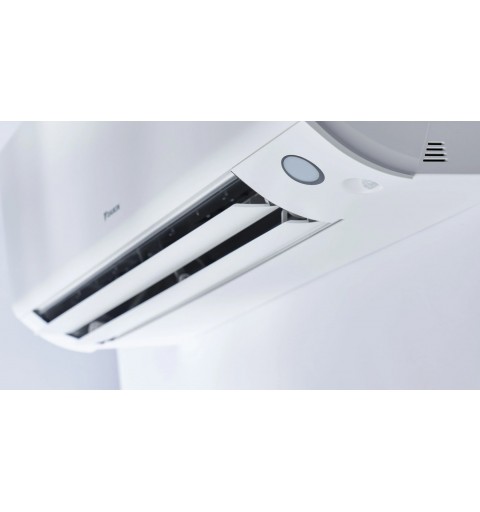

• Comfort+: Perfect comfort with uniform temperature throughout the room. Dual deflectors direct air towards the ceiling in cooling mode and along the wall in heating mode.

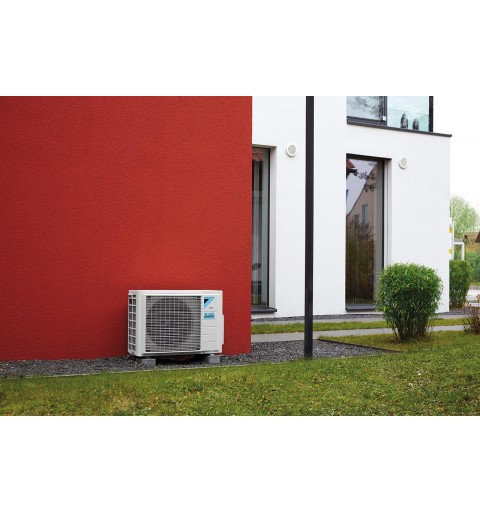

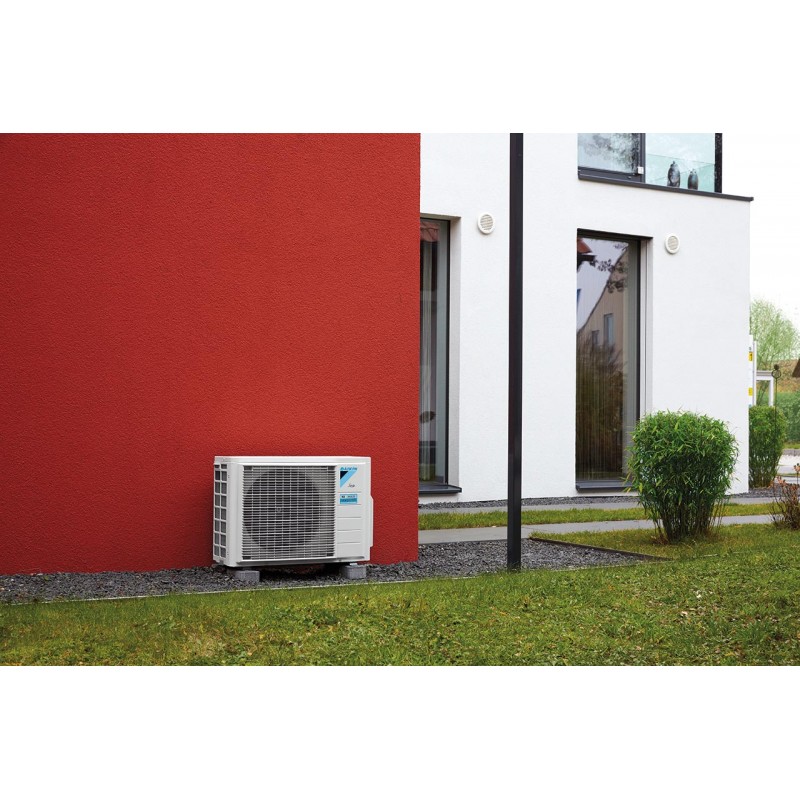

• Durable and robust outdoor units can be installed on a roof, terrace, or an external wall.
• The outdoor units feature a Swing compressor, known for low noise levels and high energy efficiency.
• Multi-Split connectivity: Up to 2 indoor units can be connected to one outdoor unit, each controlled individually. They can be installed in different rooms and at different times but will operate in the same mode (cooling or heating).
• Compatible with different types of wall-mounted indoor units.
• Choosing an R-32 system reduces environmental impact by 68% compared to R-410A and improves energy efficiency, leading to lower energy consumption.
• Seasonal efficiency ratings up to A+++ in both cooling and heating, thanks to advanced technology and intelligent control.
• 2-Zone Motion Sensor: Detects movement and redirects airflow away from the occupant. If no presence is detected, the unit switches to energy-saving mode.
• Quick Heating Function: Warms up your home 14% faster than a standard air conditioner when starting (monosplit only).
• External units for mono-split applications.
• Air purification: Removes viruses, bacteria, and fine dust particles with an efficient dust filter.
• Anti-corrosion treatment on the heat exchanger fins of the outdoor unit.
• Flash Streamer Technology: Uses electrons to trigger chemical reactions that decompose allergens (such as pollen and mold) and eliminate odors, ensuring cleaner air.
• Silver Allergen Filter: Captures allergens (e.g., pollen) and ensures continuous clean air supply.
• Voice Control: Compatible with Amazon Alexa and Google Assistant for controlling setpoint temperature, operation mode, fan speed, and more.
• Onecta App: Allows you to control indoor units from anywhere via Wi-Fi, local network, or Internet.
• Ultra-quiet operation: Sound pressure levels as low as 19 dBA.
• 3D Airflow: Uses automatic vertical and horizontal oscillation to circulate hot or cold air efficiently, reaching every corner of large rooms.



Technical Specifications – Indoor Unit ATXM25A

• Power: 9000 BTU
• Casing Color: White
• Power Consumption:
  • Cooling (Nom.): 0.019 kW
  • Heating (Nom.): 0.018 kW
• Fan Motor Speeds: 5 + silent + auto
• Dimensions:
  • Height: 298 mm
  • Width: 804 mm
  • Depth: 252 mm
• Weight: 11.5 kg
• Airflow (Cooling):
  • High: 11.9 m³/min
  • Medium: 8.9 m³/min
  • Low: 6.3 m³/min
  • Silent Mode: 4.9 m³/min
• Sound Power Level (Cooling): 55.0 dBA
• Sound Power Level (Heating): 54.0 dBA
• Sound Pressure Level (Cooling):
  • High: 41.0 dBA
  • Medium: 33.0 dBA
  • Low: 25.0 dBA
  • Silent Mode: 19.0 dBA
• Sound Pressure Level (Heating):
  • High: 39.0 dBA
  • Medium: 34.0 dBA
  • Low: 27.0 dBA
  • Silent Mode: 20.0 dBA
• Piping Connections:
  • Liquid: 6.4 mm
  • Gas: 9.5 mm
  • Drain: 16 mm
• Control Systems:

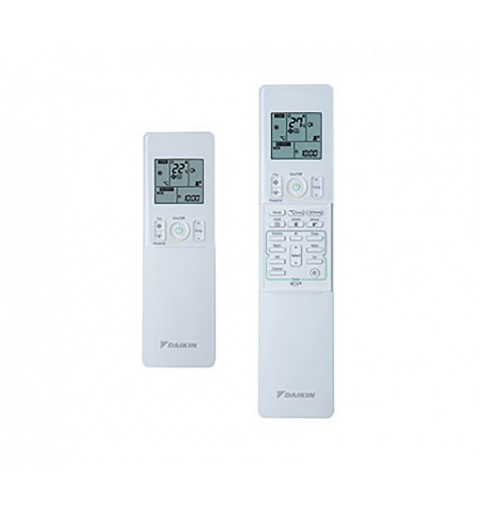

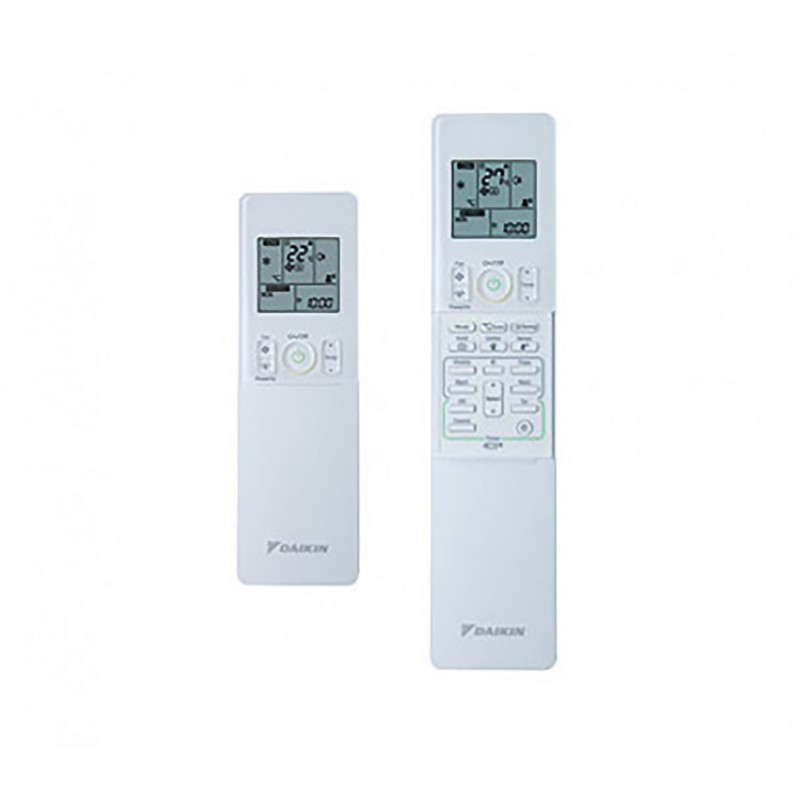

  • Infrared Remote: ARC466A86
  • Wired Remote Control: BRC073A1
• Standard Accessories:
  • Installation manual
  • User manual
  • Silver particle filter, Titanium apatite deodorizing filter
  • Infrared remote control (1)
  • AAA dry batteries (2)
  • Remote control holder
  • Mounting plate
  • Fixing screws (2)
• Power Supply:
  • Phase: 1~
  • Frequency: 50 Hz
  • Voltage: 220-240 V



Technical Specifications – Indoor Unit ATXM35A

• Power: 12000 BTU
• Casing Color: White
• Power Consumption:
  • Cooling (Nom.): 0.029 kW
  • Heating (Nom.): 0.019 kW
• Fan Motor Speeds: 5 + silent + auto
• Dimensions:
  • Height: 298 mm
  • Width: 804 mm
  • Depth: 252 mm
• Weight: 11.5 kg
• Airflow (Cooling):
  • High: 13.2 m³/min
  • Medium: 9.4 m³/min
  • Low: 7.1 m³/min
  • Silent Mode: 4.6 m³/min
• Sound Power Level (Cooling): 58.0 dBA
• Sound Power Level (Heating): 54.0 dBA
• Sound Pressure Level (Cooling):
  • High: 45.0 dBA
  • Medium: 37.0 dBA
  • Low: 29.0 dBA
  • Silent Mode: 19.0 dBA
• Sound Pressure Level (Heating):
  • High: 39.0 dBA
  • Medium: 35.0 dBA
  • Low: 28.0 dBA
  • Silent Mode: 20.0 dBA

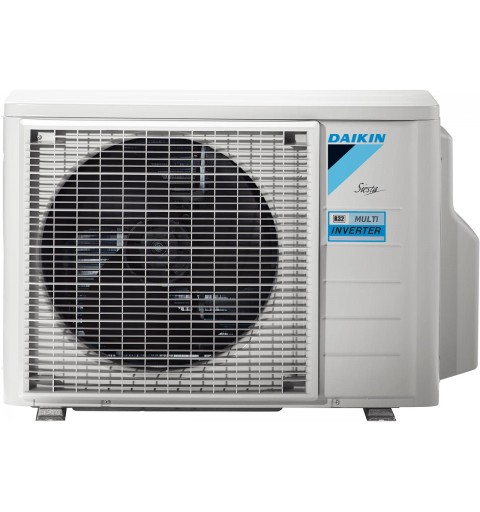

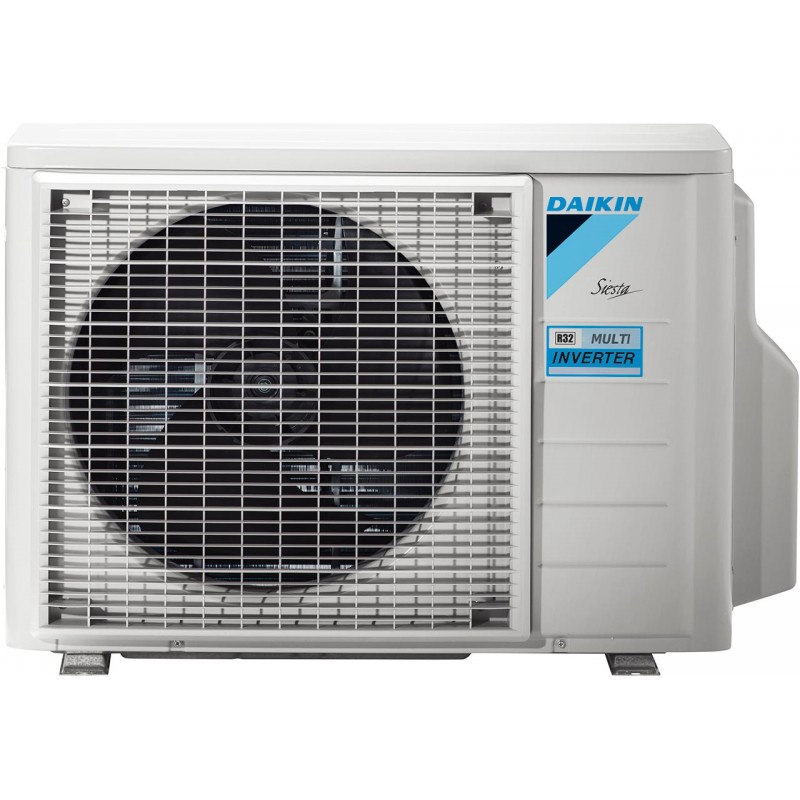

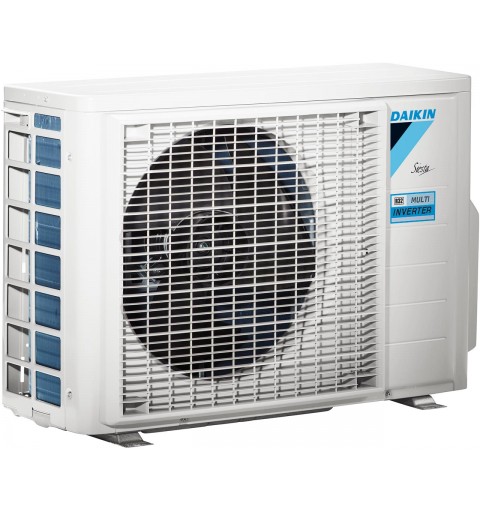

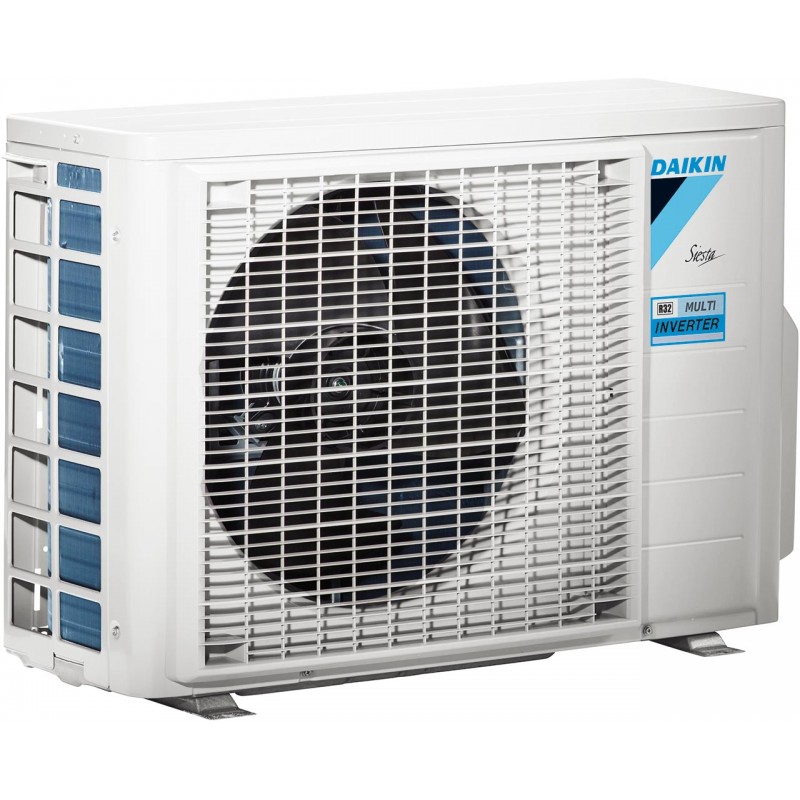

Technical Specifications – Outdoor Unit 2AMXM40M

• Dimensions:
  • Height: 550 mm
  • Width: 765 mm
  • Depth: 285 mm
• Weight: 36 kg
• Color: Ivory White
• Sound Power Level (Cooling): 60 dBA
• Sound Power Level (Heating): 62 dBA
• Operating Range:
  • Cooling: -10°C to 46°C
  • Heating: -15°C to 18°C
• Sound Pressure Level:
  • Cooling (High): 46 dBA
  • Heating (High): 48 dBA
• Refrigerant:
  • Type: R-32
  • Charge: 0.88 kg (add 0.02 kg/m for piping lengths over 20m)
  • GWP: 675.0
• Piping Connections:
  • Max Length (Total): 30 m
  • Max Length (Per Indoor Unit): 20 m
  • Height Difference (Indoor-Outdoor): 15.0 m
  • Liquid Piping: 6.35 mm x 2
  • Gas Piping: 9.52 mm x 2
• Standard Accessories:
  • Installation manual
  • Drain cap
  • Refrigerant charge label
  • Multilingual fluorinated gas labels
  • Safety instructions
• Power Supply:
  • Phase: 1~
  • Frequency: 50 Hz
  • Voltage: 220-240 V
