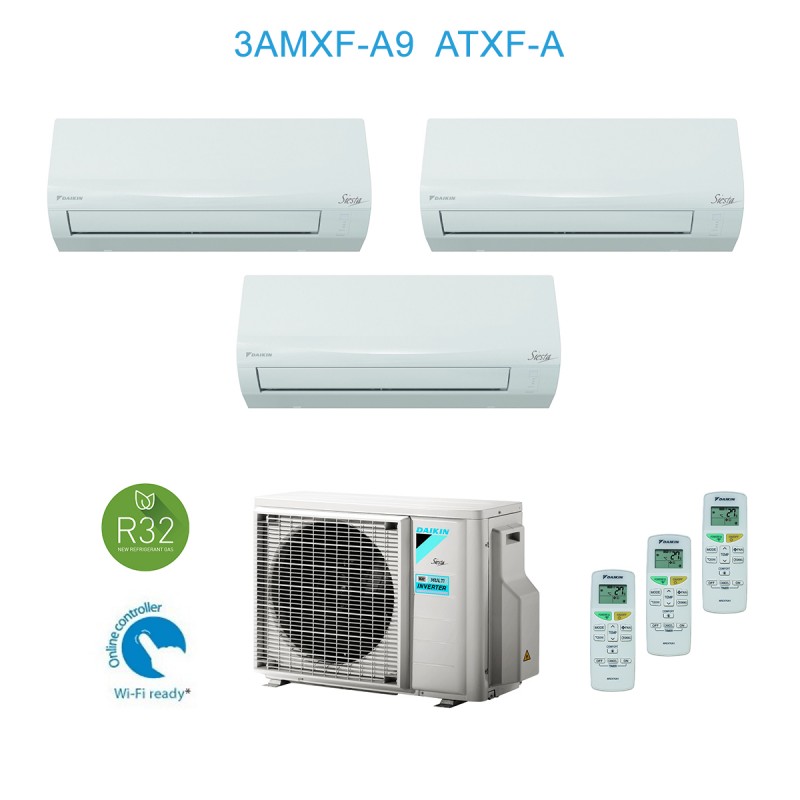

Daikin 3AMXF52A9 + 2x ATXF25A + ATXF35A Air Conditioner Siesta Trial Split 2x9000+12000 A++/A+ Inverter WiFi Ready

Daikin air conditioners have always been a guarantee of high efficiency due to its always high performance in both cooling and heating, with the new ATXF model Daikin has decided to also introduce the new R32 Ecological gas, reducing the environmental impact by 68% compared to to R-410A systems and more, there is also a direct reduction in energy consumption thanks to the high energy efficiency (A ++) but without giving up maximum comfort.

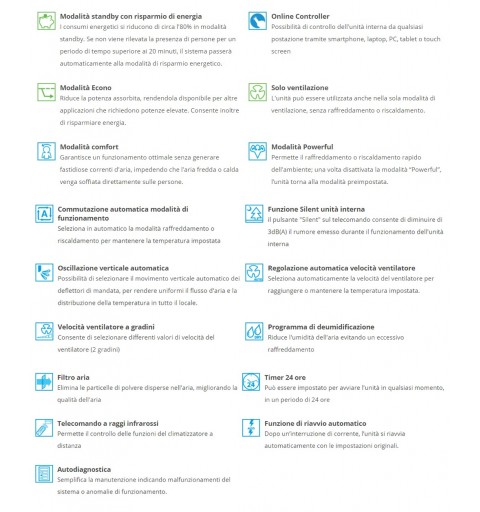

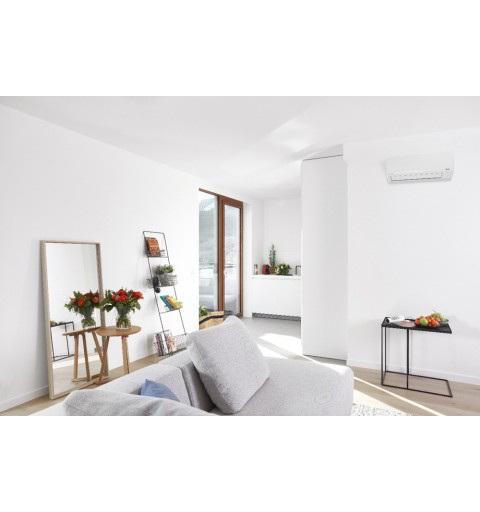

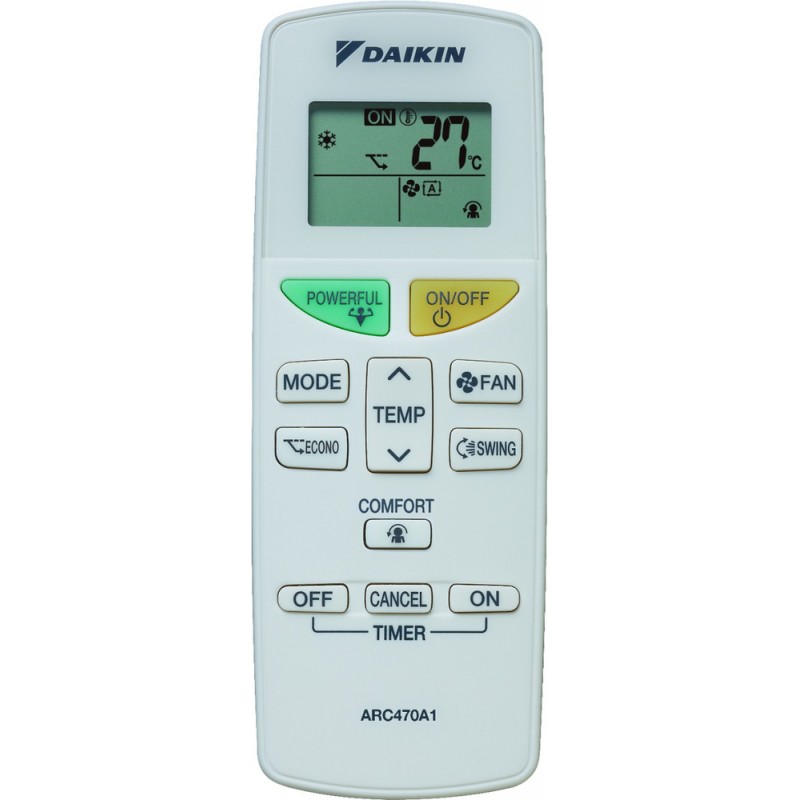

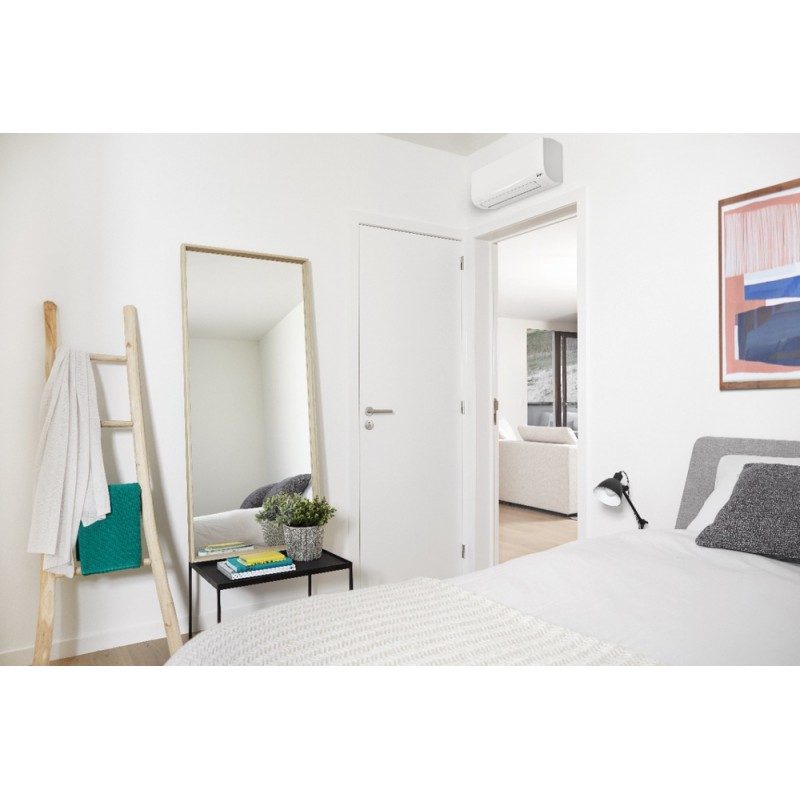

Through an extremely elegant and discreet design, with extremely compact dimensions, to match any type of furniture. Not only ecology and design, the performance of the air conditioner is managed by very high technology, with innovative functions such as the built-in Smart management that allows you to control and manage your air conditioner, comfortably via your Smartphone by downloading the appropriate Daikin App.

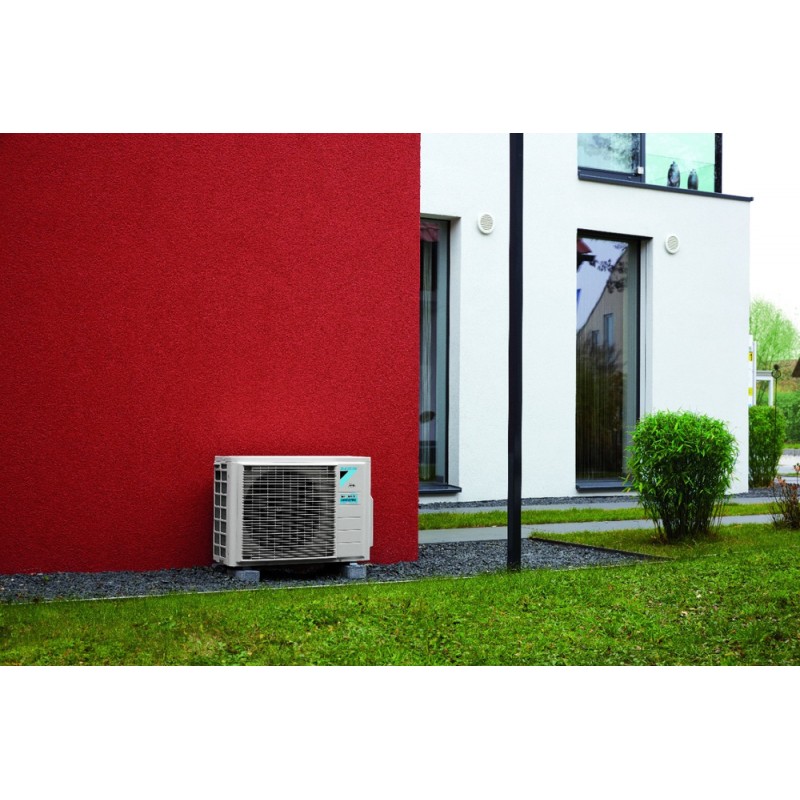

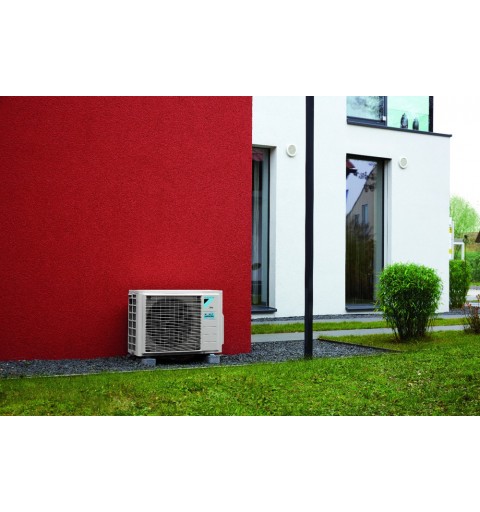

Efficiency and reliability are also obtained through an easy installation of the outdoor unit wherever you want, with a heat exchanger, with anti-corrosion treatment (blue fin) that ensures great resistance to the harshest climatic conditions.


Technical Characteristics

SEER: 6,22;
SCOP: 4,06;
Cooling Energetic Class : A++;
Heating Energetic Class: A+;
Power: 9000+9000+12000 BTU;
Surface covered: from 15 to 25 m2 split 9000; from 25 to 40 m2 split 12000;

Cooling performance:
Capacity: 5.0 kW;
Operating range (Min.~Max): 10~46 ℃;

Heating performance:
Capacity: 5.6 kW;
Operating Range (Min.~Max): -15~18 °C;

Noise:
Indoor Unit Sound Pressure: 21 dBA;
Indoor Unit Sound Power: 55 dBA;
Outdoor Unit Sound Power: 60 dBA;

Data:
Alimentation (V/Hz/Φ) : 230/50/1;
Refrigerant gas : R-32;
Fluid/Gas Tube: 6.35 (1/4")/9.5 (3/8") mm/incg;
Maximum Length Tube: 30 m;
Maximum Drop UI - UE: 15 m;

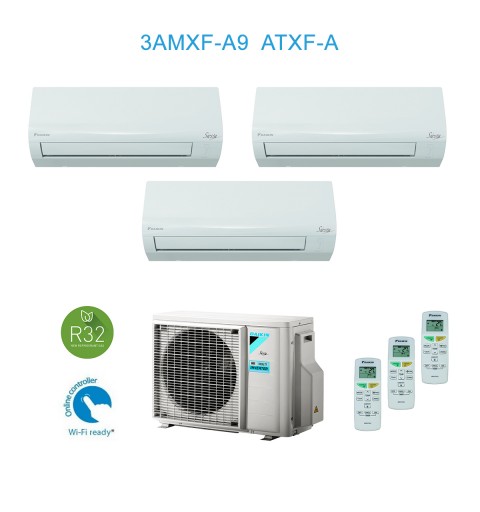

Composed of:

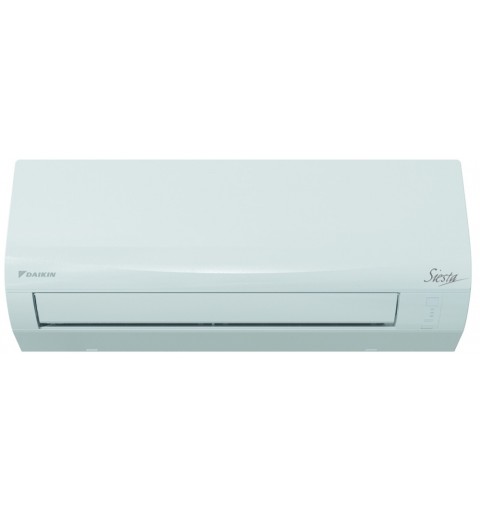

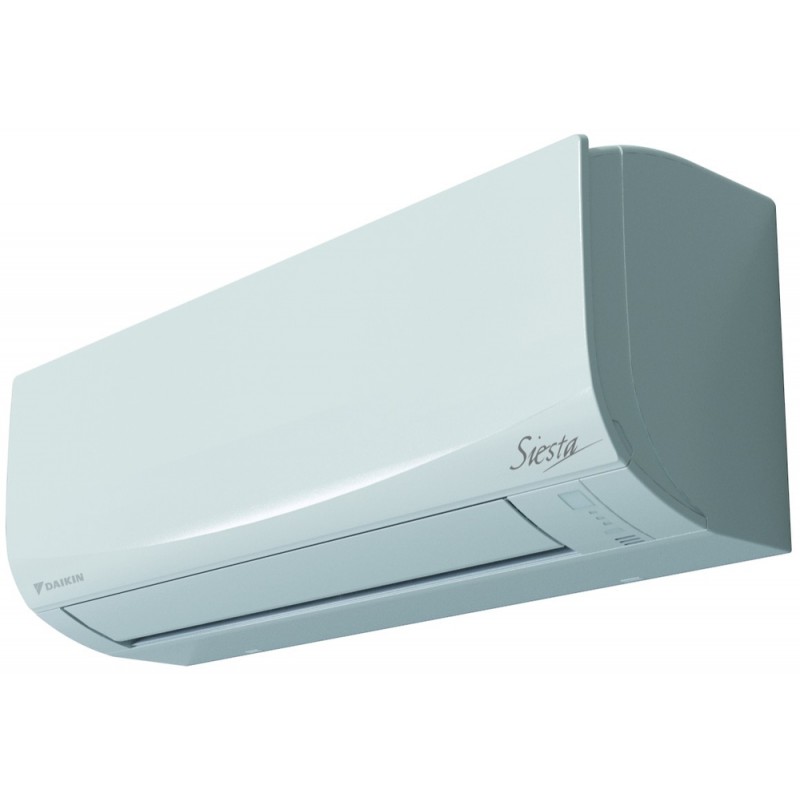

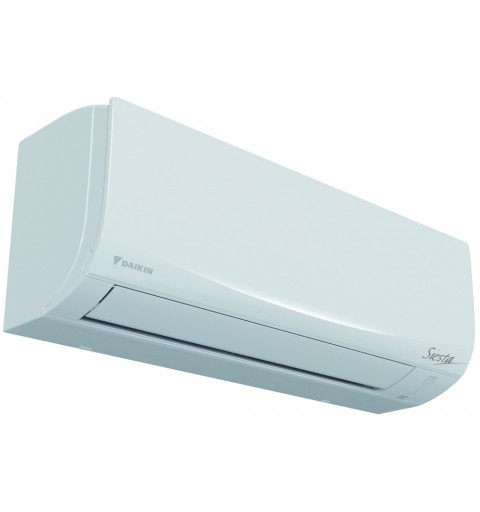

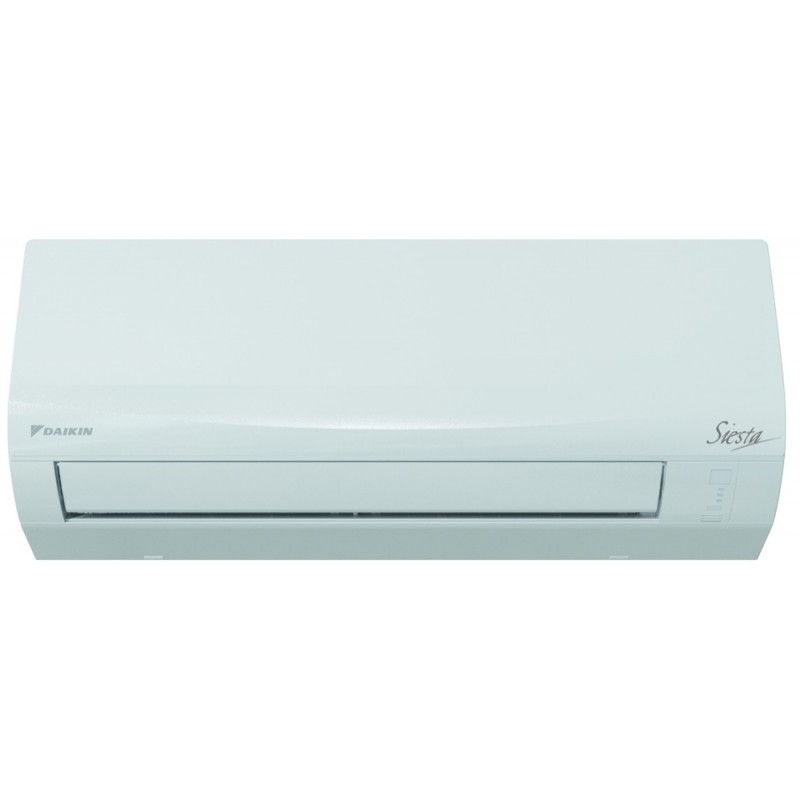

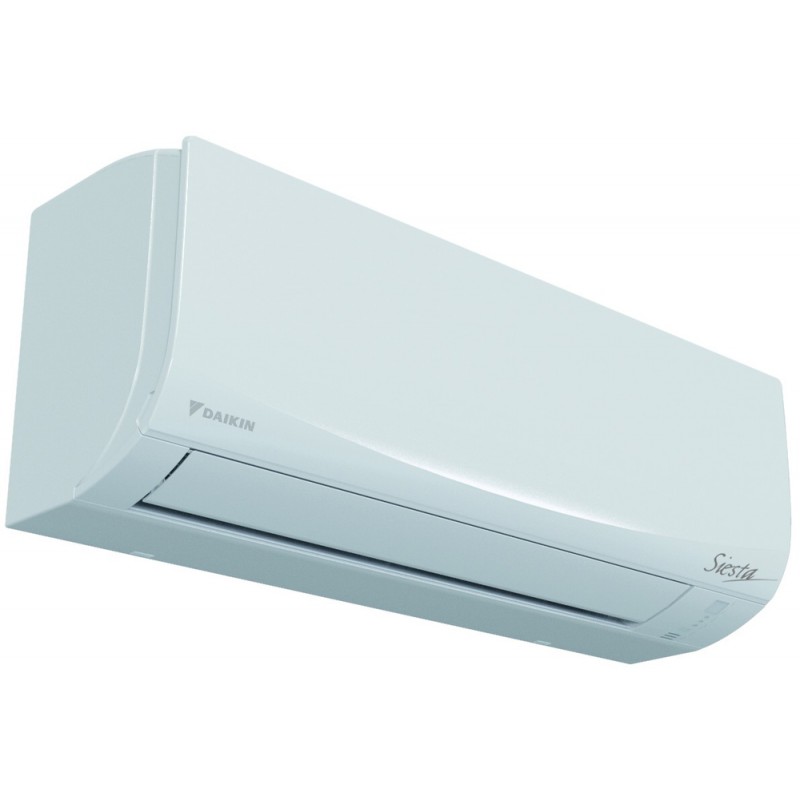

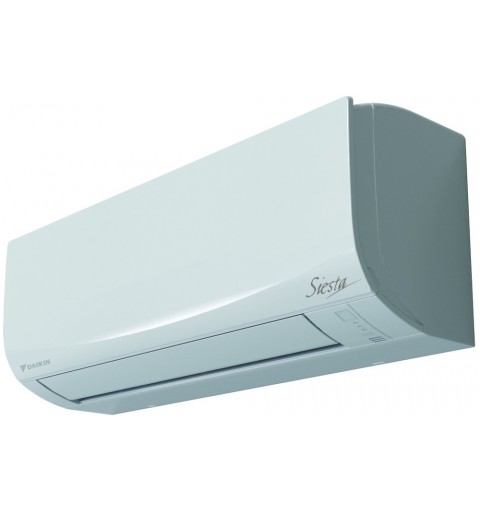

Indoor Unit:  2x ATXF25A + 1x ATXF35A;

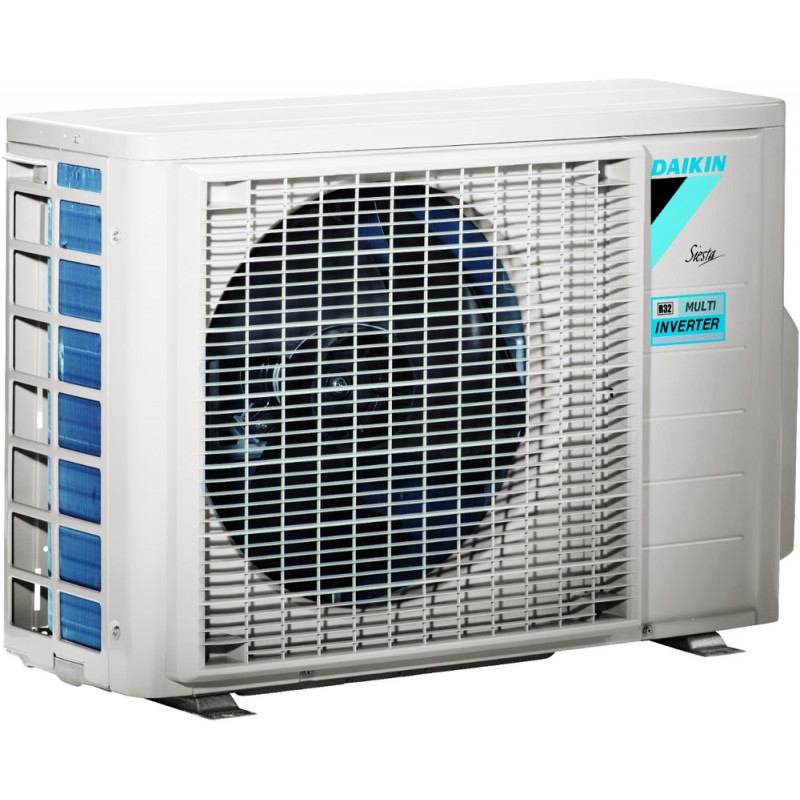

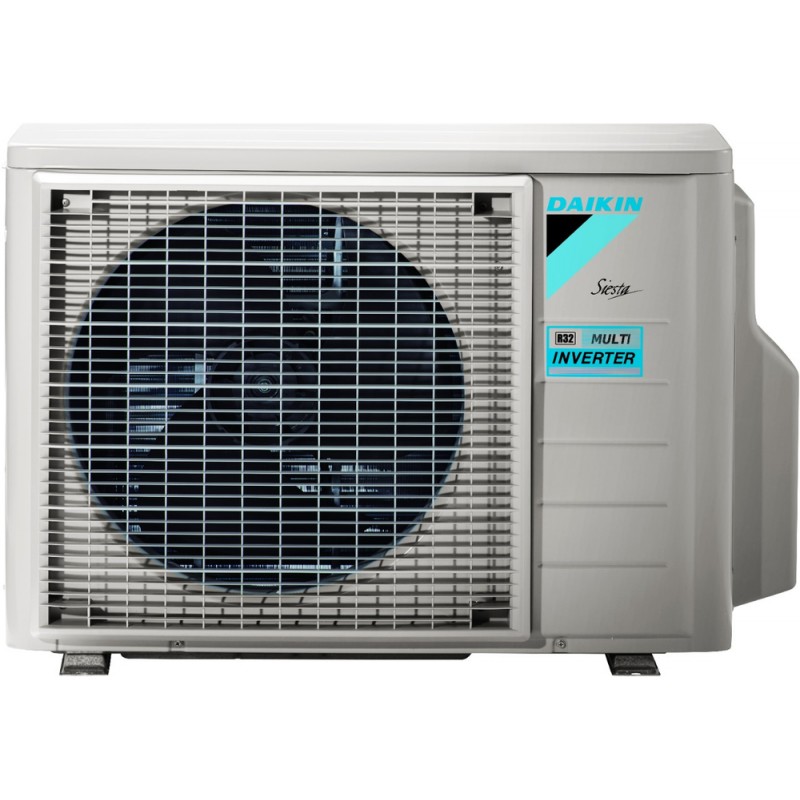

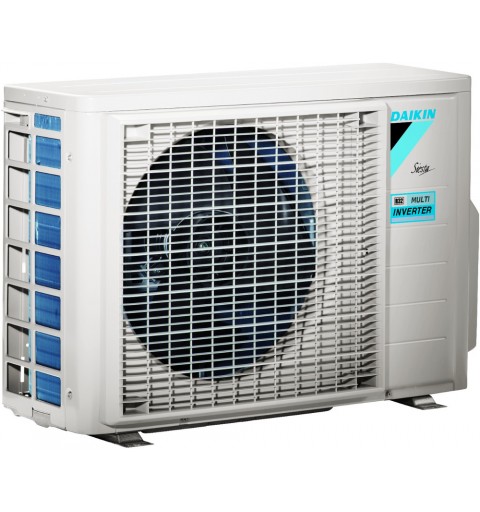

Outdoor Unit: 3AMXF52A9;

Size:
Indoor Unit (HxLxW) : 286x770x225 mm ; weight: 9 Kg;
Outdoor Unit (HxLxW) : 734x973x401 mm ; weight: 57 Kg;
