Daikin 3AMXF52A9 + 3x ATXF25A Air Conditioner Siesta Trial split 3x 9000Btu Class A++ / A+ Inverter WiFi Ready R-32

Daikin Air Conditioners are an high efficiency hallmark thanks to their high performances for cooling and heating, with the new model ATXF, Daikin has chosen to introduce the new ecologic gas R32 to reduce environmental impact of 68% compared to R-410A system. In addition, this new model reduces energetic consumption thanks to high energetic efficiency (A++) without renouncing to the maximum comfort.

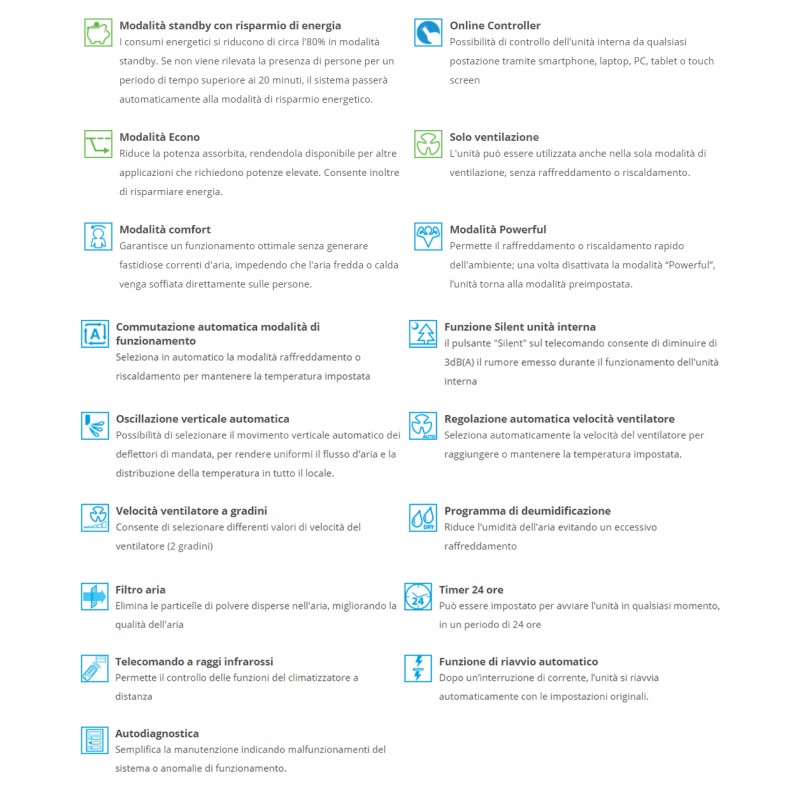

It as an extremely elegant and discreet design, with compact dimensions, to match with all kind of furniture. Not only ecology and design, the performance of the air conditioner is managed by very high technology, with innovative functions such as the built-in Smart management that allows you to control and manage your air conditioner, comfortably via your Smartphone by downloading the appropriate Daikin App.

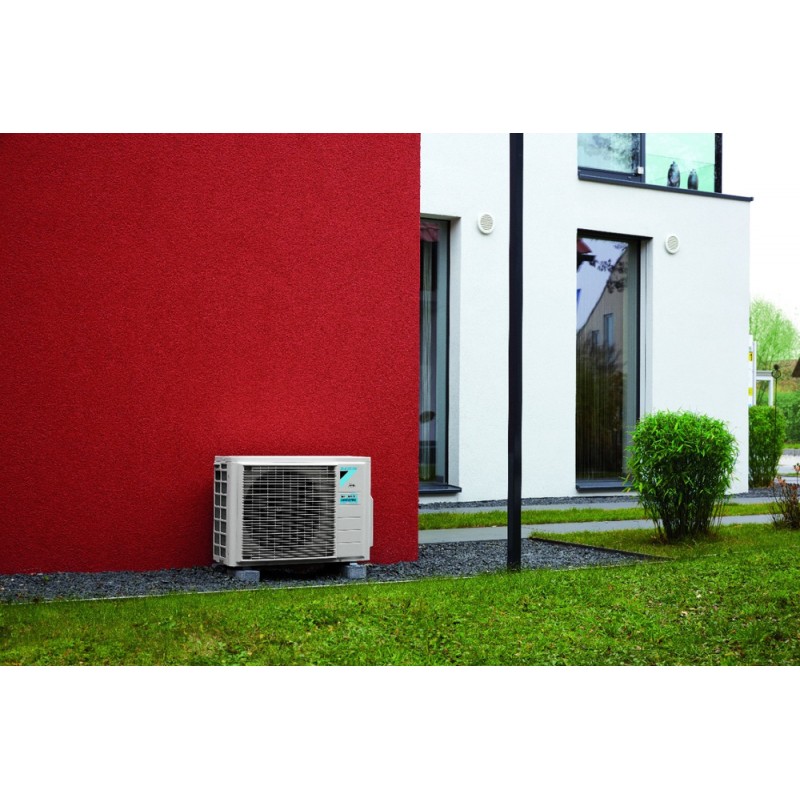

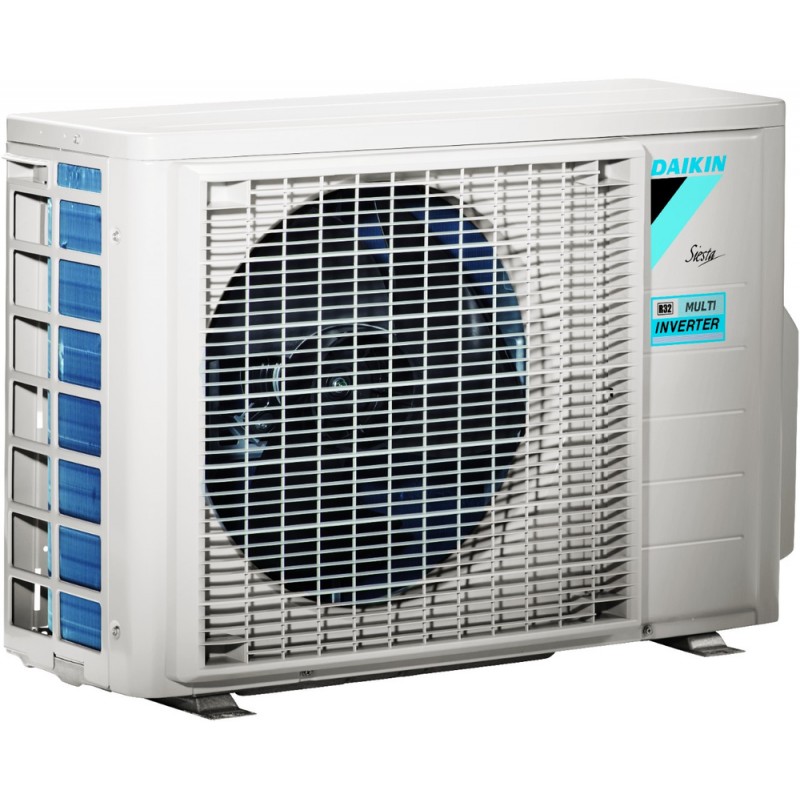

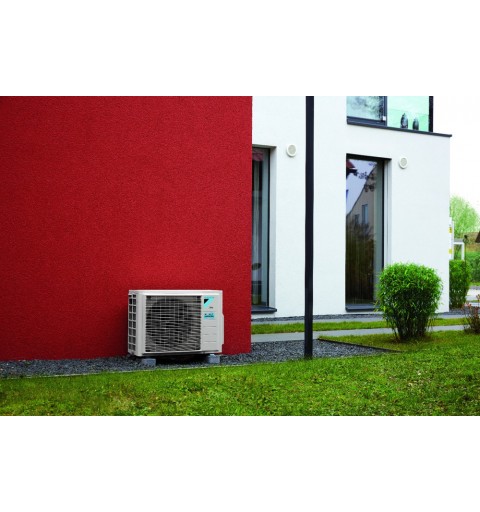

Efficiency and reliability are also obtained through an easy installation of the outdoor unit wherever you want, with a heat exchanger, with anti-corrosion treatment (blue fin) that ensures great resistance to the harshest climatic conditions.


Technical Characteristics

SEER: 6,22;
SCOP: 4,06;
Cooling Energetic Class : A++;
Heating Energetic Class: A+;
Power: 9000+9000+9000 BTU;
Surface covered: from 15 to 25 m2  split 9000;

Cooling performance:
Capacity: 5.0 kW;
Operating range (Min.~Max): 10~46 ℃;

Heating performance:
Capacity: 5.6 kW;
Operating Range (Min.~Max): -15~18 °C;

Noise:
Indoor Unit Sound Pressure: 21 dBA;
Indoor Unit Sound Power: 55 dBA;
Outdoor Unit Sound Power: 60 dBA;

Data:
Alimentation (V/Hz/Φ) : 230/50/1;
Refrigerant gas : R-32;
Fluid/Gas Tube: 6.35 (1/4")/9.5 (3/8") mm/incg;
Maximum Length Tube: 30 m;
Maximum Drop UI - UE: 15 m;

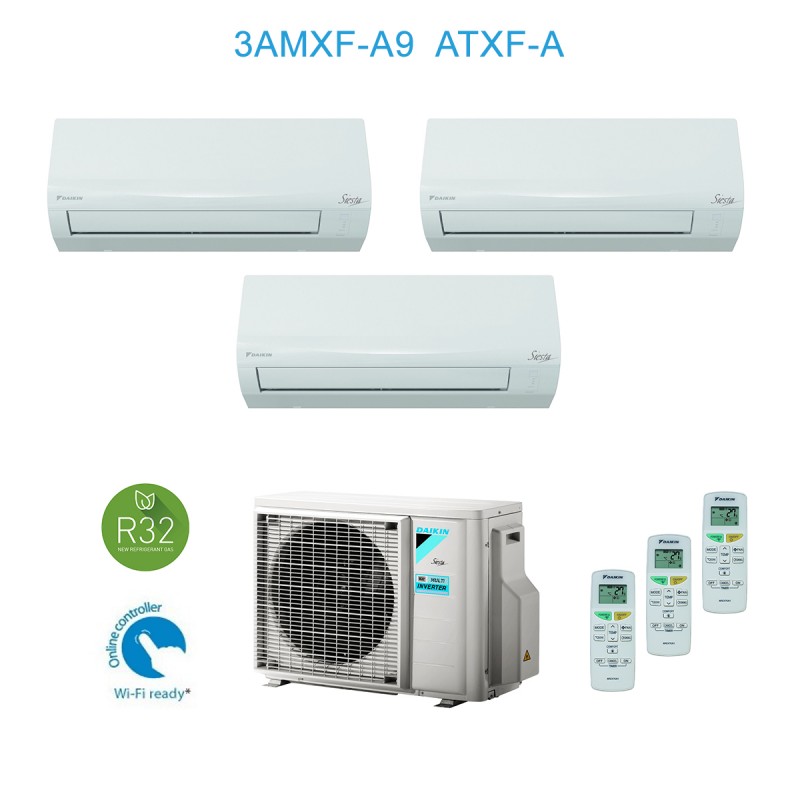

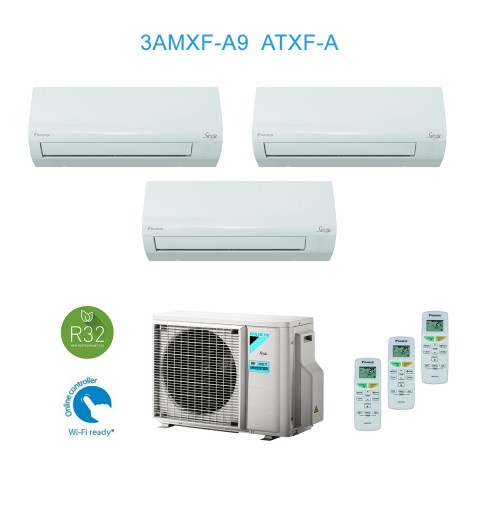

Composed of:

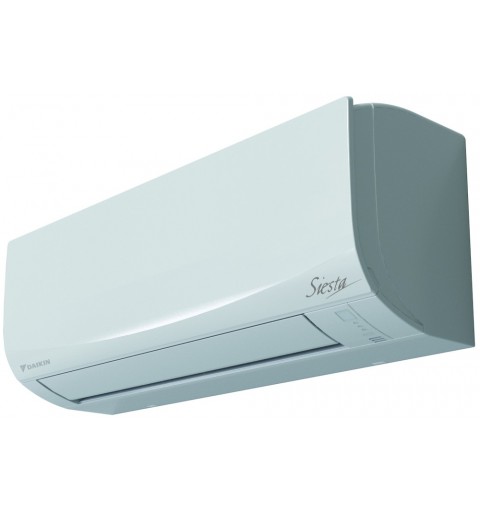

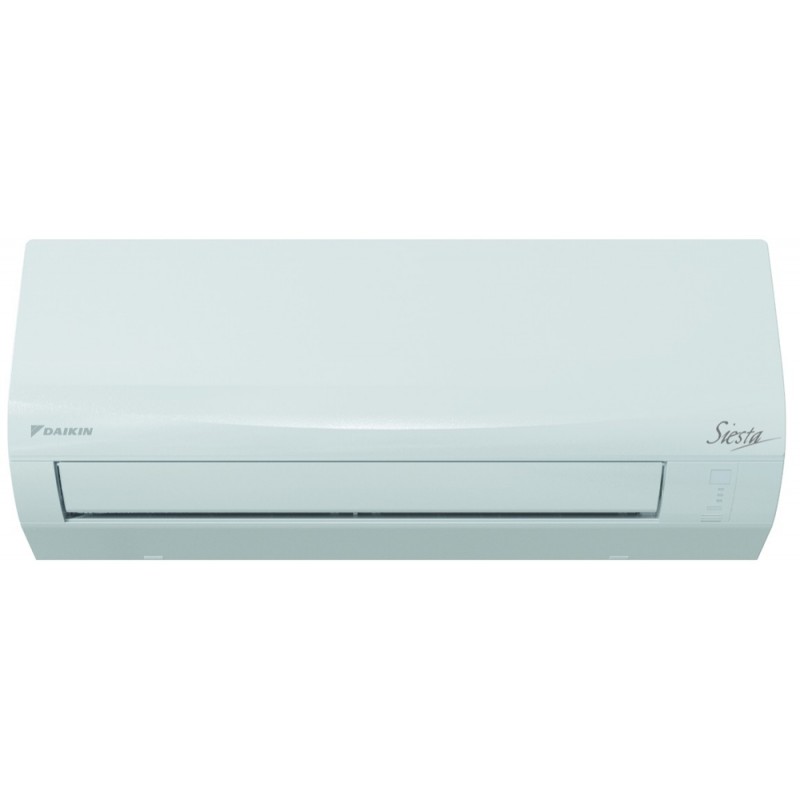

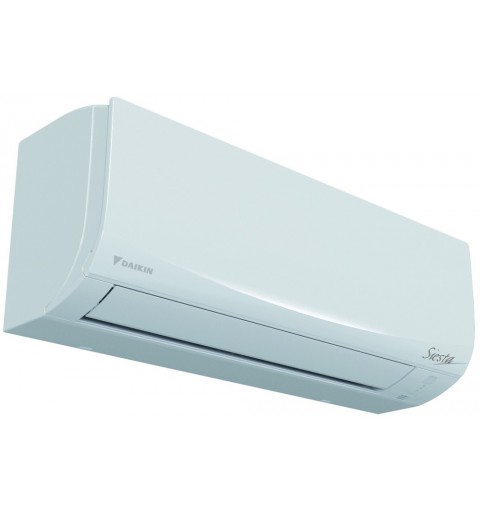

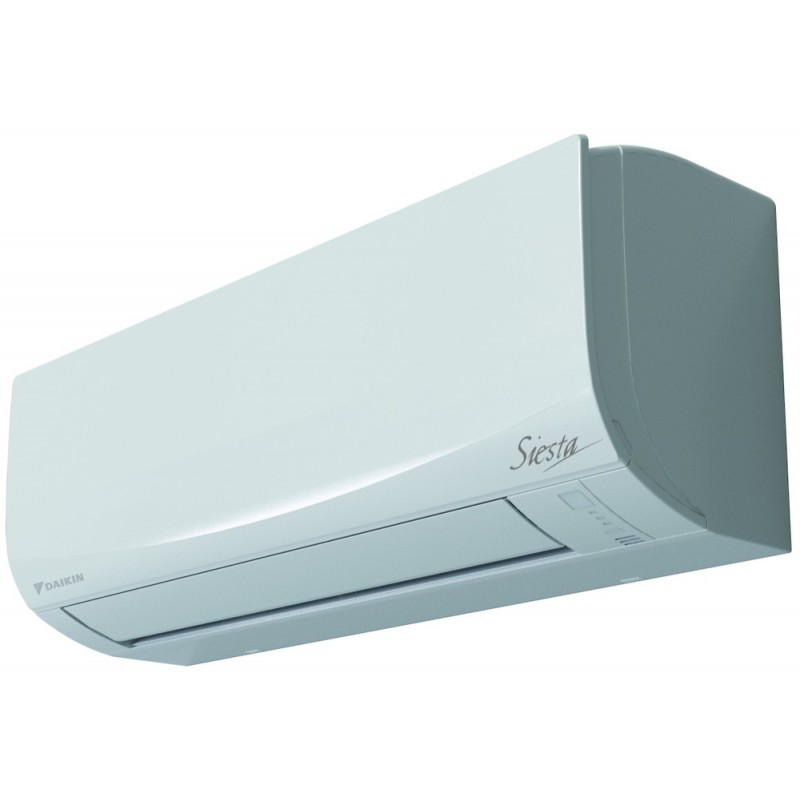

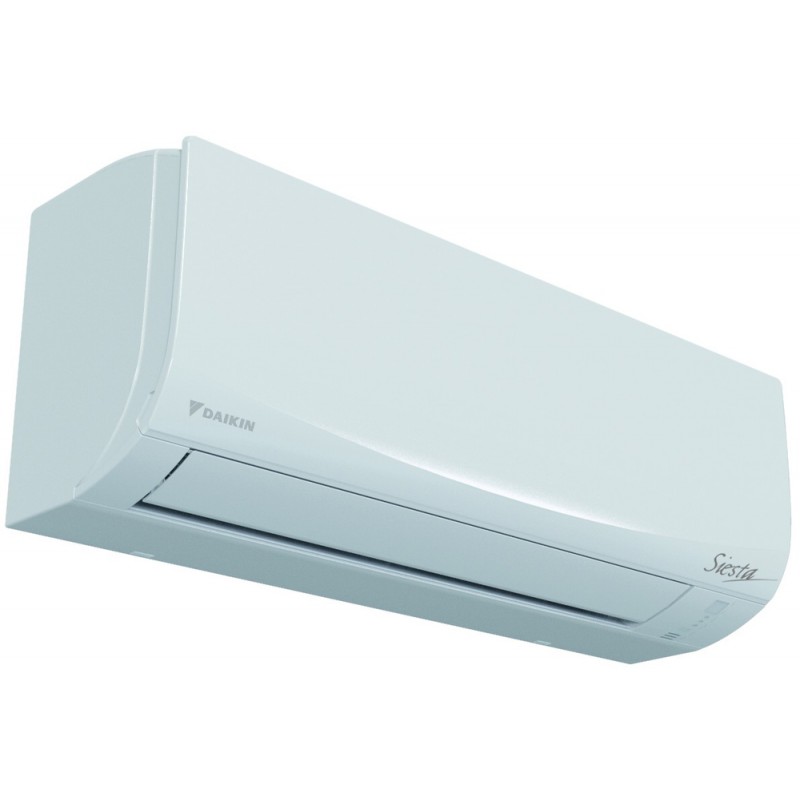

Indoor Unit:  3x ATXF25A;

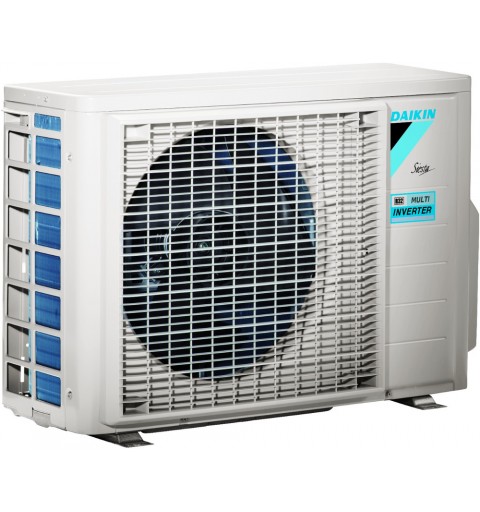

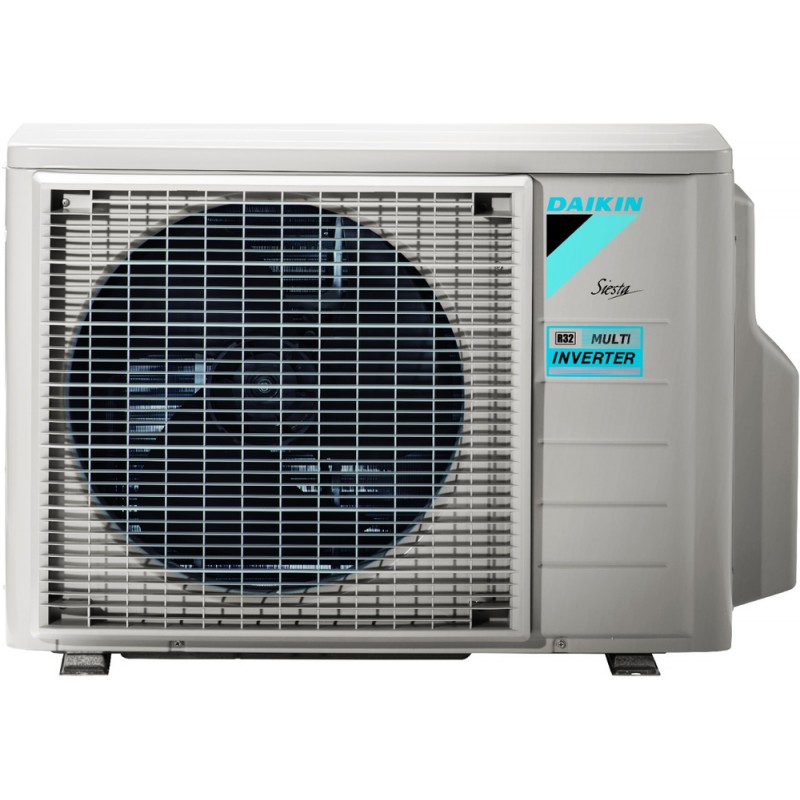

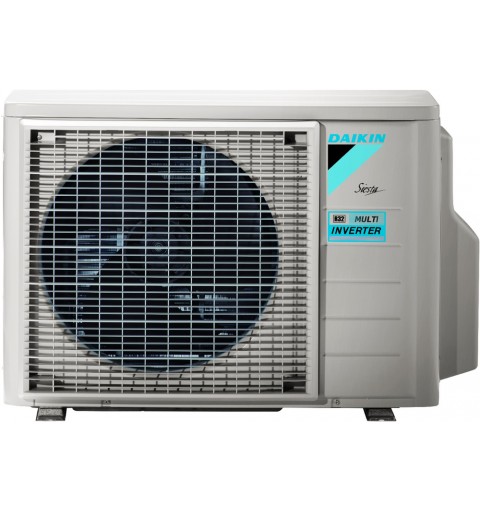

Outdoor Unit: 3AMXF52A9;

Size:
Indoor Unit (HxLxW) : 286x770x225 mm ; weight: 9 Kg;
Outdoor Unit (HxLxW) : 734x973x401 mm ; weight: 57 Kg;
