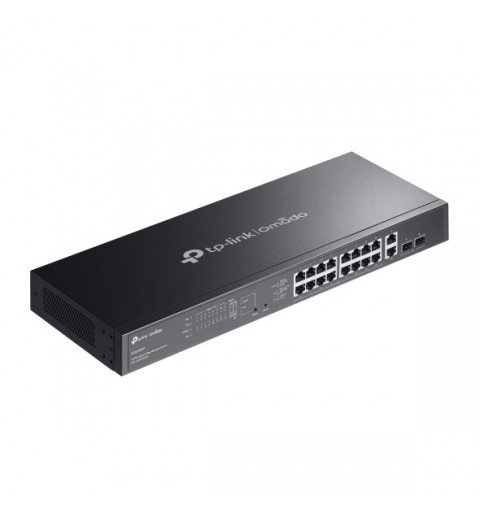

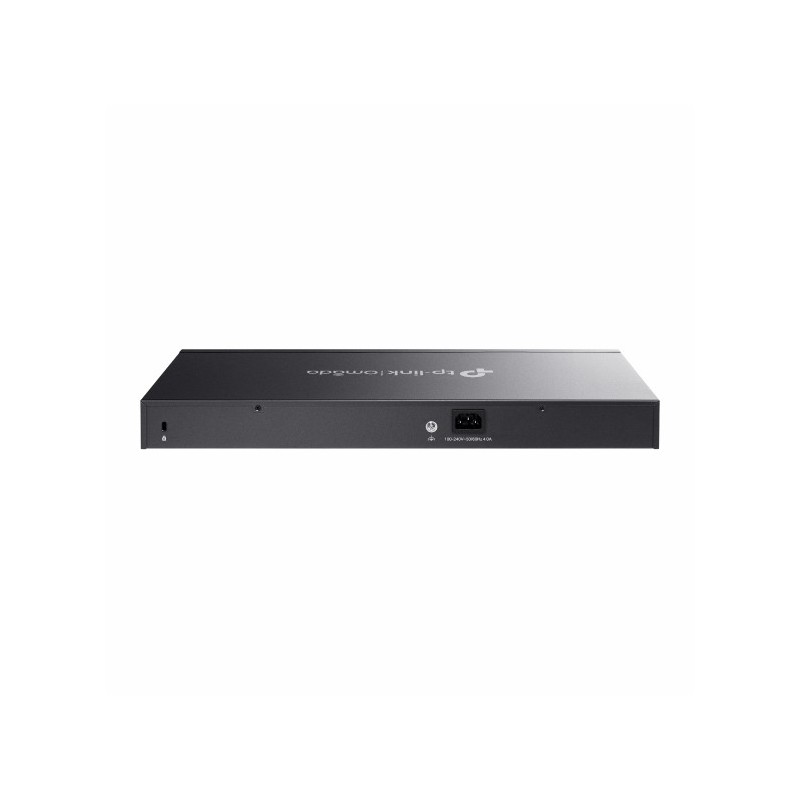

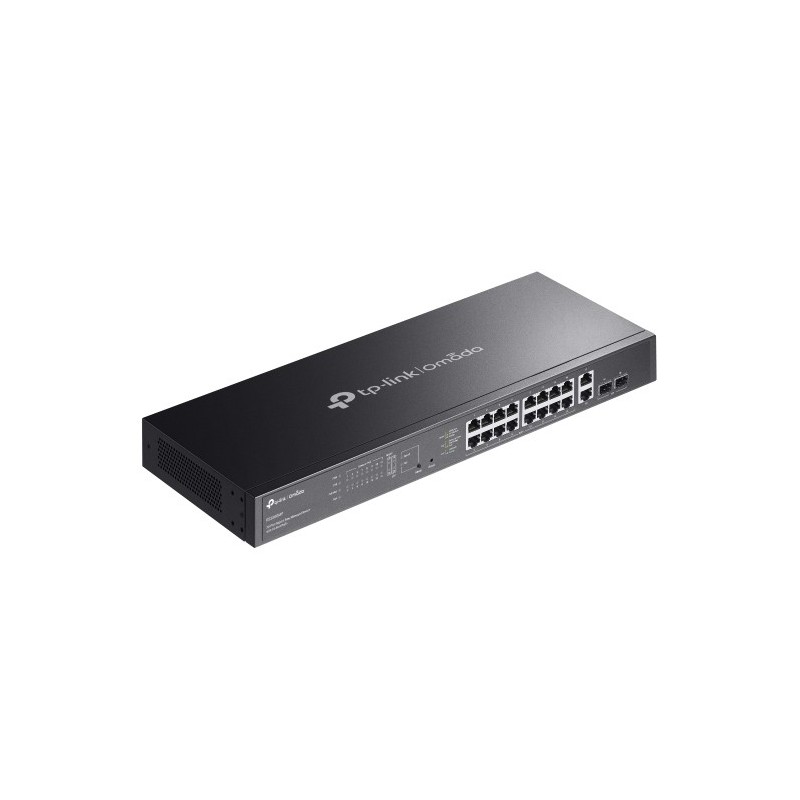

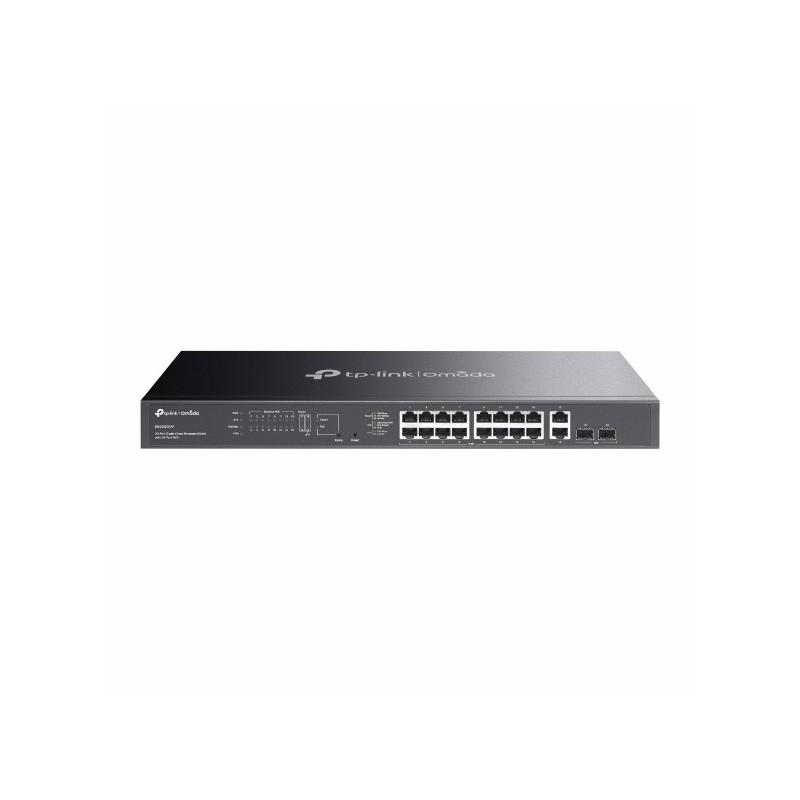

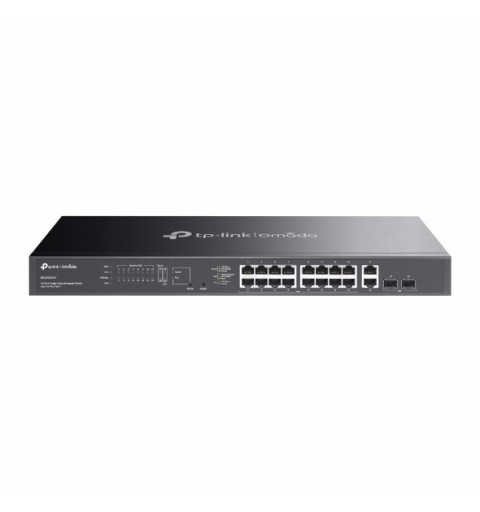

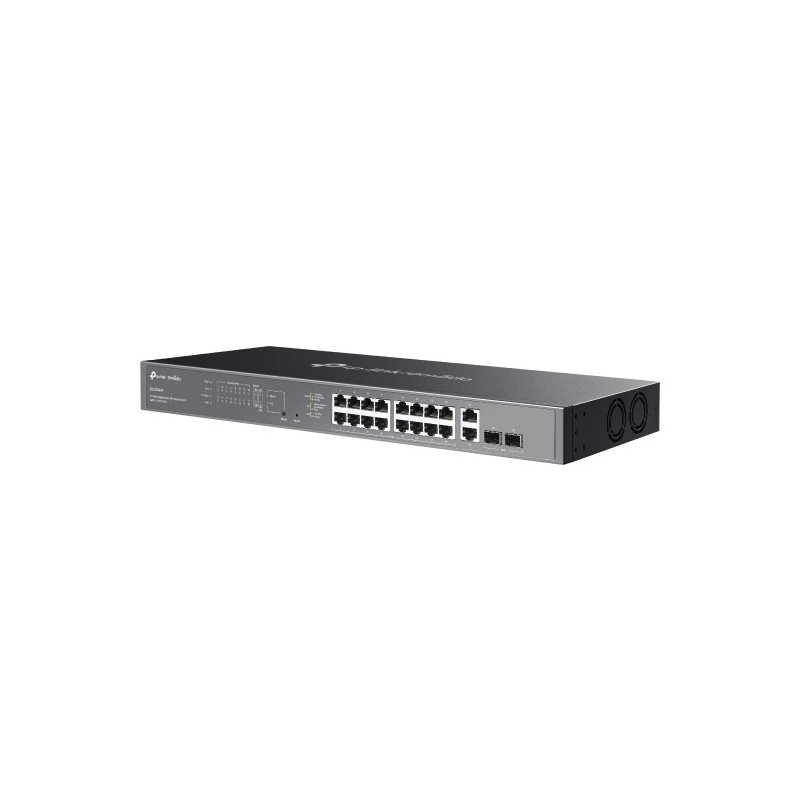

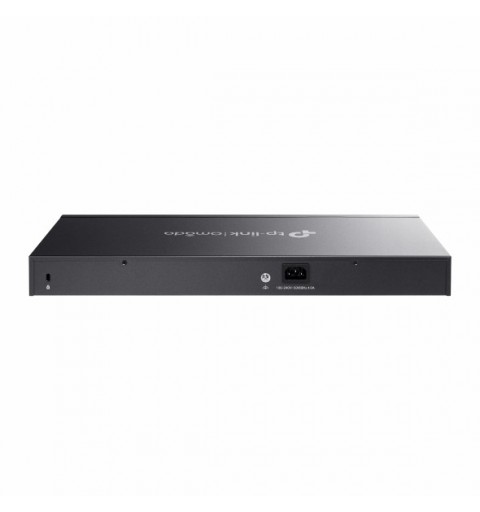

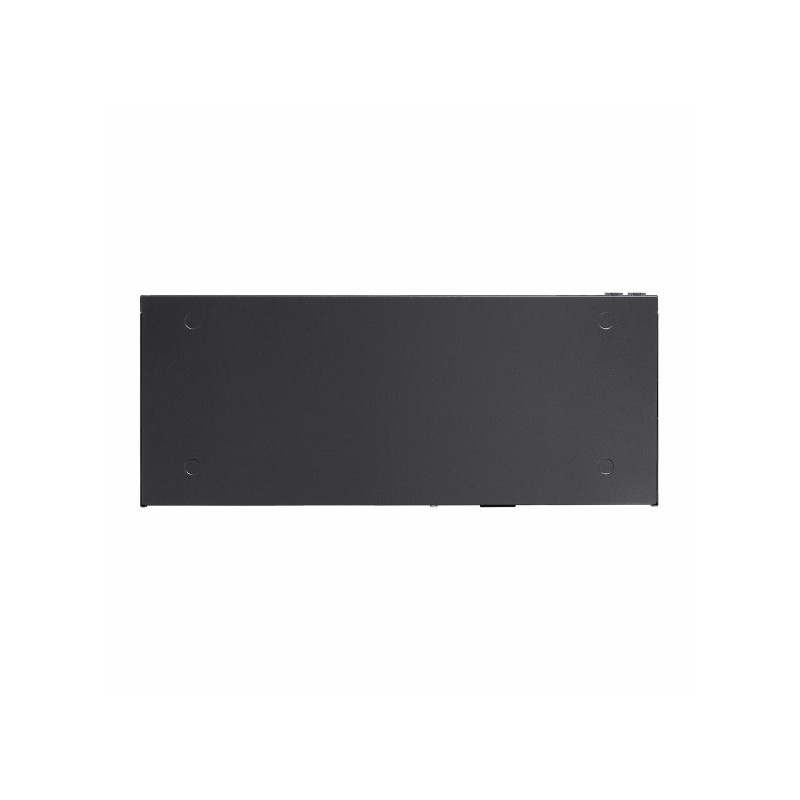

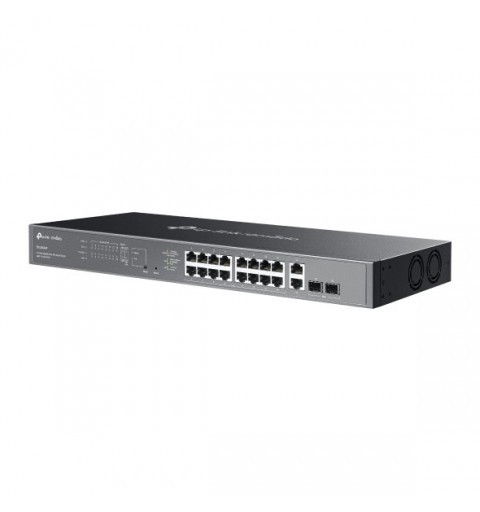

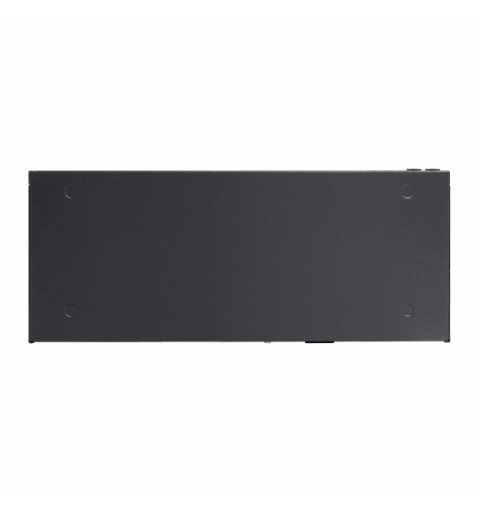

TP-Link ES220GMP network switch Managed Gigabit Ethernet (10 100 1000) Power over Ethernet (PoE) Black

    TP-Link ES220GMP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

    €241.61 Tax included
    Codice Articolo: 603721
    Garanzia Italia 2 Anni logo ita

    TP-Link ES220GMP, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

    Disponibilità:
    Quantity
    Add to Wishlist
    cached Add to Compare
    Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

    Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

    TP-Link ES220GMP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 20. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Rack mounting
    Caratteristiche di gestione
    Tipo interruttoreGestito
    Supporto qualità del servizio (QoS)Sì
    Gestito in CloudSì
    Connettività
    Quantità di porte RJ-4520
    Tipo di porte RJ-45Gigabit Ethernet (10/100/1000)
    Quantità di slot per modulo SFP2
    Collegamento in rete
    Standard di reteIEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Supporto 10GNo
    Mirroring della portaSì
    Auto-negoziazioneSì
    VLAN supportSì
    Caratteristiche della LAN virtualeMTU VLAN, Port-based VLAN, Tagged VLAN
    Fibra ottica
    Distanza di trasmissione (max)0,25 km
    Trasmissione dati
    Dimensioni tavola MAC8000 voci
    Capacità di commutazione40 Gbit/s
    tasso di inoltro29,76 Mpps
    Store-and-forwardSì
    Supporto Jumbo FramesSì
    Frame Jumbo15
    Buffer di memoria di pacchetto4 MB
    Sicurezza
    Caratteristiche DHCPDHCP client
    Funzione IGMP snoopingSì
    Design
    Montaggio rackSì
    Colore del prodottoNero
    Numero di ventole2 ventola(e)
    Prestazione
    Memoria flash64 MB
    Emissione acustica41,5 dB
    Gestione energetica
    AlimentazioneAC/PoE
    Fonte di alimentazione inclusaSì
    Tensione di ingresso AC100 - 240 V
    Frequenza di ingresso AC50/60 Hz
    Consumo energetico (max)289,7 W
    Power over Ethernet (PoE)
    Supporto Power over Ethernet (PoE)Sì
    Quantità di porte Power over Ethernet plus (PoE+)16
    Potenza Power over Ethernet (PoE) per porta30 W
    Bilancio energetico totale del PoE250 W
    Condizioni ambientali
    Intervallo temperatura di funzionamento-5 - 50 °C
    Intervallo di temperatura-40 - 70 °C
    Range di umidità di funzionamento10 - 90%
    Umidità5 - 90%
    Dissipazione del calore984,88 BTU/h
    Dimensioni e peso
    Larghezza440 mm
    Profondità180 mm
    Altezza44 mm
    Contenuto dell'imballo
    Cavi inclusiAC
    Guida utenteSì
    Dati su imballaggio
    Tipo di imballoScatola
    603721
    In Stock

    Data sheet

    Width
    440 mm
    Depth
    180 mm
    Height
    44 mm
    Product colour
    Black
    Operating temperature (T-T)
    -5 - 50 °C
    Storage temperature (T-T)
    -40 - 70 °C
    Cables included
    AC
    Power source
    AC/PoE
    Package type
    Box
    AC input voltage
    100 - 240 V
    AC input frequency
    50/60 Hz
    Noise level
    41.5 dB
    Networking standards
    IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Operating relative humidity (H-H)
    10 - 90%
    Storage relative humidity (H-H)
    5 - 90%
    Switch type
    Managed
    Quality of Service (QoS) support
    Yes
    Basic switching RJ-45 Ethernet ports quantity
    20
    Port mirroring
    Yes
    Flow control support
    Yes
    Link aggregation
    Yes
    MAC address table
    8000 entries
    Switching capacity
    40 Gbit/s
    Store-and-forward
    Yes
    Packet buffer memory
    4 MB
    DHCP features
    DHCP client
    IGMP snooping
    Yes
    Rack mounting
    Yes
    Power over Ethernet (PoE)
    Yes
    Heat dissipation
    984.88 BTU/h
    User guide
    Yes
    VLAN support
    Yes
    Power consumption (max)
    289.7 W
    Basic switching RJ-45 Ethernet ports type
    Gigabit Ethernet (10/100/1000)
    10G support
    No
    Jumbo frames support
    Yes
    Jumbo frames
    15
    Power supply included
    Yes
    Power over Ethernet plus (PoE+) ports quantity
    16
    Flash memory
    64 MB
    SFP module slots quantity
    2
    Total Power over Ethernet (PoE) budget
    250 W
    Cloud-managed
    Yes
    Virtual LAN features
    MTU VLAN, Port-based VLAN, Tagged VLAN
    Forwarding rate
    29.76 Mpps
    Number of fans
    2 fan(s)
    Auto-negotiation
    Yes
    Power over Ethernet (PoE) power per port
    30 W
    Compliance certificates
    CE, Federal Communications Commission (FCC), RoHS
    Transmission distance (max)
    0.25 km
