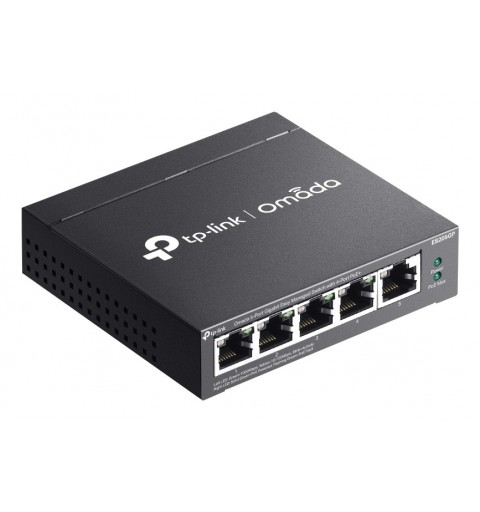

TP-Link Omada ES205G, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
TP-Link Omada ES205G Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€34.42 Tax included
Codice Articolo: 600712
Garanzia Italia 2 Anni
TP-Link Omada ES205G, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable

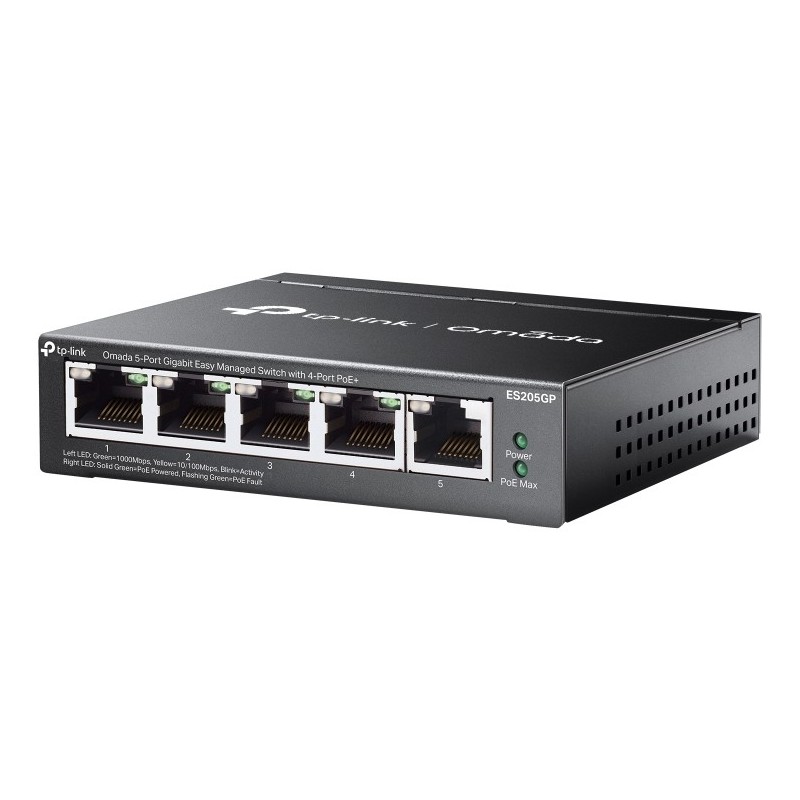

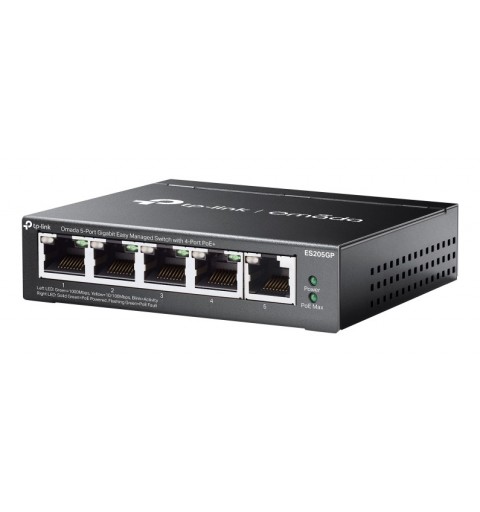

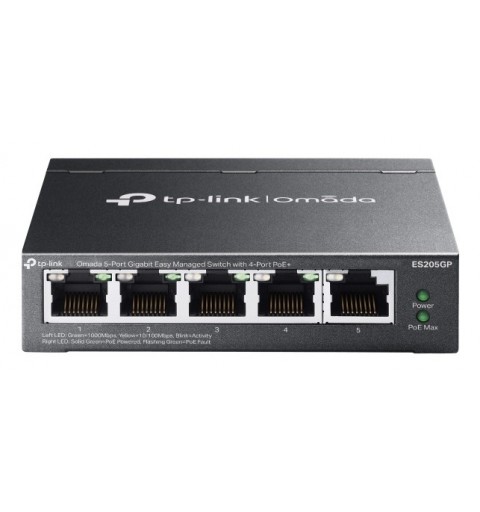

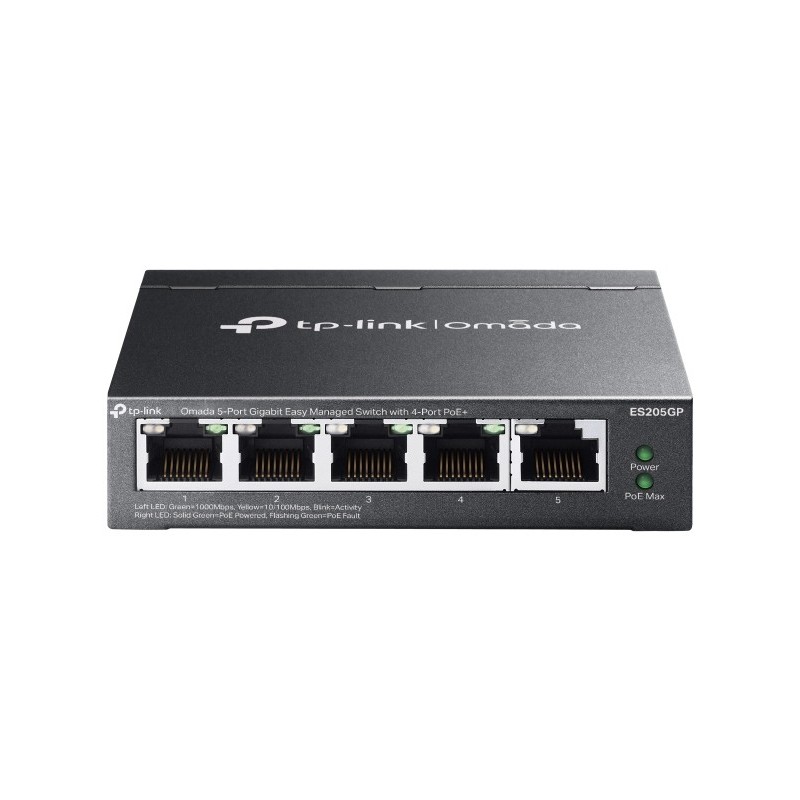

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

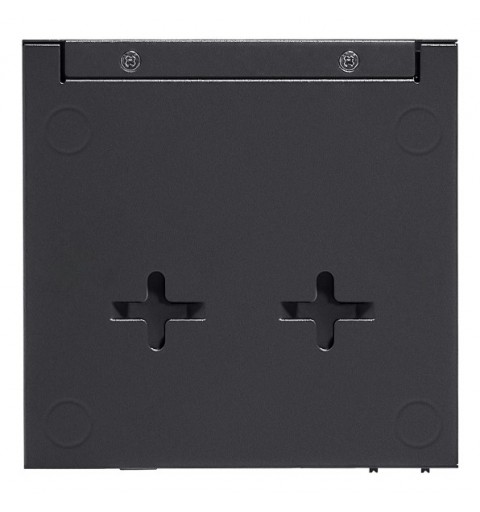

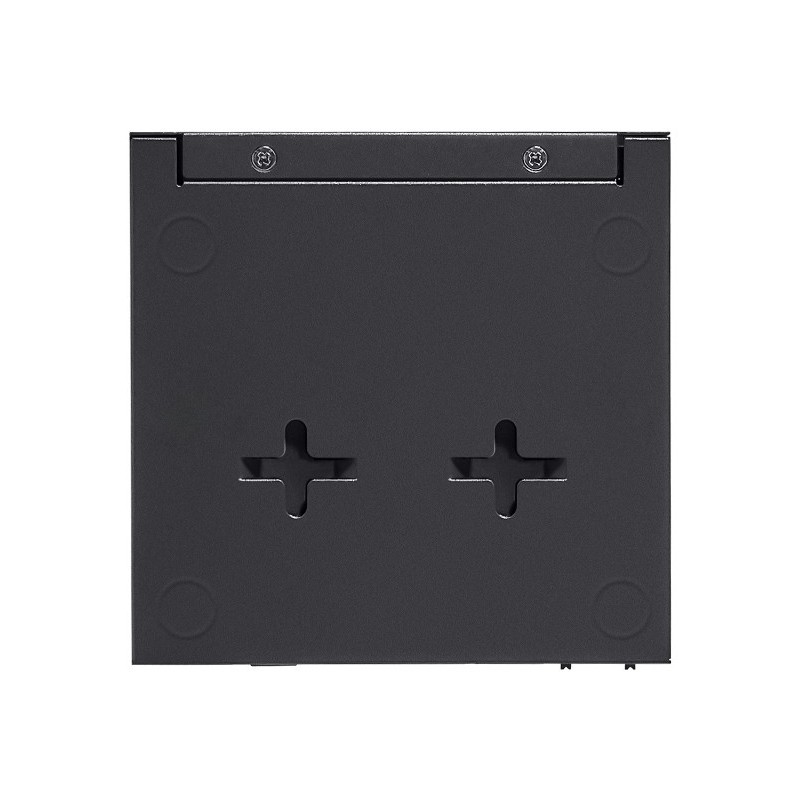

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
TP-Link Omada ES205G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
TP-Link Omada ES205G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
| Caratteristiche di gestione | |
| Tipo interruttore | Gestito |
| Supporto qualità del servizio (QoS) | Sì |
| Gestito in Cloud | Sì |
| Connettività | |
| Quantità di porte RJ-45 | 5 |
| Tipo di porte RJ-45 | Gigabit Ethernet (10/100/1000) |
| Collegamento in rete | |
| Standard di rete | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| Supporto 10G | No |
| Mirroring della porta | Sì |
| Auto-negoziazione | Sì |
| VLAN support | Sì |
| Caratteristiche della LAN virtuale | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Fibra ottica | |
| Distanza di trasmissione (max) | 0,25 km |
| Trasmissione dati | |
| Dimensioni tavola MAC | 8000 voci |
| Capacità di commutazione | 10 Gbit/s |
| tasso di inoltro | 7,4 Mpps |
| Store-and-forward | Sì |
| Supporto Jumbo Frames | Sì |
| Frame Jumbo | 15 |
| Buffer di memoria di pacchetto | 4 MB |
| Sicurezza | |
| Caratteristiche DHCP | DHCP client |
| Funzione IGMP snooping | Sì |
| Protezione contro i loop back | Sì |
| Design | |
| Colore del prodotto | Nero |
| Tasto reset | Sì |
| Indicatori LED | Sì |
| Montabile a parete | Sì |
| Prestazione | |
| Fanless | Sì |
| Gestione energetica | |
| Alimentazione | AC/DC |
| Fonte di alimentazione inclusa | Sì |
| Voltaggio input DC | 53.5 V |
| Power over Ethernet (PoE) | |
| Supporto Power over Ethernet (PoE) | Sì |
| Quantità porte Power over Ethernet (PoE) | 4 |
| Quantità di porte Power over Ethernet plus (PoE+) | 4 |
| Potenza Power over Ethernet (PoE) per porta | 30 W |
| Bilancio energetico totale del PoE | 65 W |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | 0 - 40 °C |
| Intervallo di temperatura | -40 - 70 °C |
| Range di umidità di funzionamento | 10 - 90% |
| Umidità | 5 - 90% |
| Dimensioni e peso | |
| Larghezza | 100 mm |
| Profondità | 98 mm |
| Altezza | 25 mm |
| Contenuto dell'imballo | |
| Guida utente | Sì |
| Dati su imballaggio | |
| Tipo di imballo | Scatola |
600712
In Stock
Data sheet
- Width
- 100 mm
- Depth
- 98 mm
- Height
- 25 mm
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Power source
- AC/DC
- Package type
- Box
- Networking standards
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
- LED indicators
- Yes
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Auto MDI/MDI-X
- Yes
- MAC address table
- 8000 entries
- Switching capacity
- 10 Gbit/s
- Store-and-forward
- Yes
- Packet buffer memory
- 4 MB
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Power over Ethernet (PoE)
- Yes
- User guide
- Yes
- VLAN support
- Yes

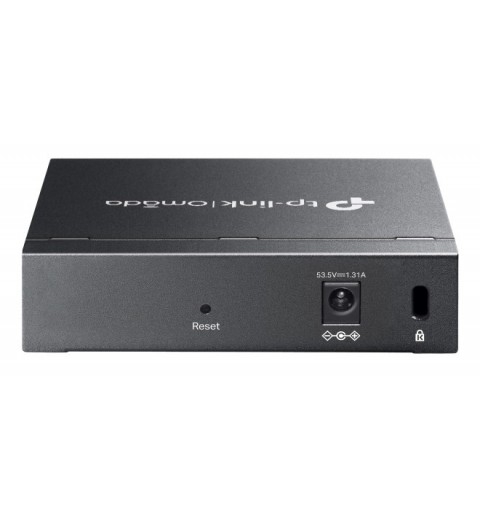

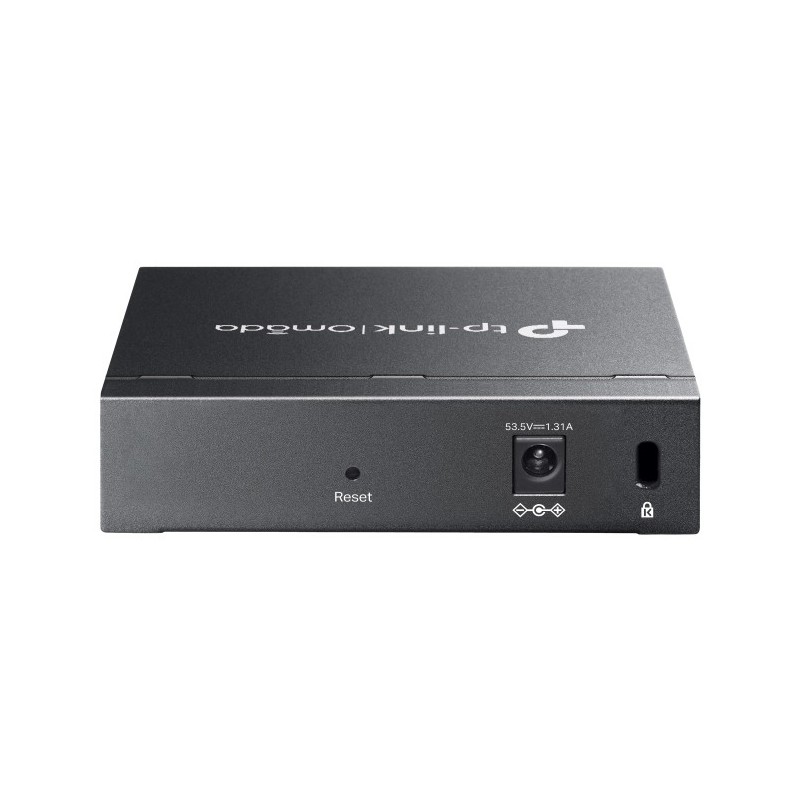

- Reset button
- Yes
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Jumbo frames support
- Yes
- Jumbo frames
- 15
- Loop protection
- Yes
- Power supply included
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 65 W
- Wall mountable
- Yes
- Cloud-managed
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
- Forwarding rate
- 7.4 Mpps
- Auto-negotiation
- Yes
- Power over Ethernet (PoE) power per port
- 30 W
- DC input voltage
- 53.5 V
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
- Fanless
- Yes
- Transmission distance (max)
- 0.25 km
