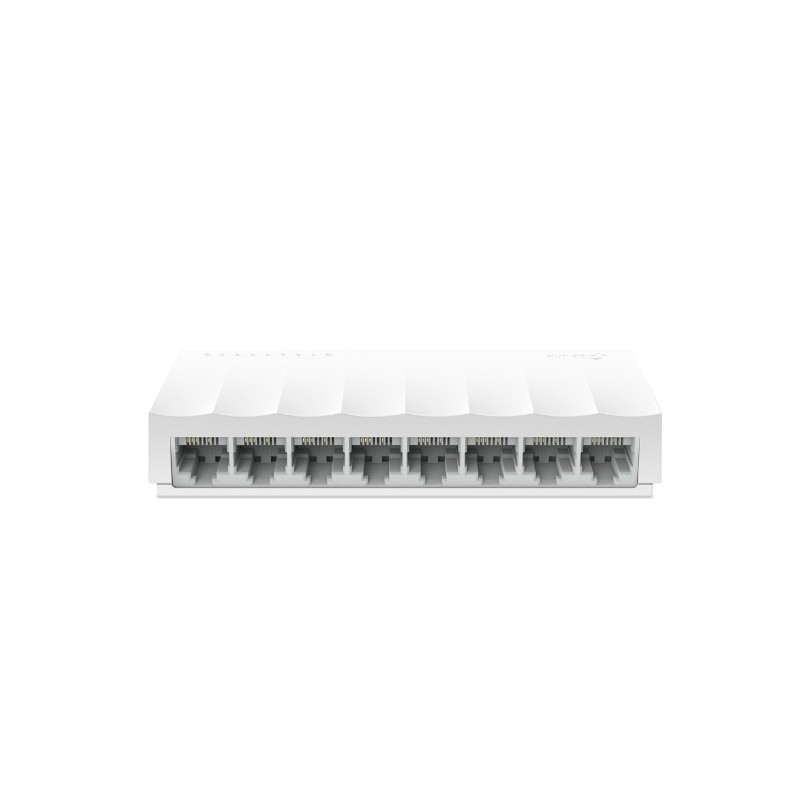

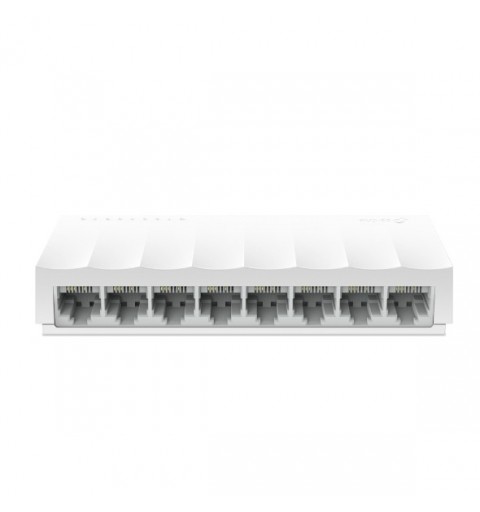

TP-Link 8-Port 10/100Mbps Desktop Network Switch

The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Fanless and Desktop Design
Compact desktop design, to meet your needs in any environment.
Besides, fanless design ensures quiet operation.

Use Where You Need, However You Need
The LS1008 is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

TP-Link 8-Port 10/100Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	1.2 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	2000
Packet buffer memory	0.75 MB
Design
Product colour	White
Housing material	Plastic
LED indicators	Activity, Link, Power
Wall mountable	No
Certification	CE, FCC, RoHS
Power
Power source	DC
Power supply included	Yes
Input current	0.6 A
Input voltage	5 V
Power consumption (max)	2.64 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	9.002 BTU/h
Weight & dimensions
Width	124.6 mm
Depth	48.7 mm
Height	22.8 mm
Logistics data
Harmonized System (HS) code	85176990
