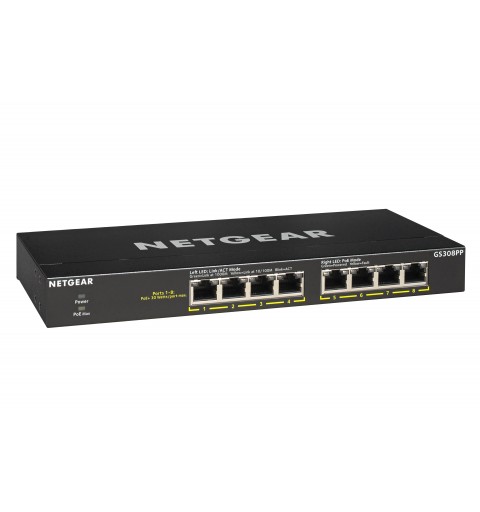

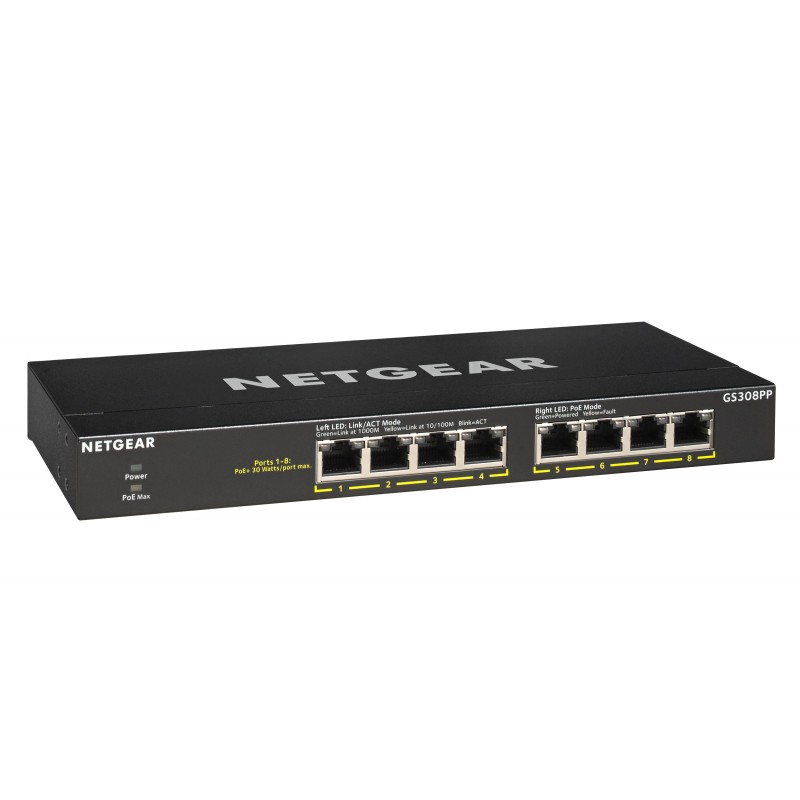

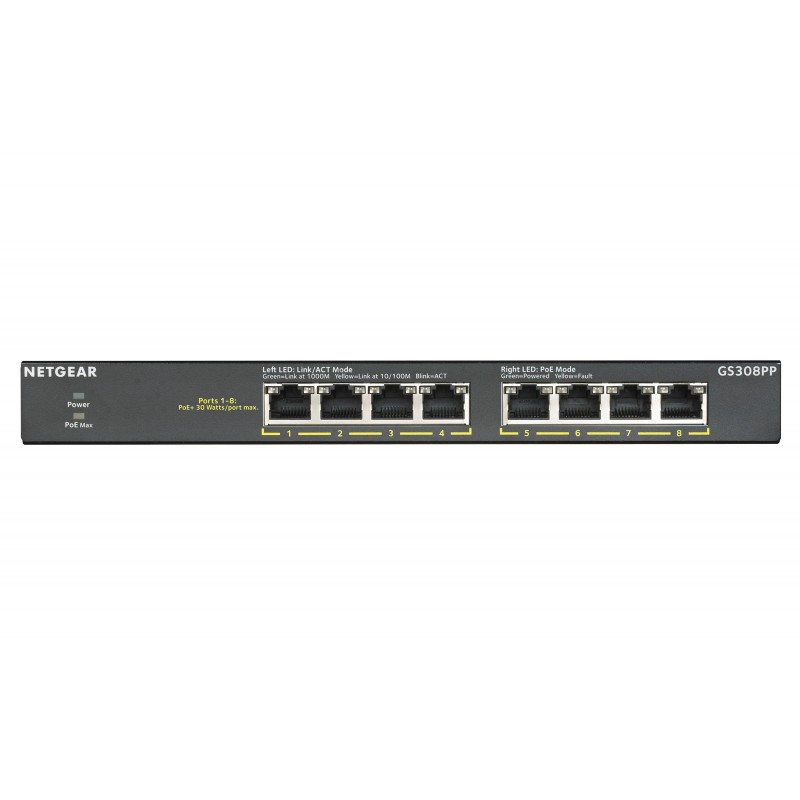

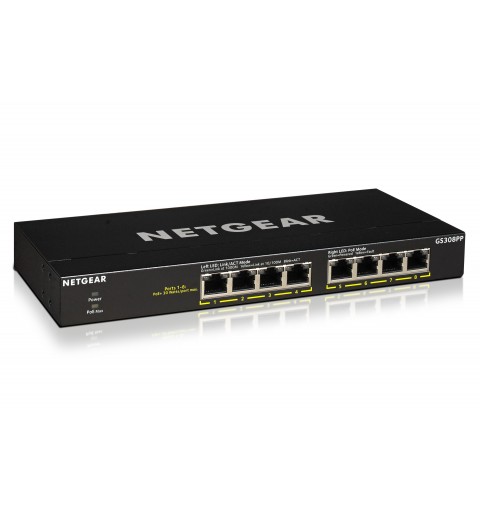

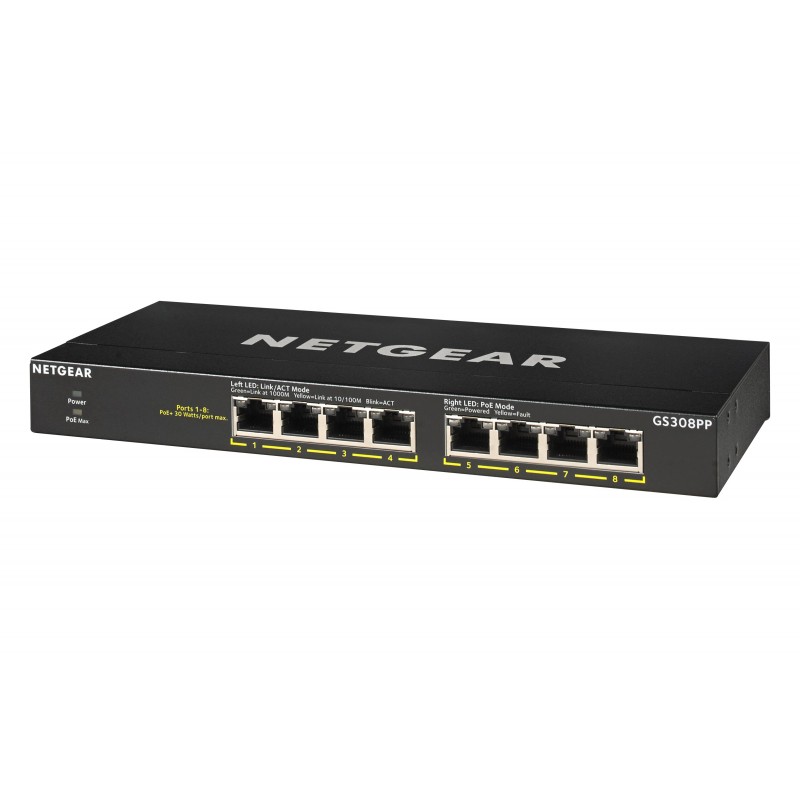

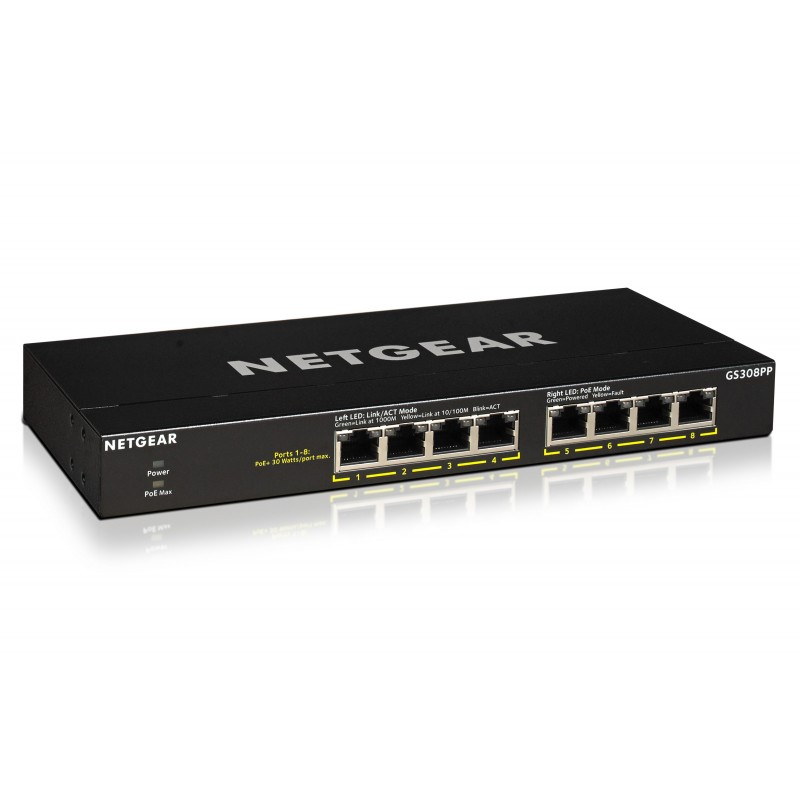

NETGEAR GS308PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.

The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.

NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level

NETGEAR GS308PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable, Rack mounting

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)

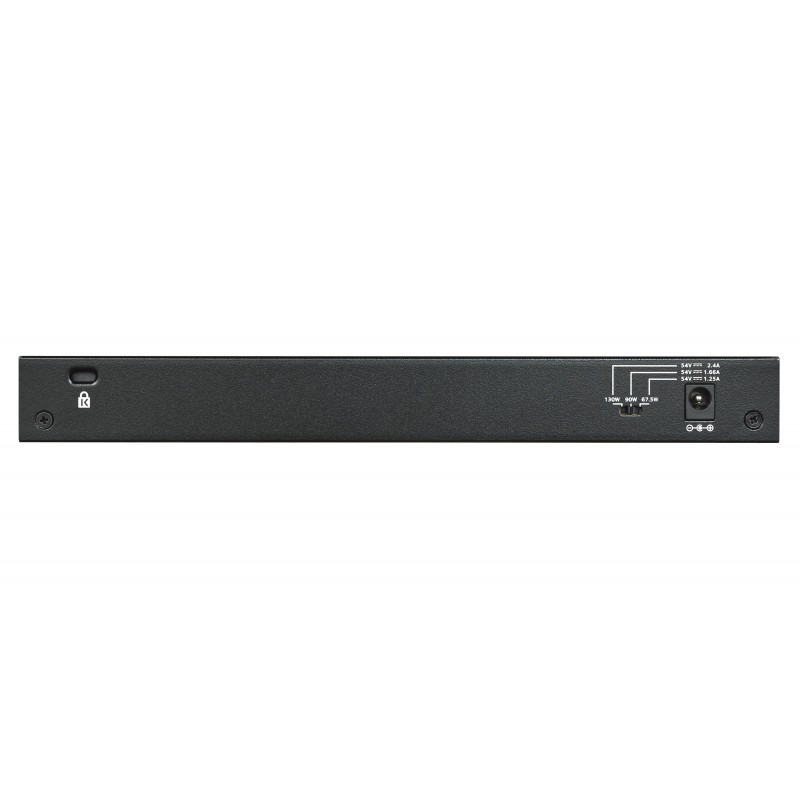

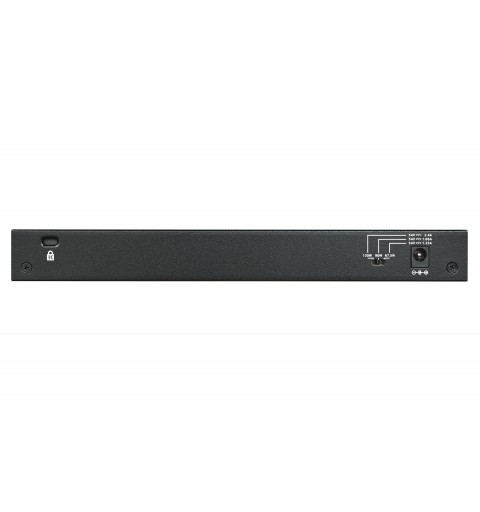

Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Full duplex	Yes
Auto-negotiation	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Latency (1 Gbps)	3 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet forwarding rate (1 Gbps)	1448000 pps
Packet buffer memory	0.192 MB
Design
Rack mounting	Yes
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power, Speed
Wall mountable	Yes
Certification	CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC
Performance
Mean time between failures (MTBF)	2752476 h
Power
DC input voltage	54 V
Input current	1.66 A
Power consumption (max)	87.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	130 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 3000 m
Heat dissipation	300.6 BTU/h
Weight & dimensions
Width	236 mm
Depth	102 mm
Height	27 mm
Weight	600 g
Logistics data
Harmonized System (HS) code	85176990
