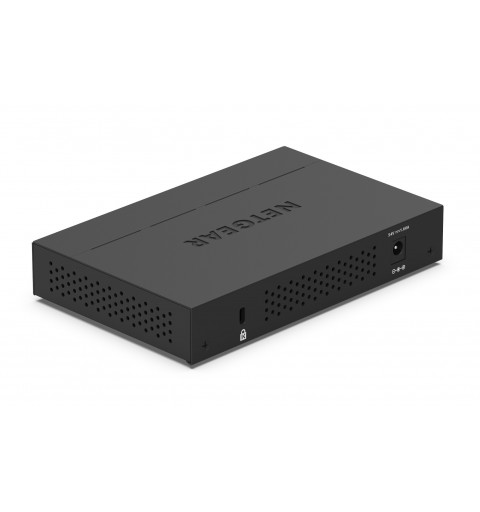

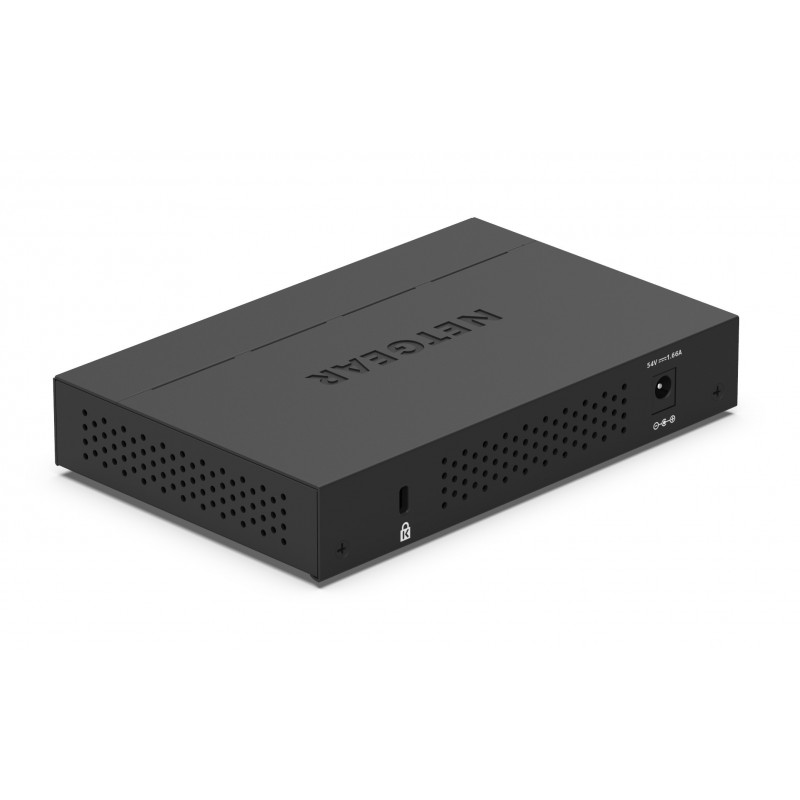

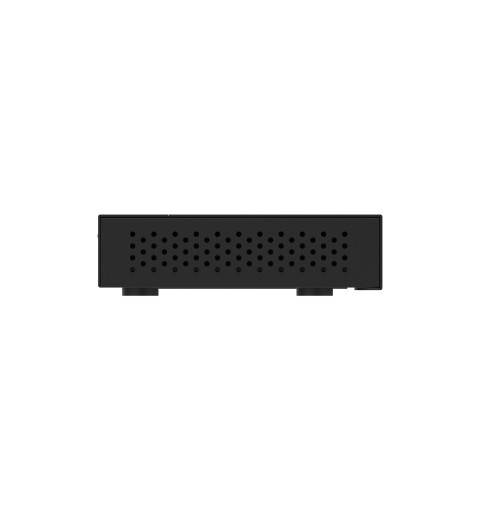

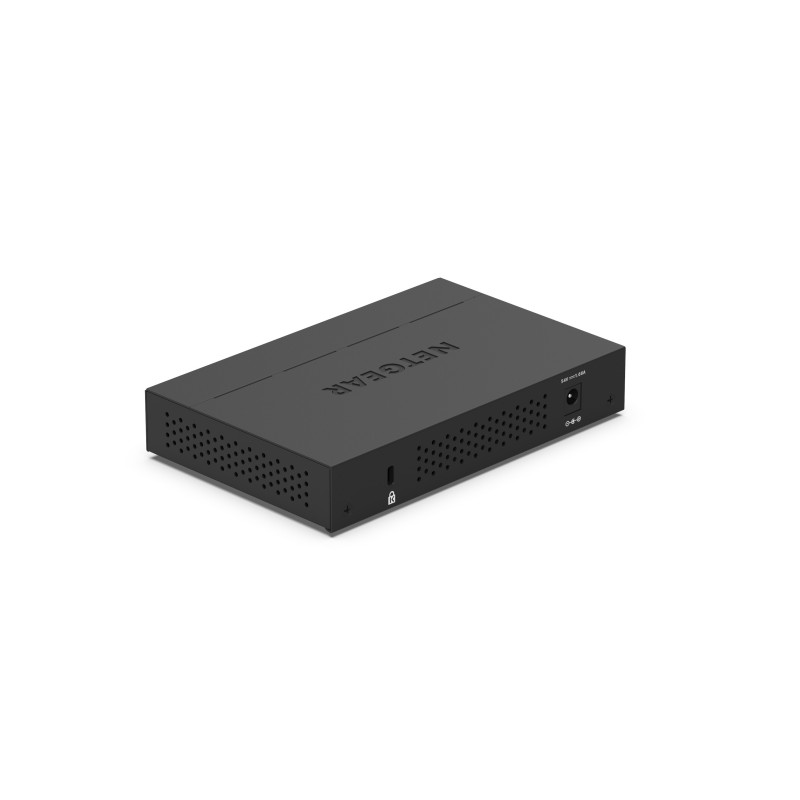

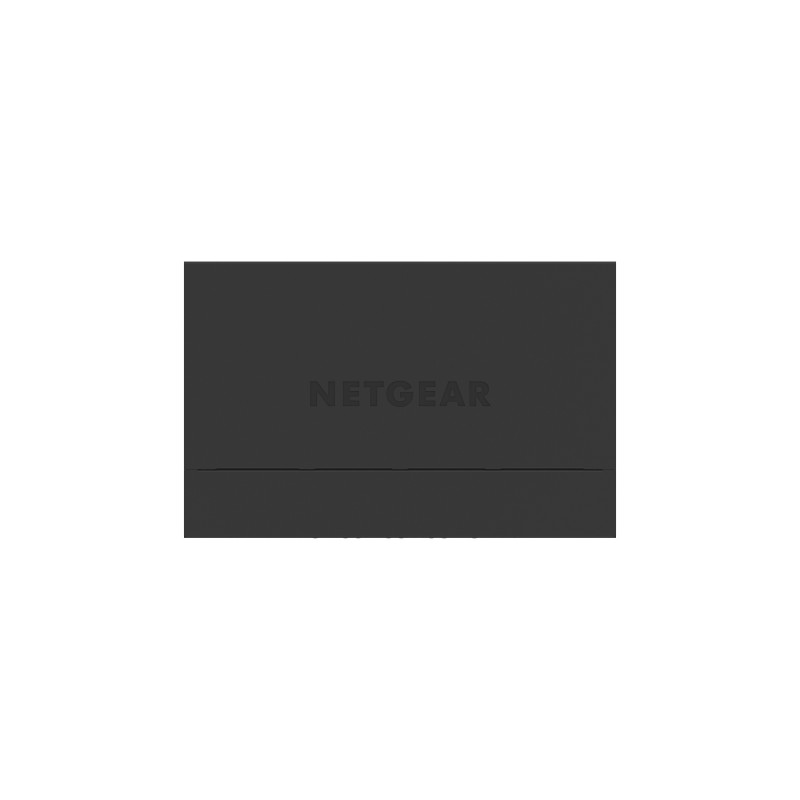

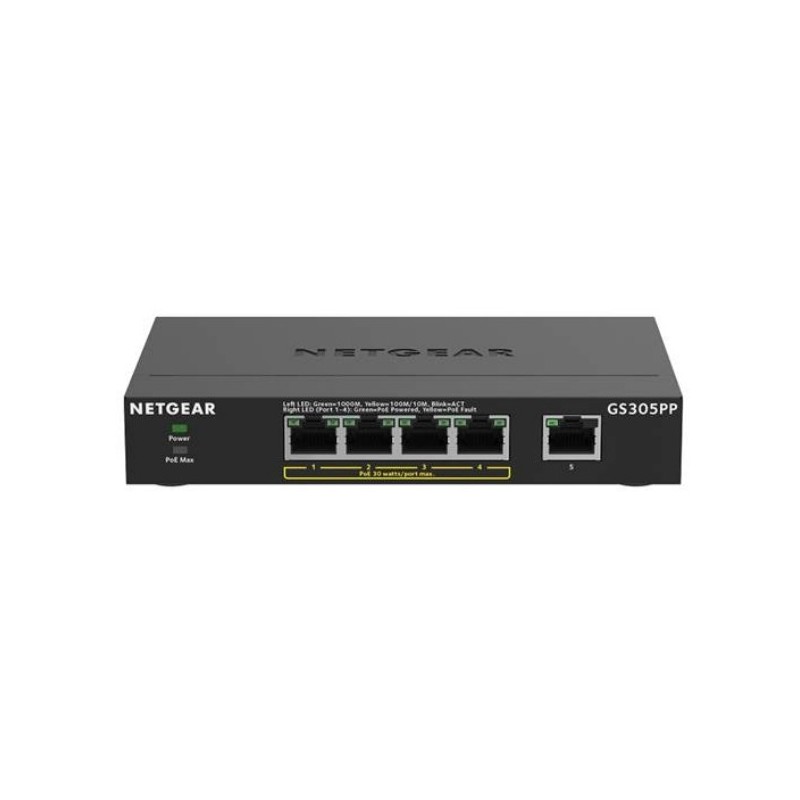

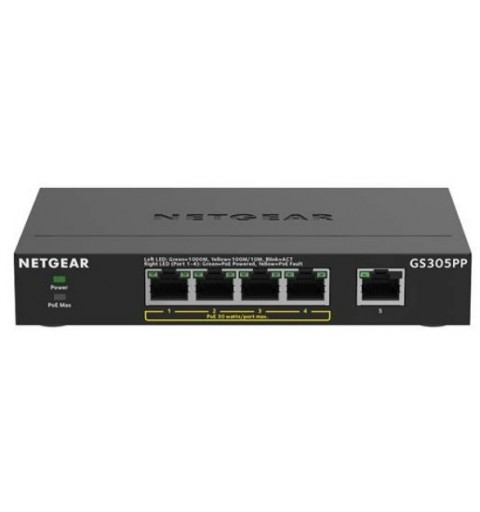

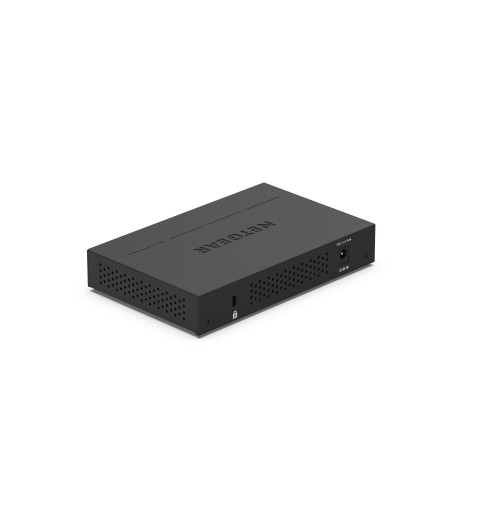

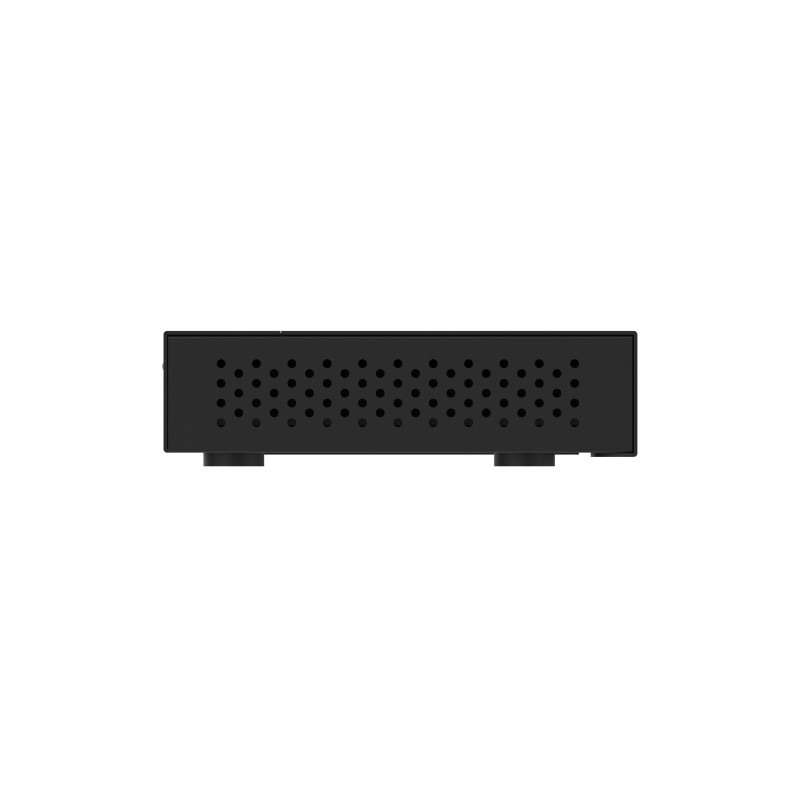

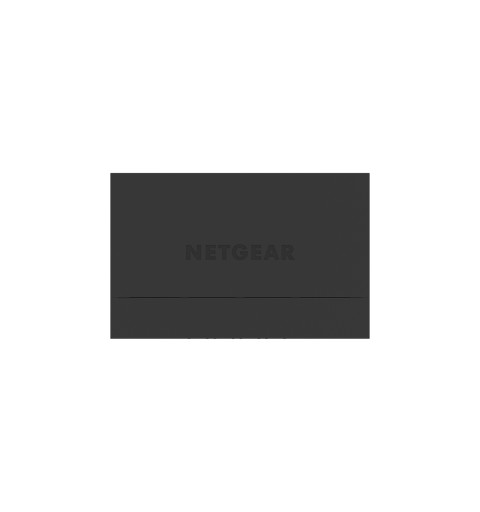

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

NETGEAR GS305PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Cable length detection	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	1.448 Mpps
Latency (1 Gbps)	2.4 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	128 MB
Design
Rack mounting	No
Product colour	Black
Housing material	Metal
Reset button	Yes
LED indicators	Activity, Link, PoE, Power
Wall mountable	Yes
Certification	CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC
Performance
Mean time between failures (MTBF)	6710127 h
Power
DC input voltage	54 V
Input current	1.66 A
Power consumption (typical)	2.89 W
Power consumption (max)	88.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	83 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	304 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	410 g
Logistics data
Master (outer) case width	237 mm
Master (outer) case length	469 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	8.52 kg
Products per master (outer) case	6 pc(s)
