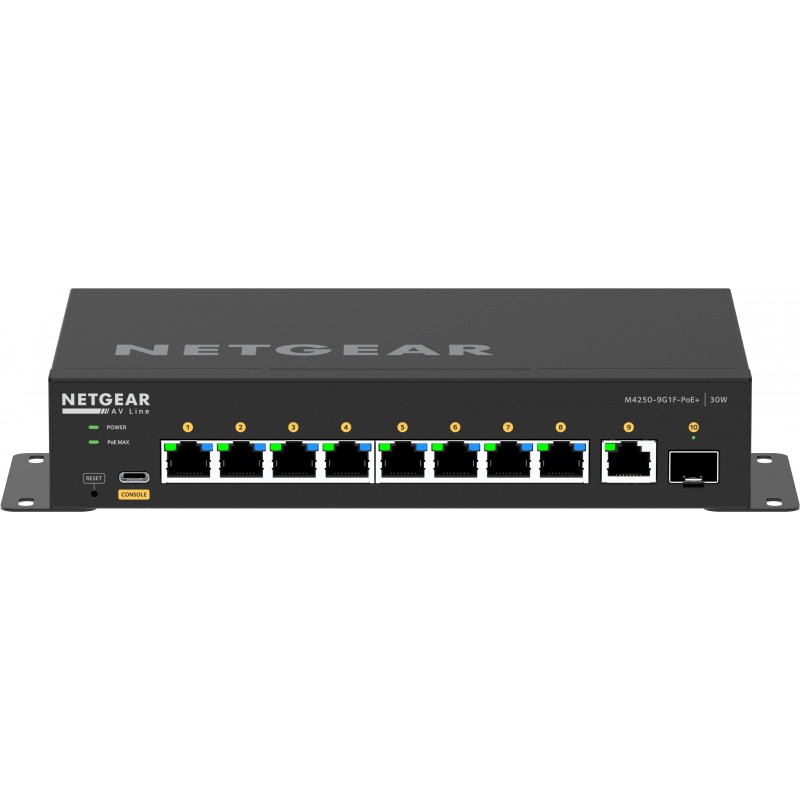

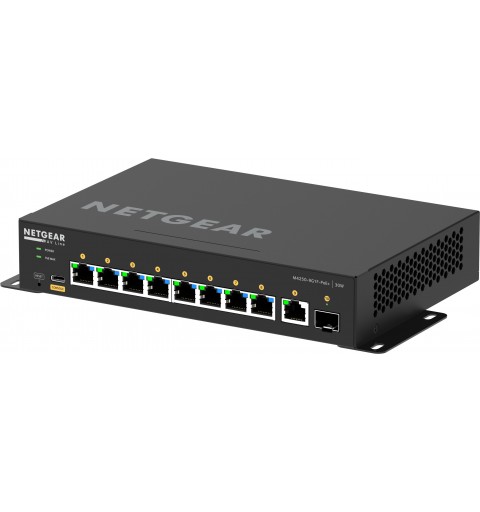

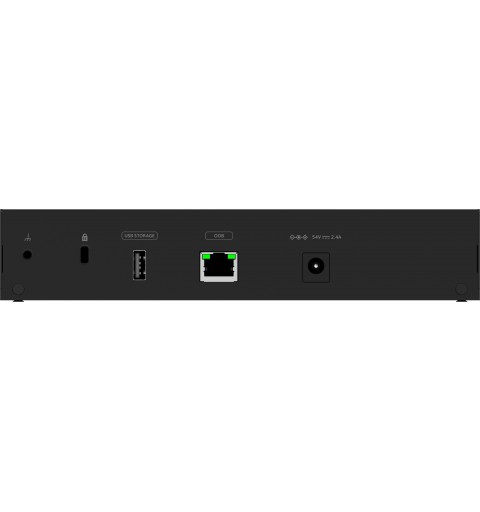

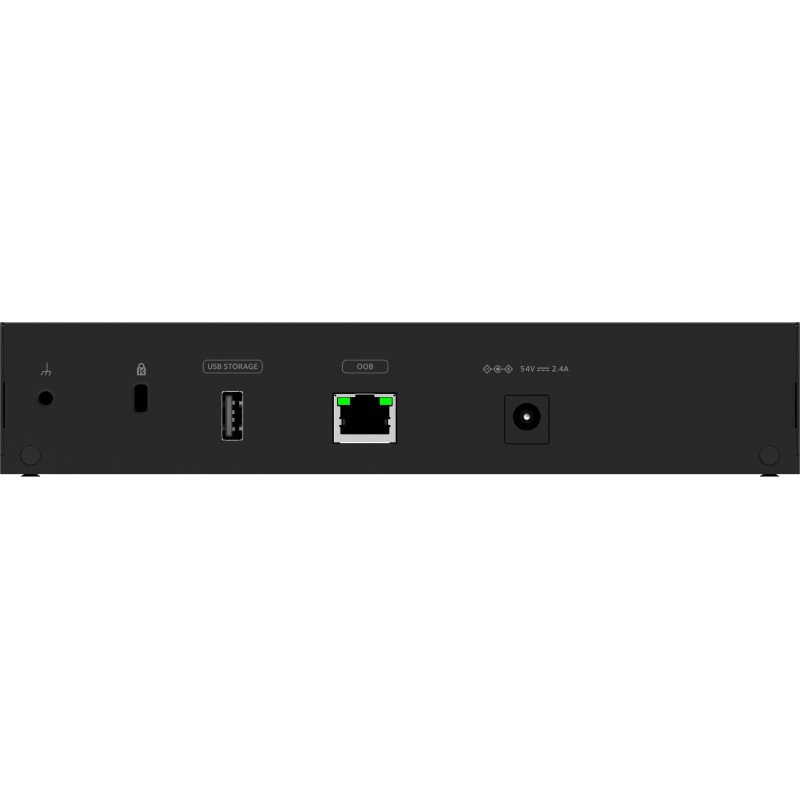

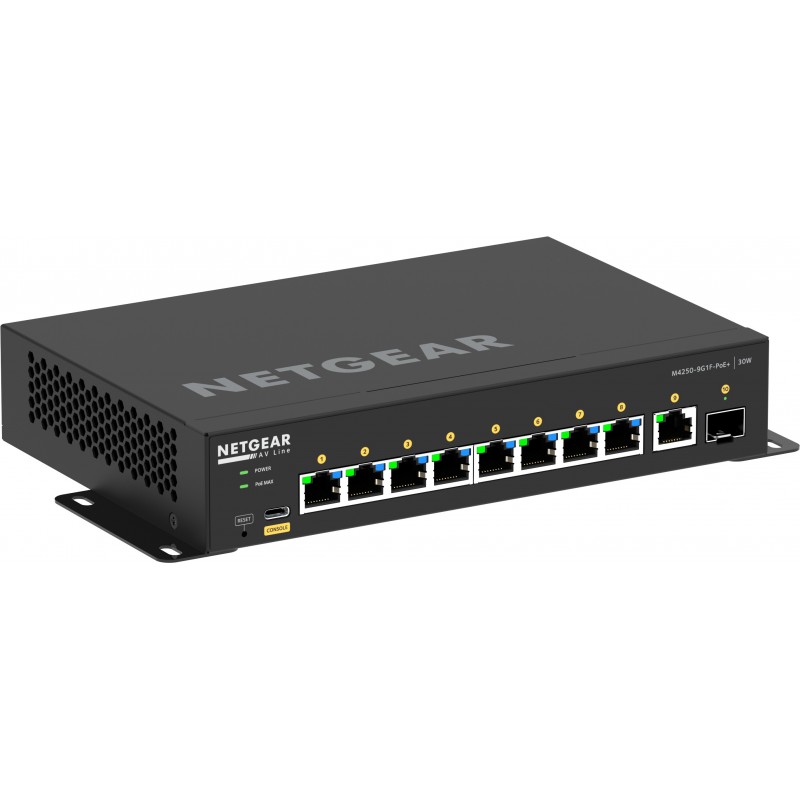

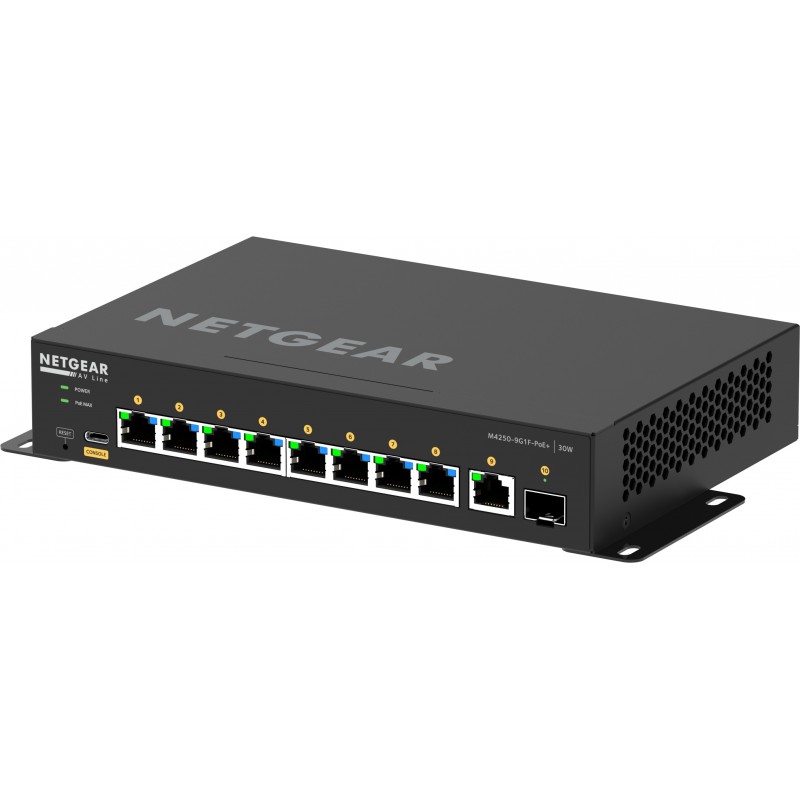

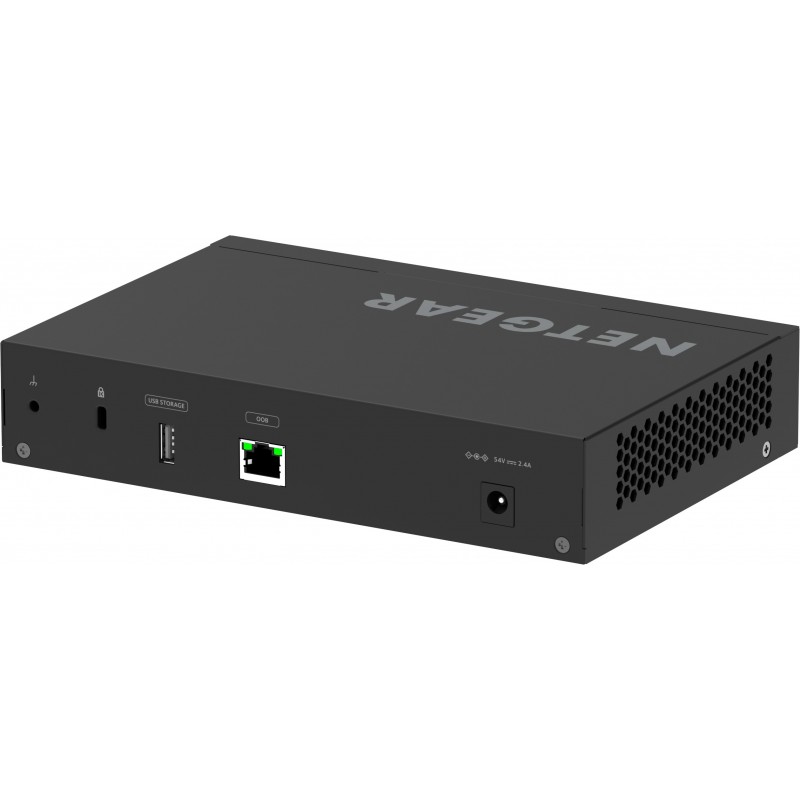

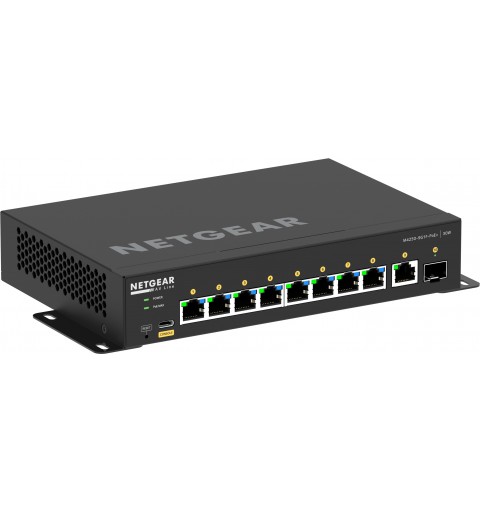

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE

Pre-configured to get you up and running faster

FAST, EASY CONFIGURATION FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

NETGEAR 8x1G PoE+ 110W 1x1G and 1xSFP Managed Switch. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting

Management features
Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Full duplex	Yes
Spanning tree protocol	Yes
Data transmission
MAC address table	16000 entries
Switching capacity	24 Gbit/s
Store-and-forward	Yes
Security
DHCP features	DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication type	RADIUS
Multicast features
Multicast support	Yes
IPv4 multicast entries	2000
Design
Rack mounting	Yes
Product colour	Black
LED indicators	PoE, Power, Status
Performance
Built-in processor	Yes
Processor model	ARM Cortex-A9
Processor frequency	1250 MHz
Internal memory	2048 MB
Noise level	30.06 dB
Power
Power source	AC/DC
Power supply included	Yes
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	110 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	559.555 BTU/h
Weight & dimensions
Width	210 mm
Depth	140 mm
Height	40 mm
Weight	967 g
