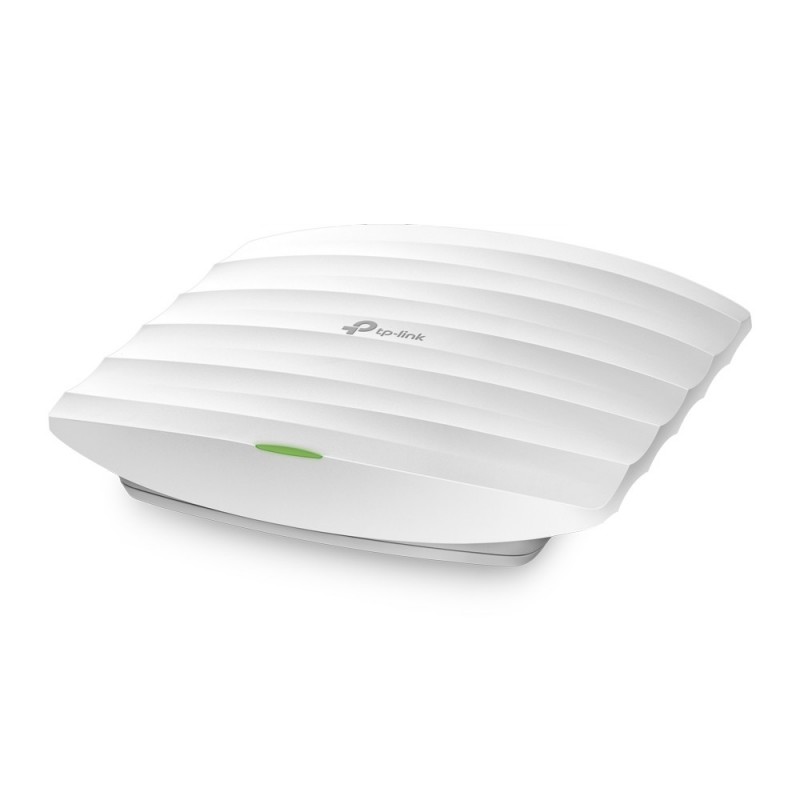

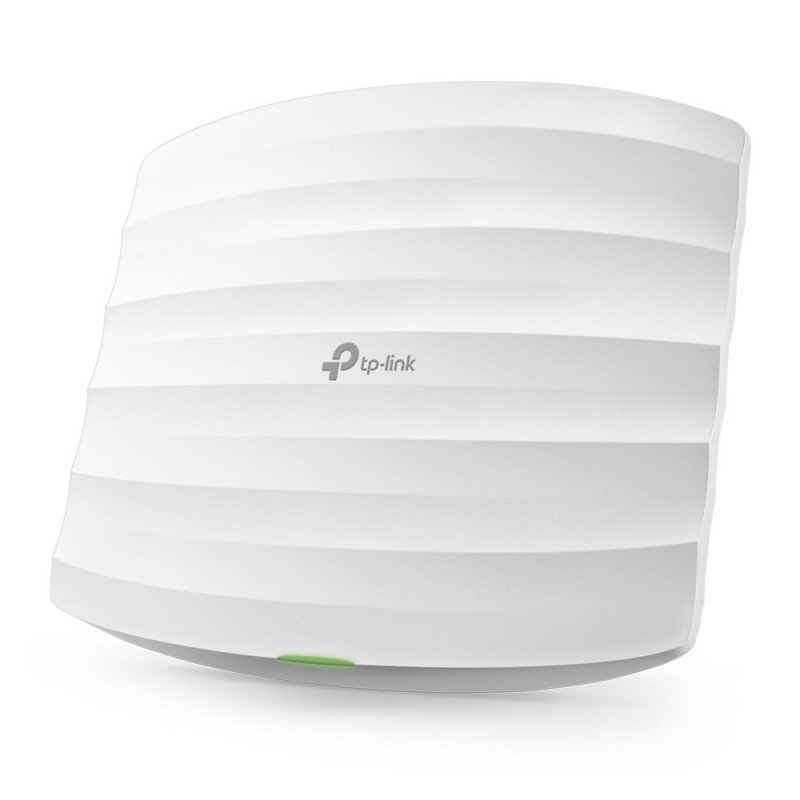

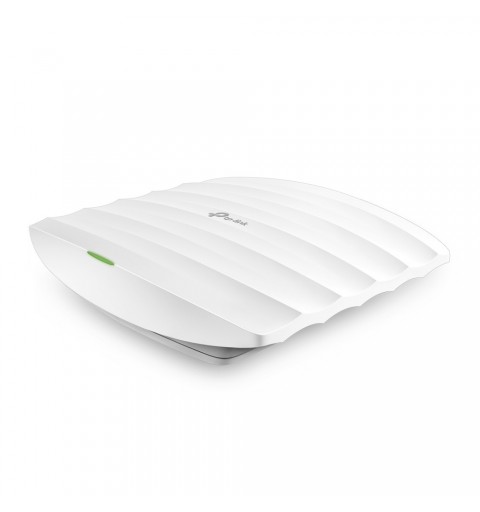

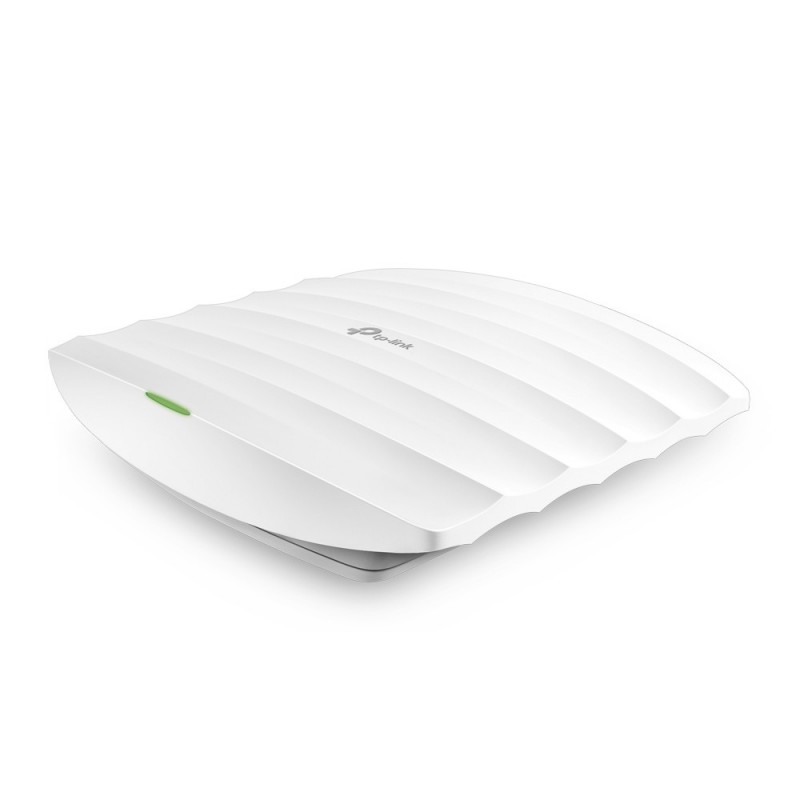

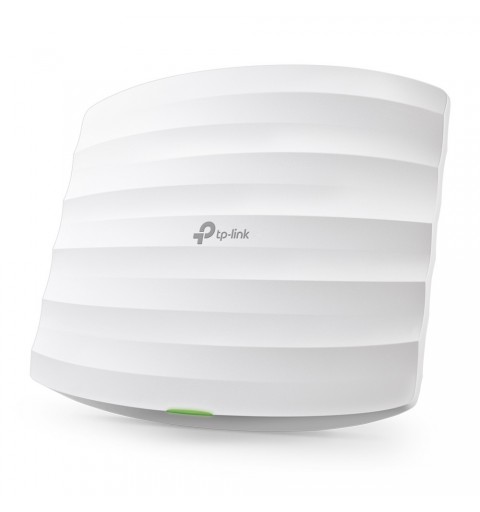

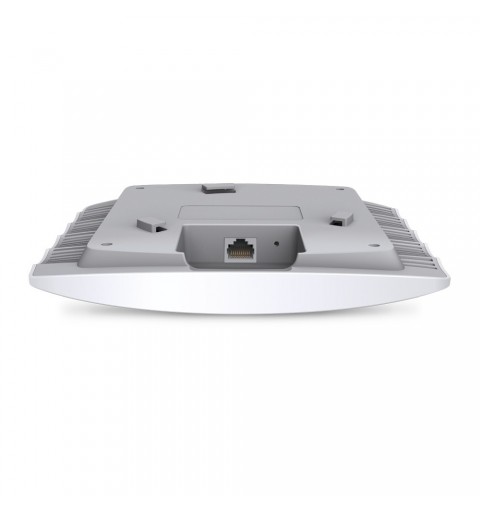

TP-Link 300Mbps Wireless N Ceiling Mount Access Point

Flexible Placement
Easy mounting design & PoE

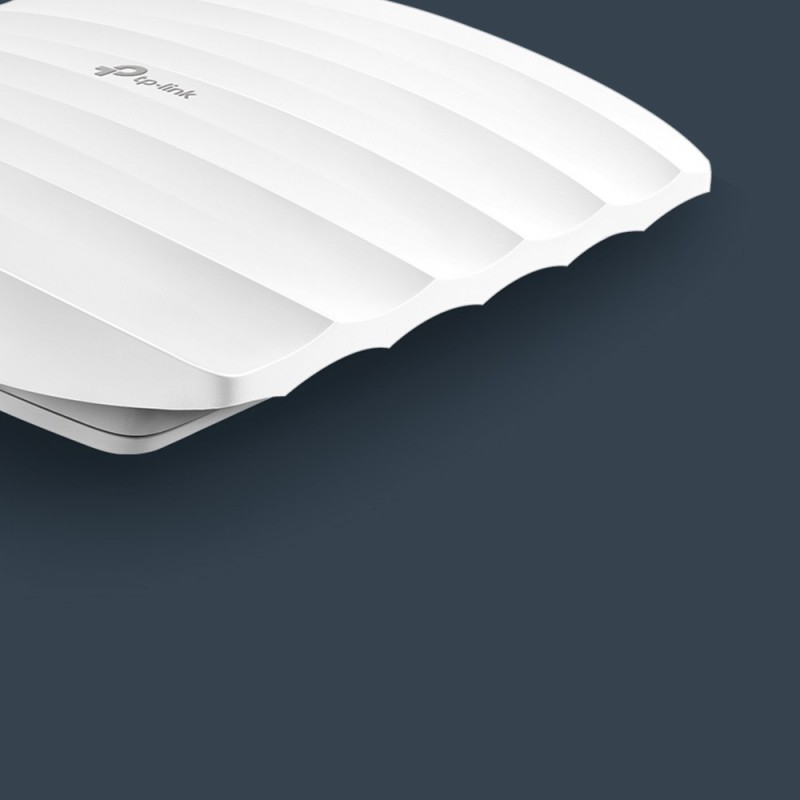

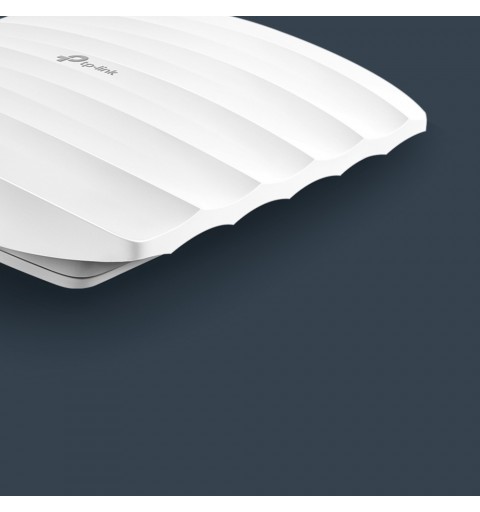

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.

Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

TP-Link 300Mbps Wireless N Ceiling Mount Access Point. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,..., Service Set Identifier (SSID) features: Multiple SSIDs. AC input voltage: 24 V, Power consumption (typical): 2.8 W. Placement: Ceiling, Wall, Product colour: White, LED indicators: Power. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 4 dBi

Features
2.4 GHz	Yes
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Cabling technology	10/100Base-T(X)
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Access Control List (ACL)	Yes
Management features
Web-based management	Yes
Syslog	Yes

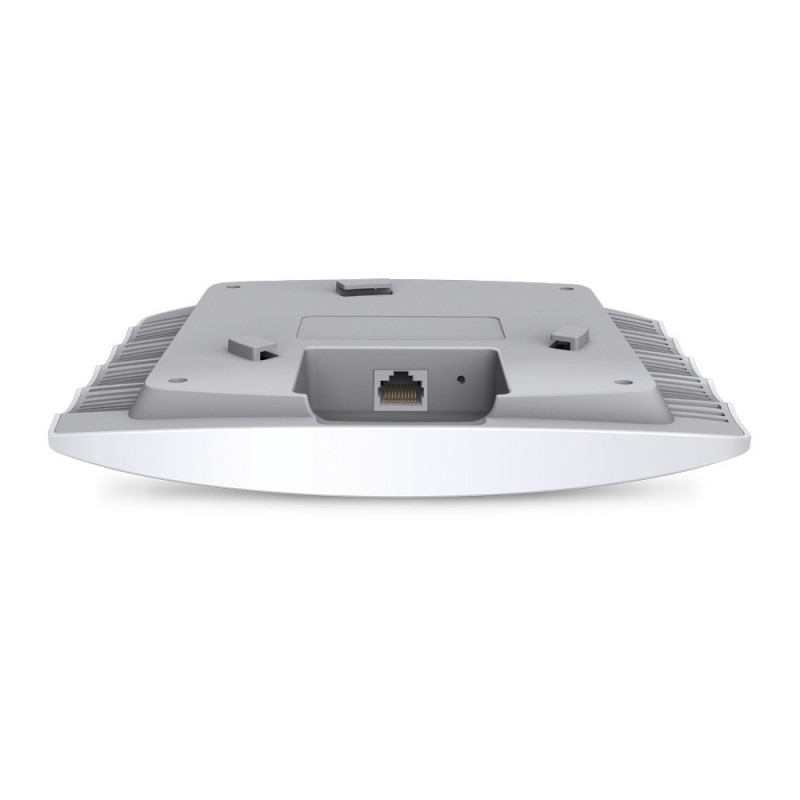

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
AC input voltage	24 V
Power consumption (typical)	2.8 W
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Power
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antennas quantity	2
Antenna gain level (max)	4 dBi
Weight & dimensions
Width	189.4 mm
Depth	172.3 mm
Height	29.5 mm
Packaging data
Package width	268 mm
Package depth	246 mm
Package height	69 mm
Package weight	720 g
Package type	Box
Packaging content
Number of products included	1 pc(s)
PoE adapter included	Yes
Cables included	AC
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
