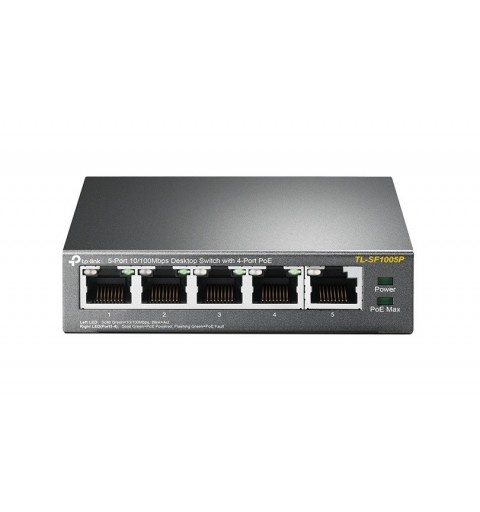

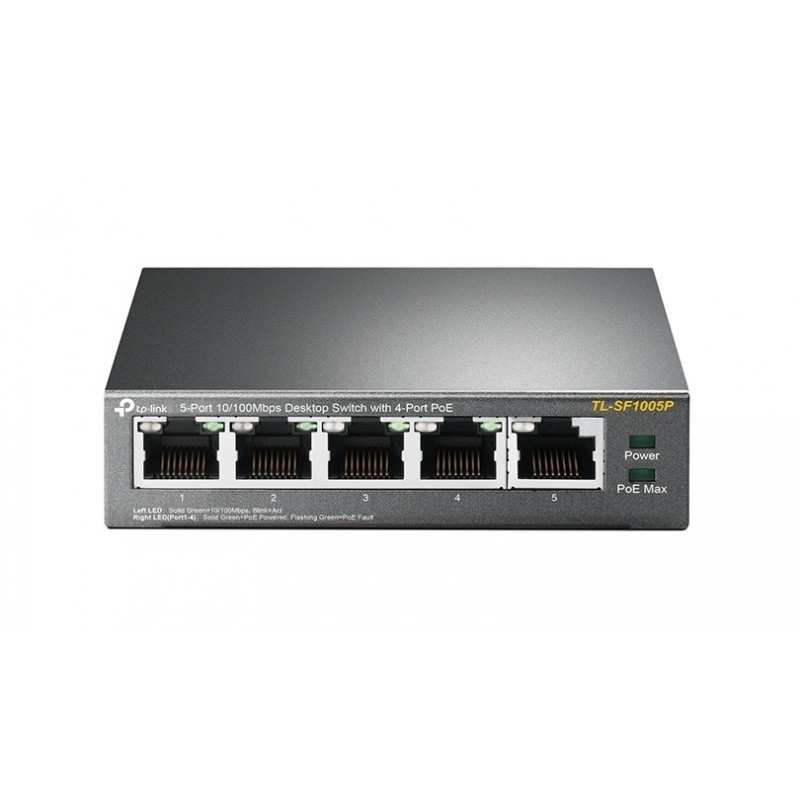

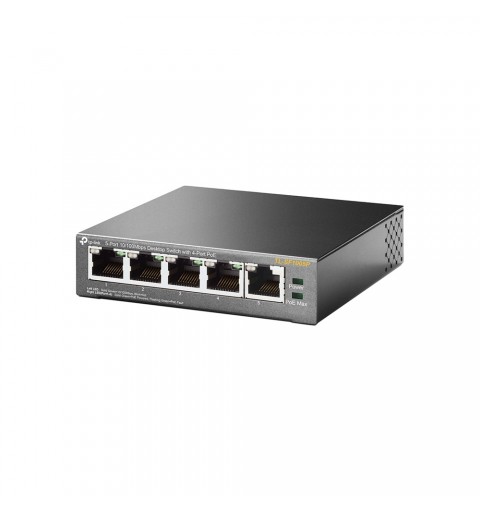

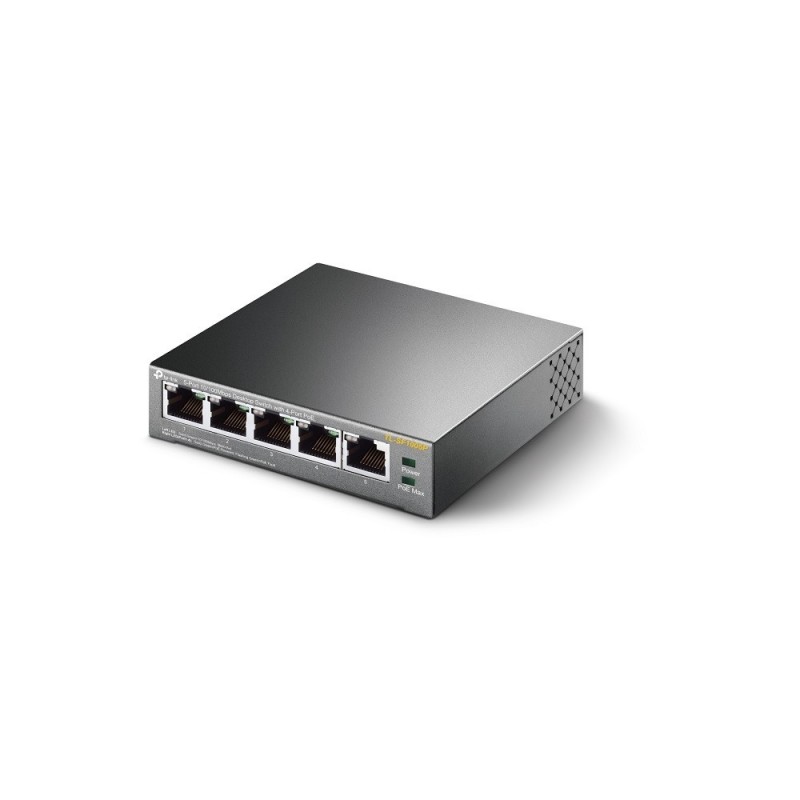

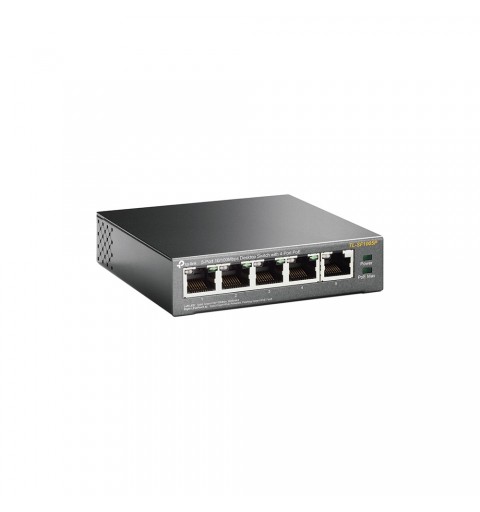

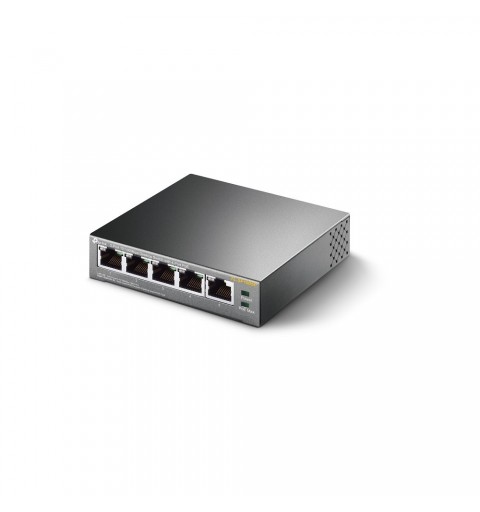

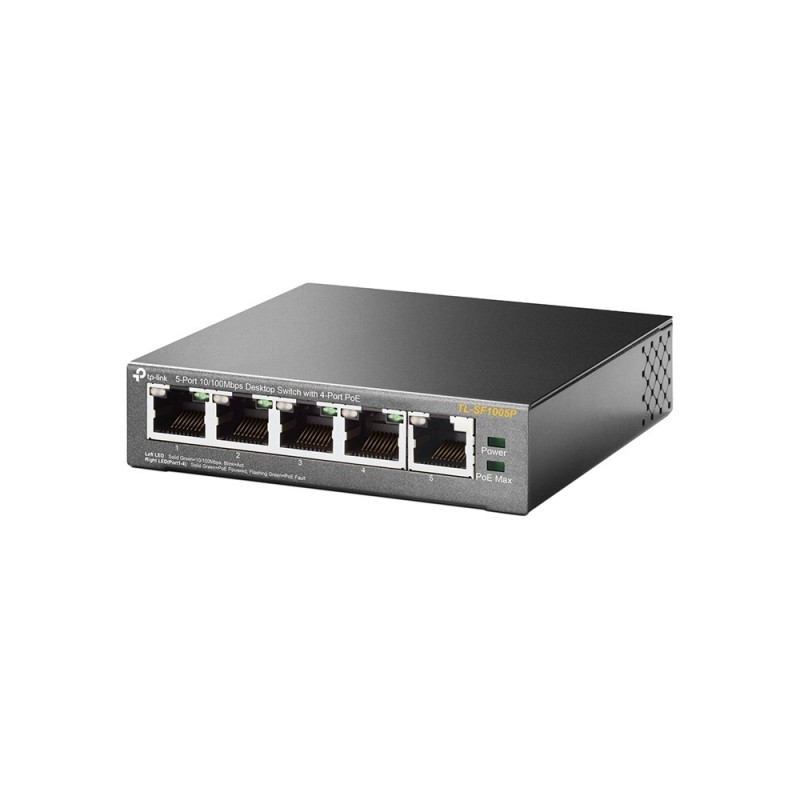

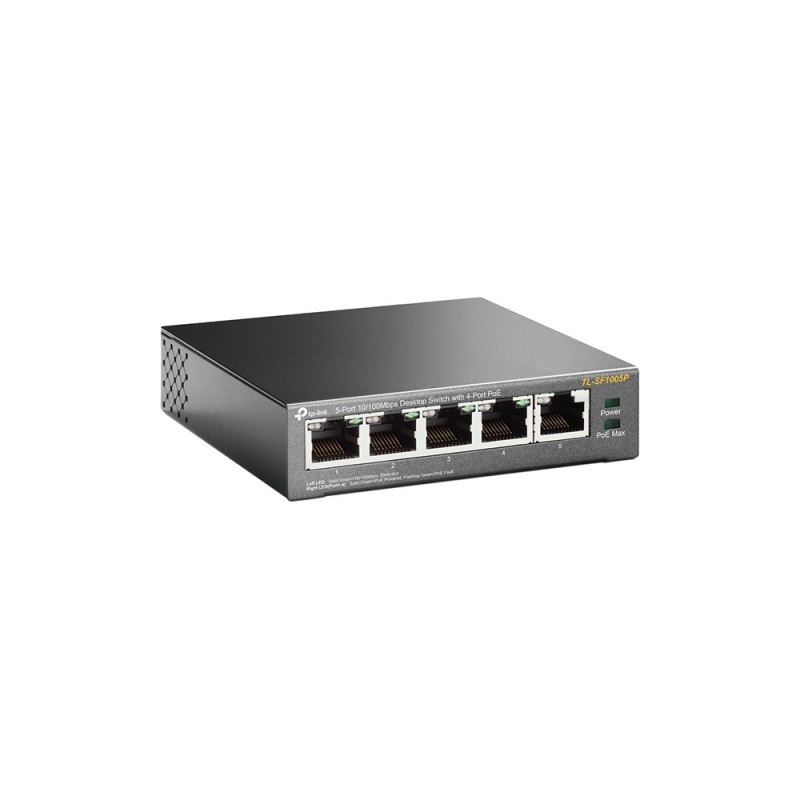

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port

PoE Switches for Your Ultra Convenience
5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. Power over Ethernet (PoE)

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Network
Networking standards	IEEE 802.3af, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 100BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Full duplex	Yes
Auto-negotiation	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	1 Gbit/s
Store-and-forward	Yes
Design
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHS
Performance
Maximum cable length	100 m
Power
Power source	DC
Power supply included	Yes
Input current	1.25 A
Input voltage	48 V
Output voltage	48 V
Output current	1.25 A
Power consumption (max)	64.82 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	58 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	5.73 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	97.8 mm
Height	25 mm
Logistics data
Harmonized System (HS) code	85176990
