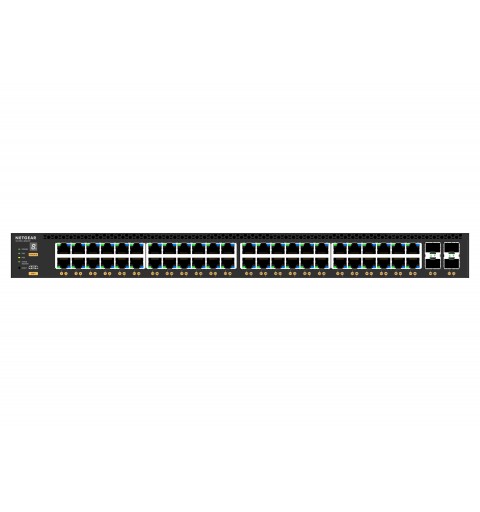

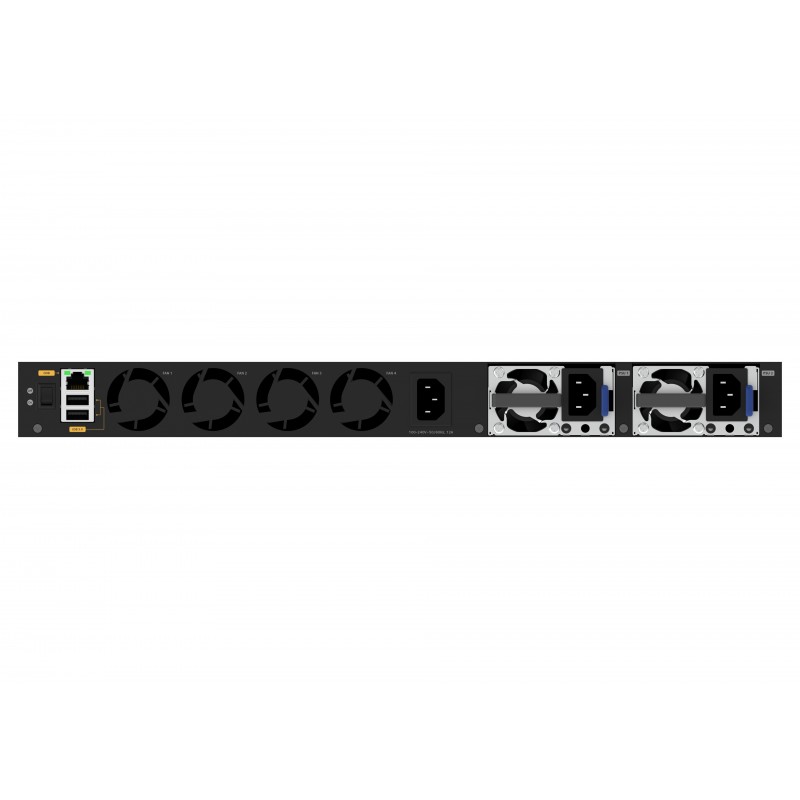

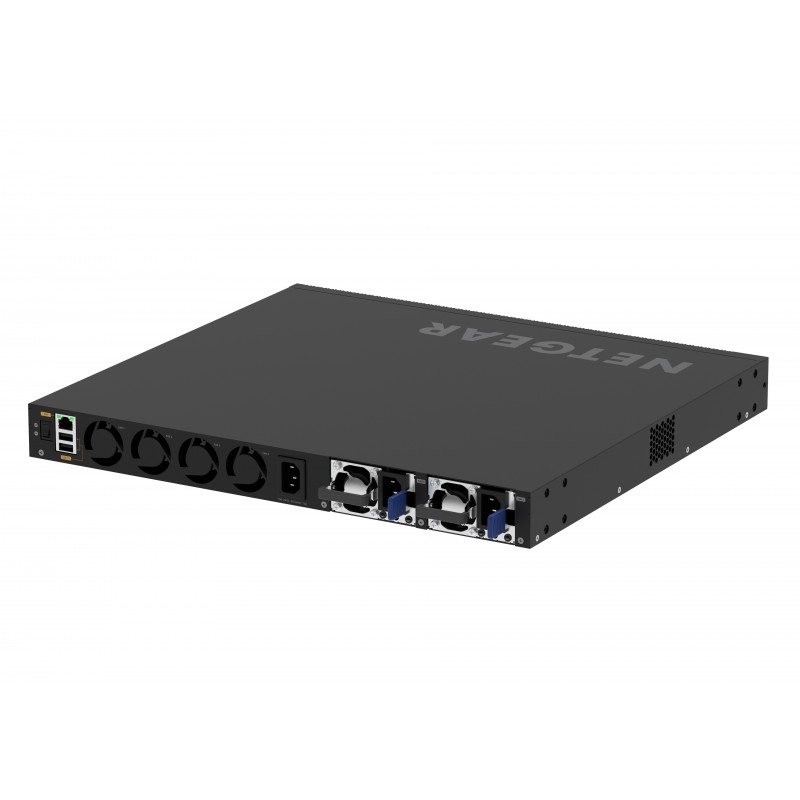

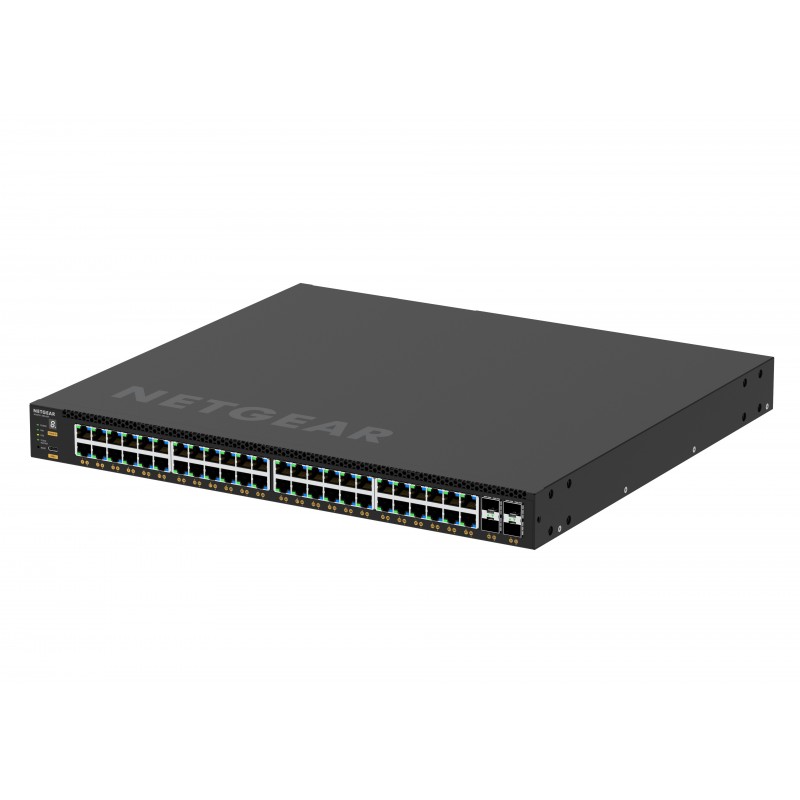

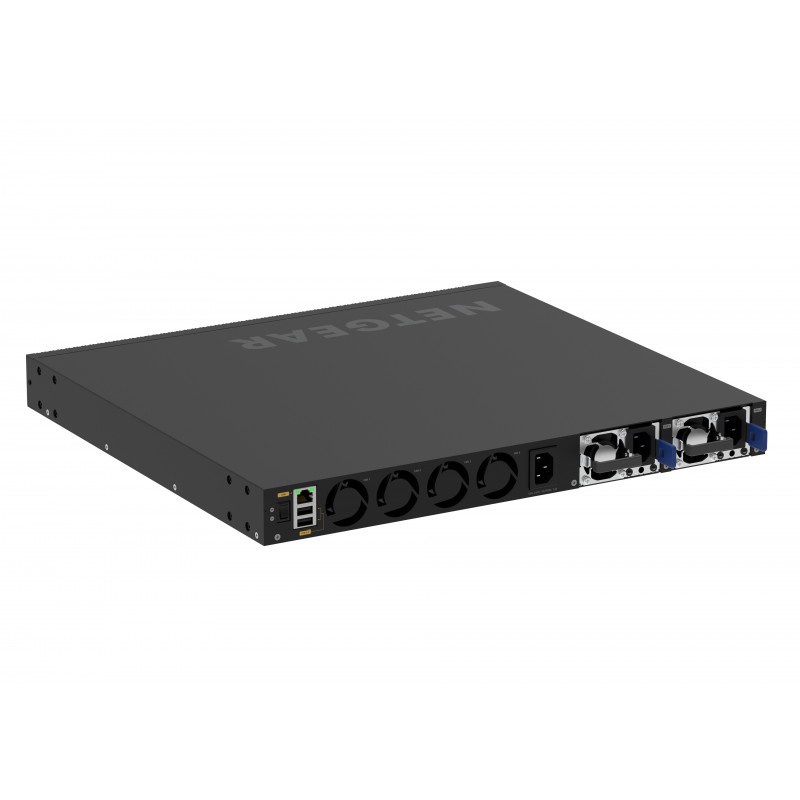

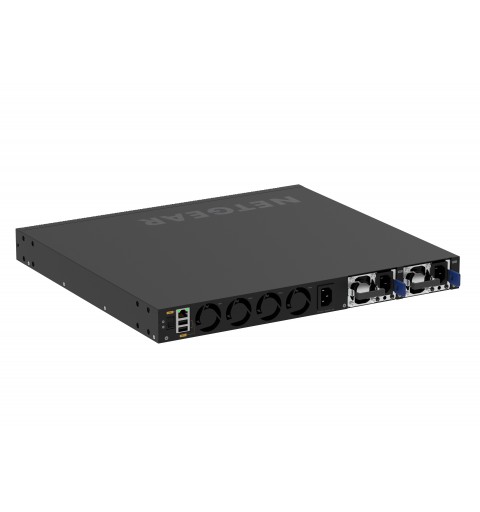

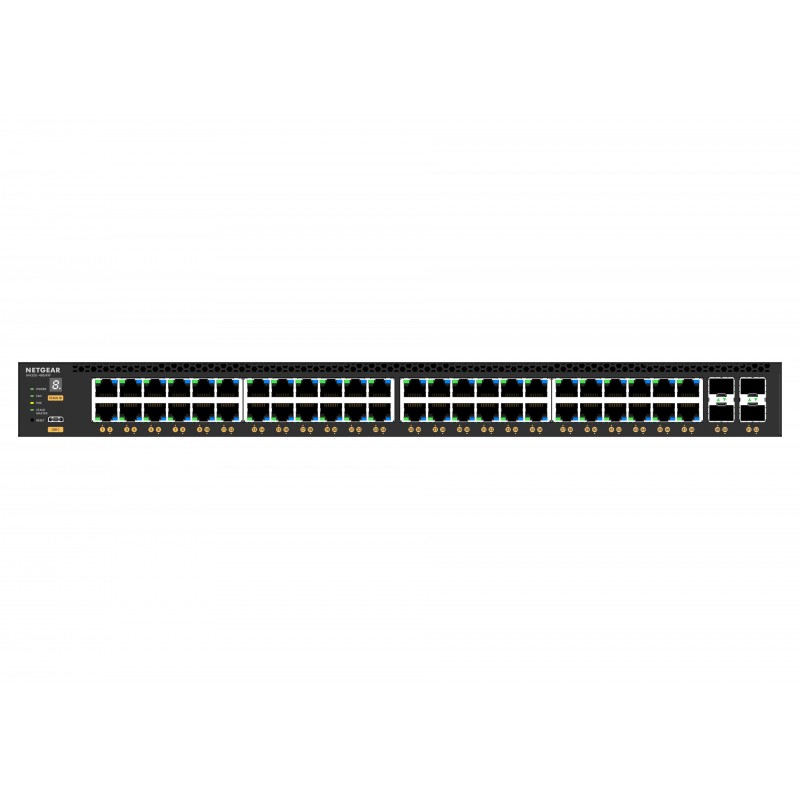

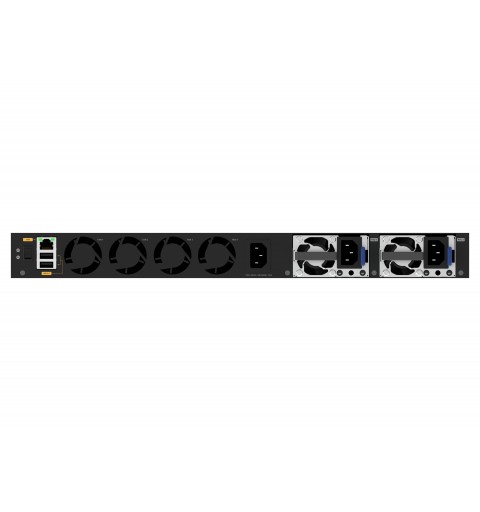

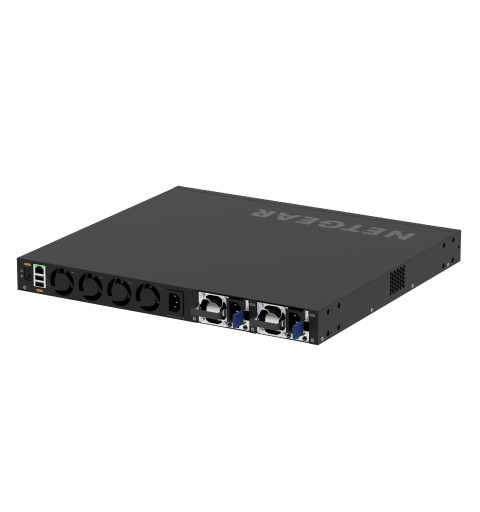

NETGEAR M4350-48G4XF Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

NETGEAR M4350-48G4XF. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Management features
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP+ module slots quantity	4
Power connector	AC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support	Yes
Policy-based routing	Yes
IPv6 routes	256
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093
Data transmission
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Throughput	130.94 Mpps
Store-and-forward	Yes
Latency (1 Gbps)	2.2 µs
Latency (10 Gbps)	0.7 µs
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	32 MB
Security
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	1023
Access Control List (ACL) ingress	511
IGMP proxy	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Protocols
Management protocols	SNMP V1, V2, V3
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Design
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Airflow direction	Front-to-back airflow
Performance
Built-in processor	Yes
Processor model	ARM Cortex-A57
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	2048 MB
Flash memory	512 MB
sFlow	Yes
Power
Power source	AC
Power supply included	Yes
Power consumption (typical)	99 W
Power consumption (max)	348 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	1440 W
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	440 mm
Depth	400 mm
Height	43.2 mm
Weight	7.19 kg
Sustainability
Sustainability certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Other features
Power supply	550 W
