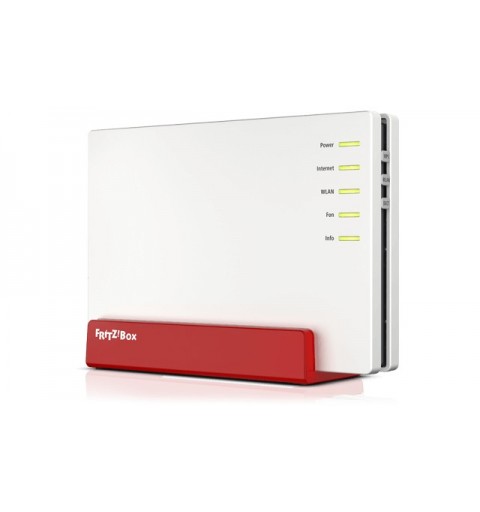

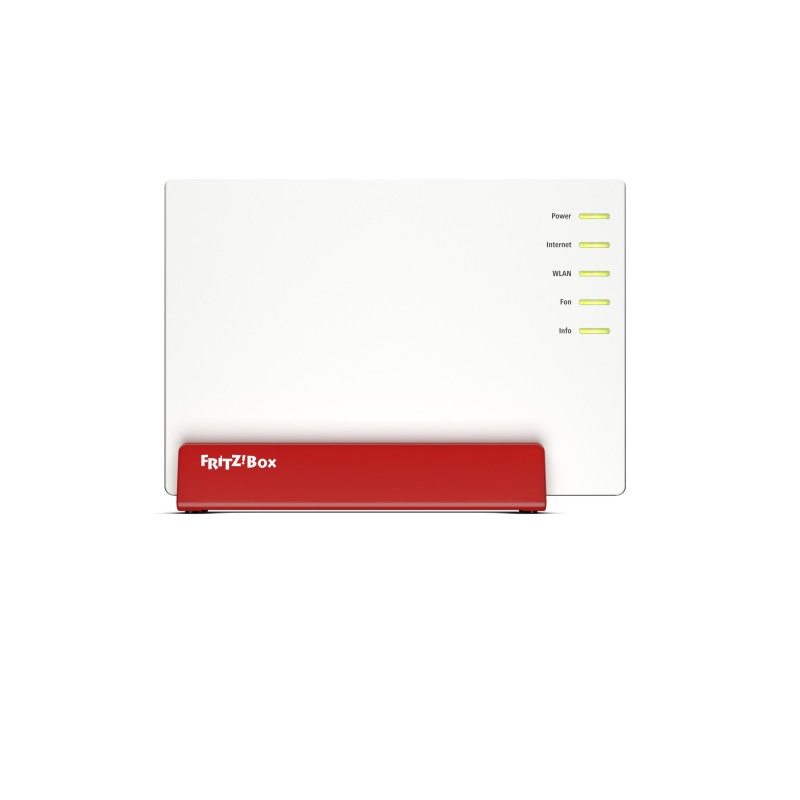

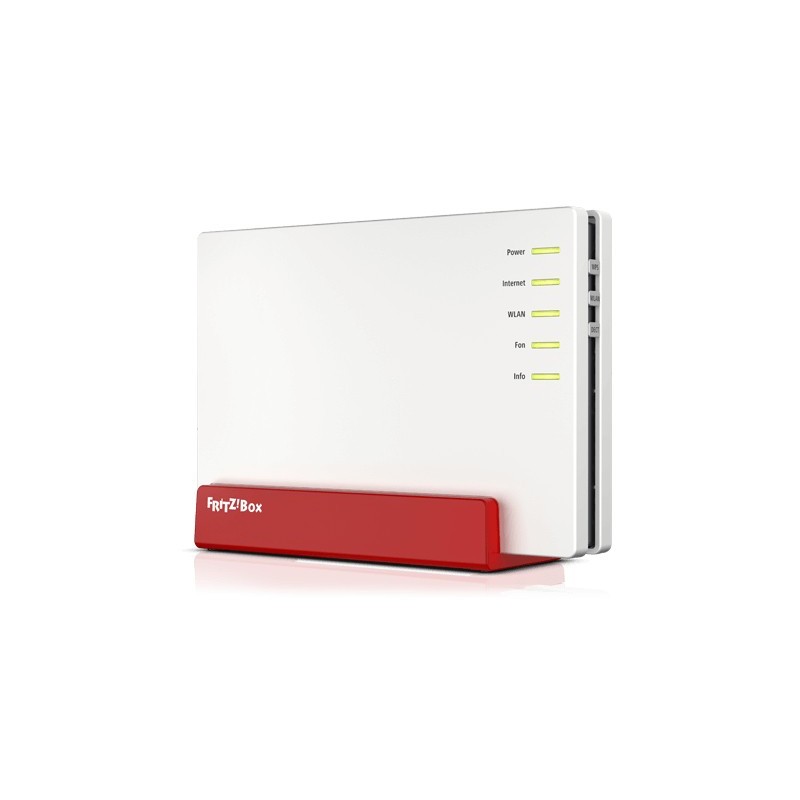

FRITZ!Box 7583 VDSL int.

Full of features

With innovative and intelligent high-end Wi-Fi the FRITZ!Box 7583 VDSL offers greater range and higher speeds. It also features a fully-fledged telephone system for IP-based connections with ISDN S0 for hunt groups with up to four B channels. This means you can make four phone calls at the same time, instead of the usual two.

Mesh Wi-Fi with FRITZ!

The FRITZ!Box 7583 VDSL supports Mesh Wi-Fi, meaning your videos, music and photos seamlessly reach every corner of your home, apartment or office. How does it work? The FRITZ! devices work together as part of a single network, communicating with each other and optimizing your devices and network usage. With Mesh you can enjoy high speeds while surfing, streaming or gaming. Instead of waiting for breathtaking HD television and your favorite music to load, your media will wait for you.

Dual Wi-Fi

With the concurrent use of Wi-Fi 5 and Wi-Fi 4, your devices are connected to the FRITZ!Box 7583 VDSL simultaneously, with none of them getting the short end of the stick! With the 5 GHz network you can surf at up to 1,733 MBit/s and with the 2.4 GHz network you can surf at up to 800 Mbit/s.

Security first

As with every FRITZ!Box, security comes first with FRITZ!Box 7583 VDSL. The software is constantly being improved to ensure not only the best possible performance, but also maximum security and to protect your communication. Thanks to free updates you're up to date and always on the safe side.

FRITZ!OS

FRITZ!OS, the smart operating system for your FRITZ!Box, enables your devices to work together and blanket your home in Wi-Fi. Don't forget to check for updates and new features. With the FRITZ!Apps you can use your smartphone to access your data from on the go or make calls in your home network. And of course, all updates and apps are free.

FRITZ!Box 7583 VDSL int.. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 2533 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: IPSEC, WPA2, WPA3, WPS. Product type: Tabletop router, Product colour: Red, White. Cables included: LAN (RJ-45)

WAN connection
Ethernet WAN	Yes
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2533 Mbit/s
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Dynamic DNS (DDNS)	Yes
Mobile network
4G	Yes

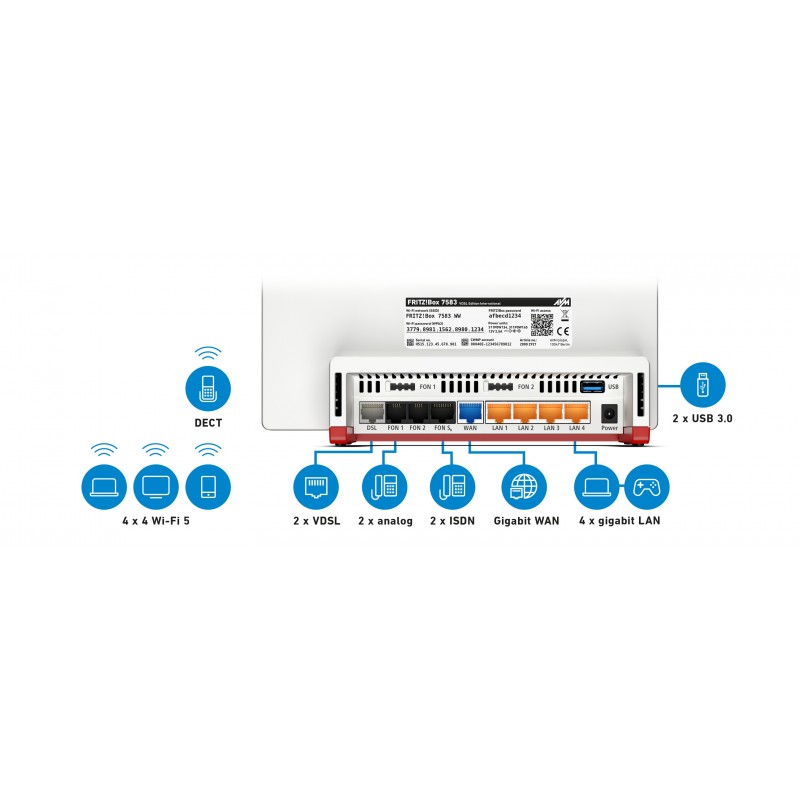

Ports & interfaces
Ethernet LAN (RJ-45) ports	5
USB port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
RJ-11 ports quantity	2
DC-in jack	Yes
Security
Security algorithms	IPSEC, WPA2, WPA3, WPS
Firewall	Yes
Guest access	Yes
Protocols
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Design
Product type	Tabletop router
Product colour	Red, White
Indication light	Yes
Power
Power source type	AC
Power consumption (typical)	11 W
Weight & dimensions
Weight	1.29 kg
Packaging data
Package width	300 mm
Package depth	89 mm
Package height	238 mm
Logistics data
Harmonized System (HS) code	85176990
