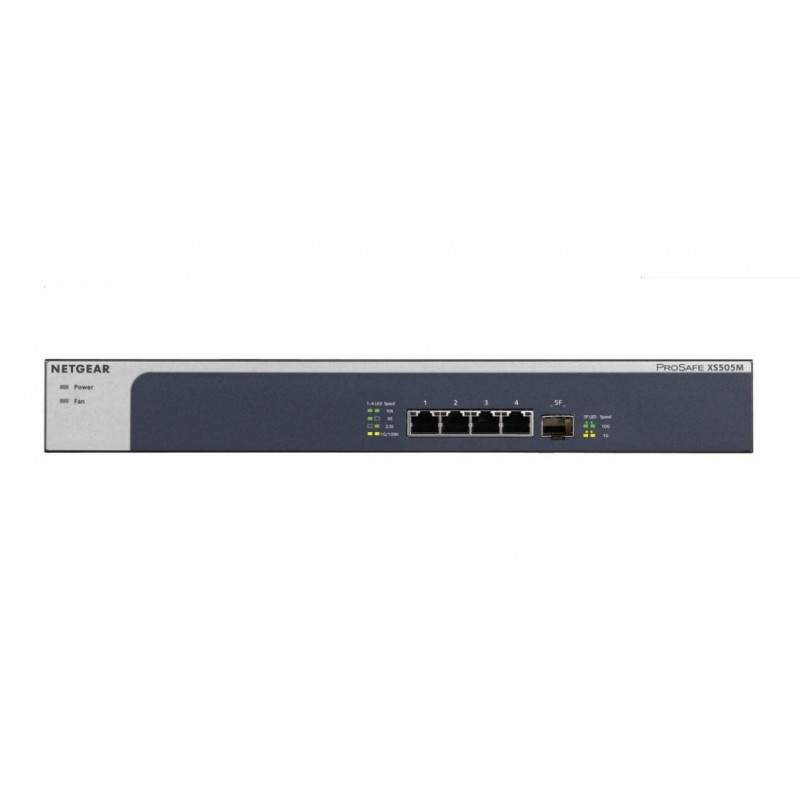

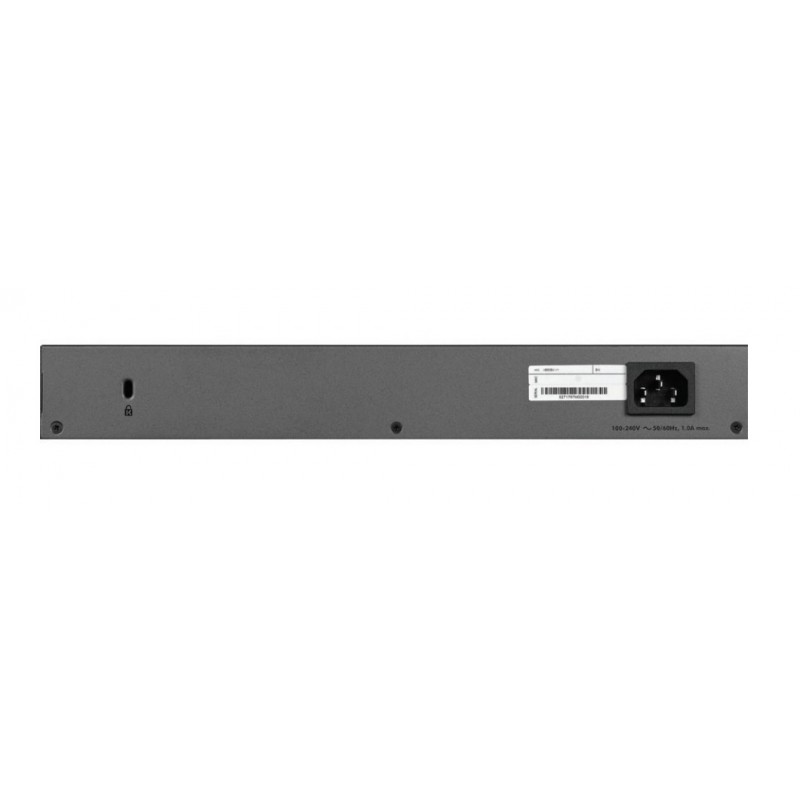

NETGEAR XS505M Unmanaged 10G Ethernet (100/1000/10000) Grey, Silver

NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az,.... Power connector: DC-in jack. Rack mounting

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	1
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Full duplex	Yes
Flow control support	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	100 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	128 MB
Design
Rack mounting	Yes
Product colour	Grey, Silver
LED indicators	Yes
Safety	CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Certification	47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2015, VCCI V-3/2015.04, V-4/2012.4, CNS 13438
Performance
Mean time between failures (MTBF)	1093237 h
Power
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.5 A
Power consumption (typical)	12.25 W
Power consumption (max)	22.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	85.3 BTU/h
Weight & dimensions
Width	328 mm
Depth	169 mm
Height	43.2 mm
Weight	1.38 kg
Logistics data
Harmonized System (HS) code	85176990
