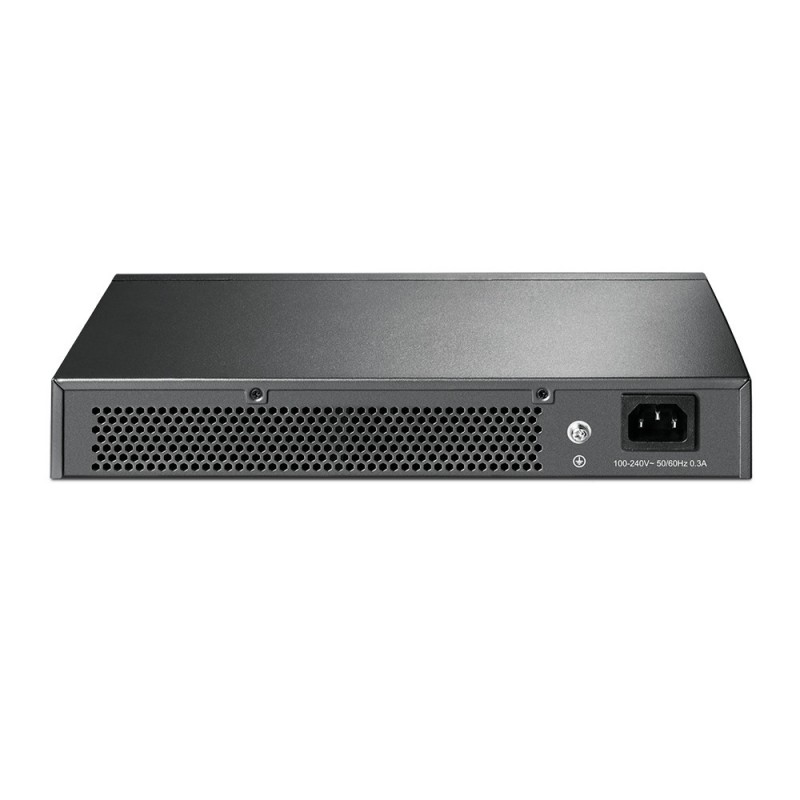

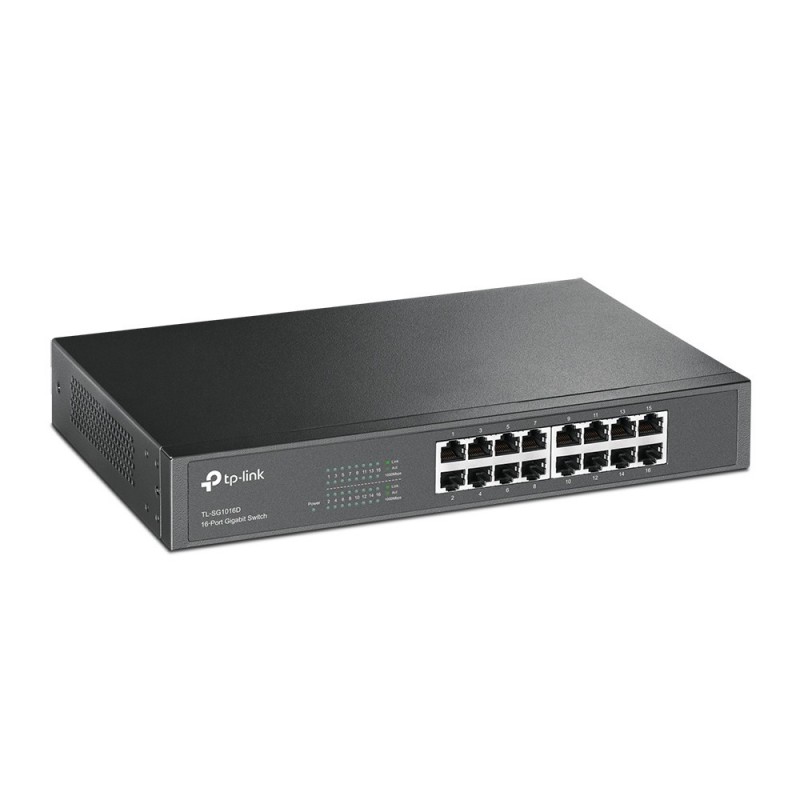

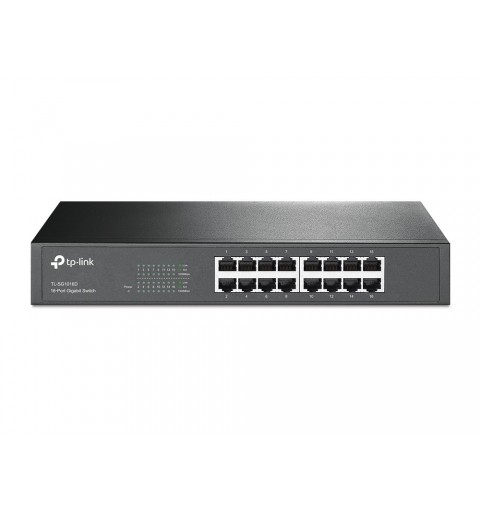

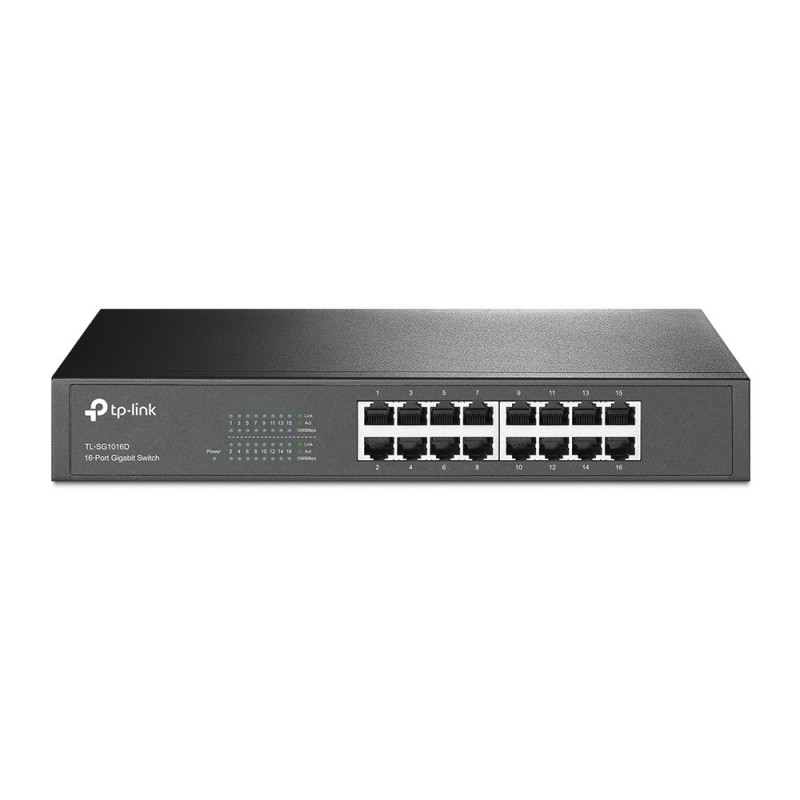

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch

What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link 16-Port Gigabit Desktop/Rackmount Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	16
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Full duplex	Yes
Auto-negotiation	Yes
Data transmission
MAC address table	8000 entries
Supported data transfer rates	10/100 Mbps
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10000
Protocols
Supported network protocols	CSMA/CD, TCP/IP
Design
Rack mounting	Yes
Stackable	Yes
Product colour	Black
LED indicators	Yes
Certification	FCC, CE, RoHs
Power
Power source	AC
Power supply included	Yes
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (max)	9.26 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	32 - 104 °F
Heat dissipation	31.6 BTU/h
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Logistics data
Harmonized System (HS) code	85176990
Other features
Dimensions (WxDxH)	294 x 180 x 44 mm
Connectivity technology	Wired
Bandwidth	32 Gbit/s
Networking features	Gigabit Ethernet
Connectivity LEDs	Y
