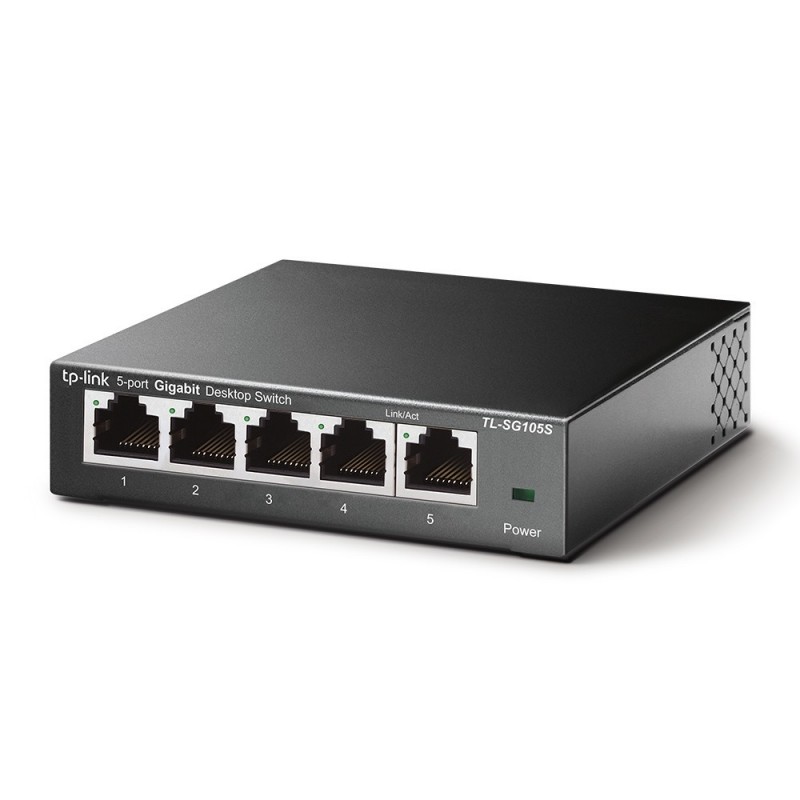

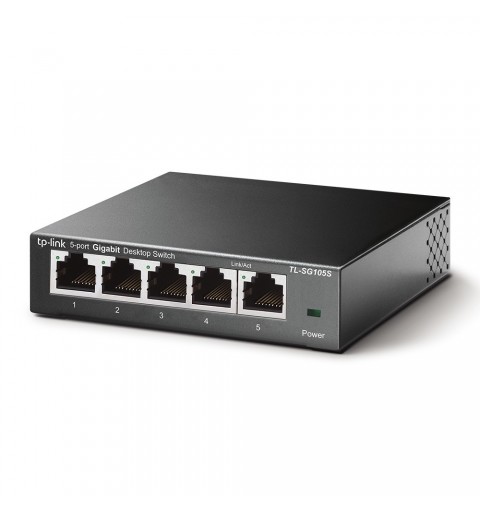

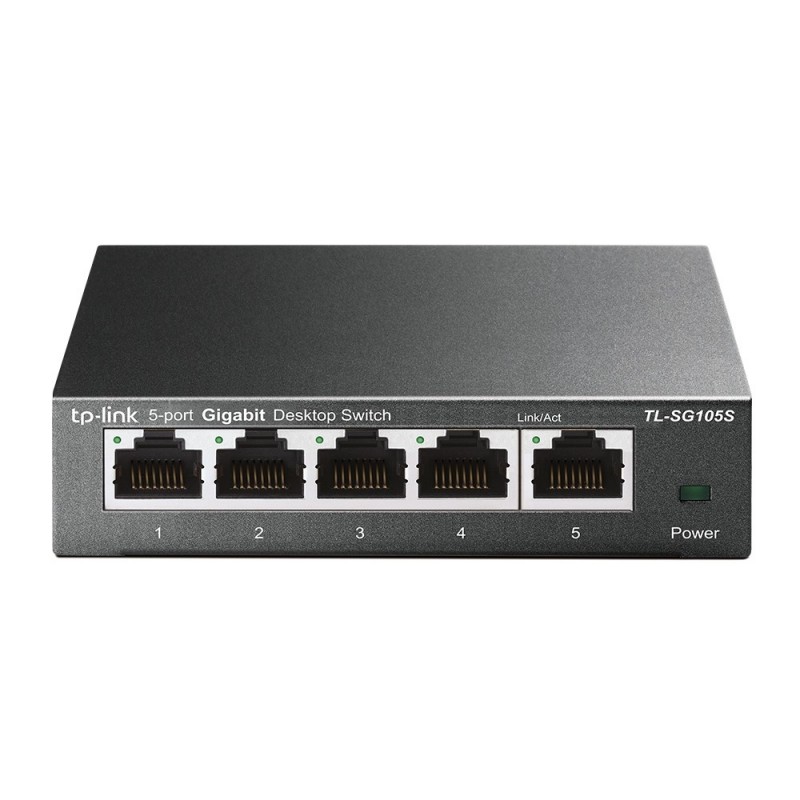

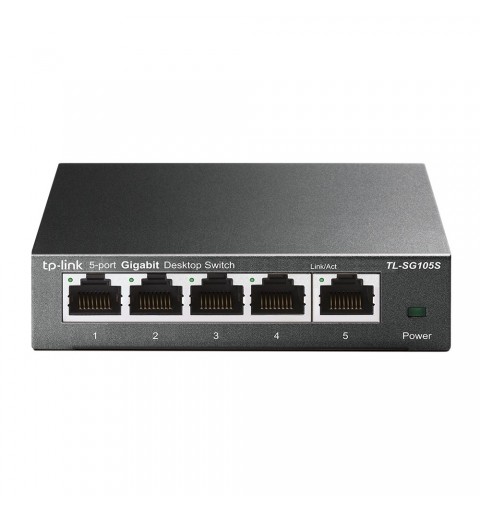

TP-LINK 5-Port 10/100/1000Mbps Desktop Switch

What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

TP-LINK 5-Port 10/100/1000Mbps Desktop Switch. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x. DC input voltage: 5 V. Wall mountable

Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Cable types supported	Cat3,Cat4,Cat5,Cat5e
Full duplex	Y
MAC address auto-aging supported	Y
Data transmission
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.4 Mpps
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	16000
Packet buffer memory	1 MB
Security
IGMP snooping	Y
Multicast features
Multicast support	Y
Design
Rack mounting	N
Product colour	Black
Housing material	Steel
LED indicators	Y
Wall mountable	Y
Certification	CE, FCC, RoHS
Performance
Plug and Play	Y
Power
Power supply included	Y
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	5 V
Input current	0.6 A
Output voltage	9 V
Output current	0.6 A
Power consumption (max)	2.3 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	N
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	7.83 BTU/h
Weight & dimensions
Width	99.8 mm
Depth	97.8 mm
Height	25 mm
Packaging data
Cables included	AC
Rubber feet	Y
Package width	128 mm
Package depth	125 mm
Package height	92 mm
