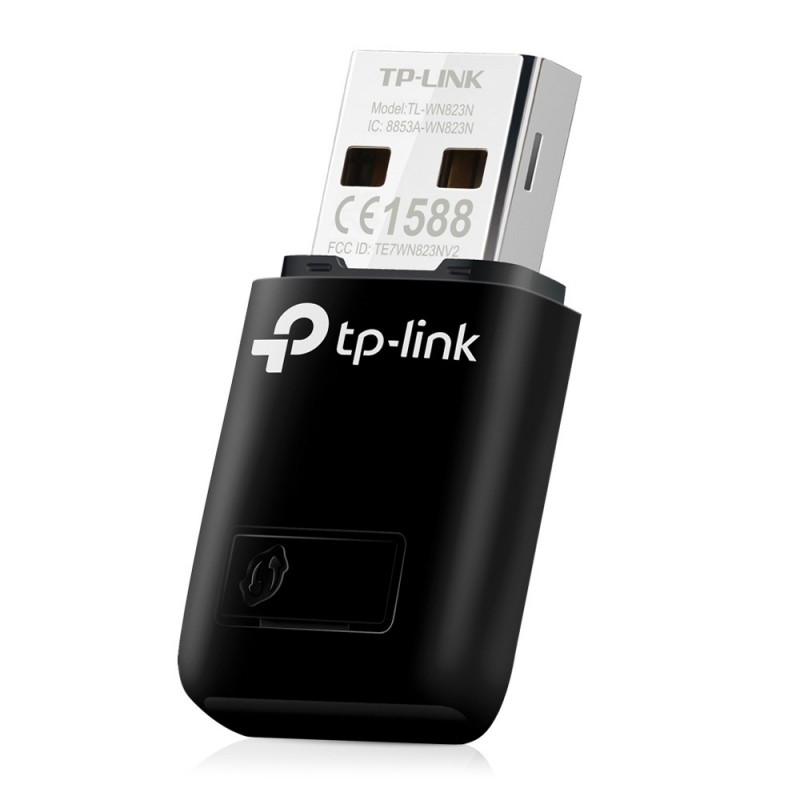

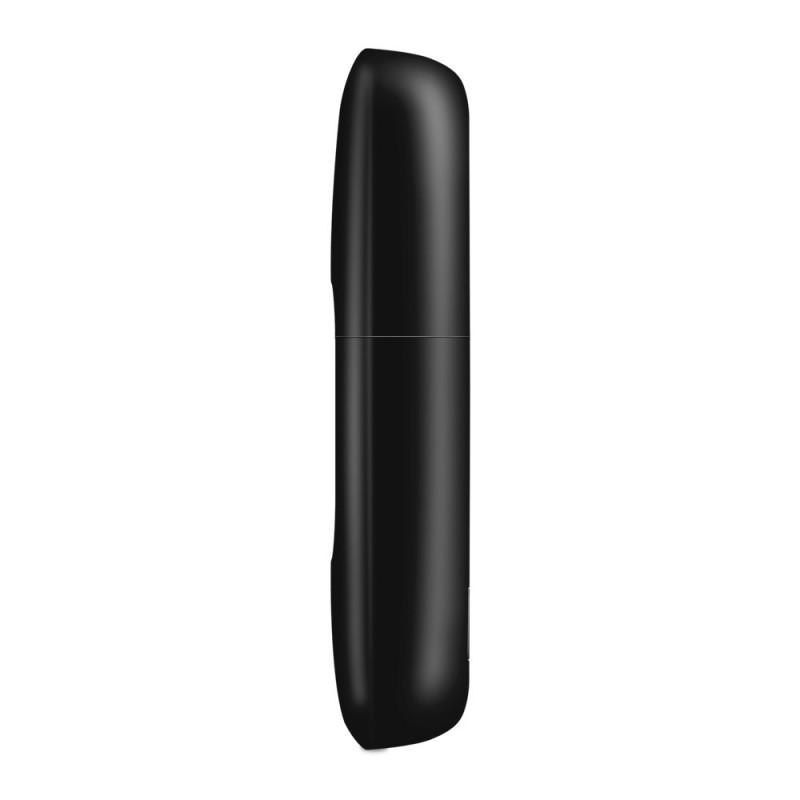

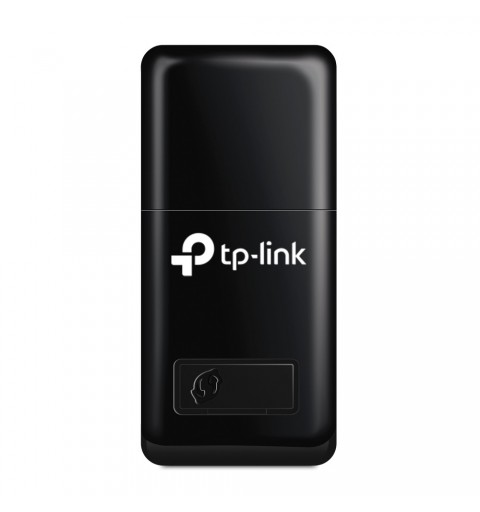

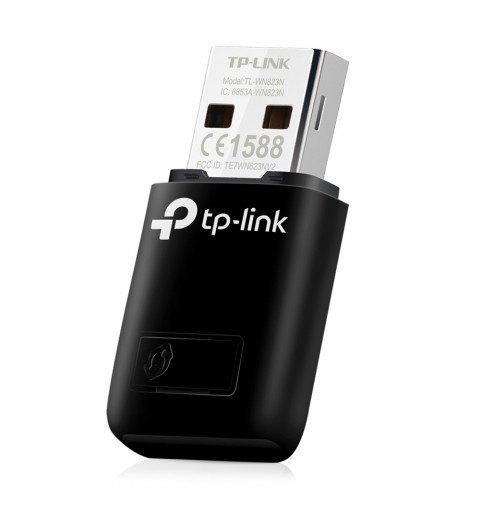

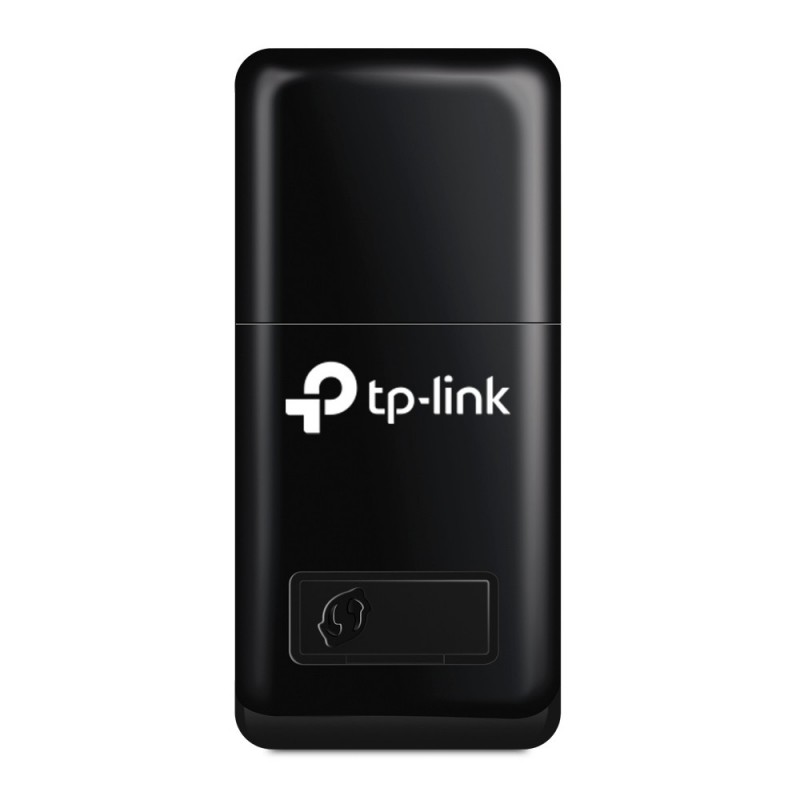

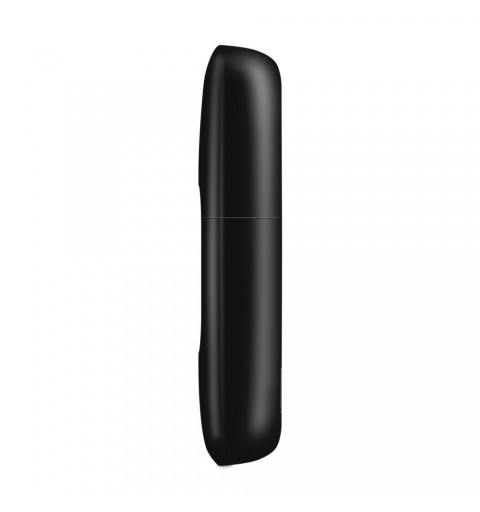

TP-LINK 300Mbps Mini Wireless N USB WiFi Adapter

Minimum Adapter Style,
Maximum Connection
Experience
300Mbps Mini Wireless N USB Adapter

Stable Connection Satisfies Your Daily Surfing Demands
TL-WN823N is designed to connect your laptop or desktop to a wireless network. It allows you enjoy high speed wireless performance at 300Mbps, making it a great choice for video streaming, voice streaming and online gaming.

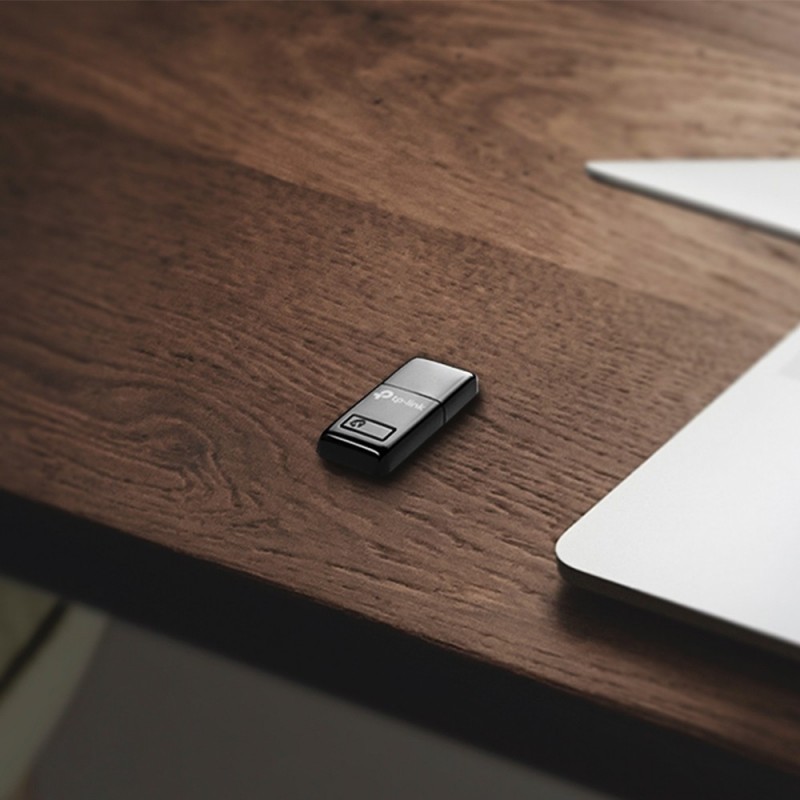

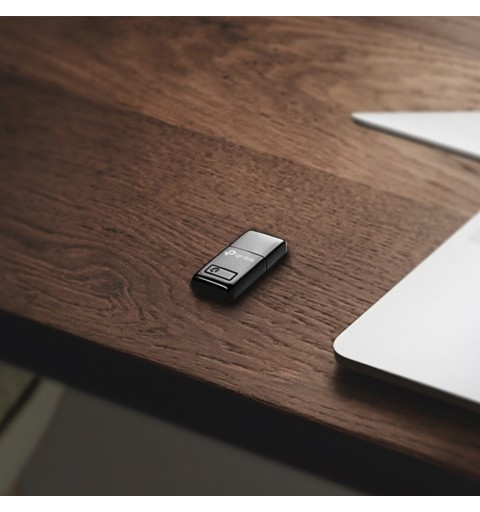

Tiny Design Brings Infinite Convenience

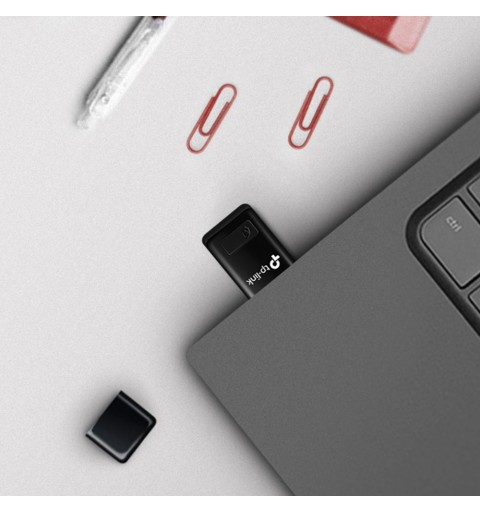

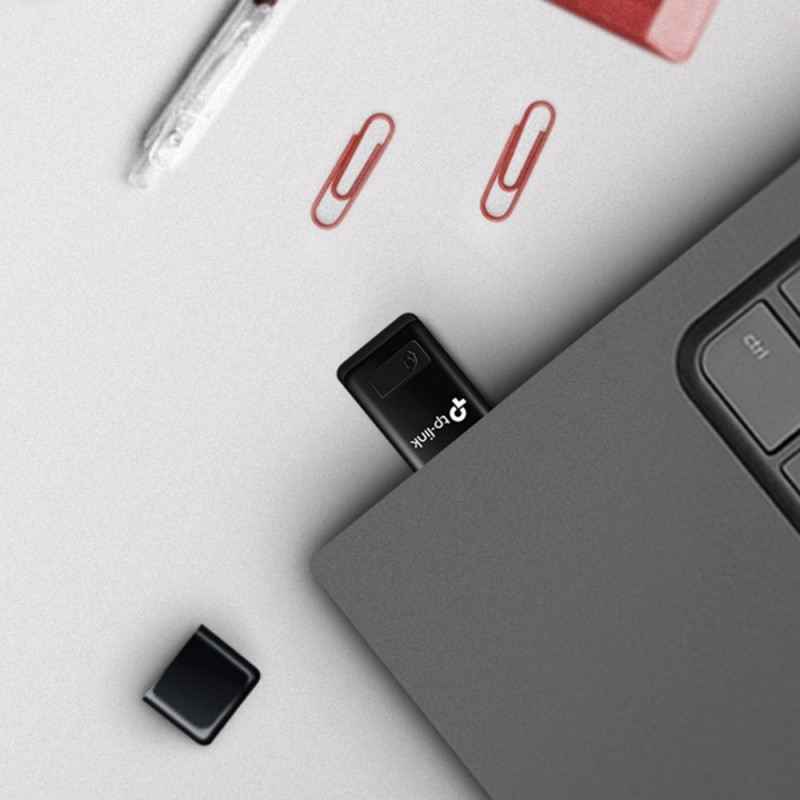

TL-WN823N has a smart design that is tinier than a usual USB flash disk. Not only could it be inserted into any USB port , but is quite easy to carry, which is convenient for most usage scenarios.

Easy Setup
A friendly user interface on a CD for simple installation

WPS Button
Easy wireless security encryption at a push of the WPS button

Operating System
Supports Windows, Mac OS, Linux

TP-LINK 300Mbps Mini Wireless N USB WiFi Adapter. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). USB powered. Product colour: Black

Ports & interfaces
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Network
Maximum data transfer rate	300 Mbit/s
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Wi-Fi	Y
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	11,54,300 Mbit/s
Modulation	16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM
Security algorithms	128-bit WEP,64-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Wake-on-LAN ready	Y
Design
Internal	N
Component for	PC/notebook
Product colour	Black
LED indicators	Status
Receiver sensitivity	300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER
Certification	CE, FCC, IC, RoHS
Power
USB powered	Y
System requirements
Compatible operating systems	Windows XP (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit)
Windows operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	39 mm
Depth	18.3 mm
Height	7.9 mm
Packaging data
Package width	138 mm
Package depth	128 mm
Package height	30 mm
Package weight	80 g
Packaging content
Manual	Y
Other features
Quick start guide	Y
Supported data transfer rates	11, 54, 300 Mbps
