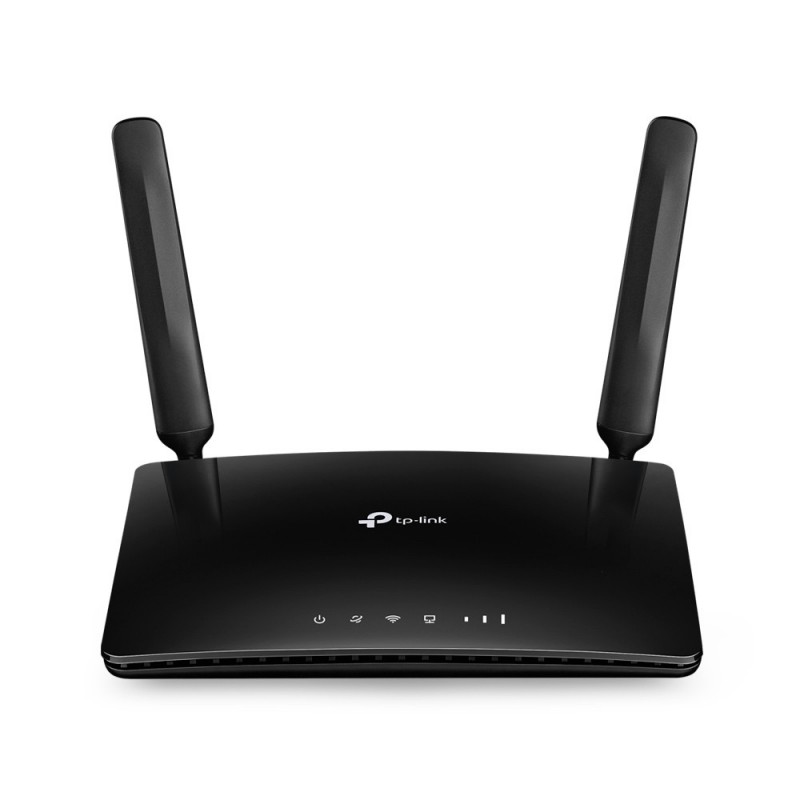

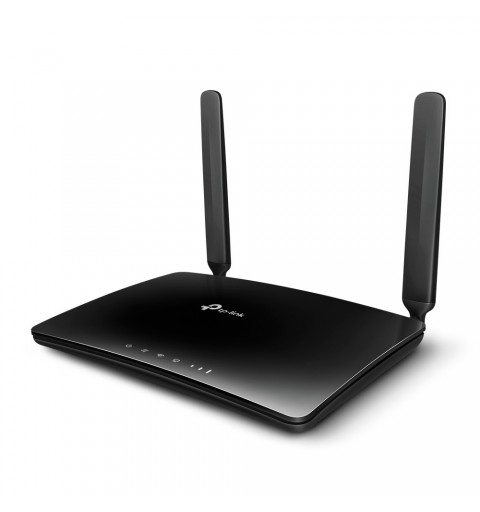

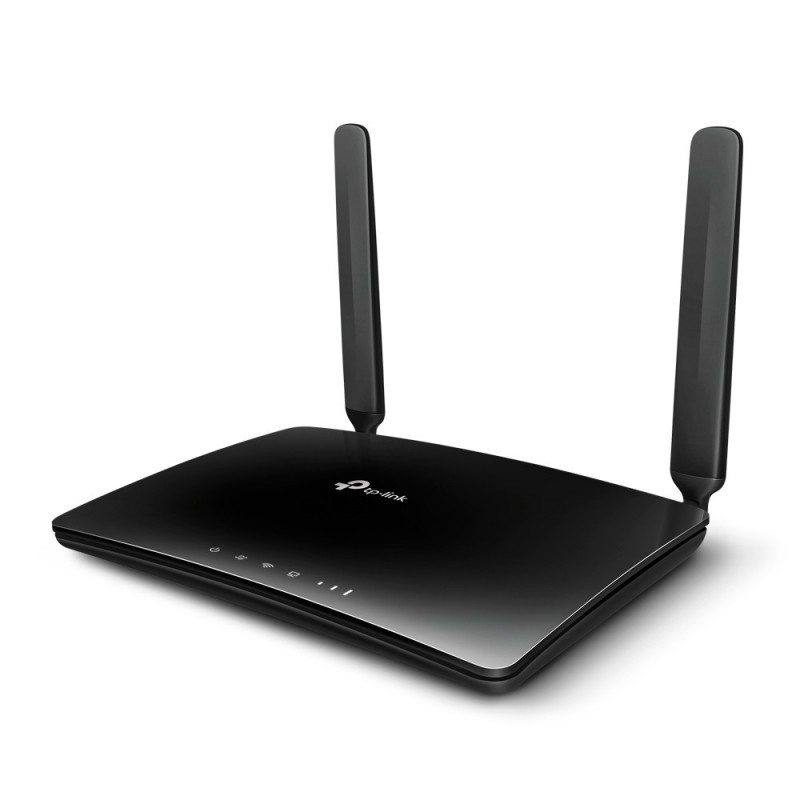

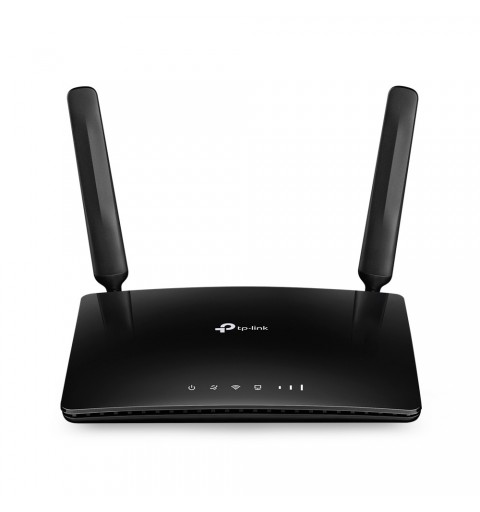

TP-LINK TL-MR150 wireless router Fast Ethernet Single-band (2.4 GHz) 3G 4G Black

Superfast 4G LTE Speed for Reliable Wi-Fi

The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.

Design for Maximum Network Coverage

Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.

Plug and Play with a Micro SIM Card

Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!

Available WAN Connection Backup

With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.

TP-LINK TL-MR150. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+,HSPA,HSPA+,UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK

WAN connection
Ethernet WAN	Y
DSL WAN	Y
SIM card slot	Y
3G/4G USB modem compatibility	Y
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
Network
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Dynamic DNS (DDNS)	Y
VPN Passthrough	Y
VPN support	PPTP, L2TP, IPSec
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
Receiver sensitivity	11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm
Mobile network
Mobile network generation	4G
4G	Y
3G standards	DC-HSPA+,HSPA,HSPA+,UMTS
4G standard	LTE-TDD & LTE-FDD
4G bands supported	800,900,1800,1900,2100,2300,2500,2600 MHz

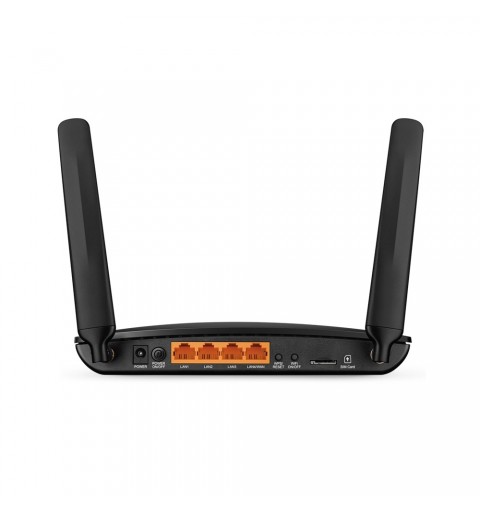

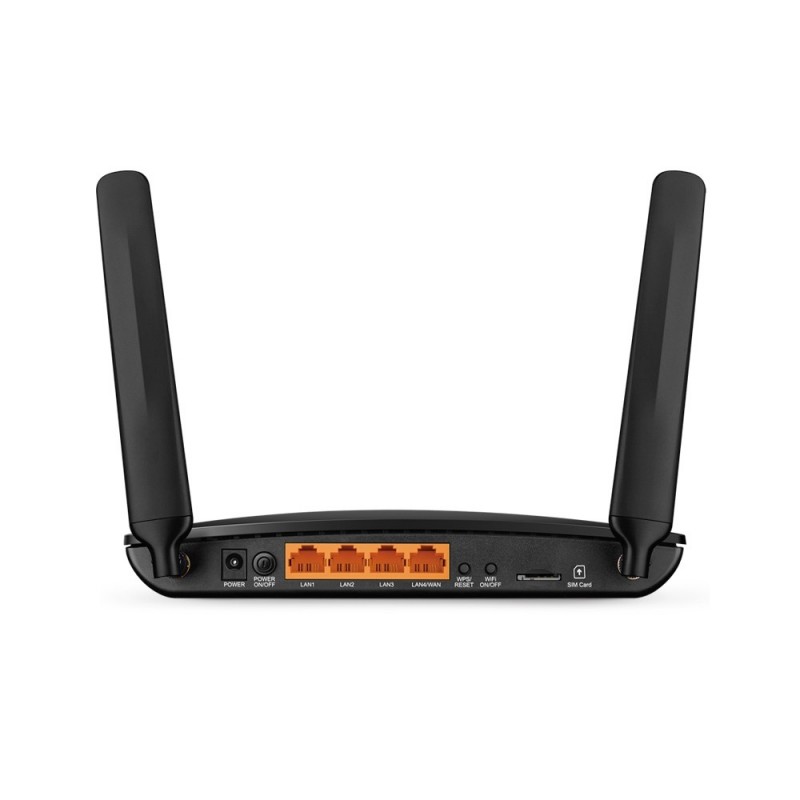

Ports & interfaces
Ethernet LAN (RJ-45) ports	4
USB port	N
Memory card slot(s)	N
DC-in jack	Y
Management features
Quality of Service (QoS) support	Y
Reset button	Y
WPS push button	Y
Security
Security algorithms	64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Firewall	Y
Access Control List (ACL)	Y
Stateful Packet Inspection (SPI)	Y
DoS attack prevention	Y
MAC address filtering	Y
IP address filtering	Y
DMZ support	Y
Protocols
DHCP client	Y
DHCP server	Y
Universal Plug and Play (UPnP)	Y
Supported network protocols	IPv4, IPv6
Design
Product type	Tabletop router
Product colour	Black
On/off switch	Y
Antenna
Antenna type	External
Antenna connector type	N-type
Antennas quantity	2
Features
Certification	CE, RoHS
Power
Power source type	DC
Output voltage	9 V
Output current	0.85 A
Operational conditions
Storage relative humidity (H-H)	5 - 90%
System requirements
Browser supported	Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Windows operating systems supported	Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP
Linux operating systems supported	Y
Mac operating systems supported	Y
Weight & dimensions
Height	33.6 mm
Packaging data
Cables included	LAN (RJ-45)
AC adapter included	Y
Quick installation guide	Y
Package type	Box
