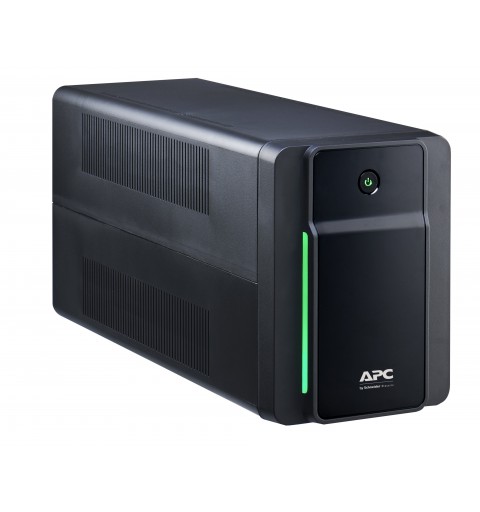

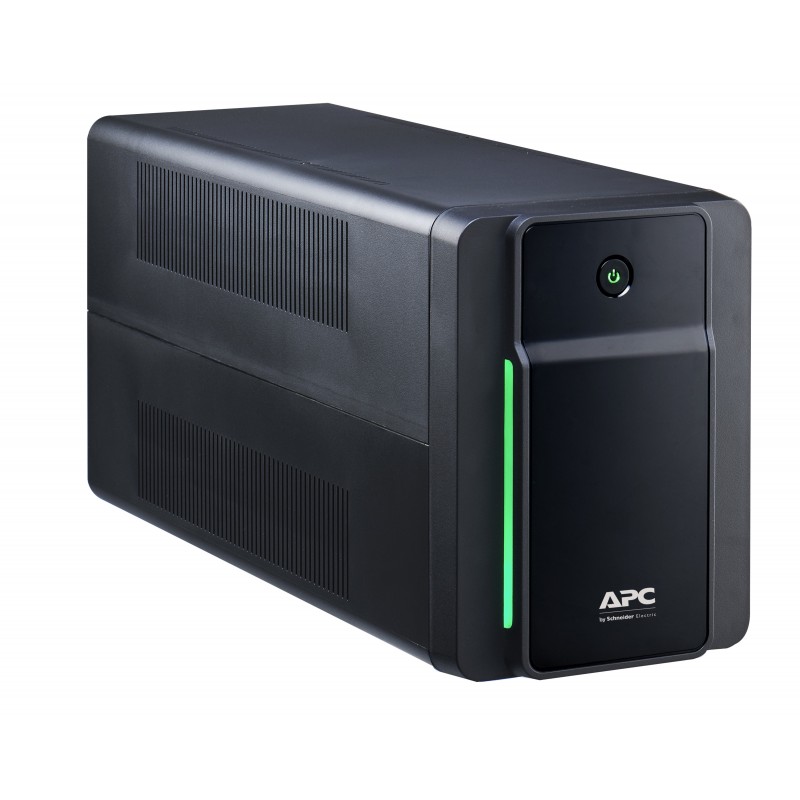

APC BX2200MI-GR, Line-Interactive, 2.2 kVA, 1200 W, Sine, 140 V, 300 V
APC BX2200MI-GR uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1200 W 4 AC outlet(s)
€322.17 Tax included
Codice Articolo: 598203
Garanzia Italia 2 Anni
APC BX2200MI-GR, Line-Interactive, 2.2 kVA, 1200 W, Sine, 140 V, 300 V
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

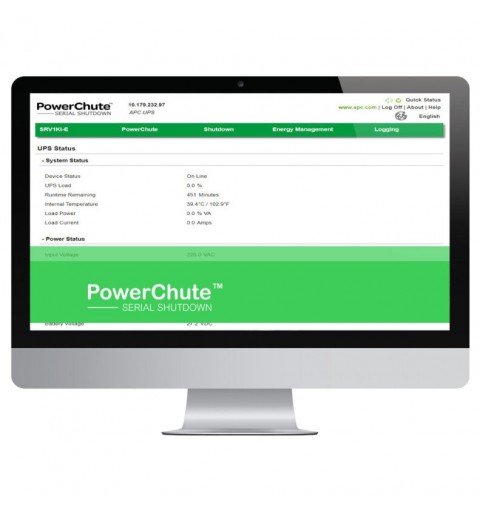

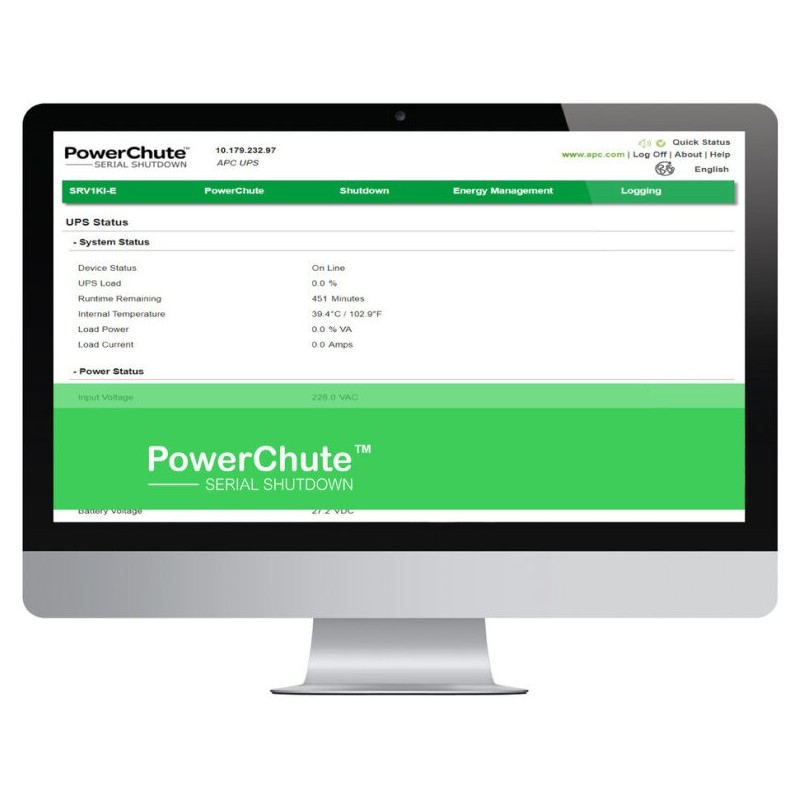

PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors.
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
APC BX2200MI-GR. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1200 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 8.5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Width: 140 mm, Depth: 390 mm, Height: 190 mm
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.
PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors.
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
APC BX2200MI-GR. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1200 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 8.5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Width: 140 mm, Depth: 390 mm, Height: 190 mm
| Caratteristiche | |
| Topologia UPS | A linea interattiva |
| Potenza in uscita | 2,2 kVA |
| Potenza in uscita | 1200 W |
| Forma d'onda | Sinusoidale |
| Tensione operativa in entrata (min) | 140 V |
| Tensione operativa in entrata (max) | 300 V |
| Frequenza di ingresso | 50/60 Hz |
| Tensione operativa di uscita (min) | 230 V |
| Tensione di uscita (max) | 230 V |
| frequenza output | 50/60 Hz |
| Regolazione della frequenza di uscita | 0.5 Hz |
| Regolazione della tensione di uscita | 10% |
| Regolatore automatico di tensione (AVR) | Sì |
| Valutazione sovraccarico energetico | 273 J |
| Tempo di risposta | 6 ms |
| Fattore di potenza di ingresso | 0,54 |
| Emissione acustica | 40 dB |
| Protezione contro le sovratensioni | Sì |
| Allarmi sonori | Sì |
| Modalità allarme acustici | Allarme per batteria scarsa |
| Connettività | |
| Tipo di uscita AC | Tipo F |
| Presa di corrente | Tipo F |
| Quantità prese AC | 4 presa(e) AC |
| Porta USB | Sì |
| Tipo di porta USB | USB di tipo B |
| Batteria | |
| Tecnologia batteria | Acido piombo (VRLA) |

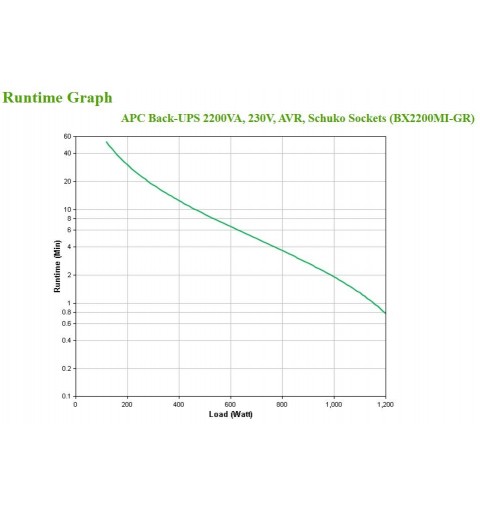

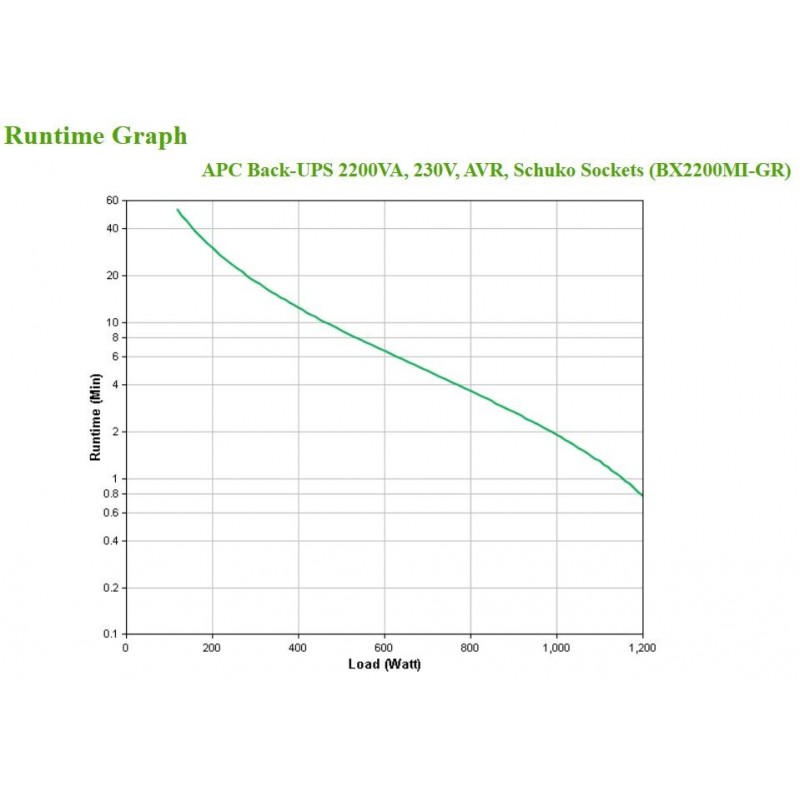

| Tempo di salvataggio minimo a pieno carico | 1 min |
| Tempo di salvataggio minimo a mezzo carico | 8,5 min |
| Durata della batteria (max) | 2 anno/i |
| Tempo di ricarica | 8 h |
| Design | |
| Fattore di forma | Compatta |
| Colore del prodotto | Nero |
| Lunghezza cavo | 1,2 m |
| Indicatori LED | Sì |
| Codice di protezione internazionale (IP) | IP20 |
| Certificazione | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | 0 - 40 °C |
| Intervallo di temperatura | -15 - 40 °C |
| Range di umidità di funzionamento | 0 - 95% |
| Altitudine di funzionamento | 0 - 3000 m |
| Dimensioni e peso | |
| Larghezza | 140 mm |
| Profondità | 390 mm |
| Altezza | 190 mm |
| Peso | 12,3 kg |
| Larghezza imballo | 235 mm |
| Profondità imballo | 495 mm |
| Altezza imballo | 297 mm |
| Peso dell'imballo | 13,3 kg |
| Dati su imballaggio | |
| Cavi inclusi | Cavo di alimentazione di ingresso |
| Manuale dell'utente | Sì |
| Dati logistici | |
| Codice del Sistema Armonizzato (SA) | 85078000 |
598203
In Stock
Data sheet
- Width
- 140 mm
- Depth
- 390 mm
- Height
- 190 mm
- Weight
- 12.3 kg
- Package width
- 235 mm
- Package depth
- 495 mm
- Package height
- 297 mm
- Package weight
- 13.3 kg
- Product colour
- Black
- Charging time
- 8 h
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 40 °C
- Cables included
- Input power cable
- USB port
- Yes
- Battery technology
- Sealed Lead Acid (VRLA)
- Noise level
- 40 dB
- Cord length
- 1.2 m
- Harmonized System (HS) code
- 85078000
- LED indicators
- Yes
- Operating relative humidity (H-H)
- 0 - 95%
- Form factor
- Compact
- International Protection (IP) code
- IP20
- Operating altitude
- 0 - 3000 m
- Power plug
- Type F
- Manual
- Yes
- Certification
- CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
- Response time
- 6 ms
- USB 2.0 ports quantity
- 1
- Audible alarm(s)
- Yes
- Output power
- 2.2 kVA
- USB port type
- USB Type-B
- Input frequency
- 50/60 Hz
- Maximum output voltage
- 230 V
- Waveform
- Sine
- Input operation voltage (max)
- 300 V
- Automatic Voltage Regulation (AVR)
- Yes
- Surge protection
- Yes
- AC outlet types
- Type F
- AC outlets quantity
- 4 AC outlet(s)
- Typical backup time at full load
- 1 min
- Typical backup time at half load
- 8.5 min
- Compliance certificates
- RoHS
- UPS topology
- Line-Interactive
- Input operation voltage (min)
- 140 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 273 J
- Output operation voltage (min)
- 230 V
- Battery life (max)
- 2 year(s)
- Output voltage regulation
- 10%
- Audible alarm modes
- Low battery alarm
- Output frequency regulation
- 0.5 Hz
- Input power factor
- 0.54
