Tecnoware Era Plus 1600, Line-Interactive, 1.6 kVA, 1120 W, Sine, 172.5 V, 276 V
Tecnoware Era Plus 1600 uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 1120 W 2 AC outlet(s)
€151.78 Tax included
Codice Articolo: 596404
New product
Garanzia Italia 2 Anni
Tecnoware Era Plus 1600, Line-Interactive, 1.6 kVA, 1120 W, Sine, 172.5 V, 276 V

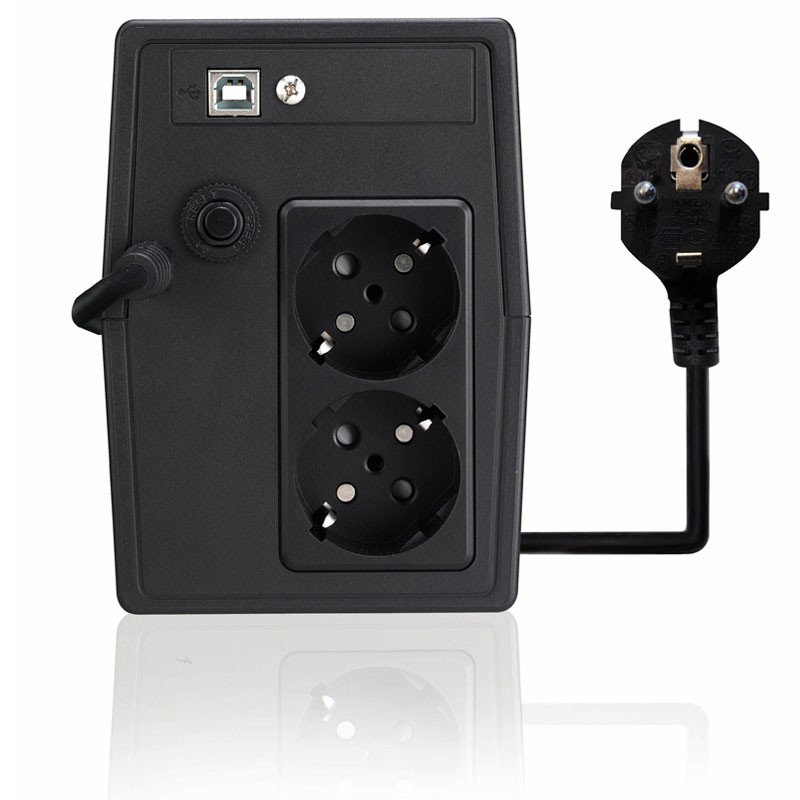

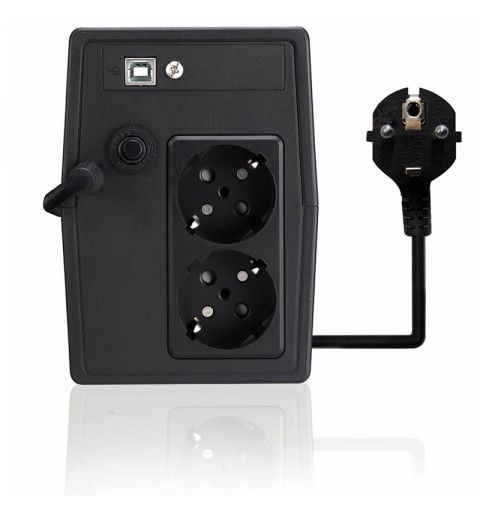

UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm
Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm
| Caratteristiche | |
| Topologia UPS | A linea interattiva |
| Potenza in uscita | 1,6 kVA |
| Potenza in uscita | 1120 W |
| Forma d'onda | Sinusoidale |
| Tensione operativa in entrata (min) | 172,5 V |
| Tensione operativa in entrata (max) | 276 V |
| Frequenza di ingresso | 50/60 Hz |
| Tensione operativa di uscita (min) | 230 V |
| Tensione di uscita (max) | 230 V |
| frequenza output | 50/60 Hz |
| Regolazione della tensione di uscita | 5% |
| Regolatore automatico di tensione (AVR) | Sì |
| Tempo di risposta | 2 ms |
| Numero di fasi di ingresso | 1 |
| Numero di fasi di uscita | 1 |
| Fattore di potenza | 0,7 |
| Emissione acustica | 40 dB |
| Connettività | |
| Quantità prese AC | 2 presa(e) AC |
| Porta USB | Sì |
| Tipo di porta USB | USB di tipo B |
| Batteria | |
| Tecnologia batteria | Acido piombo (VRLA) |
| Tempo di salvataggio minimo a pieno carico | 10 min |
| Design | |
| Fattore di forma | Compatta |
| Colore del prodotto | Nero |
| Indicatori LED | Sì |
| Codice di protezione internazionale (IP) | IP20 |
| Certificazione | CE |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | 0 - 55 °C |
| Range di umidità di funzionamento | 0 - 95% |
| Altitudine di funzionamento | 0 - 300 m |
| Dimensioni e peso | |
| Larghezza | 101 mm |
| Profondità | 279 mm |
| Altezza | 142 mm |
| Peso | 5 kg |
| Larghezza imballo | 180 mm |
| Profondità imballo | 340 mm |
| Altezza imballo | 220 mm |
596404
In Stock
Data sheet
- Width
- 101 mm
- Depth
- 279 mm
- Height
- 142 mm
- Weight
- 5 kg
- Package width
- 180 mm
- Package depth
- 340 mm
- Package height
- 220 mm
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 55 °C
- USB port
- Yes
- Battery technology
- Sealed Lead Acid (VRLA)
- Noise level
- 40 dB
- LED indicators
- Yes
- Operating relative humidity (H-H)
- 0 - 95%
- Form factor
- Compact
- International Protection (IP) code
- IP20
- Operating altitude
- 0 - 300 m
- Certification
- CE
- Response time
- 2 ms
- USB 2.0 ports quantity
- 1
- Output power
- 1.6 kVA
- USB port type
- USB Type-B
- Input frequency
- 50/60 Hz
- Maximum output voltage
- 230 V
- Waveform
- Sine
- Input operation voltage (max)
- 276 V
- Automatic Voltage Regulation (AVR)
- Yes
- AC outlets quantity
- 2 AC outlet(s)
- Typical backup time at full load
- 10 min
- UPS topology
- Line-Interactive
- Input operation voltage (min)
- 172.5 V
- Output frequency
- 50/60 Hz
- Output operation voltage (min)
- 230 V
- Number of input phases
- 1
- Number of output phases
- 1
- Power factor
- 0.7
- Output voltage regulation
- 5%
