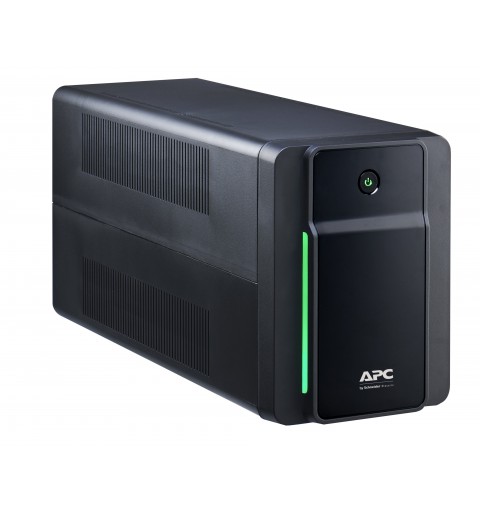

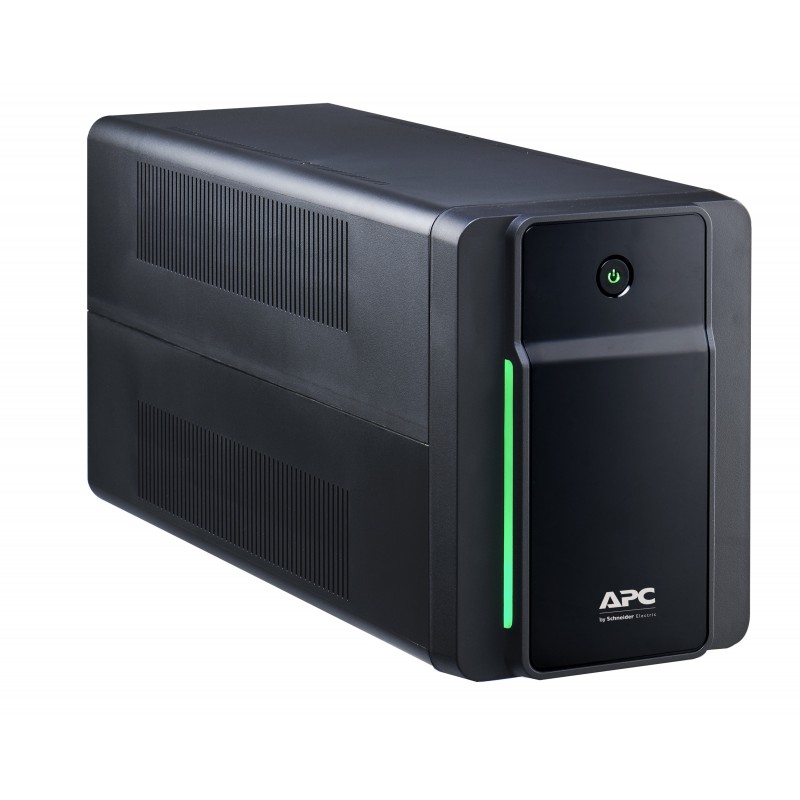

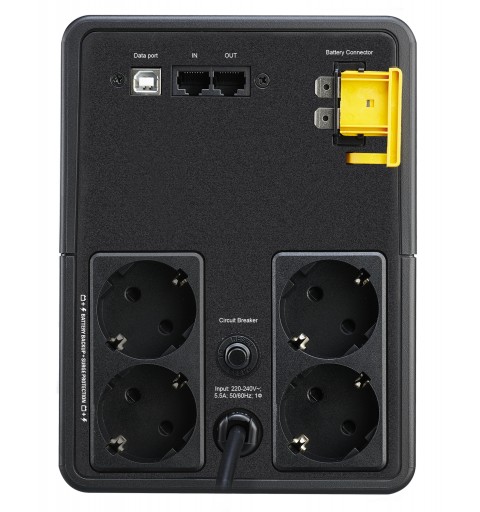

APC BX1200MI-GR uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 650 W 4 AC outlet(s)

Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

PowerChute Personal Edition OS Compatibility
This software supports numerous operating systems and processors.

USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.

Audible alarms
Provides notification of changing utility power and UPS power conditions

LED status display
Quickly understand unit and power status with visual indicators.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

APC BX1200MI-GR. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 650 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 1 min, Typical backup time at half load: 5 min. Form factor: Compact, Product colour: Black, Cable length: 1.2 m. Width: 140 mm, Depth: 390 mm, Height: 190 mm

Features
UPS topology	Line-Interactive
Output power capacity	1.2 kVA
Output power	650 W
Waveform	Sine
Input operation voltage (min)	140 V
Input operation voltage (max)	300 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Output frequency regulation	0.5 Hz
Output voltage regulation	10%
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	273 J
Response time	6 ms
Input power factor	0.54
Noise level	40 dB
Surge protection	Yes
Audible alarm(s)	Yes
Audible alarm modes	Low battery alarm

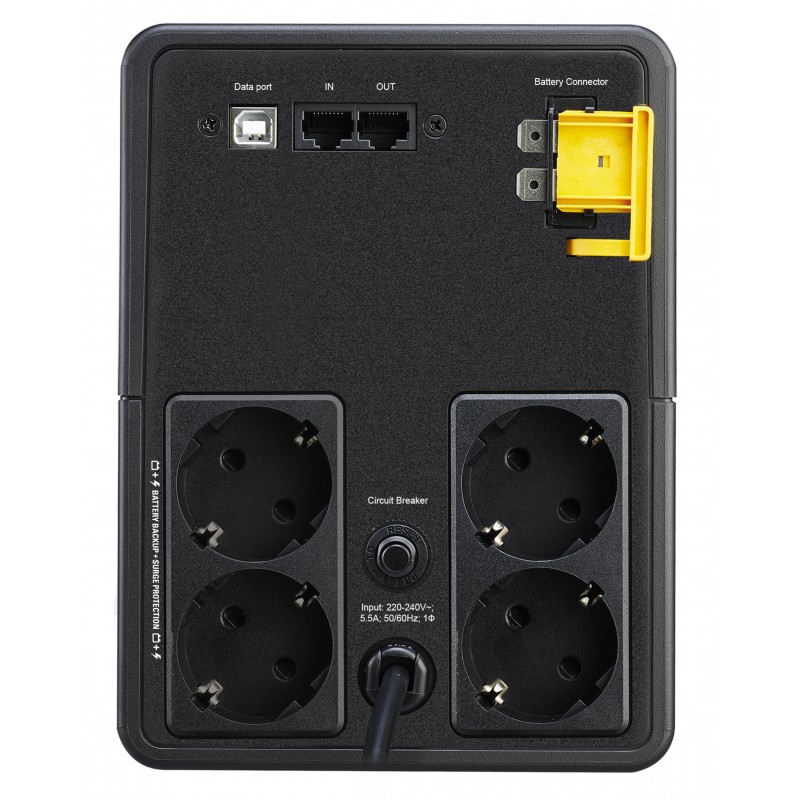

Ports & interfaces
AC outlet types	Type F
Power plug	Type F
AC outlets quantity	4 AC outlet(s)
USB port	Yes
USB port type	USB Type-B
Ethernet LAN (RJ-45) ports	2
Battery
Battery technology	Sealed Lead Acid (VRLA)

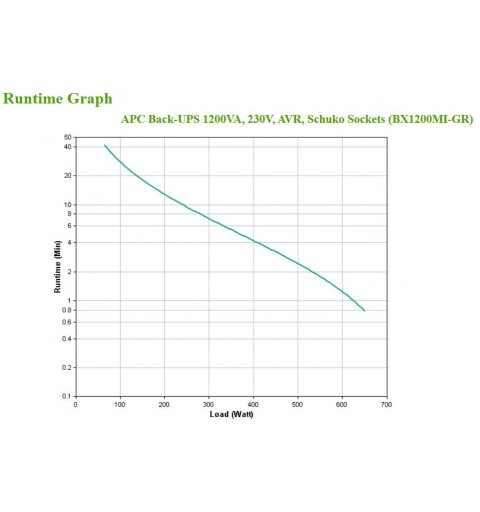

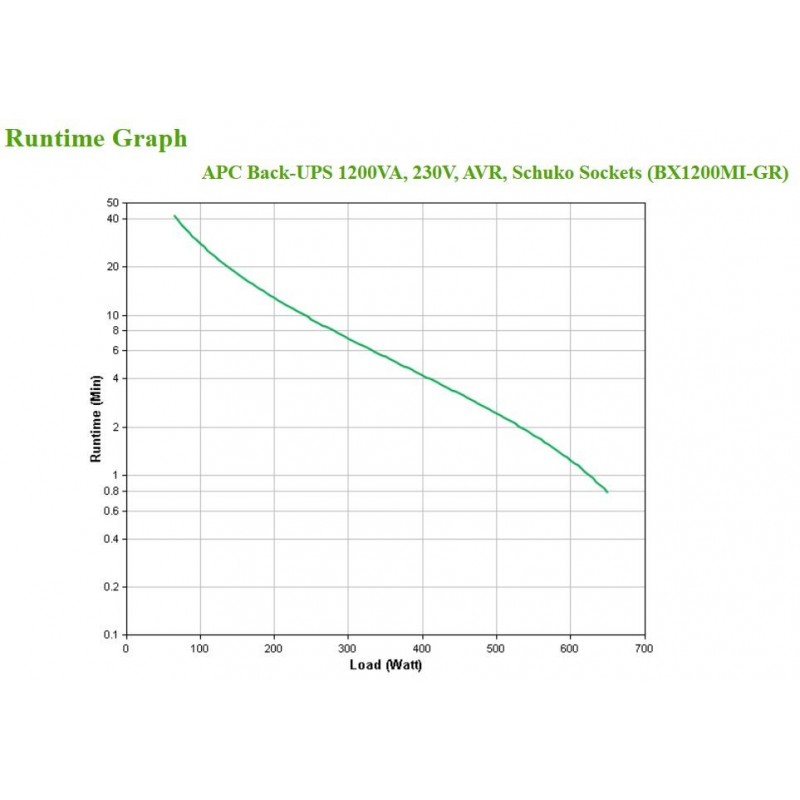

Typical backup time at full load	1 min
Typical backup time at half load	5 min
Battery life (max)	2 year(s)
Battery recharge time	8 h
Design
Form factor	Compact
Product colour	Black
Cable length	1.2 m
LED indicators	Yes
International Protection (IP) code	IP20
Certification	CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	140 mm
Depth	390 mm
Height	190 mm
Weight	7.6 kg
Package width	235 mm
Package depth	495 mm
Package height	297 mm
Package weight	8.6 kg
Packaging data
Cables included	Input power cable
Manual	Yes
Logistics data
Harmonized System (HS) code	85078000
