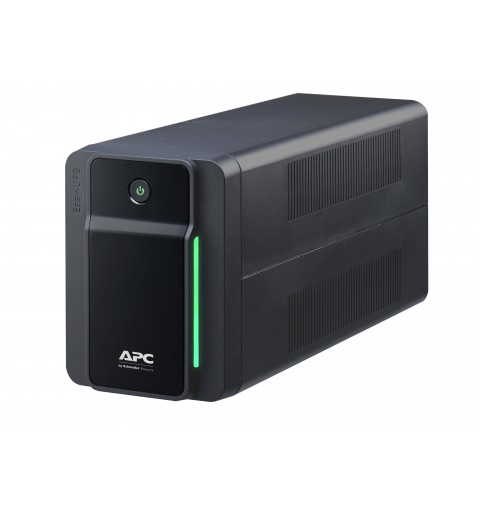

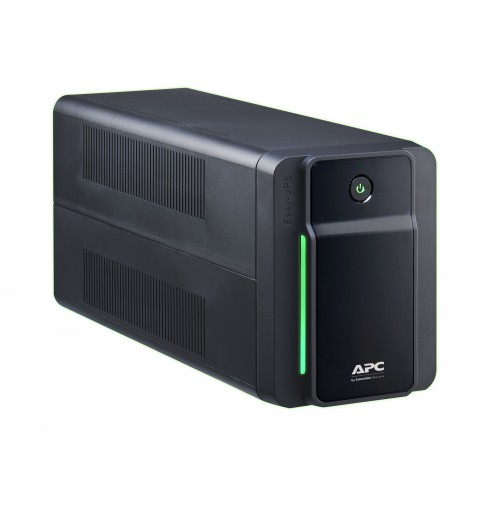

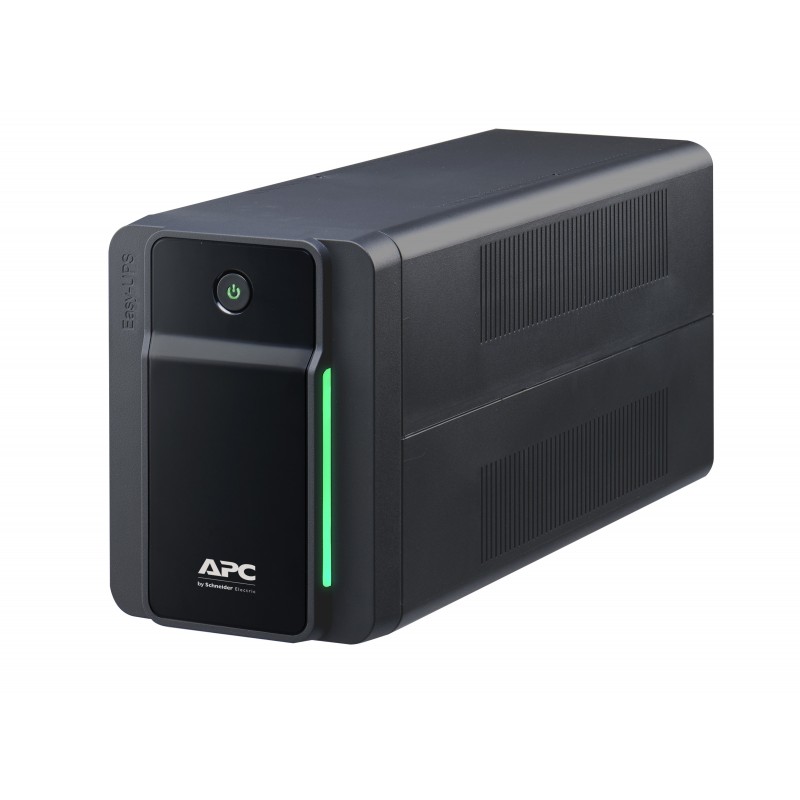

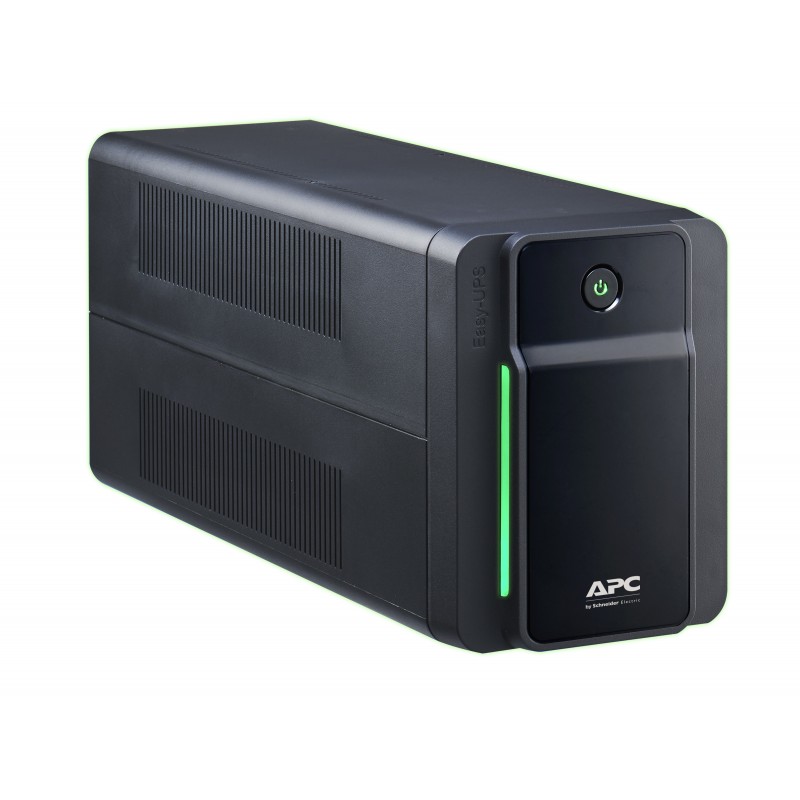

APC BVX700LI uninterruptible power supply (UPS) Line-Interactive 0.7 kVA 360 W 4 AC outlet(s)

Access monitoring
Detect access by unauthorized personnel via door switch.

Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.

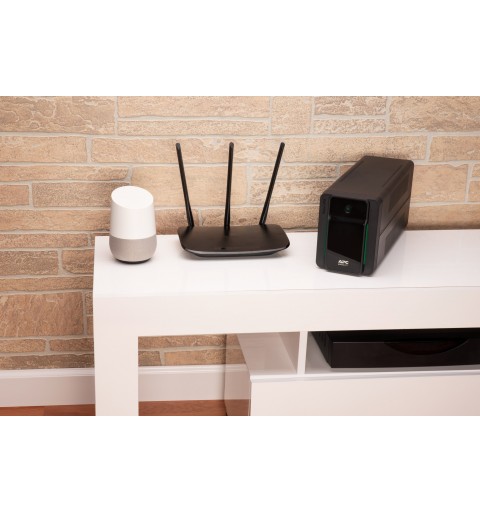

Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Cold-start capable
Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery backup and surge protection

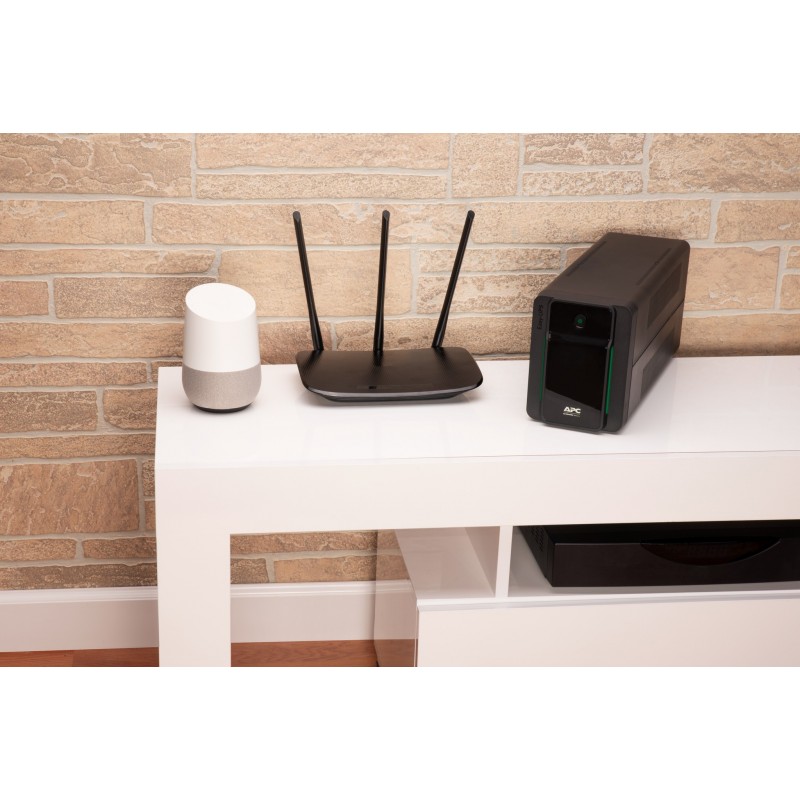

Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.

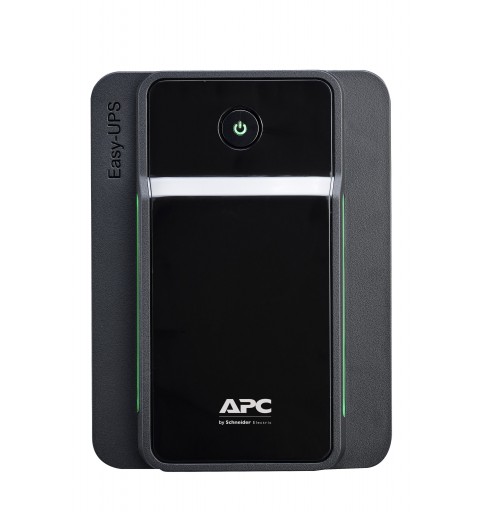

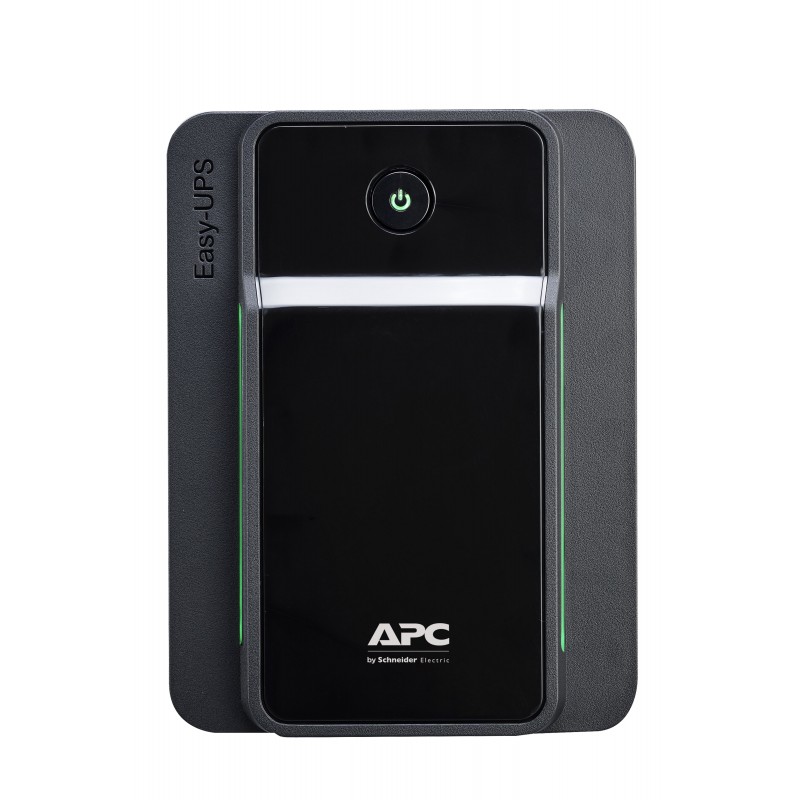

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Audible alarms
Provides notification of changing utility power and UPS power conditions

APC BVX700LI. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 360 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 31 mm, Depth: 138 mm, Height: 98 mm

Features
UPS topology	Line-Interactive
Output power capacity	0.7 kVA
Output power	360 W
Waveform	Sine
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Output frequency	50/60 Hz
Output frequency regulation	0.5 Hz
Output voltage regulation	10%
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	273 J
Response time	6 ms
Input power factor	0.51
Noise level	40 dB
Surge protection	Yes
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Battery replacement, Low battery alarm, Overload alarm
Ports & interfaces

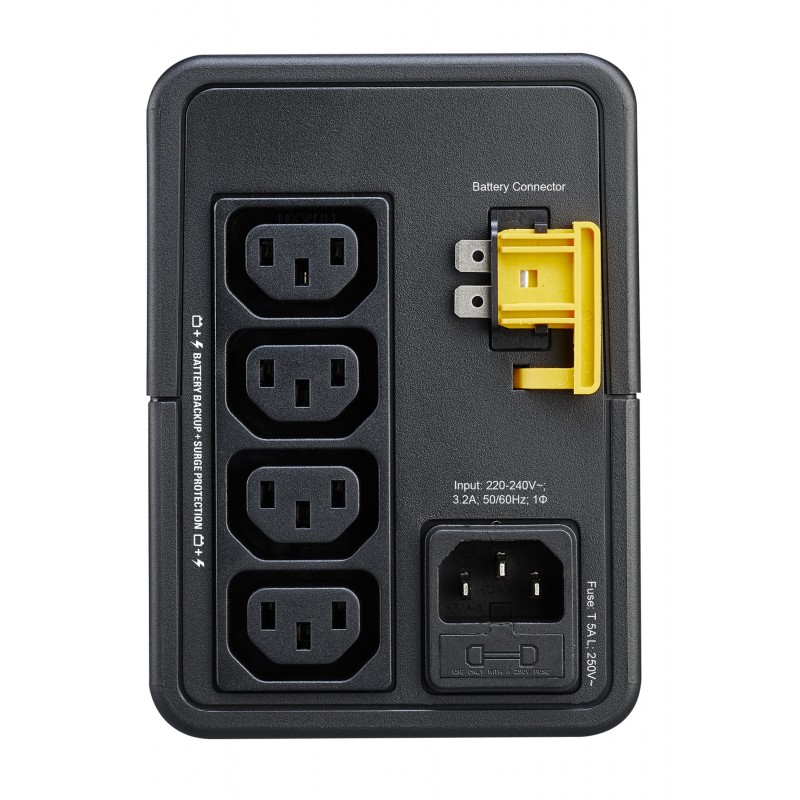

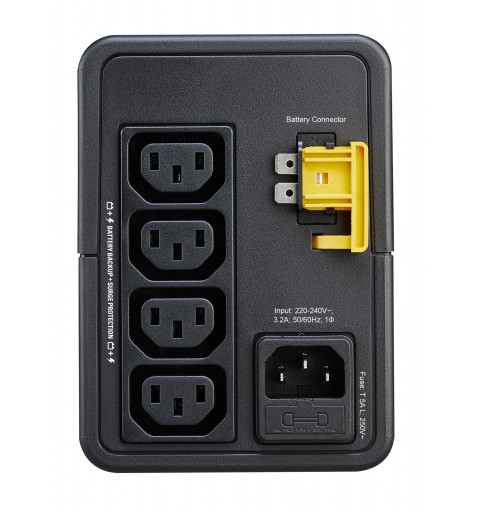

AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery voltage	12 V
Battery life (max)	2 year(s)
Battery recharge time	8 h
Cold start	Yes
Design
Form factor	Compact
Product colour	Black
LED indicators	Yes
International Protection (IP) code	IP20
Certification	CB, CE, EN/IEC 62040-1, EN/IEC 62040-2
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	31 mm
Depth	138 mm
Height	98 mm
Weight	4.5 kg
Package width	222 mm
Package depth	346 mm
Package height	142 mm
Package weight	4.5 kg
Packaging data
Cables included	Input power cable
Manual	Yes
Logistics data
Harmonized System (HS) code	85078000
