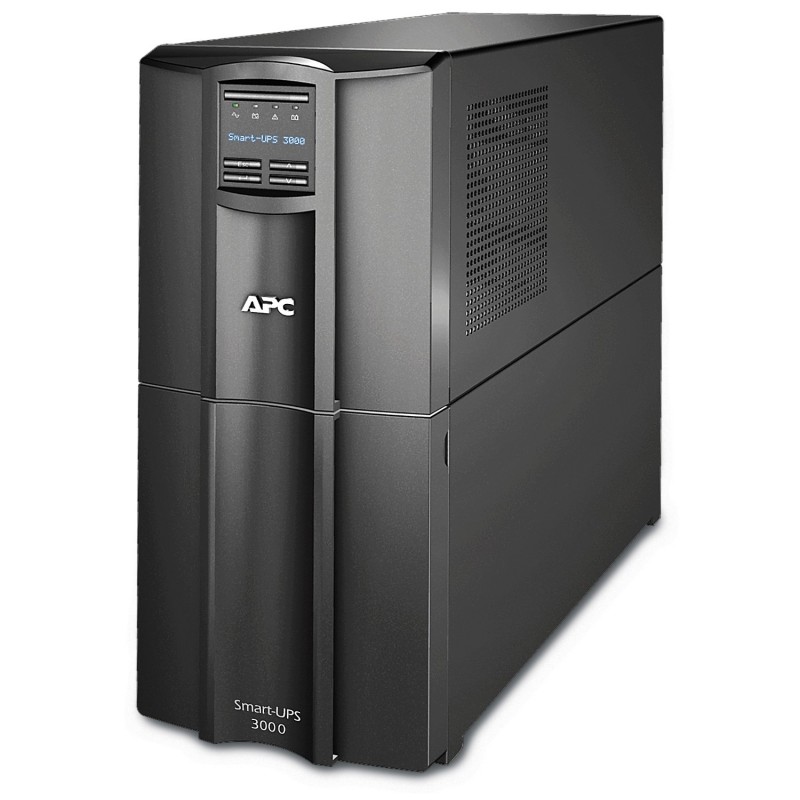

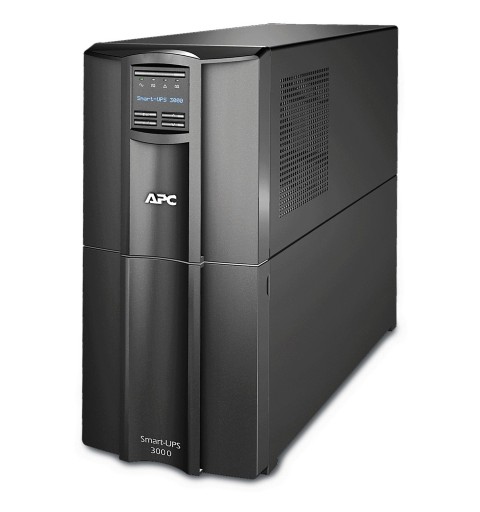

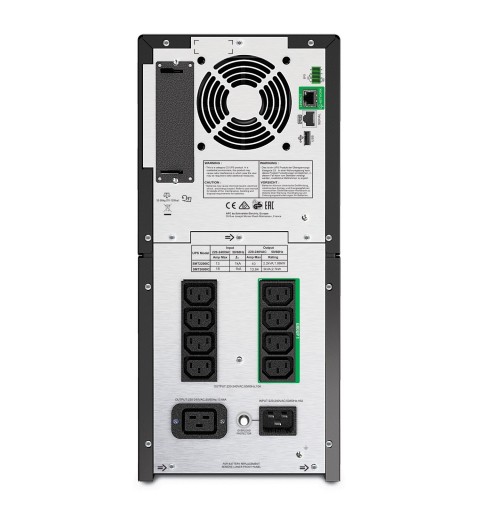

APC SMT3000IC uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 9 AC outlet(s)

Cold-start capable
Provides temporary battery power when the utility power is out.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency
Reduces utility costs, generates less heat.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot
Customize network shutdown and reboot sequence of connected servers and UPSs.

Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

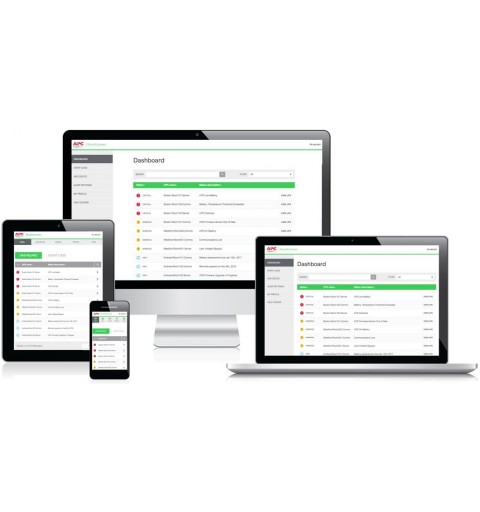

SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

SmartSlot
Customize UPS capabilities with management cards.

StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

APC SMT3000IC. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5.1 min, Typical backup time at half load: 17.2 min. Form factor: Tower, Product colour: Black, Cable length: 1.83 m. Width: 197 mm, Depth: 544 mm, Height: 435 mm

Features
UPS topology	Line-Interactive
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Y
Surge energy rating	365 J
Efficiency	98.4%
Emergency Power Off (EPO)	Y
Noise level	53 dB
Audible alarm(s)	Y
Auto-restart	Y

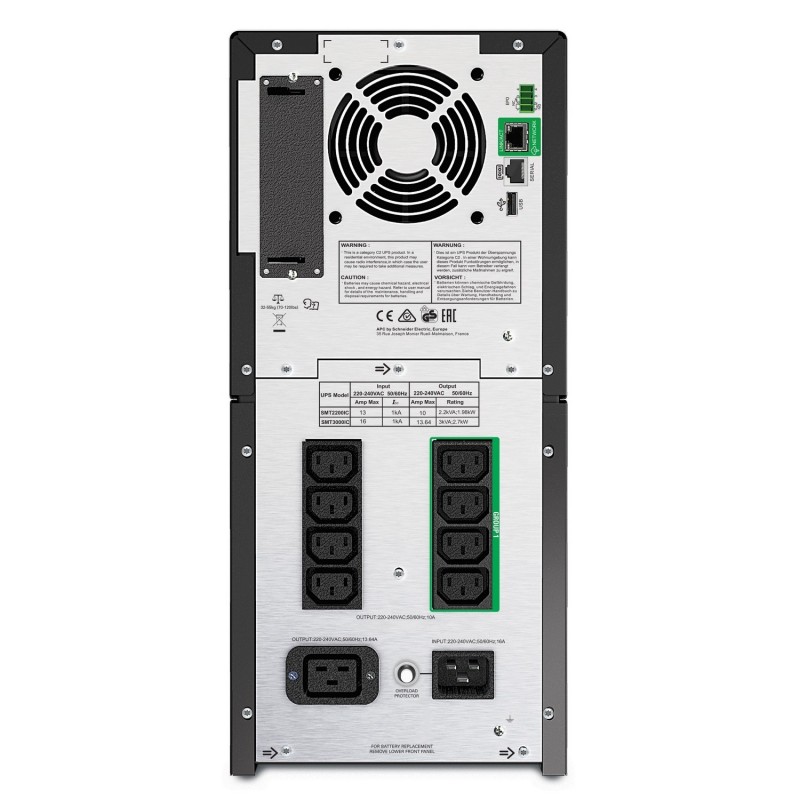

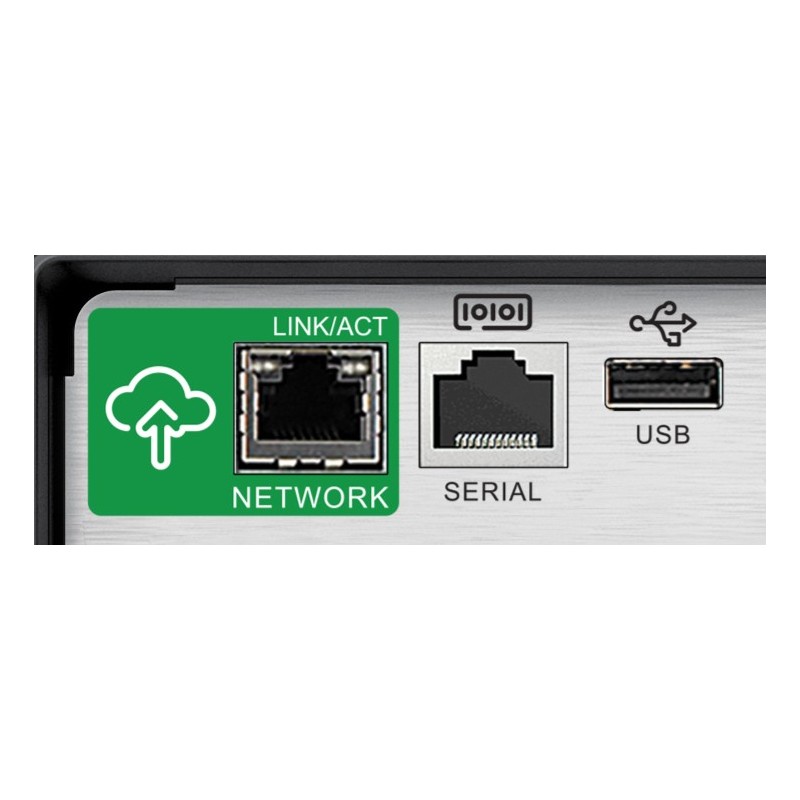

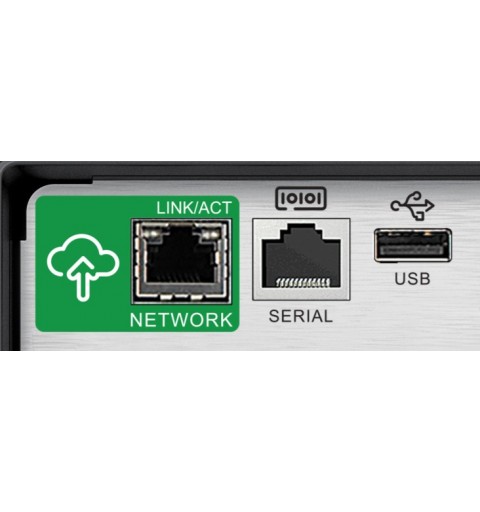

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
AC outlets quantity	9 AC outlet(s)
Number of output IEC jumpers	2
USB port	Y
SmartSlot	Y
Battery
Battery technology	Sealed Lead Acid (VRLA)

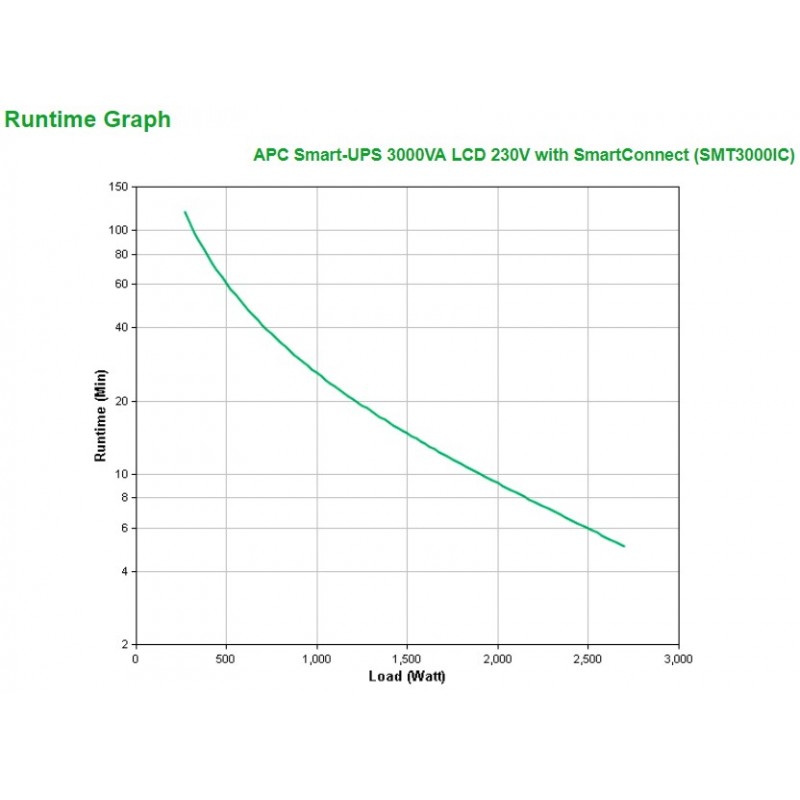

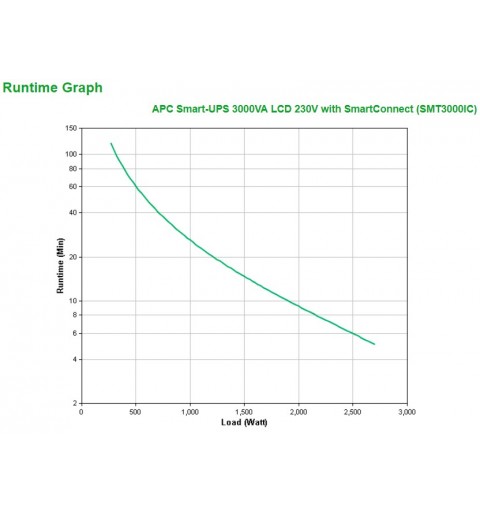

Typical backup time at full load	5.1 min
Typical backup time at half load	17.2 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Design
Form factor	Tower
Product colour	Black
Cable length	1.83 m
Display type	LCD
LED indicators	Status
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	197 mm
Depth	544 mm
Height	435 mm
Weight	52.5 kg
Package width	381 mm
Package depth	762 mm
Package height	699 mm
Package weight	63.7 kg
Packaging data
Cables included	RS-232, USB cable
Quick installation guide	Y
Logistics data
Products per pallet	9 pc(s)
Harmonized System (HS) code	85078000
