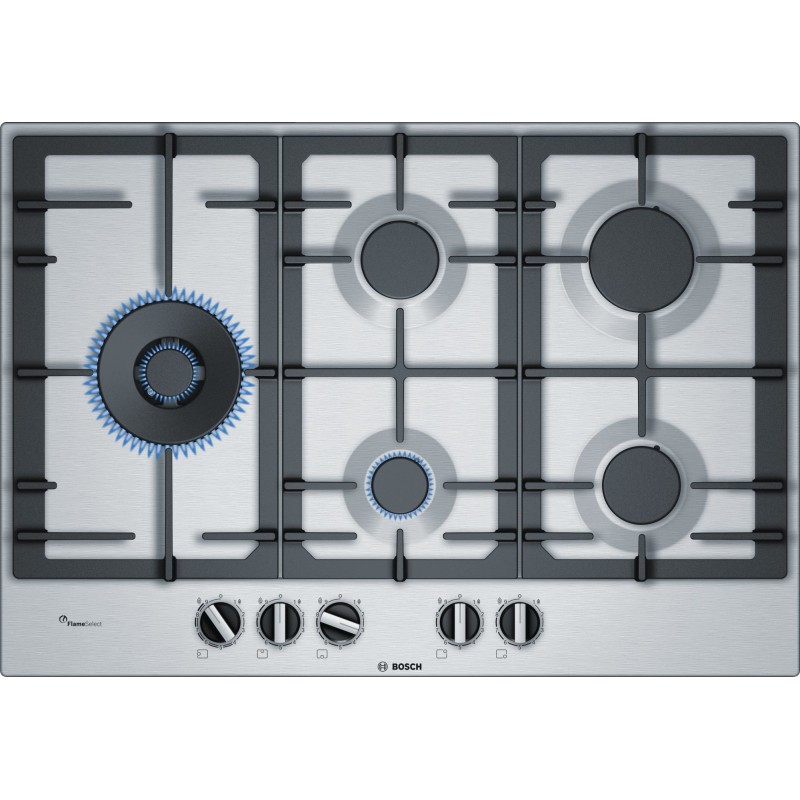

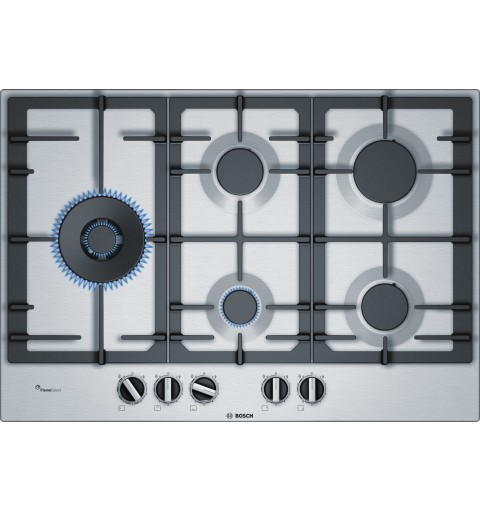

Bosch Serie 6 PCS7A5B90 hob Stainless steel Built-in Gas 5 zone(s)

The stainless-steel gas hob with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.

- FlameSelect: for a precise adjustment of the flame in nine defined levels.

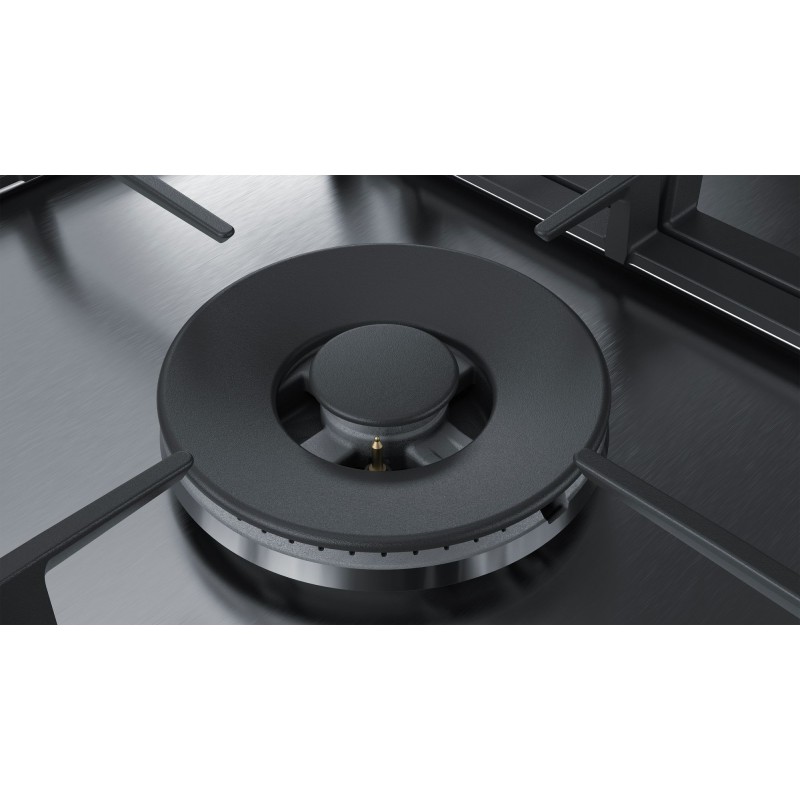

- Dual wok burner: dual flame system for very powerful cooking at up to 5 kW.
- Continuous cast-iron pan support: for high firmness and stability of cookware.

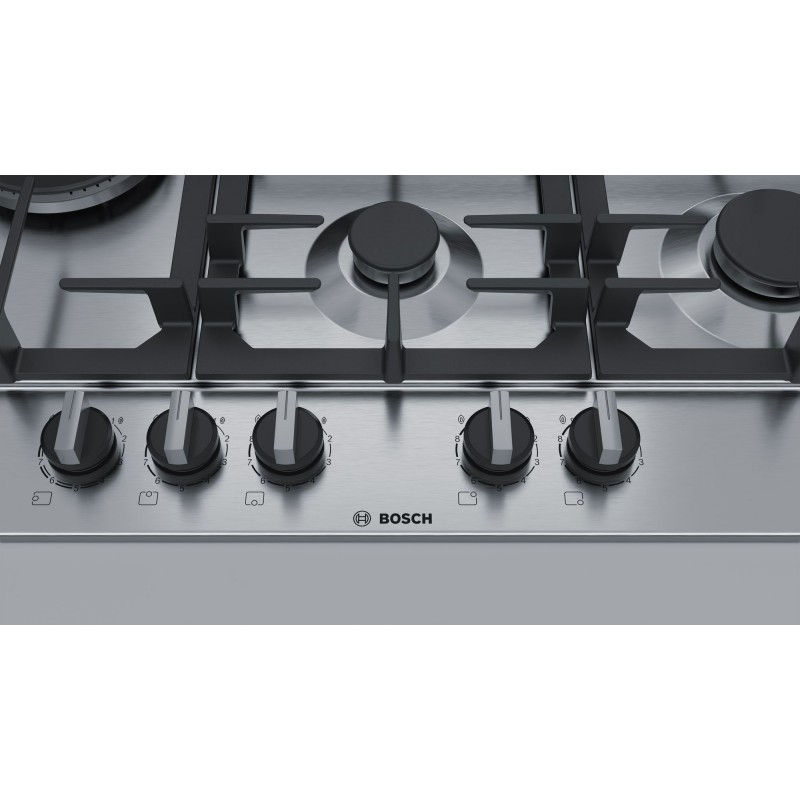

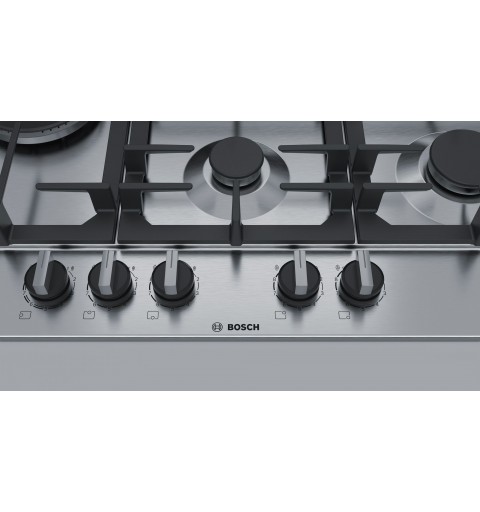

- Sword knobs: for an ergonomic control.
- Surface colour: Stainless steel

DualWok: Our flame is so gentle that even chocolate melts at the sight of it.
Bosch gas hobs are strong and gentle at the same time. High power, for instance, brings pasta water to the boil in no time at all. But that wasn’t enough for us – or you, either. Low power is just as important for your favourite dishes. So we made sure that our low power was particularly gentle for simmering. So gentle, in fact, that it even melts chocolate with no risk of scalding, makes perfect sauces, or simply keeps your food hot.

Bosch Serie 6 PCS7A5B90. Product colour: Stainless steel, Appliance placement: Built-in, Hob type: Gas. Certification: CE. Control type: Rotary, Control position: Top front. Connected load (gas): 12500 W, AC input voltage: 220-240 V, AC input frequency: 50 - 60 Hz. Width: 750 mm, Depth: 520 mm, Height: 45 mm

Design
Product colour	Stainless steel
Appliance placement	Built-in
Hob type	Gas
Top surface type	Stainless steel
Number of cooking zones	5 zone(s)
Number of gas cooking zones	5 zone(s)
Cooking zone 1 type	Extra large
Cooking zone 1 power	5000 W
Cooking zone 2 type	Regular
Cooking zone 2 power source	Gas
Cooking zone 2 power	1750 W
Cooking zone 3 type	Simmer
Cooking zone 3 power source	Gas
Cooking zone 3 power	1000 W
Cooking zone 4 type	Large
Cooking zone 4 power source	Gas
Cooking zone 4 power	3000 W
Cooking zone 5 type	Regular
Cooking zone 5 power source	Gas
Cooking zone 5 power	1750 W
Wok burner	Y
Wok burner position	Left
Wok burner power	5000 W
Number of simultaneously used cooking zones	5
Pan support material	Cast iron
Frame type	Frameless
Frame colour	Stainless steel
Performance
Number of power levels	9
Thermocouple protection	Y
Certification	CE
Ergonomics
Control type	Rotary
Control position	Top front
Built-in display	N
Electronic ignition	Y
Power
Connected load (gas)	12500 W
AC input frequency	50 - 60 Hz
Current	3 A
Weight & dimensions
Width	750 mm
Depth	520 mm
Height	45 mm
Weight	14 kg
Cord length	1 m
Installation compartment width	56 cm
Installation compartment depth (min)	48 cm
Installation compartment depth (max)	49 cm
Installation compartment height	4.5 cm
Package width	795 mm
Package depth	605 mm
Package height	168 mm
Package weight	15 kg
