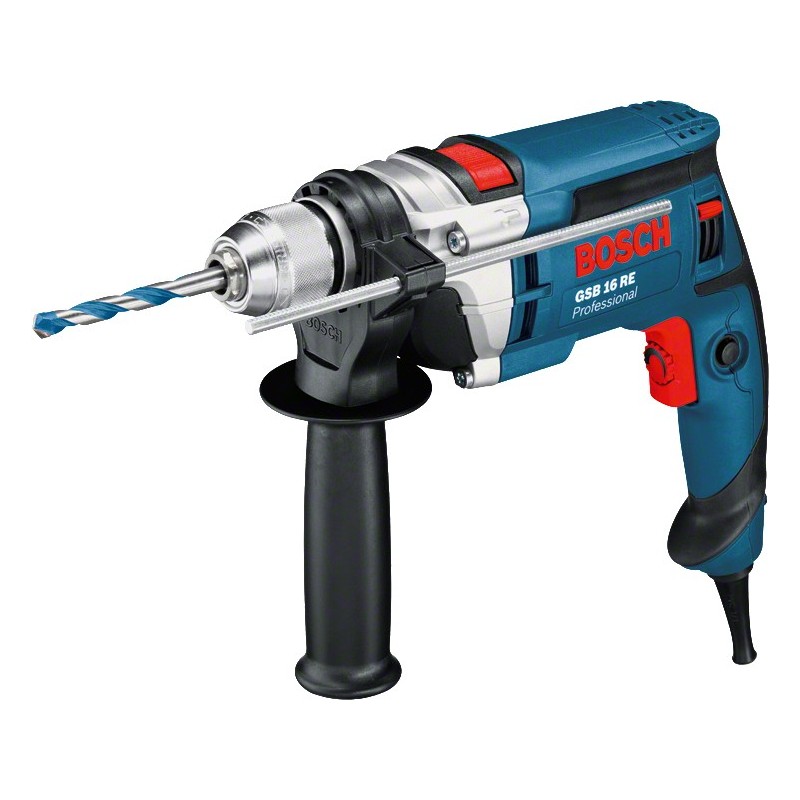

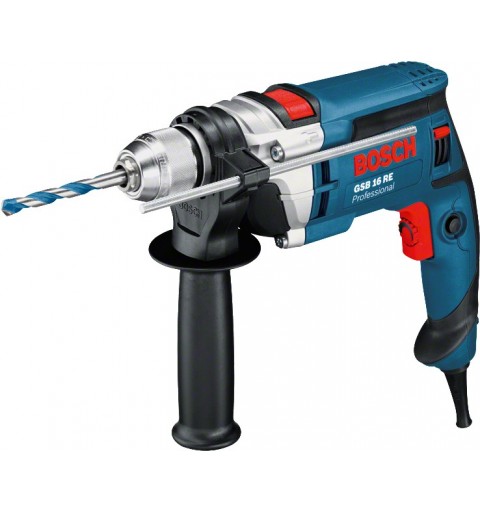

Bosch 0 601 14E 500 drill 2800 RPM 2.2 kg

The fastest tool in its class

- 750 W for the fastest work progress
- Compact design for perfect handling
- Sturdy metal gear housing for long lifetime
- Single-sleeve keyless chuck with Auto-Lock for fast tool changes with one hand
- Rotating brush plate for constant power in reverse and forward rotation
- New safety handle with innovative fixing for a secure hold on the machine
- Ball grommet for high movement radius and for preventing cable breaks
- Speed preselection with setting wheel for working in various materials
- Softgrip for a secure hold
- Spindle collar diameter of 43 mm (European standard) – can be used in drill stands

Bosch 0 601 14E 500. Product design: Pistol grip drill. Chuck capacity (max): 1.3 cm, Idle speed (max): 2800 RPM, Drilling diameter in wood (max): 3 cm. Power source: AC, Input power: 750 W, Output power: 380 W. Weight: 2.2 kg, Width: 285 mm, Depth: 83 mm

Features
Drilling	Y
Screwdriving	Y
Hammer drilling	Y
Product design	Pistol grip drill
Adjustable speed	Y
Soft grip	Y
Performance
Chuck capacity (min)	1.5 mm
Chuck capacity (max)	1.3 cm
Number of gears	1
Idle speed (max)	2800 RPM
Spindle thread	1/2"
Drilling diameter in wood (max)	3 cm
Drilling diameter in steel (max)	1.3 cm
Drilling diameter in concrete (max)	1.6 cm
Sound power level	110 dB
Sound pressure level	99 dB
Sound level uncertainty	5 dB
Vibration level (concrete drilling)	15 m/s²
Vibration level uncertainty (concrete drilling)	2.4 m/s²
Vibration level (metal drilling)	5.5 m/s²
Vibration level uncertainty (metal drilling)	1.5 m/s²
Vibration level (screwdriving)	2.5 m/s²
Vibration level uncertainty (screwdriving)	1.5 m/s²
Power
Power source	AC
Input power	750 W
Output power	380 W
Weight & dimensions
Width	285 mm
Depth	83 mm
Height	214 mm
Weight	2.2 kg
Package width	350 mm
Package depth	370 mm
Package height	110 mm
