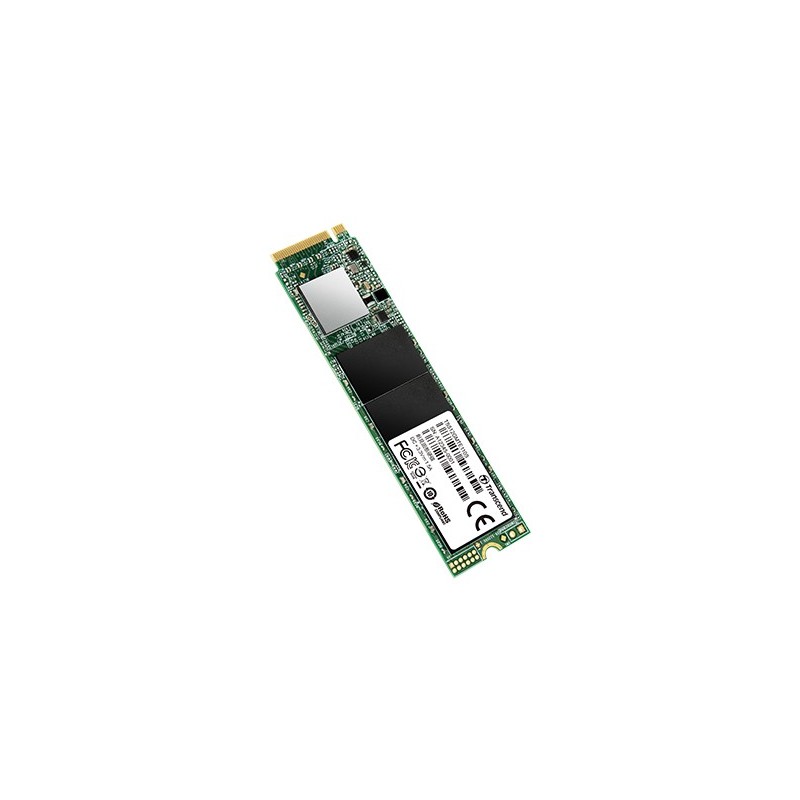

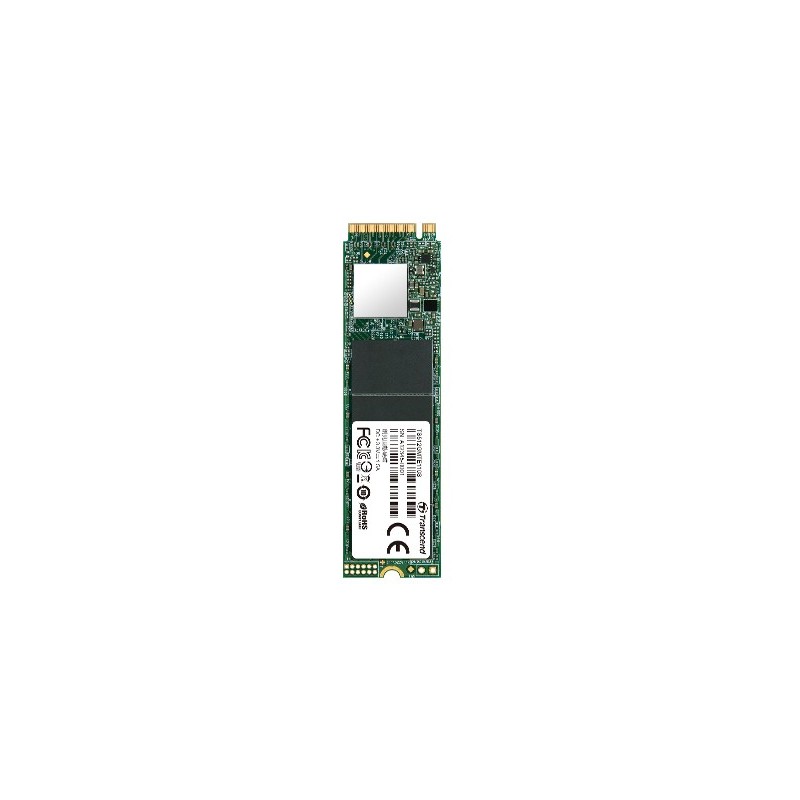

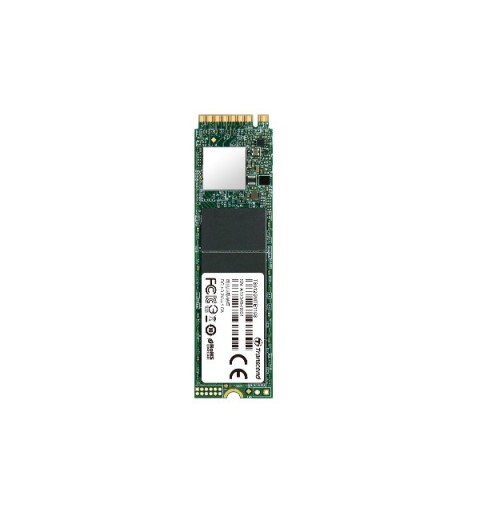

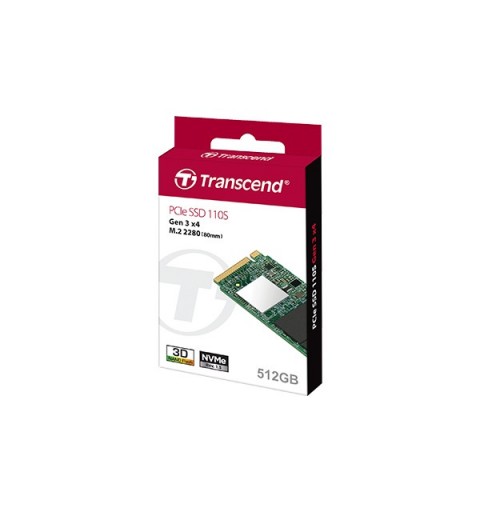

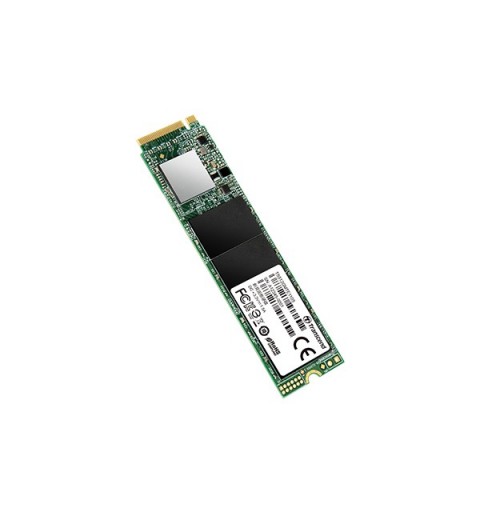

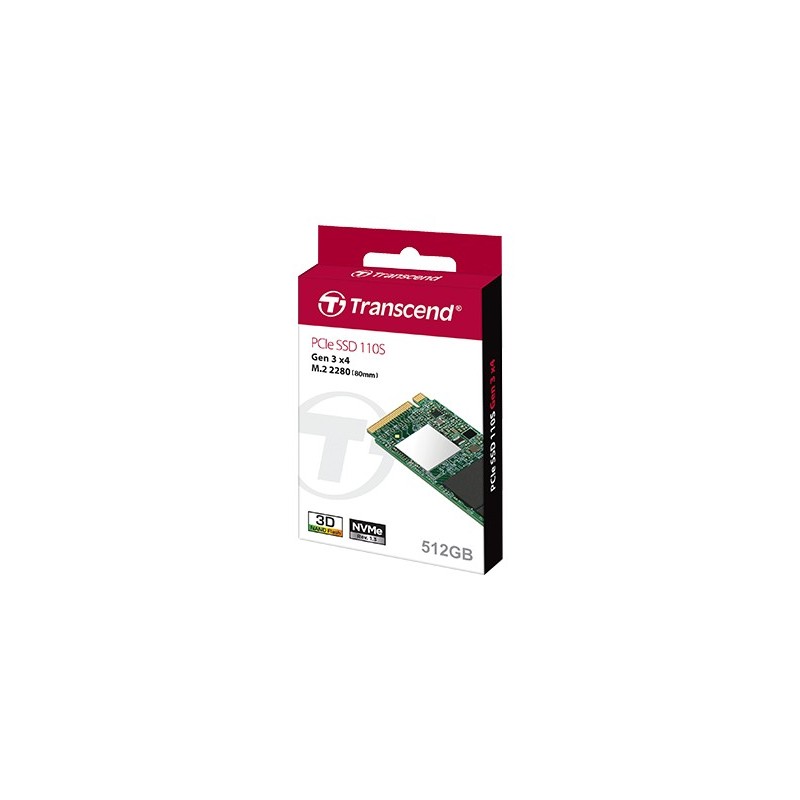

Transcend PCIe SSD 110S 256G

Transcend's PCIe SSD 110S utilizes the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, to unleash next-generation performance. The PCIe SSD 110S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Powered by 3D NAND flash memory, the PCIe SSD 110S gives you not only fast transfer speeds but unmatched reliability.

Compelling performance for high-end applications
Transcend's PCIe SSD 110S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously, resulting in compelling performance of up to 1,700MB/s read and 1,400MB/s write.

Note: Performance is based on CrystalDiskMark v5.0.2.

Understanding the PCIe interface
PCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.

Understanding the NVMe standard
NVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.]

3D expansion to break through limits
Unlike the existing planar NAND chips, 3D NAND flash is a type of flash memory in which the memory cells are stacked vertically in multiple layers. 3D NAND is developed to break through density limitations of the 2D planar NAND, and thus can deliver a greater level of performance and endurance.

Better endurance, higher reliability
Transcend's PCIe SSD 110S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 110S guarantees superior endurance and stability for high-end applications.

Transcend SSD Scope software
To keep your Transcend SSD running fast and error-free, Transcend's SSD Scope software application is available for download free of charge. Monitor your SSD's health status with S.M.A.R.T. technology, enable the TRIM command for optimum write speeds, keep your SSD's firmware up-to-date, and migrate data from your original drive to a new SSD with just a few clicks.

Guaranteed quality
To ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.

Transcend PCIe SSD 110S 256G. SSD capacity: 256 GB, SSD form factor: M.2, Read speed: 1600 MB/s, Write speed: 800 MB/s, Component for: PC/Laptop

Features
SSD form factor	M.2
SSD capacity	256 GB
Interface	PCI Express 3.0
Memory type	3D NAND
NVMe	Yes
NVMe version	1.3
Component for	PC/Laptop
Read speed	1600 MB/s
Write speed	800 MB/s
Random read (4KB)	110000 IOPS
Random write (4KB)	95000 IOPS
TRIM support	Yes
Low-density parity-check (LDPC)	Yes
Mean time between failures (MTBF)	2000000 h
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Mac operating systems supported	No
Linux operating systems supported	Kernel 2.6.31
TBW rating	100
Certification	CE/FCC/BSMI/KC/RCM
Power
Operating voltage	3.3 V
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Weight & dimensions
Width	22 mm
Depth	3.58 mm
Height	80 mm
Weight	8 g
Logistics data
Harmonized System (HS) code	84717070
