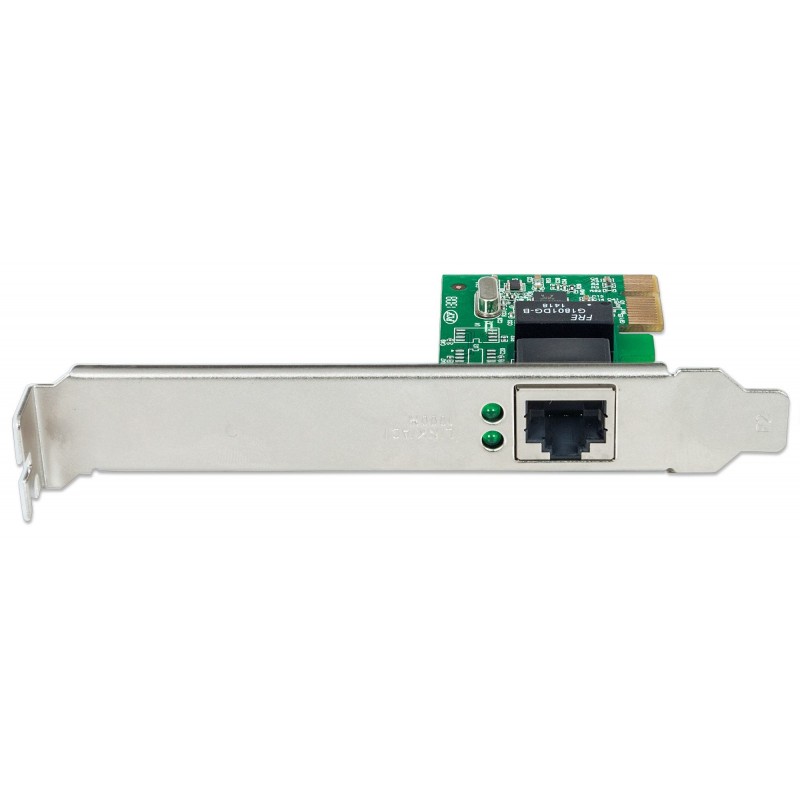

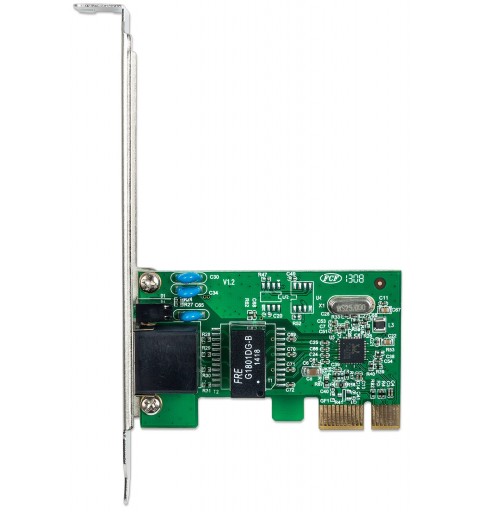

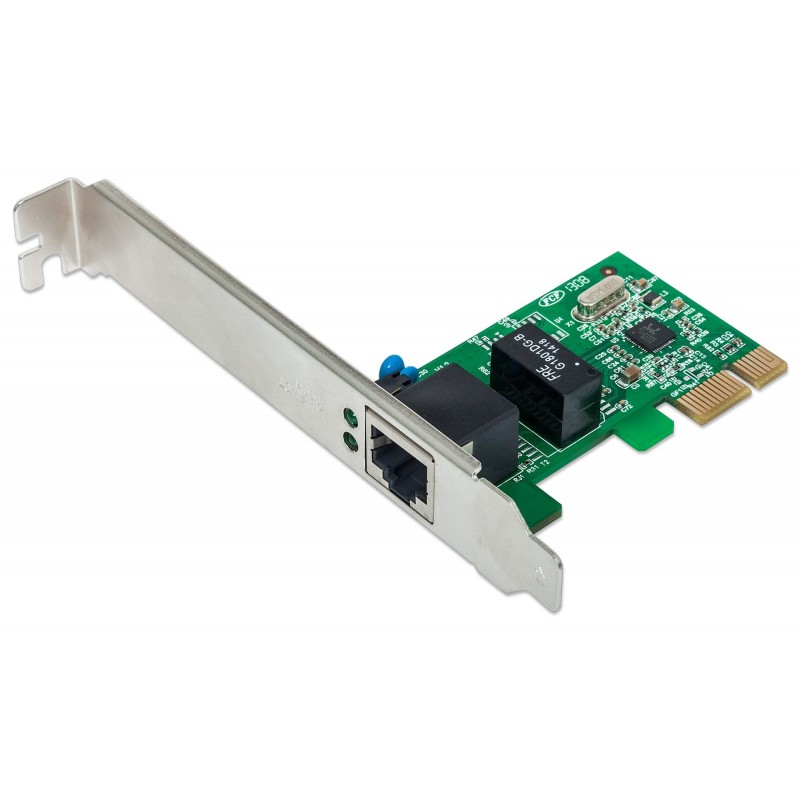

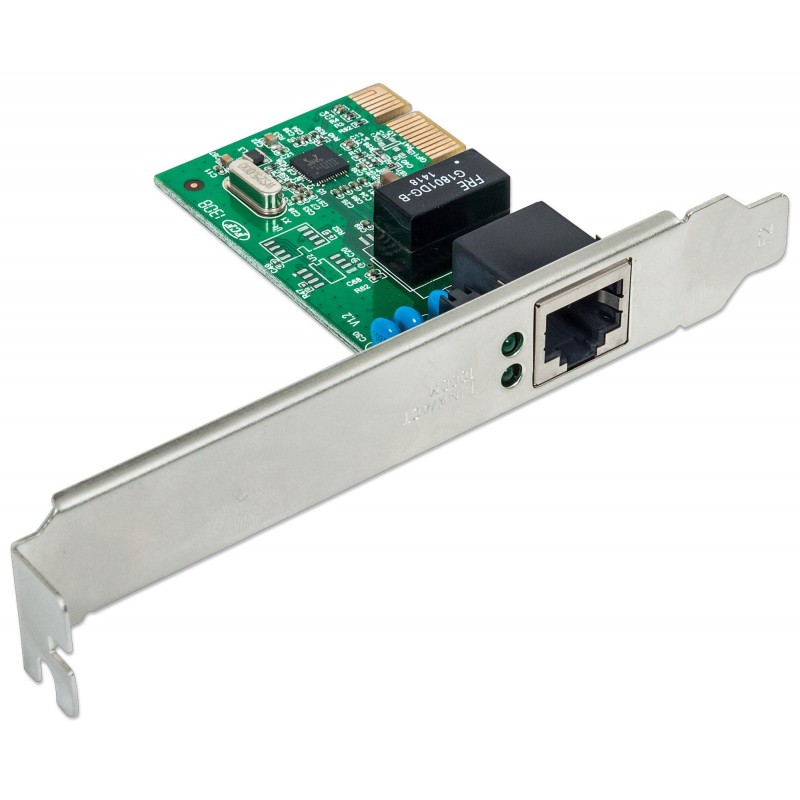

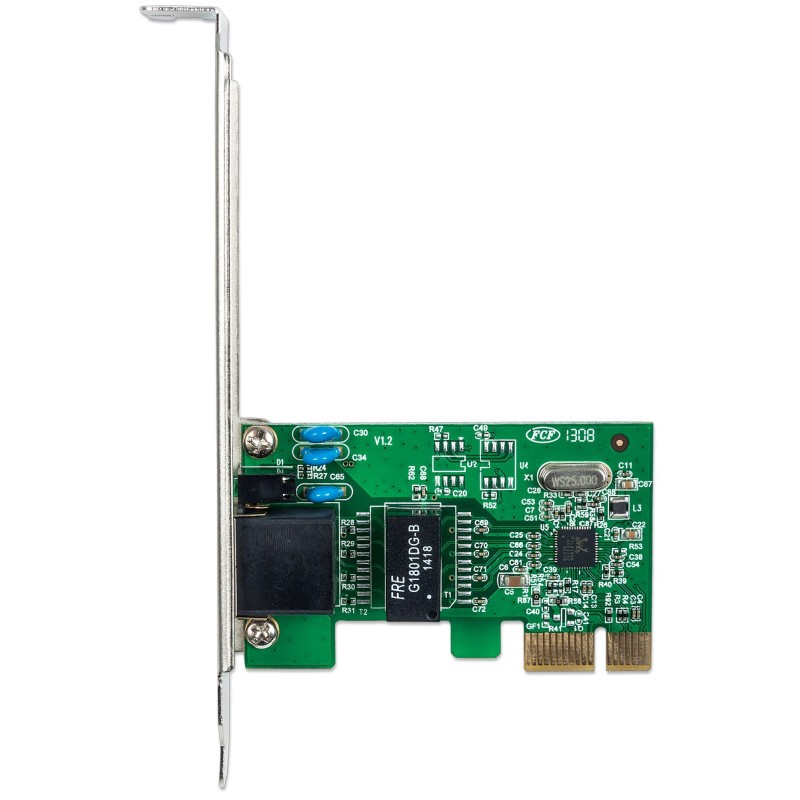

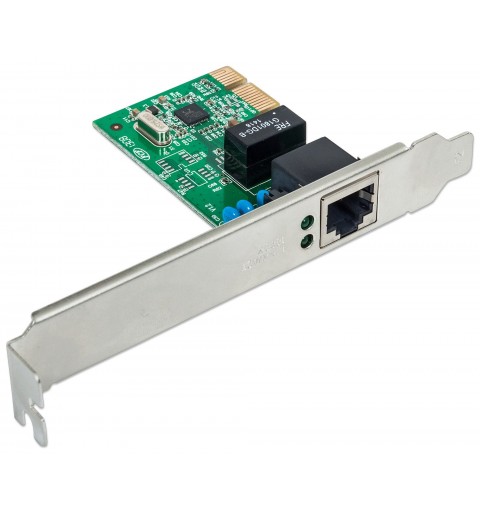

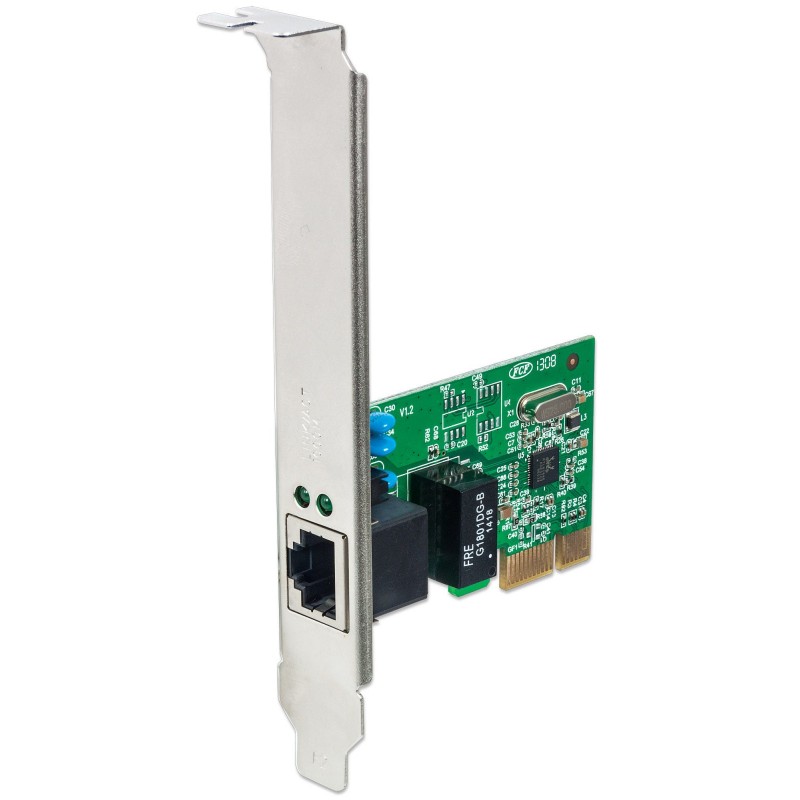

Intellinet Gigabit PCI Express Network Card, 10/100/1000 Mbps PCI Express RJ45 Ethernet Card

The Gigabit PCI Express Network Card is a high-performance network adapter. It supports the PCI Express bus architecture, which provides faster throughput than the current 32- and 64-bit PCI bus architectures. And there is no need to switch to fibre optic cable - The Intellinet Network Solutions Gigabit PCI Express Network Card allows you to run Gigabit speeds over your existing copper wire network cable.

Faster Throughput
The PCI Express host interface supports throughput rates of up to 2 Gbps when running in full duplex mode, ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications.

Auto-Negotiation
The Gigabit PCI Express Network Card will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet.

Full Duplex
When running in full duplex mode, the Gigabit PCI Express Network Card provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).

Built-In Diagnostics
The Gigabit PCI Express Network Card comes standard with crossover detection and auto correction capabilities that make installation and maintenance a snap.

Remote Power On
The Wake-On-LAN feature allows you to power on your desktop PC from anywhere on the network.

Intellinet Gigabit PCI Express Network Card, 10/100/1000 Mbps PCI Express RJ45 Ethernet Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s

Ports & interfaces
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Network
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Ethernet LAN	Y
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Full duplex	Y
Design
Internal	Y
Component for	PC
Certification	FCC & CE
System requirements
Windows operating systems supported	Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	122 mm
Depth	254 mm
Height	89 mm
Weight	108.3 g
Packaging content
Manual	Y
Other features
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Link/Act LED	Y
