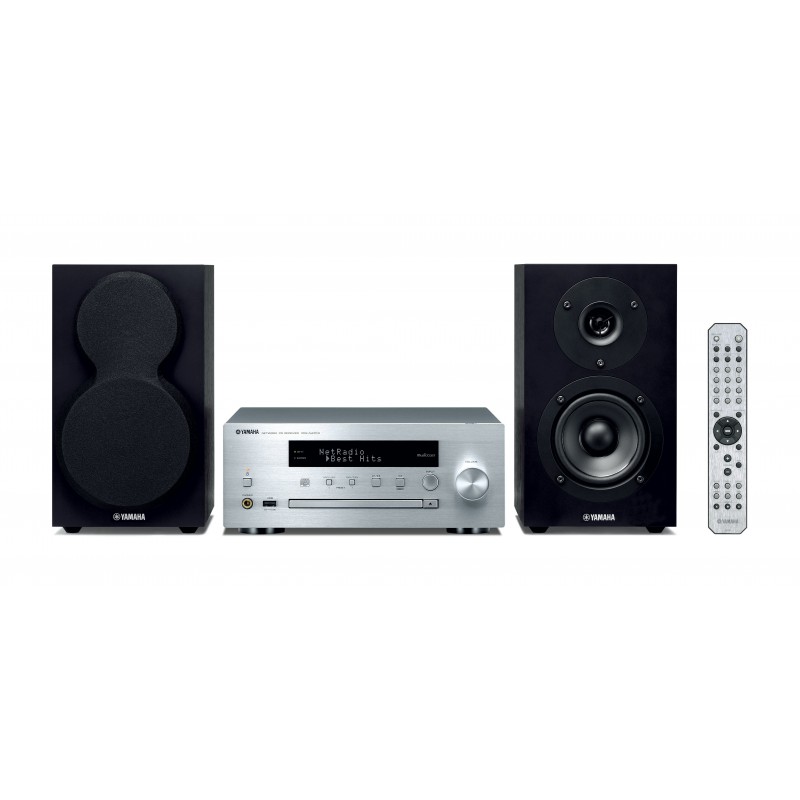

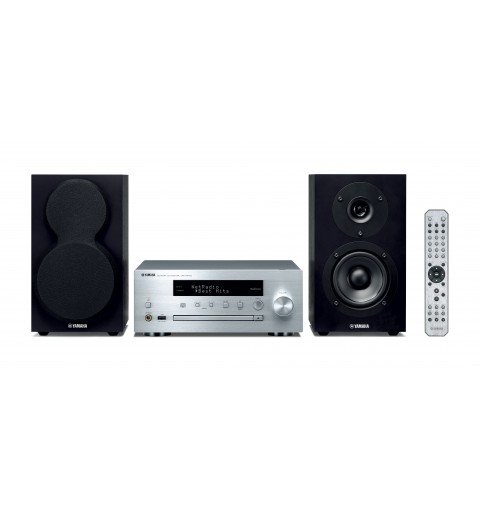

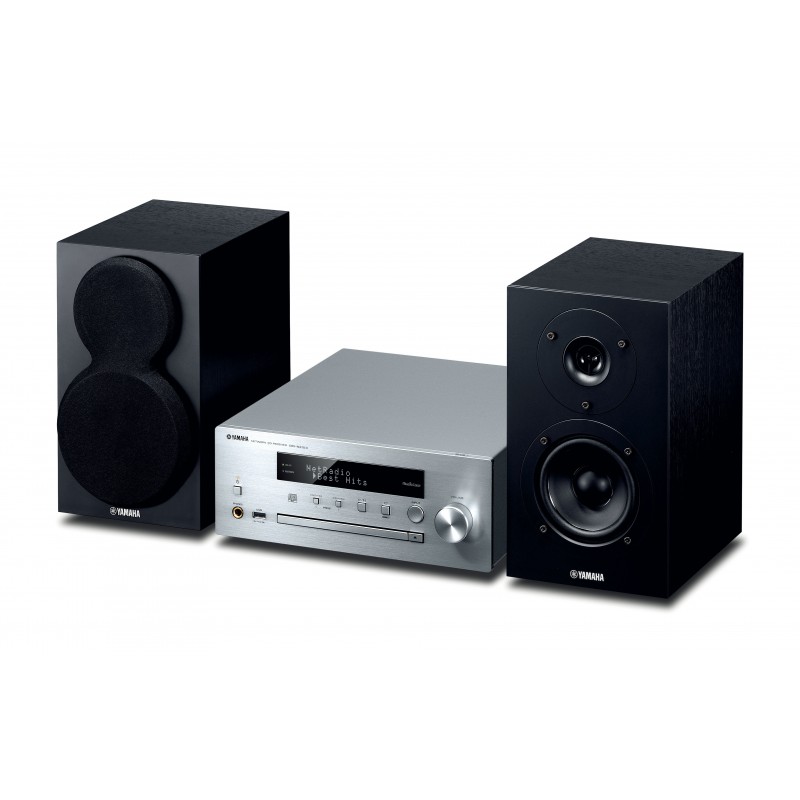

Yamaha MCR-N470D Home audio micro system 44 W Black, Silver

Traditional Appearance, with Plentiful Functions Including DAB Tuner
You’ll enjoy a wide range of sources and functions, from CD, USB and FM / DAB radio to the latest versions of Wi-Fi, MusicCast, AirPlay® and Bluetooth®. Not only convenience, you get all the high sound quality you demand. Support for MusicCast means you can always enjoy your favourite music. And by adding other MusicCast compatible components, you expand your musical enjoyment even further.

- MusicCast for audio enjoyment in every room
- Support for internet radio and various music streaming services
- Aluminium front panel with hairline finish
- High performance speaker with VCCS (Vibration Control Cabinet Structure) technology
- Supports 192 kHz/24-bit High Resolution Music (Flac / WAV / AIFF)
- Bluetooth® for wireless music streaming
- Supports Bluetooth output for pairing MCR-N470D and other Bluetooth equipped products
- AirPlay® allows music streaming from Mac, PC, iPod®, iPhone®, iPad®
- Control app for easy operations (MusicCast CONTROLLER)
- Front USB terminal for playback of USB memory (mass storage class)
- Enjoy digital radio from DAB / DAB+ tuner

MusicCast
MusicCast is a new revolution in network audio, use all your MusicCast products together or separately, it’s completely up to you. Control it, all from one app, designed to be intuitive, quick and simple to use. Use a soundbar, a wireless speaker, an AV receiver, Hi-Fi audio whichever suits you best, mix and match then expand your MusicCast system as time goes on. All new from Yamaha, the MusicCast system brings everything to everywhere for everyone.

Enjoy All Your Music Sources
MusicCast employs a high performance wireless network to deliver music and audio enjoyment. It can stream digital music content from your smartphone, PC or NAS to other MusicCast devices in your home. Audio content from Bluetooth-connected smartphones or tablets can also be streamed to MusicCast devices in multiple rooms.

Sophisticated Appearance
The MCR-N470D maintains the design image of Yamaha Hi-Fi components, presenting an extremely high-class, sophisticated appearance. The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your audio room will increase your listening pleasure.

A Digital Amplifier that Fully Inherits the Yamaha Hi-Fi Concept
The MCR-N470D features Yamaha’s own high efficiency digital amplifier technology to provide lossless high fidelity digital audio playback whether from network audio, USB or CD. Its circuit design fully inherits the Yamaha Hi-Fi concept, with a minimised signal path and thorough elimination of mutual audio signal interference helping you enjoy high quality sound from a wide range of sources from music CDs to hi-resolution audio format.

VCCS Vibration Control Cabinet Structure Technology
To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that uses strategically placed pieces of a composite material providing excellent vibration isolation performance. In addition, three legs provide additional shock absorption, considerably enhancing sound quality. The speaker terminals are high-grade, gold-plated screw type.

Control App for Easy Operations
Simply tap the beautifully designed screen and take control of all the audio equipment and all the music in your home.

Easily Select the Music Source You Want to Hear
The MusicCast App makes it easy to select and play songs from CDs and USB devices, as well as to select radio stations (FM and DAB). In addition, by using the MusicCast Link function, you can send those sources to other MusicCast compatible devices for enjoying them in other rooms.

Stream via Bluetooth® or AirPlay®
You can hear all the music sources from your smartphone via wireless Bluetooth or AirPlay connection. You can play music from music apps, radio apps, or YouTube™-type video hosting services.

Bluetooth Output for Convenient Music Streaming
The MCR-N470D is equipped with the latest Bluetooth technology, making wireless operation more convenient than ever. You can stream music from the MCR-N470D to Bluetooth headphones for private listening or to Bluetooth speakers.

Enjoy Digital Radio from DAB / DAB+ Tuner
DAB and the improved DAB+ version is Digital Audio Broadcasting that offers a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name.

Yamaha MCR-N470D. Type: Home audio micro system, Product colour: Black, Silver, Number of optical discs: 1 discs. RMS rated power: 44 W, Speaker type: 2-way, Woofer diameter: 11 cm. Supported radio bands: DAB, DAB+, FM, Internet radio services supported: Napster, Pandora, SIRIUS Internet Radio, Spotify, vTuner. Bluetooth version: 2.1+EDR. Headphone connectivity: 3.5 mm

Design
Type	Home audio micro system
Product colour	Black, Silver
Optical disc player	Y
Cassette deck	N
Number of optical discs	1 discs
Disc loading type	Slot
Multimedia
Speaker type	2-way
Number of speakers	2
RMS rated power	44 W
Woofer diameter	11 cm
Tweeter diameter	2.5 cm
Impedance	6 Ω
Signal-to-Noise Ratio (SNR)	83 dB
Total Harmonic Distortion (THD)	0.05%
Frequency range	55 - 38000 Hz
Radio
Supported radio bands	DAB, DAB+, FM
Internet radio services supported	Napster, Pandora, SIRIUS Internet Radio, Spotify, vTuner
Preset stations quantity	30
Network
Ethernet LAN	Y
Wi-Fi	Y
Bluetooth	Y
Bluetooth version	2.1+EDR
Ports & interfaces
USB port	Y
Headphone connectivity	3.5 mm
Audio (L/R) out	1
AUX in	Y
Phono inputs (RCA)	1
Performance
MP3 playback	Y
Card reader integrated	N
Disc types supported	CD, CD-R, CD-RW
Audio formats supported	AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
LED indicators	Y
Ergonomics
Volume control	Rotary
Power
Power source	AC
Power consumption (standby)	0.5 W
Weight & dimensions
Width	270 mm
Depth	330 mm
Height	110 mm
Weight	3 kg
Front speaker width	15.4 cm
Front speaker depth	23.7 cm
Front speaker height	27.4 cm
Front speaker weight	2.6 kg
Package type	Box
Packaging content
Remote control included	Y
Quick start guide	Y
Other features
Apple docking compatibility	Not supported
Bluetooth profiles	A2DP, AVRCP
Digital Living Network Alliance (DLNA) certified	Y
