Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight),

    Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight),

    €36.23 Tax included
    Codice Articolo: 600775
    Garanzia Italia 2 Anni logo ita

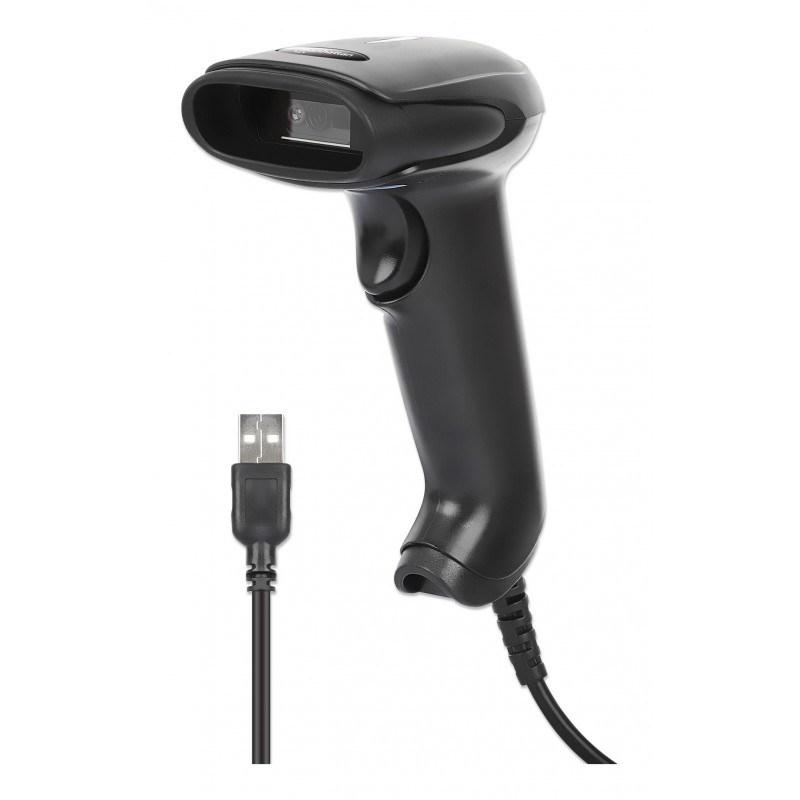

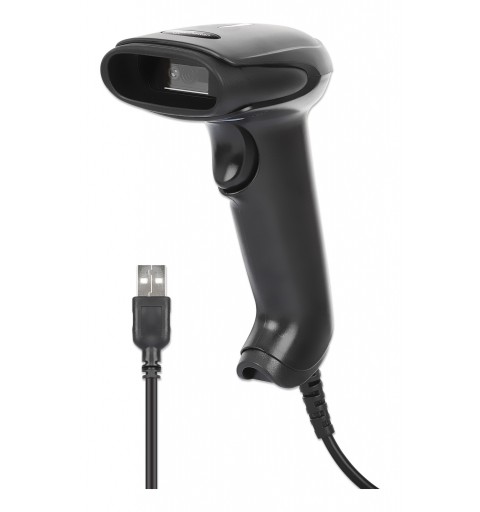

    Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Box, Handheld bar code reader, 1D/2D, LED, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar..., Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code, 640 x 480 pixels

    Disponibilità:
    Affordable 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Warehousing, and Hospitality
    The Manhattan 2D LED Barcode Scanner is your entry-level solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

    Quick and Accurate Reads Every Time
    With its wide scan field and scan depth of up to 320 mm (12.6 in.), it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

    Versatile Compatibility for Many Symbologies
    Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

    Reliable Performance in Any Lighting Condition
    Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

    Plug-and-Play Installation for Effortless Setup
    Experience hassle-free installation with easy plug-and-play functionality. No drivers or additional software required, simply connect the USB-A plug and start scanning. Compatible with Windows®, macOS®, Chrome OS™, and Linux®, it seamlessly integrates with your existing systems. Its wired USB connectivity ensures reliable performance without the hassle of changing batteries.

    Enhanced Convenience with our Barcode Scanner Stand
    For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

    Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Box. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: USB, Cable length: 1.4 m. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Print contrast: 25%. Power source type: USB, Input voltage: 5 V, Power consumption: 130 mA. Weight: 110 g, Width: 70 mm, Depth: 150 mm
    Scansione
    TipoLettore di codici a barre portatile
    Tipo di scansione1D/2D
    Codici a barre bidimensionali (2D) supportatiAztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
    Risoluzione del sensore ottico (L x A)640 x 480 Pixel
    Risoluzione 2D (min)0,17 mm
    Distanza di funzionamento32 cm
    campo di visione orizzontale36°
    campo di visione verticale28°
    Area massima di scansione (alimentazione carta automatica)100 letture/s
    Livelli di luce0 - 100000 lx
    Connettività
    Tecnologia di connessioneCablato
    Interfaccia standardUSB
    Lunghezza cavo1,4 m
    Prestazione
    Colore del prodottoNero
    Materiale della scoccaAcrilonitrile butadiene stirene (ABS)
    Contrasto di stampa25%
    Tempo medio tra guasti (MTBF)50000 h
    Gestione energetica
    Tipologia alimentazioneUSB
    Voltaggio di ingresso5 V
    Consumo di energia130 mA
    Dimensioni e peso
    Larghezza70 mm
    Profondità150 mm
    Altezza95 mm
    Peso110 g
    Dati su imballaggio
    Larghezza imballo195 mm
    Profondità imballo80 mm
    Altezza imballo105 mm
    Peso dell'imballo260 g
    Condizioni ambientali
    Resistenza alle cadute1,2 m
    Dettagli tecnici
    Certificati di conformitàCE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
    Dati logistici
    Altezza scatola principale400 mm
    Manhattan
    600775
    In Stock

    Data sheet

    Width
    70 mm
    Depth
    150 mm
    Height
    95 mm
    Weight
    110 g
    Package width
    195 mm
    Package depth
    80 mm
    Package height
    105 mm
    Package weight
    260 g
    Product colour
    Black
    Operating temperature (T-T)
    -20 - 50 °C
    Storage temperature (T-T)
    -20 - 60 °C
    Type
    Handheld bar code reader
    Housing material
    Acrylonitrile butadiene styrene (ABS)
    Warranty period
    3 year(s)
    Cord length
    1.4 m
    Operating relative humidity (H-H)
    5 - 95%
    Mean time between failures (MTBF)
    50000 h
    Input voltage
    5 V
    Products per master (outer) case
    40 pc(s)
    Power source type
    USB
    Connectivity technology
    Wired
    Sensor type
    LED
    Master (outer) case width
    360 mm
    Master (outer) case length
    565 mm
    Master (outer) case height
    400 mm
    Master (outer) case gross weight
    10.2 kg
    Scanner type
    1D/2D
    Horizontal field of view
    36°
    Vertical field of view
    28°
    Standard interfaces
    USB
    Power consumption
    130 mA
    Compliance certificates
    CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
    Linear (1D) barcodes supported
    Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Intelligent Mail, Interleaved 2 of 5, MSI, Matrix 2 of 5, UPC-A, UPC-E, JAN-13, JAN-8
    2D (matrix & stacked) barcodes supported
    Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
    Optical sensor resolution (W x H)
    640 x 480 pixels
    1D resolution (min)
    0.1 mm
    2D resolution (min)
    0.17 mm
    Working distance
    32 cm
    Read rate (max)
    100 reads/s
    Light levels (direct sunlight)
    0 - 100000 lx
    Print contrast
    25%
    Drop resistance
    1.2 m
