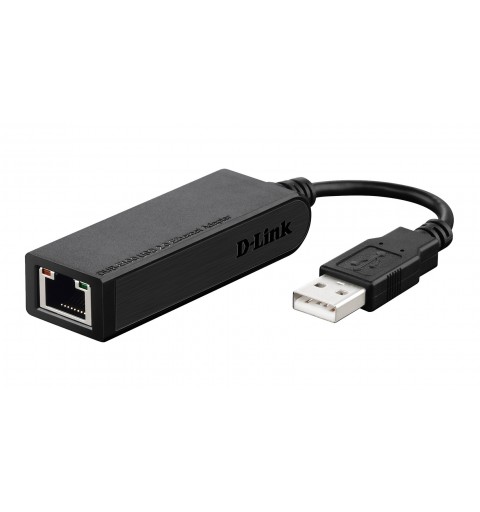

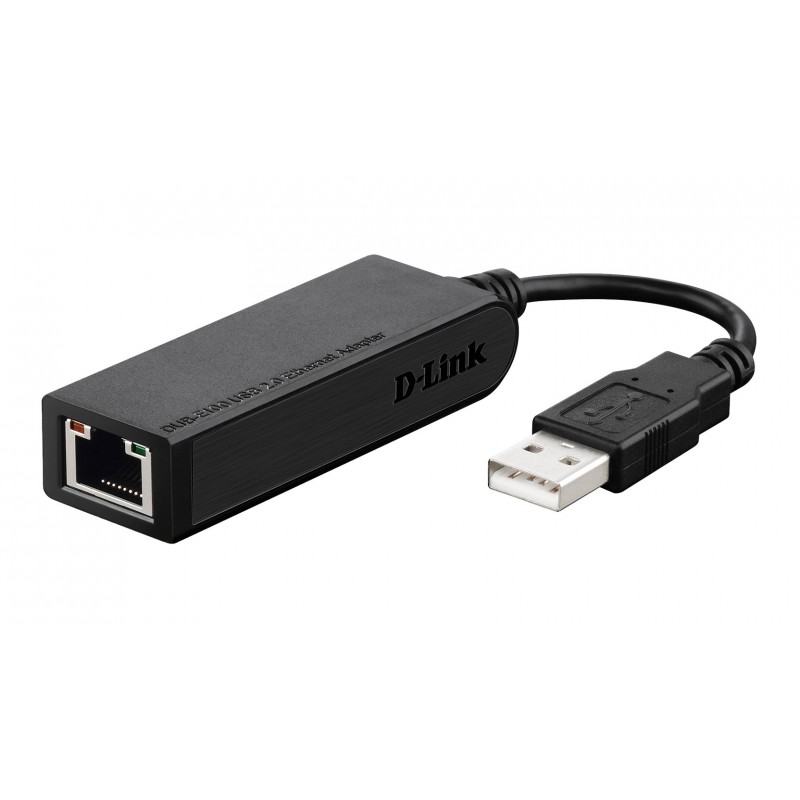

D-Link DUB-E100 network card Ethernet 100 Mbit/s

The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE. Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.

As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer. Installation and use are further simplified by living up to USB's out-of-the-box installation approach to connecting computer peripherals. You will not need to open the case of your computer, nor will you be required to set IRQ's. The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.

The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch. The built-in USB 2.0 cable connects directly to your computer or laptop.

Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter. It also supports USB's energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.

D-Link DUB-E100. Connectivity technology: Wired, Host interface: USB, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s. Product colour: Black

Ports & interfaces
Connectivity technology	Wired
Host interface	USB
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Network
Maximum data transfer rate	100 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3u
Cabling technology	10/100BaseT(X)
Full duplex	Yes
Design
Internal	No
Product colour	Black
LED indicators	Link, Power
Certification	FCC Class B, CE Class B
Power
Input current	0.5 A
Power consumption (typical)	2.5 W
Power consumption	150 mA
System requirements
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 98, Windows ME, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	21.3 mm
Depth	73 mm
Height	20 mm
Weight	22 g
Packaging data
Package width	138 mm
Package depth	138 mm
Package height	30 mm
Package weight	116 g
Logistics data
Shipping (inner) case gross weight	8.4 kg
Pallet gross width	110 cm
Pallet gross length	120 cm
Other features
Compliance industry standards	OHCI, EHCI
Ports quantity	1
